Observer that manages the interaction with the display. More...

#include <mitkDisplayInteractor.h>

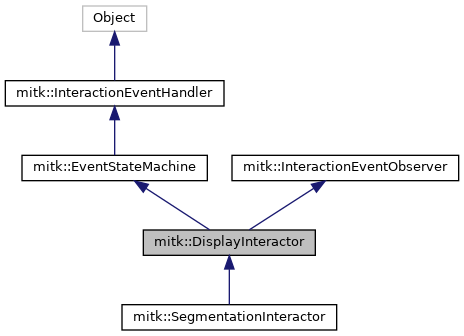

Inheritance diagram for mitk::DisplayInteractor:

[legend]

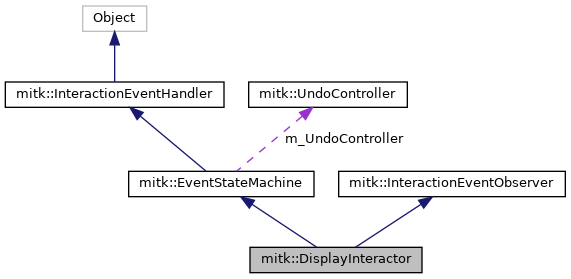

Collaboration diagram for mitk::DisplayInteractor:

[legend]

Public Types
typedef DisplayInteractor	Self

typedef EventStateMachine	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::EventStateMachine
typedef EventStateMachine	Self

typedef InteractionEventHandler	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TActionFunctor * >	ActionFunctionsMapType

typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Types inherited from mitk::InteractionEventHandler
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

void	Notify (InteractionEvent *interactionEvent, bool isHandled) override

Public Member Functions inherited from mitk::EventStateMachine
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Loads XML resource. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)

void	EnableUndo (bool enable)
	Enables or disabled Undo. More...

void	EnableInteraction (bool enable)
	Enables/disables the state machine. In un-enabled state it won't react to any events. More...

Public Member Functions inherited from mitk::InteractionEventHandler
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Public Member Functions inherited from mitk::InteractionEventObserver
	InteractionEventObserver ()

virtual	~InteractionEventObserver ()

void	Disable ()

void	Enable ()

bool	IsEnabled () const

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::EventStateMachine
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::InteractionEventHandler
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	DisplayInteractor ()

	~DisplayInteractor () override

void	ConnectActionsAndFunctions () override

void	ConfigurationChanged () override

bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode) override

virtual bool	CheckPositionEvent (const InteractionEvent *interactionEvent)

virtual bool	CheckRotationPossible (const InteractionEvent *interactionEvent)

virtual bool	CheckSwivelPossible (const InteractionEvent *interactionEvent)

virtual void	Init (StateMachineAction , InteractionEvent )
	Initializes an interaction, saves the pointers start position for further reference. More...

virtual void	Move (StateMachineAction , InteractionEvent )
	Performs panning of the data set in the render window. More...

virtual void	SetCrosshair (StateMachineAction , InteractionEvent )
	Sets crosshair at clicked position*. More...

virtual void	IncreaseTimeStep (StateMachineAction , InteractionEvent )
	Increases the time step in 3d+t data. More...

virtual void	DecreaseTimeStep (StateMachineAction , InteractionEvent )
	Decreases the time step in 3d+t data. More...

virtual void	Zoom (StateMachineAction , InteractionEvent )
	Performs zooming relative to mouse/pointer movement. More...

virtual void	Scroll (StateMachineAction , InteractionEvent )
	Performs scrolling relative to mouse/pointer movement. More...

virtual void	ScrollOneDown (StateMachineAction , InteractionEvent )
	Scrolls one layer up. More...

virtual void	ScrollOneUp (StateMachineAction , InteractionEvent )
	Scrolls one layer down. More...

virtual void	AdjustLevelWindow (StateMachineAction , InteractionEvent )
	Adjusts the level windows relative to mouse/pointer movement. More...

virtual void	StartRotation (StateMachineAction , InteractionEvent )
	Starts crosshair rotation. More...

virtual void	EndRotation (StateMachineAction , InteractionEvent )
	Ends crosshair rotation. More...

virtual void	Rotate (StateMachineAction , InteractionEvent event)

virtual void	Swivel (StateMachineAction , InteractionEvent event)

virtual void	UpdateStatusbar (StateMachineAction , InteractionEvent event)
	Updates the Statusbar information with the information about the clicked position. More...

bool	GetBoolProperty (mitk::PropertyList::Pointer propertyList, const char *propertyName, bool defaultValue)
	Method to retrieve bool-value for given property from string-property in given propertylist. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, TActionFunctor *functor)

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor (if modified by the SlicesCoordinator) to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

Additional Inherited Members
Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Observer that manages the interaction with the display.

Inherits from mitk::InteractionEventObserver since it doesn't alter any data (only their representation), and its actions cannot be associated with a DataNode. Also inherits from EventStateMachine

This includes the interaction of Zooming, Panning, Scrolling and adjusting the LevelWindow.

Definition at line 33 of file mitkDisplayInteractor.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::DisplayInteractor::ConstPointer

Definition at line 37 of file mitkDisplayInteractor.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::DisplayInteractor::Pointer

Definition at line 37 of file mitkDisplayInteractor.h.

◆ Self

typedef DisplayInteractor mitk::DisplayInteractor::Self

Definition at line 37 of file mitkDisplayInteractor.h.

◆ Superclass

typedef EventStateMachine mitk::DisplayInteractor::Superclass

Definition at line 37 of file mitkDisplayInteractor.h.

Constructor & Destructor Documentation

◆ DisplayInteractor()

mitk::DisplayInteractor::DisplayInteractor ( )

protected

Definition at line 53 of file mitkDisplayInteractor.cpp.

◆ ~DisplayInteractor()

mitk::DisplayInteractor::~DisplayInteractor ( )

overrideprotected

Definition at line 70 of file mitkDisplayInteractor.cpp.

Member Function Documentation

◆ AdjustLevelWindow()

void mitk::DisplayInteractor::AdjustLevelWindow	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Adjusts the level windows relative to mouse/pointer movement.

Definition at line 552 of file mitkDisplayInteractor.cpp.

References mitk::RenderingManager::GetInstance(), mitk::LevelWindow::GetLevel(), mitk::InteractionEvent::GetSender(), mitk::LevelWindow::GetWindow(), mitk::NodePredicateDataType::New(), mitk::RenderingManager::RequestUpdateAll(), and mitk::LevelWindow::SetLevelWindow().

Referenced by ConnectActionsAndFunctions().

◆ CheckPositionEvent()

bool mitk::DisplayInteractor::CheckPositionEvent ( const InteractionEvent * interactionEvent )

protectedvirtual

Definition at line 102 of file mitkDisplayInteractor.cpp.

Referenced by ConnectActionsAndFunctions().

◆ CheckRotationPossible()

bool mitk::DisplayInteractor::CheckRotationPossible ( const InteractionEvent * interactionEvent )

protectedvirtual

Definition at line 113 of file mitkDisplayInteractor.cpp.

References mitk::Line< TCoordRep, NPointDimension >::Distance(), mitk::eps, mitk::RenderingManager::GetAllRegisteredRenderWindows(), mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::Line< TCoordRep, NPointDimension >::GetPoint1(), mitk::BaseRenderer::GetSliceNavigationController(), mitk::BaseGeometry::GetSpacing(), mitk::PlaneGeometry::IntersectionLine(), mitk::PlaneGeometry::IntersectionPoint(), mitk::Line< TCoordRep, NPointDimension >::IsParallel(), mitk::Line< TCoordRep, NPointDimension >::Project(), and mitk::BaseRenderer::Standard3D.

Referenced by ConnectActionsAndFunctions().

◆ CheckSwivelPossible()

bool mitk::DisplayInteractor::CheckSwivelPossible ( const InteractionEvent * interactionEvent )

protectedvirtual

Definition at line 249 of file mitkDisplayInteractor.cpp.

References mitk::RenderingManager::GetAllRegisteredRenderWindows(), mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::PlaneGeometry::GetNormal(), mitk::InteractionEvent::GetSender(), mitk::BaseRenderer::GetSliceNavigationController(), mitk::PlaneGeometry::IntersectionLine(), mitk::PlaneGeometry::IntersectionPoint(), line, and mitk::BaseRenderer::Standard3D.

Referenced by ConnectActionsAndFunctions().

◆ Clone()

Pointer mitk::DisplayInteractor::Clone ( ) const

◆ ConfigurationChanged()

void mitk::DisplayInteractor::ConfigurationChanged ( )

overrideprotectedvirtual

Derived function. Is executed when config object is set / changed. Here it is used to read out the parameters set in the configuration file, and set the member variables accordingly.

Reimplemented from mitk::InteractionEventHandler.

Definition at line 829 of file mitkDisplayInteractor.cpp.

References mitk::InteractionEventHandler::GetAttributes(), and GetBoolProperty().

◆ ConnectActionsAndFunctions()

void mitk::DisplayInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Derived function. Connects the action names used in the state machine pattern with functions implemented within this InteractionEventObserver. This is only necessary here because the events are processed by the state machine.

Reimplemented from mitk::EventStateMachine.

Reimplemented in mitk::SegmentationInteractor.

Definition at line 75 of file mitkDisplayInteractor.cpp.

References AdjustLevelWindow(), CheckPositionEvent(), CheckRotationPossible(), CheckSwivelPossible(), CONNECT_CONDITION, CONNECT_FUNCTION, DecreaseTimeStep(), EndRotation(), IncreaseTimeStep(), Init(), Move(), Rotate(), Scroll(), ScrollOneDown(), ScrollOneUp(), SetCrosshair(), StartRotation(), Swivel(), UpdateStatusbar(), and Zoom().

◆ DecreaseTimeStep()

void mitk::DisplayInteractor::DecreaseTimeStep	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Decreases the time step in 3d+t data.

Definition at line 404 of file mitkDisplayInteractor.cpp.

References mitk::RenderingManager::GetInstance(), mitk::BaseController::GetTime(), mitk::RenderingManager::GetTimeNavigationController(), and mitk::Stepper::SetAutoRepeat().

Referenced by ConnectActionsAndFunctions().

◆ EndRotation()

void mitk::DisplayInteractor::EndRotation	(	mitk::StateMachineAction *	,
		mitk::InteractionEvent *
	)

protectedvirtual

Ends crosshair rotation.

Definition at line 620 of file mitkDisplayInteractor.cpp.

References mitk::EventStateMachine::ResetMouseCursor().

Referenced by ConnectActionsAndFunctions().

◆ FilterEvents()

bool mitk::DisplayInteractor::FilterEvents	(	InteractionEvent *	interactionEvent,
		DataNode *	dataNode
	)

overrideprotectedvirtual

Derived function. Is executed when config object is set / changed. Here it is used to read out the parameters set in the configuration file, and set the member variables accordingly.

Reimplemented from mitk::EventStateMachine.

Definition at line 917 of file mitkDisplayInteractor.cpp.

References mitk::BaseRenderer::GetMapperID(), mitk::InteractionEvent::GetSender(), and mitk::BaseRenderer::Standard3D.

◆ GetBoolProperty()

bool mitk::DisplayInteractor::GetBoolProperty	(	mitk::PropertyList::Pointer	propertyList,
		const char *	propertyName,
		bool	defaultValue
	)

protected

Method to retrieve bool-value for given property from string-property in given propertylist.

Definition at line 927 of file mitkDisplayInteractor.cpp.

Referenced by ConfigurationChanged().

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::DisplayInteractor::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::EventStateMachine.

Definition at line 37 of file mitkDisplayInteractor.h.

◆ GetClassName()

virtual const char* mitk::DisplayInteractor::GetClassName ( ) const

virtual

Reimplemented from mitk::EventStateMachine.

◆ GetStaticNameOfClass()

static const char* mitk::DisplayInteractor::GetStaticNameOfClass ( )

inlinestatic

Definition at line 37 of file mitkDisplayInteractor.h.

◆ IncreaseTimeStep()

void mitk::DisplayInteractor::IncreaseTimeStep	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Increases the time step in 3d+t data.

Definition at line 396 of file mitkDisplayInteractor.cpp.

References mitk::RenderingManager::GetInstance(), mitk::BaseController::GetTime(), mitk::RenderingManager::GetTimeNavigationController(), and mitk::Stepper::SetAutoRepeat().

Referenced by ConnectActionsAndFunctions().

◆ Init()

void mitk::DisplayInteractor::Init	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Initializes an interaction, saves the pointers start position for further reference.

Definition at line 351 of file mitkDisplayInteractor.cpp.

Referenced by ConnectActionsAndFunctions().

◆ Move()

void mitk::DisplayInteractor::Move	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Performs panning of the data set in the render window.

Definition at line 361 of file mitkDisplayInteractor.cpp.

References mitk::BaseRenderer::GetCameraController(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindow(), mitk::BaseRenderer::GetScaleFactorMMPerDisplayUnit(), mitk::InteractionEvent::GetSender(), mitk::CameraController::MoveBy(), and mitk::RenderingManager::RequestUpdate().

Referenced by ConnectActionsAndFunctions().

◆ New()

static Pointer mitk::DisplayInteractor::New ( )

static

Referenced by main(), and mitk::MouseModeSwitcher::~MouseModeSwitcher().

◆ Notify()

void mitk::DisplayInteractor::Notify	(	InteractionEvent *	interactionEvent,
		bool	isHandled
	)

overridevirtual

By this function the Observer gets notified about new events. Here it is adapted to pass the events to the state machine in order to use its infrastructure. It also checks if event is to be accepted when it already has been processed by a DataInteractor.

Implements mitk::InteractionEventObserver.

Definition at line 43 of file mitkDisplayInteractor.cpp.

References mitk::EventStateMachine::HandleEvent().
