mitk::LevelWindowProperty Class Reference

The LevelWindowProperty class Property for the mitk::LevelWindow. More...

#include <mitkLevelWindowProperty.h>

Inheritance diagram for mitk::LevelWindowProperty:

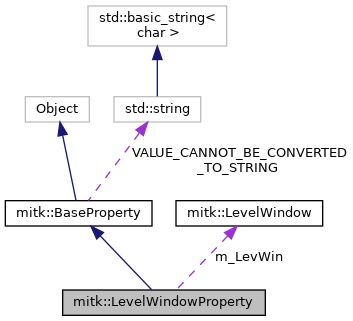

Collaboration diagram for mitk::LevelWindowProperty:

Public Types
typedef LevelWindowProperty	Self
typedef BaseProperty	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef LevelWindow	ValueType
Public Types inherited from mitk::BaseProperty
typedef BaseProperty	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
	~LevelWindowProperty () override
const mitk::LevelWindow &	GetLevelWindow () const
const mitk::LevelWindow &	GetValue () const
void	SetLevelWindow (const LevelWindow &levWin)
void	SetValue (const ValueType &levWin)
std::string	GetValueAsString () const override
Public Member Functions inherited from mitk::BaseProperty
Pointer	Clone () const
bool	operator== (const BaseProperty &property) const
	Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More...
BaseProperty &	operator= (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...
bool	AssignProperty (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
static Pointer	New (const mitk::LevelWindow &_arg)
Static Public Member Functions inherited from mitk::BaseProperty
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	LevelWindowProperty ()
	LevelWindowProperty (const LevelWindowProperty &other)
	LevelWindowProperty (const mitk::LevelWindow &levWin)
Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()
	BaseProperty (const BaseProperty &other)
	~BaseProperty () override

Protected Attributes
LevelWindow	m_LevWin

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value if a property which can not be returned as string. More...

Detailed Description

The LevelWindowProperty class Property for the mitk::LevelWindow.

Note

If you want to apply the mitk::LevelWindowProperty to an mitk::Image, make sure to set the mitk::RenderingModeProperty to a mode which supports level window (e.g. LEVELWINDOW_COLOR). Make sure to check the documentation of the mitk::RenderingModeProperty. For a code example how to use the mitk::LevelWindowProperty check the mitkImageVtkMapper2DLevelWindowTest.cpp in Core.

Definition at line 37 of file mitkLevelWindowProperty.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::LevelWindowProperty::ConstPointer

Definition at line 49 of file mitkLevelWindowProperty.h.

Pointer

typedef itk::SmartPointer<Self> mitk::LevelWindowProperty::Pointer

Definition at line 49 of file mitkLevelWindowProperty.h.

Self

typedef LevelWindowProperty mitk::LevelWindowProperty::Self

Definition at line 49 of file mitkLevelWindowProperty.h.

Superclass

typedef BaseProperty mitk::LevelWindowProperty::Superclass

Definition at line 49 of file mitkLevelWindowProperty.h.

ValueType

typedef LevelWindow mitk::LevelWindowProperty::ValueType

Definition at line 53 of file mitkLevelWindowProperty.h.

Constructor & Destructor Documentation

LevelWindowProperty() [1/3]

mitk::LevelWindowProperty::LevelWindowProperty ( )

protected

Definition at line 15 of file mitkLevelWindowProperty.cpp.

LevelWindowProperty() [2/3]

mitk::LevelWindowProperty::LevelWindowProperty ( const LevelWindowProperty &  other )

protected

Definition at line 19 of file mitkLevelWindowProperty.cpp.

LevelWindowProperty() [3/3]

mitk::LevelWindowProperty::LevelWindowProperty ( const mitk::LevelWindow &  levWin )

protected

Definition at line 24 of file mitkLevelWindowProperty.cpp.

References SetLevelWindow().

~LevelWindowProperty()

mitk::LevelWindowProperty::~LevelWindowProperty ( )

override

Definition at line 29 of file mitkLevelWindowProperty.cpp.

References m_LevWin.

Member Function Documentation

Clone()

Pointer mitk::LevelWindowProperty::Clone

(

)

const

GetClassHierarchy()

virtual std::vector<std::string> mitk::LevelWindowProperty::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 49 of file mitkLevelWindowProperty.h.

GetClassName()

virtual const char* mitk::LevelWindowProperty::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseProperty.

GetLevelWindow()

const mitk::LevelWindow & mitk::LevelWindowProperty::GetLevelWindow

(

)

const

Definition at line 44 of file mitkLevelWindowProperty.cpp.

References m_LevWin.

Referenced by GetValue().

GetStaticNameOfClass()

static const char* mitk::LevelWindowProperty::GetStaticNameOfClass ( )

inlinestatic

Definition at line 49 of file mitkLevelWindowProperty.h.

GetValue()

const mitk::LevelWindow & mitk::LevelWindowProperty::GetValue

(

)

const

Definition at line 49 of file mitkLevelWindowProperty.cpp.

References GetLevelWindow().

GetValueAsString()

std::string mitk::LevelWindowProperty::GetValueAsString ( ) const

overridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 68 of file mitkLevelWindowProperty.cpp.

References mitk::LevelWindow::GetLevel(), mitk::LevelWindow::GetWindow(), and m_LevWin.

New() [1/2]

static Pointer mitk::LevelWindowProperty::New ( )

static

Referenced by mitk::PaintbrushTool::CheckIfCurrentSliceHasChanged(), mitk::Tool::CreateSegmentationNode(), mitk::DICOMImageBlockDescriptor::GetIntProperty(), mitkImageVtkMapper2DLevelWindowTest(), mitkPropertySerializationTest(), mitkViewportRenderingTest(), mitkVtkPropRendererTest(), mitk::PaintbrushTool::OnMousePressed(), mitk::PaintbrushTool::PaintbrushTool(), QmitkSlicesInterpolator::QmitkSlicesInterpolator(), mitk::OtsuTool3D::RunSegmentation(), mitk::GPUVolumeMapper3D::SetDefaultProperties(), mitk::LabelSetImageVtkMapper2D::SetDefaultProperties(), mitk::ImageVtkMapper2D::SetDefaultProperties(), mitk::DoseImageVtkMapper2D::SetDefaultProperties(), and mitk::DataNode::SetLevelWindow().

New() [2/2]

static Pointer mitk::LevelWindowProperty::New ( const mitk::LevelWindow &  _arg )

inlinestatic

Definition at line 53 of file mitkLevelWindowProperty.h.

SetLevelWindow()

void mitk::LevelWindowProperty::SetLevelWindow

(

const LevelWindow &

levWin

)

Definition at line 54 of file mitkLevelWindowProperty.cpp.

References m_LevWin.

Referenced by LevelWindowProperty(), mitk::LevelWindowManager::SetLevelWindow(), mitk::DisplayActionEventFunctions::SetLevelWindowAction(), and SetValue().

SetValue()

void mitk::LevelWindowProperty::SetValue

(

const ValueType &

levWin

)

Definition at line 63 of file mitkLevelWindowProperty.cpp.

References SetLevelWindow().

Member Data Documentation

m_LevWin

LevelWindow mitk::LevelWindowProperty::m_LevWin

protected

Definition at line 40 of file mitkLevelWindowProperty.h.

Referenced by GetLevelWindow(), GetValueAsString(), SetLevelWindow(), and ~LevelWindowProperty().

---

The documentation for this class was generated from the following files:

• mitkLevelWindowProperty.h
• mitkLevelWindowProperty.cpp
