Mapper to resample and display 2D slices of a 3D image. More...

#include <mitkDoseImageVtkMapper2D.h>

Inheritance diagram for mitk::DoseImageVtkMapper2D:

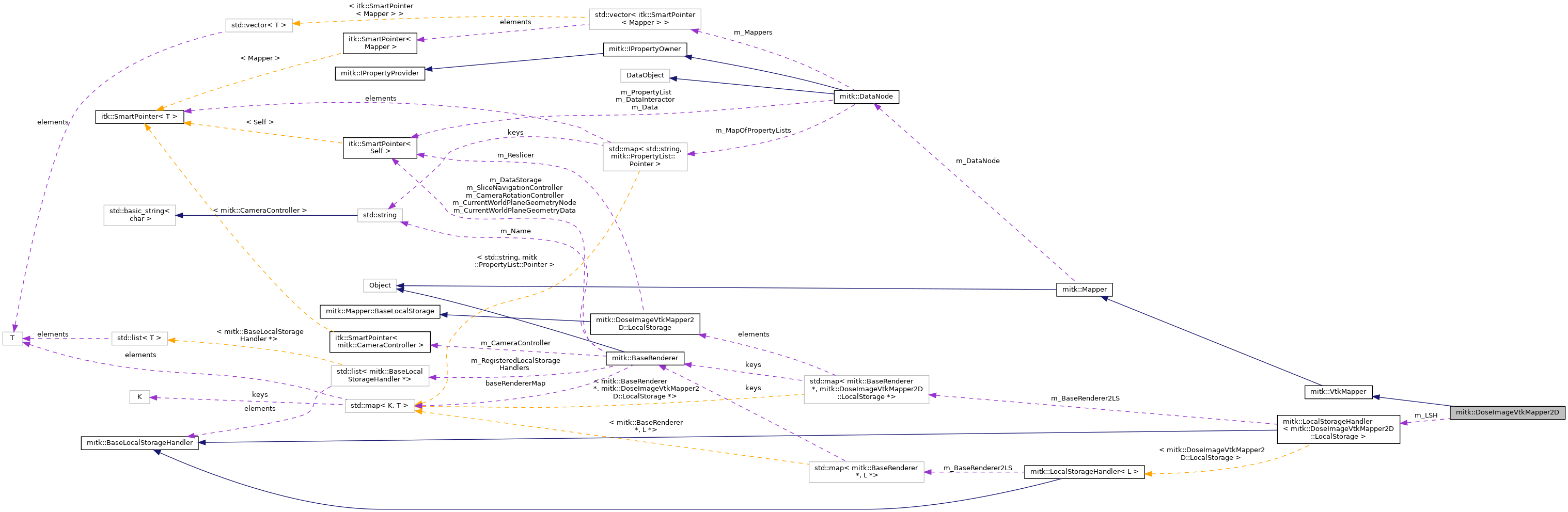

Collaboration diagram for mitk::DoseImageVtkMapper2D:

[legend]

Classes
class	LocalStorage
	Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

Public Member Functions
	mitkClassMacro (DoseImageVtkMapper2D, VtkMapper)

Pointer	Clone () const

const mitk::Image *	GetInput (void)
	Get the Image to map. More...

void	Update (mitk::BaseRenderer *renderer) override
	Checks whether this mapper needs to update itself and generate data. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override

LocalStorage *	GetLocalStorage (mitk::BaseRenderer *renderer)
	Get the LocalStorage corresponding to the current renderer. More...

void	ApplyRenderingMode (mitk::BaseRenderer *renderer)
	This method switches between different rendering modes (e.g. use a lookup table or a transfer function). Detailed documentation about the modes can be found here: mitk::RenderingModeProperty. More...

Public Member Functions inherited from mitk::VtkMapper
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

virtual bool	IsVtkBased () const override
	Returns whether this is an vtk-based mapper. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determines which geometry should be rendered (opaque, translucent, volumetric, overlay) and calls the appropriate function. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Checks visibility and renders the overlay. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Checks visibility and renders untransparent geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Checks visiblity and renders transparent geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Checks visibility and renders volumes. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Returns true if this mapper owns the specified vtkProp for the given BaseRenderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

virtual void	ApplyProperties (vtkActor actor, mitk::BaseRenderer renderer)
	Apply color and opacity properties read from the PropertyList. More...

void	ApplyShaderProperties (mitk::BaseRenderer *)

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList. Called by mapper subclasses. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release vtk-based graphics resources that are being consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

int	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set the default properties for general image rendering. More...

Static Public Member Functions inherited from mitk::VtkMapper
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Public Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH
	The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows. More...

Protected Member Functions
void	TransformActor (mitk::BaseRenderer *renderer)
	Transforms the actor to the actual position in 3D. More...

void	GeneratePlane (mitk::BaseRenderer *renderer, double planeBounds[6])
	Generates a plane according to the size of the resliced image in milimeters. More...

vtkSmartPointer< vtkPolyData >	CreateOutlinePolyData (mitk::BaseRenderer *renderer)
	Generates a vtkPolyData object containing the outline of a given binary slice. More...

	DoseImageVtkMapper2D ()

	~DoseImageVtkMapper2D () override

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Does the actual resampling, without rendering the image yet. All the data is generated inside this method. The vtkProp (or Actor) is filled with content (i.e. the resliced image). More...

float	CalculateLayerDepth (mitk::BaseRenderer *renderer)
	This method uses the vtkCamera clipping range and the layer property to calcualte the depth of the object (e.g. image or contour). The depth is used to keep the correct order for the final VTK rendering. More...

void	ApplyLookuptable (mitk::BaseRenderer *renderer)
	This method applies (or modifies) the lookuptable for all types of images. More...

void	ApplyColorTransferFunction (mitk::BaseRenderer *renderer)
	This method applies a color transfer function. Internally, a vtkColorTransferFunction is used. This is usefull for coloring continous images (e.g. float) More...

void	ApplyLevelWindow (mitk::BaseRenderer *renderer)
	ApplyLevelWindow Apply the level window for the given renderer. More...

void	ApplyColor (mitk::BaseRenderer *renderer)
	Set the color of the image/polydata. More...

void	ApplyOpacity (mitk::BaseRenderer *renderer)
	Set the opacity of the actor. More...

bool	RenderingGeometryIntersectsImage (const PlaneGeometry renderingGeometry, SlicedGeometry3D imageGeometry)
	Calculates whether the given rendering geometry intersects the given SlicedGeometry3D. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Public Types inherited from mitk::VtkMapper
typedef VtkMapper	Self

typedef Mapper	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

Mapper to resample and display 2D slices of a 3D image.

The following image gives a brief overview of the mapping and the involved parts.

First, the image is resliced by means of vtkImageReslice. The volume image serves as input to the mapper in addition to spatial placement of the slice and a few other properties such as thick slices. This code was already present in the old version (mitkImageMapperGL2D).

Next, the obtained slice (m_ReslicedImage) is put into a vtkMitkLevelWindowFilter and the scalar levelwindow, opacity levelwindow and optional clipping to local image bounds are applied

Next, the output of the vtkMitkLevelWindowFilter is used to create a texture (m_Texture) and a plane onto which the texture is rendered (m_Plane). For mapping purposes, a vtkPolyDataMapper (m_Mapper) is utilized. Orthographic projection is applied to create the effect of a 2D image. The mapper and the texture are assigned to the actor (m_Actor) which is passed to the VTK rendering pipeline via the method GetVtkProp().

In order to transform the textured plane to the correct position in space, the same transformation as used for reslicing is applied to both the camera and the vtkActor. All important steps are explained in more detail below. The resulting 2D image (by reslicing the underlying 3D input image appropriately) can either be directly rendered in a 2D view or just be calculated to be used later by another rendering entity, e.g. in texture mapping in a 3D view.

Properties that can be set for images and influence the imageMapper2D are:

"opacity": (FloatProperty) Opacity of the image
"color": (ColorProperty) Color of the image
"LookupTable": (mitkLookupTableProperty) If this property is set, the default lookuptable will be ignored and the "LookupTable" value will be used instead.
"Image Rendering.Mode": This property decides which mode is used to render images. (E.g. if a lookup table or a transferfunction is applied). Detailed documentation about the modes can be found here: mitk::RenderingModeProperty
"Image Rendering.Transfer Function": (mitkTransferFunctionProperty) If this property is set, a color transferfunction will be used to color the image.
"binary": (BoolProperty) is the image a binary image or not
"outline binary": (BoolProperty) show outline of the image or not
"texture interpolation": (BoolProperty) texture interpolation of the image
"reslice interpolation": (VtkResliceInterpolationProperty) reslice interpolation of the image
"in plane resample extent by geometry": (BoolProperty) Do it or not
"bounding box": (BoolProperty) Is the Bounding Box of the image shown or not
"layer": (IntProperty) Layer of the image
"volume annotation color": (ColorProperty) color of the volume annotation, TODO has to be reimplemented
"volume annotation unit": (StringProperty) annotation unit as string (does not implicit convert the unit!) unit is ml or cm3, TODO has to be reimplemented

The default properties are:

"opacity", mitk::FloatProperty::New(0.3f), renderer, overwrite )
"color", ColorProperty::New(1.0,0.0,0.0), renderer, overwrite )
"binary", mitk::BoolProperty::New( true ), renderer, overwrite )
"outline binary", mitk::BoolProperty::New( false ), renderer, overwrite )
"texture interpolation", mitk::BoolProperty::New( false ) )
"reslice interpolation", mitk::VtkResliceInterpolationProperty::New() )
"in plane resample extent by geometry", mitk::BoolProperty::New( false ) )
"bounding box", mitk::BoolProperty::New( false ) )
"layer", mitk::IntProperty::New(10), renderer, overwrite)
"Image Rendering.Transfer Function": Default color transfer function for CTs
"LookupTable": Rainbow color.

If the modality-property is set for an image, the mapper uses modality-specific default properties, e.g. color maps, if they are defined.

Definition at line 115 of file mitkDoseImageVtkMapper2D.h.

Constructor & Destructor Documentation

◆ DoseImageVtkMapper2D()

mitk::DoseImageVtkMapper2D::DoseImageVtkMapper2D ( )

protected

Default constructor

Definition at line 61 of file mitkDoseImageVtkMapper2D.cpp.

◆ ~DoseImageVtkMapper2D()

mitk::DoseImageVtkMapper2D::~DoseImageVtkMapper2D ( )

overrideprotected

Default deconstructor

Definition at line 65 of file mitkDoseImageVtkMapper2D.cpp.

Member Function Documentation

◆ ApplyColor()

void mitk::DoseImageVtkMapper2D::ApplyColor ( mitk::BaseRenderer * renderer )

protected

Set the color of the image/polydata.

Definition at line 445 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetColor(), mitk::Mapper::GetDataNode(), GetLocalStorage(), mitk::DataNode::GetProperty(), mitk::DoseImageVtkMapper2D::LocalStorage::m_Actor, and mitk::DoseImageVtkMapper2D::LocalStorage::m_Actors.

Referenced by ApplyRenderingMode().

◆ ApplyColorTransferFunction()

void mitk::DoseImageVtkMapper2D::ApplyColorTransferFunction ( mitk::BaseRenderer * renderer )

protected

This method applies a color transfer function. Internally, a vtkColorTransferFunction is used. This is usefull for coloring continous images (e.g. float)

Warning: To use the color transfer function, the property 'Image Rendering.Transfer Function' must be set and a 'Image Rendering.Mode' which uses the color transfer function must be set.

Definition at line 598 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::Mapper::GetDataNode(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::DataNode::GetProperty(), mitk::DoseImageVtkMapper2D::LocalStorage::m_LevelWindowFilter, m_LSH, and MITK_ERROR.

Referenced by ApplyRenderingMode().

◆ ApplyLevelWindow()

void mitk::DoseImageVtkMapper2D::ApplyLevelWindow ( mitk::BaseRenderer * renderer )

protected

ApplyLevelWindow Apply the level window for the given renderer.

Warning: To use the level window, the property 'LevelWindow' must be set and a 'Image Rendering.Mode' which uses the level window must be set.

Parameters

renderer Level window for which renderer?

Definition at line 421 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::Mapper::GetDataNode(), mitk::DataNode::GetLevelWindow(), GetLocalStorage(), mitk::LevelWindow::GetLowerWindowBound(), mitk::LevelWindow::GetUpperWindowBound(), and mitk::DoseImageVtkMapper2D::LocalStorage::m_LevelWindowFilter.

Referenced by ApplyRenderingMode().

◆ ApplyLookuptable()

void mitk::DoseImageVtkMapper2D::ApplyLookuptable ( mitk::BaseRenderer * renderer )

protected

This method applies (or modifies) the lookuptable for all types of images.

Warning: To use the lookup table, the property 'Lookup Table' must be set and a 'Image Rendering.Mode' which uses the lookup table must be set.

Definition at line 575 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::Mapper::GetDataNode(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::DataNode::GetProperty(), mitk::DoseImageVtkMapper2D::LocalStorage::m_ColorLookupTable, mitk::DoseImageVtkMapper2D::LocalStorage::m_LevelWindowFilter, and m_LSH.

Referenced by ApplyRenderingMode().

◆ ApplyOpacity()

void mitk::DoseImageVtkMapper2D::ApplyOpacity ( mitk::BaseRenderer * renderer )

protected

Set the opacity of the actor.

Definition at line 506 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::Mapper::GetDataNode(), GetLocalStorage(), mitk::DataNode::GetOpacity(), mitk::DoseImageVtkMapper2D::LocalStorage::m_Actor, and mitk::DoseImageVtkMapper2D::LocalStorage::m_Actors.

Referenced by GenerateDataForRenderer().

◆ ApplyRenderingMode()

void mitk::DoseImageVtkMapper2D::ApplyRenderingMode ( mitk::BaseRenderer * renderer )

This method switches between different rendering modes (e.g. use a lookup table or a transfer function). Detailed documentation about the modes can be found here: mitk::RenderingModeProperty.

Definition at line 522 of file mitkDoseImageVtkMapper2D.cpp.

References ApplyColor(), ApplyColorTransferFunction(), ApplyLevelWindow(), ApplyLookuptable(), mitk::RenderingModeProperty::COLORTRANSFERFUNCTION_COLOR, mitk::RenderingModeProperty::COLORTRANSFERFUNCTION_LEVELWINDOW_COLOR, mitk::DataNode::GetBoolProperty(), mitk::Mapper::GetDataNode(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::DataNode::GetProperty(), mitk::RenderingModeProperty::LOOKUPTABLE_COLOR, mitk::RenderingModeProperty::LOOKUPTABLE_LEVELWINDOW_COLOR, mitk::DoseImageVtkMapper2D::LocalStorage::m_BinaryLookupTable, mitk::DoseImageVtkMapper2D::LocalStorage::m_LevelWindowFilter, m_LSH, MITK_DEBUG, and MITK_ERROR.

Referenced by GenerateDataForRenderer().

◆ CalculateLayerDepth()

float mitk::DoseImageVtkMapper2D::CalculateLayerDepth ( mitk::BaseRenderer * renderer )

protected

This method uses the vtkCamera clipping range and the layer property to calcualte the depth of the object (e.g. image or contour). The depth is used to keep the correct order for the final VTK rendering.

Definition at line 88 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::Mapper::GetDataNode(), mitk::DataNode::GetIntProperty(), mitk::BaseRenderer::GetVtkRenderer(), and MITK_WARN.

Referenced by CreateOutlinePolyData(), and GeneratePlane().

◆ Clone()

Pointer mitk::DoseImageVtkMapper2D::Clone ( ) const

◆ CreateOutlinePolyData()

vtkSmartPointer< vtkPolyData > mitk::DoseImageVtkMapper2D::CreateOutlinePolyData ( mitk::BaseRenderer * renderer )

protected

Generates a vtkPolyData object containing the outline of a given binary slice.

Parameters

renderer Pointer to the renderer containing the needed information

Note: This code is based on code from the iil library.

Definition at line 845 of file mitkDoseImageVtkMapper2D.cpp.

References CalculateLayerDepth(), mitk::RTConstants::DOSE_FREE_ISO_VALUES_PROPERTY_NAME, mitk::RTConstants::DOSE_ISO_LEVELS_PROPERTY_NAME, mitk::IsoDoseLevel::GetColor(), mitk::Mapper::GetDataNode(), mitk::IsoDoseLevel::GetDoseValue(), mitk::DataNode::GetFloatProperty(), GetLocalStorage(), mitk::DataNode::GetProperty(), line, mitk::DoseImageVtkMapper2D::LocalStorage::m_mmPerPixel, mitk::DoseImageVtkMapper2D::LocalStorage::m_ReslicedImage, mitkThrow, and mitk::RTConstants::REFERENCE_DOSE_PROPERTY_NAME.

Referenced by GenerateDataForRenderer().

◆ GenerateDataForRenderer()

void mitk::DoseImageVtkMapper2D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

Does the actual resampling, without rendering the image yet. All the data is generated inside this method. The vtkProp (or Actor) is filled with content (i.e. the resliced image).

After generation, a 4x4 transformation matrix(t) of the current slice is obtained from the vtkResliceImage object via GetReslicesAxis(). This matrix is applied to each textured plane (actor->SetUserTransform(t)) to transform everything to the actual 3D position (cf. the following image).

Reimplemented from mitk::Mapper.

Definition at line 118 of file mitkDoseImageVtkMapper2D.cpp.

Referenced by Update().

◆ GeneratePlane()

void mitk::DoseImageVtkMapper2D::GeneratePlane	(	mitk::BaseRenderer *	renderer,
		double	planeBounds[6]
	)

protected

Generates a plane according to the size of the resliced image in milimeters.

In VTK a vtkPlaneSource is defined through three points. The origin and two points defining the axes of the plane (see VTK documentation). The origin is set to (xMin; yMin; Z), where xMin and yMin are the minimal bounds of the resliced image in space. Z is relevant for blending and the layer property. The center of the plane (C) is also the center of the view plane (cf. the image above).

Note: For the standard MITK view with three 2D render windows showing three different slices, three such planes are generated. All these planes are generated in the XY-plane (even if they depict a YZ-slice of the volume).

Definition at line 73 of file mitkDoseImageVtkMapper2D.cpp.

References CalculateLayerDepth(), mitk::LocalStorageHandler< L >::GetLocalStorage(), m_LSH, and mitk::DoseImageVtkMapper2D::LocalStorage::m_Plane.

Referenced by GenerateDataForRenderer().

◆ GetInput()

const mitk::Image * mitk::DoseImageVtkMapper2D::GetInput ( void )

Get the Image to map.

Definition at line 107 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::DataNode::GetData(), and mitk::Mapper::GetDataNode().

Referenced by GenerateDataForRenderer(), and Update().

◆ GetLocalStorage()

mitk::DoseImageVtkMapper2D::LocalStorage * mitk::DoseImageVtkMapper2D::GetLocalStorage ( mitk::BaseRenderer * renderer )

Get the LocalStorage corresponding to the current renderer.

Definition at line 840 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), and m_LSH.

Referenced by ApplyColor(), ApplyLevelWindow(), ApplyOpacity(), and CreateOutlinePolyData().

◆ GetVtkProp()

vtkProp * mitk::DoseImageVtkMapper2D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Implements mitk::VtkMapper.

Definition at line 112 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::DoseImageVtkMapper2D::LocalStorage::m_Actors, and m_LSH.

◆ mitkClassMacro()

mitk::DoseImageVtkMapper2D::mitkClassMacro	(	DoseImageVtkMapper2D	,
		VtkMapper
	)

Standard class typedefs.

◆ New()

static Pointer mitk::DoseImageVtkMapper2D::New ( )

static

Method for creation through the object factory.

Referenced by mitk::ConfigureNodeAsIsoLineNode().

◆ RenderingGeometryIntersectsImage()

bool mitk::DoseImageVtkMapper2D::RenderingGeometryIntersectsImage	(	const PlaneGeometry *	renderingGeometry,
		SlicedGeometry3D *	imageGeometry
	)

protected

Calculates whether the given rendering geometry intersects the given SlicedGeometry3D.

This method checks if the given PlaneGeometry intersects the given SlicedGeometry3D. It calculates the distance of the PlaneGeometry to all 8 cornerpoints of the SlicedGeometry3D. If all distances have the same sign (all positive or all negative) there is no intersection. If the distances have different sign, there is an intersection.

Definition at line 1084 of file mitkDoseImageVtkMapper2D.cpp.

References mitk::BaseGeometry::GetCornerPoint(), and mitk::PlaneGeometry::SignedDistance().

Referenced by GenerateDataForRenderer().
