#include <mitkVtkPropRenderer.h>

Inheritance diagram for mitk::VtkPropRenderer:

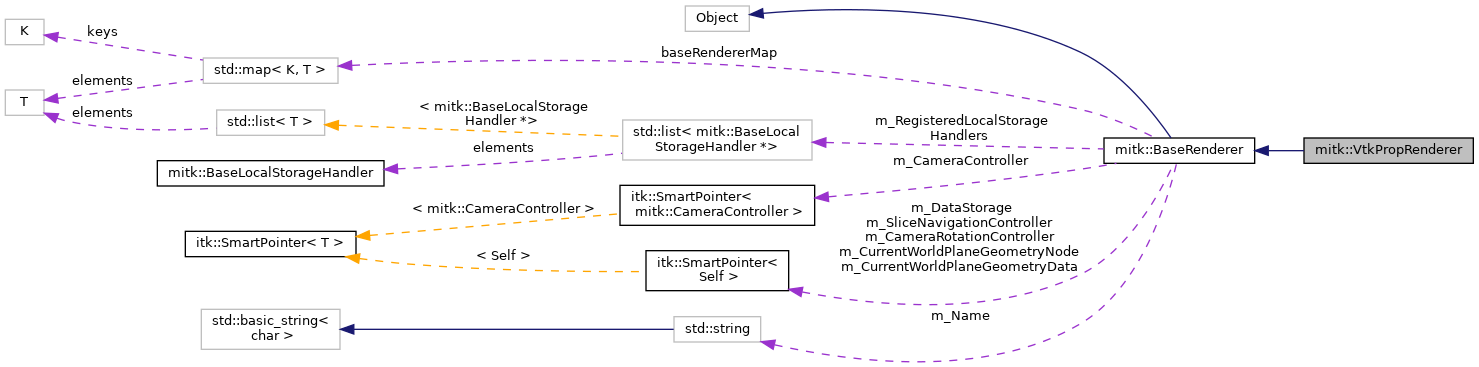

Collaboration diagram for mitk::VtkPropRenderer:

[legend]

Public Types
enum	RenderType { Opaque, Translucent, Overlay, Volumetric }

enum	PickingMode { WorldPointPicking, PointPicking, CellPicking }

typedef VtkPropRenderer	Self

typedef BaseRenderer	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< int, Mapper * >	MappersMapType

Public Types inherited from mitk::BaseRenderer
enum	StandardMapperSlot { Standard2D, Standard3D }

enum	ViewDirection { ViewDirection::AXIAL, ViewDirection::SAGITTAL, ViewDirection::CORONAL, ViewDirection::THREE_D }
	Possible view directions for render windows. More...

typedef std::map< vtkRenderWindow , BaseRenderer >	BaseRendererMapType

typedef BaseRenderer	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef int	MapperSlotId
	MapperSlotId defines which kind of mapper (e.g. 2D or 3D) should be used. More...

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

void	SetPropertyKeys (vtkInformation *info)
	Store/propagate vtkInformation during rendering. More...

int	Render (RenderType type)
	Called by the vtkMitkRenderProp in order to start MITK rendering process. More...

virtual void	PrepareRender ()
	This methods contains all method neceassary before a VTK Render() call. More...

virtual void	MakeCurrent ()
	Activates the current renderwindow. More...

void	SetDataStorage (mitk::DataStorage *storage) override
	set the datastorage that will be used for rendering More...

void	InitRenderer (vtkRenderWindow *renderwindow) override
	This method is called from the two Constructors. More...

virtual void	Update (mitk::DataNode *datatreenode)

void	SetMapperID (const MapperSlotId mapperId) override
	Set the MapperSlotId to use. More...

void	InitSize (int w, int h) override
	Set the initial size. Called by RenderWindow after it has become visible for the first time. More...

void	Resize (int w, int h) override
	Resize the OpenGL Window. More...

	itkSetEnumMacro (PickingMode, PickingMode)
	Set the picking mode. This method is used to set the picking mode for 3D object picking. The user can select one of the three options WorldPointPicking, PointPicking and CellPicking. The first option uses the zBuffer from graphics rendering, the second uses the 3D points from the closest surface mesh, and the third option uses the cells of that mesh. The last option is the slowest, the first one the fastest. However, the first option cannot use transparent data object and the tolerance of the picked position to the selected point should be considered. PointPicking also need a tolerance around the picking position to select the closest point in the mesh. The CellPicker performs very well, if the foreground surface part (i.e. the surfacepart that is closest to the scene's cameras) needs to be picked. More...

	itkGetEnumMacro (PickingMode, PickingMode)

void	PickWorldPoint (const Point2D &displayPoint, Point3D &worldPoint) const override
	Perform a picking: find the x,y,z world coordinate of a display x,y coordinate. More...

mitk::DataNode *	PickObject (const Point2D &displayPosition, Point3D &worldPosition) const override
	Determines the object (mitk::DataNode) closest to the current position by means of picking. More...

int	WriteSimpleText (std::string text, double posX, double posY, double color1=0.0, double color2=1.0, double color3=0.0, float opacity=1.0)
	WriteSimpleText Write a text in a renderwindow. More...

vtkTextProperty *	GetTextLabelProperty (int text_id)
	CGetTextLabelProperty an be used in order to get a vtkTextProperty for a specific text_id. This property enables the setup of font, font size, etc. More...

bool	SetWorldGeometryToDataStorageBounds () override

void	InitPathTraversal ()
	Used by vtkPointPicker/vtkPicker. This will query a list of all objects in MITK and provide every vtk based mapper to the picker. More...

vtkAssemblyPath *	GetNextPath ()
	Used by vtkPointPicker/vtkPicker. This will query a list of all objects in MITK and provide every vtk based mapper to the picker. More...

int	GetNumberOfPaths ()

const vtkWorldPointPicker *	GetWorldPointPicker () const

const vtkPointPicker *	GetPointPicker () const

const vtkCellPicker *	GetCellPicker () const

virtual void	ReleaseGraphicsResources (vtkWindow *renWin)
	Release vtk-based graphics resources. Called by vtkMitkRenderProp::ReleaseGraphicsResources. More...

MappersMapType	GetMappersMap () const

Public Member Functions inherited from mitk::BaseRenderer
	itkEventMacro (RendererResetEvent, itk::AnyEvent)

	BaseRenderer (const char name=nullptr, vtkRenderWindow renWin=nullptr)

virtual DataStorage::Pointer	GetDataStorage () const

vtkRenderWindow *	GetRenderWindow () const
	Access the RenderWindow into which this renderer renders. More...

vtkRenderer *	GetVtkRenderer () const

Dispatcher::Pointer	GetDispatcher () const
	Returns the Dispatcher which handles Events for this BaseRenderer. More...

virtual void	Paint ()
	Do the rendering and flush the result. More...

virtual void	Initialize ()
	Initialize the RenderWindow. Should only be called from RenderWindow. More...

virtual void	DrawOverlayMouse (Point2D &p2d)
	Draws a point on the widget. Should be used during conferences to show the position of the remote mouse. More...

virtual void	SetWorldGeometry3D (const BaseGeometry *geometry)
	Set/Get the WorldGeometry (m_WorldGeometry) for 3D and 2D rendering, that describing the (maximal) area to be rendered. More...

virtual void	SetWorldTimeGeometry (const mitk::TimeGeometry *geometry)

void	SetWorldGeometry3D (TimeSlicedGeometry *geometry)

virtual const TimeGeometry *	GetWorldTimeGeometry ()

virtual const BaseGeometry *	GetCurrentWorldGeometry ()
	Get the current 3D-worldgeometry (m_CurrentWorldGeometry) used for 3D-rendering. More...

virtual const PlaneGeometry *	GetCurrentWorldPlaneGeometry ()
	Get the current 2D-worldgeometry (m_CurrentWorldPlaneGeometry) used for 2D-rendering. More...

const PlaneGeometry *	GetCurrentWorldGeometry2D ()

virtual void	SetSlice (unsigned int slice)
	Set/Get m_Slice which defines together with m_TimeStep the 2D geometry stored in m_WorldTimeGeometry used as m_CurrentWorldPlaneGeometry. More...

virtual unsigned int	GetSlice () const

virtual void	SetTimeStep (unsigned int timeStep)
	Set/Get m_TimeStep which defines together with m_Slice the 2D geometry stored in m_WorldTimeGeometry used as m_CurrentWorldPlaneGeometry. More...

virtual unsigned int	GetTimeStep () const

int	GetTimeStep (const BaseData *data) const
	Get the time-step of a BaseData object which exists at the time of the currently displayed content. More...

ScalarType	GetTime () const
	Get the time in ms of the currently displayed content. More...

virtual void	SetGeometry (const itk::EventObject &geometrySliceEvent)
	SetWorldGeometry is called according to the geometrySliceEvent, which is supposed to be a SliceNavigationController::GeometrySendEvent. More...

virtual void	UpdateGeometry (const itk::EventObject &geometrySliceEvent)
	UpdateWorldGeometry is called to re-read the 2D geometry from the slice navigation controller. More...

virtual void	SetGeometrySlice (const itk::EventObject &geometrySliceEvent)
	SetSlice is called according to the geometrySliceEvent, which is supposed to be a SliceNavigationController::GeometrySliceEvent. More...

virtual void	SetGeometryTime (const itk::EventObject &geometryTimeEvent)
	SetTimeStep is called according to the geometrySliceEvent, which is supposed to be a SliceNavigationController::GeometryTimeEvent. More...

virtual DataNode *	GetCurrentWorldPlaneGeometryNode ()
	Get a DataNode pointing to a data object containing the current 2D-worldgeometry. More...

DataNode *	GetCurrentWorldGeometry2DNode ()

void	SendUpdateSlice ()
	Sets timestamp of CurrentWorldPlaneGeometry and forces so reslicing in that renderwindow. More...

unsigned long	GetCurrentWorldPlaneGeometryUpdateTime ()
	Get timestamp of last call of SetCurrentWorldPlaneGeometry. More...

unsigned long	GetCurrentWorldGeometry2DUpdateTime ()

unsigned long	GetTimeStepUpdateTime ()
	Get timestamp of last change of current TimeStep. More...

virtual MapperSlotId	GetMapperID ()
	Get the MapperSlotId to use. More...

virtual MapperSlotId	GetMapperID () const

virtual int *	GetSize () const

virtual int *	GetViewportSize () const

void	SetSliceNavigationController (SliceNavigationController *SlicenavigationController)

virtual CameraController *	GetCameraController ()

virtual SliceNavigationController *	GetSliceNavigationController ()

virtual CameraRotationController *	GetCameraRotationController ()

virtual bool	GetEmptyWorldGeometry ()

virtual bool	GetKeepDisplayedRegion ()
	Tells if the displayed region is shifted and rescaled if the render window is resized. More...

virtual void	SetKeepDisplayedRegion (bool _arg)
	Tells if the displayed region should be shifted and rescaled if the render window is resized. More...

const char *	GetName () const
	get the name of the Renderer More...

int	GetSizeX () const
	get the x_size of the RendererWindow More...

int	GetSizeY () const
	get the y_size of the RendererWindow More...

const double *	GetBounds () const

void	RequestUpdate ()

void	ForceImmediateUpdate ()

unsigned int	GetNumberOfVisibleLODEnabledMappers () const

void	DisplayToWorld (const Point2D &displayPoint, Point3D &worldIndex) const
	This method converts a display point to the 3D world index using the geometry of the renderWindow. More...

void	DisplayToPlane (const Point2D &displayPoint, Point2D &planePointInMM) const
	This method converts a display point to the 2D world index, mapped onto the display plane using the geometry of the renderWindow. More...

void	WorldToDisplay (const Point3D &worldIndex, Point2D &displayPoint) const
	This method converts a 3D world index to the display point using the geometry of the renderWindow. More...

void	WorldToView (const Point3D &worldIndex, Point2D &viewPoint) const
	This method converts a 3D world index to the point on the viewport using the geometry of the renderWindow. More...

void	PlaneToDisplay (const Point2D &planePointInMM, Point2D &displayPoint) const
	This method converts a 2D plane coordinate to the display point using the geometry of the renderWindow. More...

void	PlaneToView (const Point2D &planePointInMM, Point2D &viewPoint) const
	This method converts a 2D plane coordinate to the point on the viewport using the geometry of the renderWindow. More...

double	GetScaleFactorMMPerDisplayUnit () const

Point2D	GetDisplaySizeInMM () const

Point2D	GetViewportSizeInMM () const

Point2D	GetOriginInMM () const

virtual bool	GetConstrainZoomingAndPanning () const

virtual void	SetConstrainZoomingAndPanning (bool constrain)

virtual Point3D	Map2DRendererPositionTo3DWorldPosition (const Point2D &mousePosition) const
	Provides (1) world coordinates for a given mouse position and (2) translates mousePosition to Display coordinates. More...

void	RemoveAllLocalStorages ()

void	RegisterLocalStorageHandler (mitk::BaseLocalStorageHandler *lsh)

void	UnregisterLocalStorageHandler (mitk::BaseLocalStorageHandler *lsh)

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New (const char _arga, vtkRenderWindow _argb)

static bool	useImmediateModeRendering ()

Static Public Member Functions inherited from mitk::BaseRenderer
static BaseRenderer *	GetInstance (vtkRenderWindow *renWin)

static void	AddInstance (vtkRenderWindow renWin, BaseRenderer baseRenderer)

static void	RemoveInstance (vtkRenderWindow *renWin)

static BaseRenderer *	GetByName (const std::string &name)

static vtkRenderWindow *	GetRenderWindowByName (const std::string &name)

static const char *	GetStaticNameOfClass ()

Protected Member Functions
	VtkPropRenderer (const char name="VtkPropRenderer", vtkRenderWindow renWin=nullptr)

	~VtkPropRenderer () override
	Destructs the VtkPropRenderer. More...

void	Update () override
	Call update of all mappers. To be implemented in subclasses. More...

virtual void	UpdatePaths ()

Protected Member Functions inherited from mitk::BaseRenderer
	~BaseRenderer () override

virtual void	SetCurrentWorldPlaneGeometry (const PlaneGeometry *geometry2d)
	Sets m_CurrentWorldPlaneGeometry. More...

void	SetCurrentWorldGeometry2D (PlaneGeometry *geometry2d)

virtual void	SetCurrentWorldGeometry (const BaseGeometry *geometry)
	Sets m_CurrentWorldGeometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Static Protected Member Functions
static void	RenderingCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseRenderer
static BaseRendererMapType	baseRendererMap

static const MapperSlotId	defaultMapper
	Default mapper id to use. More...

Protected Types inherited from mitk::BaseRenderer
typedef std::set< Mapper * >	LODEnabledMappersType

Protected Attributes inherited from mitk::BaseRenderer
vtkRenderWindow *	m_RenderWindow

vtkRenderer *	m_VtkRenderer

MapperSlotId	m_MapperID
	MapperSlotId to use. Defines which kind of mapper (e.g., 2D or 3D) shoud be used. More...

DataStorage::Pointer	m_DataStorage
	The DataStorage that is used for rendering. More...

unsigned long	m_LastUpdateTime
	Timestamp of last call of Update(). More...

itk::SmartPointer< CameraController >	m_CameraController
	CameraController for 3D rendering. More...

SliceNavigationController::Pointer	m_SliceNavigationController

CameraRotationController::Pointer	m_CameraRotationController

PlaneGeometryData::Pointer	m_CurrentWorldPlaneGeometryData

DataNode::Pointer	m_CurrentWorldPlaneGeometryNode

unsigned long	m_CurrentWorldPlaneGeometryTransformTime
	test only More...

std::string	m_Name

double	m_Bounds [6]

bool	m_EmptyWorldGeometry

unsigned int	m_NumberOfVisibleLODEnabledMappers

std::list< mitk::BaseLocalStorageHandler * >	m_RegisteredLocalStorageHandlers

bool	m_ConstrainZoomingAndPanning

Detailed Description

VtkPropRenderer.

VtkPropRenderer organizes the MITK rendering process. The MITK rendering process is completely integrated into the VTK rendering pipeline. The vtkMitkRenderProp is a custom vtkProp derived class, which implements the rendering interface between MITK and VTK. It redirects render() calls to the VtkPropRenderer, which is responsible for rendering of the datatreenodes. VtkPropRenderer replaces the old OpenGLRenderer.

See also: rendering

Definition at line 55 of file mitkVtkPropRenderer.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::VtkPropRenderer::ConstPointer

Definition at line 65 of file mitkVtkPropRenderer.h.

◆ MappersMapType

typedef std::map<int, Mapper *> mitk::VtkPropRenderer::MappersMapType

Definition at line 66 of file mitkVtkPropRenderer.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::VtkPropRenderer::Pointer

Definition at line 65 of file mitkVtkPropRenderer.h.

◆ Self

typedef VtkPropRenderer mitk::VtkPropRenderer::Self

Definition at line 65 of file mitkVtkPropRenderer.h.

◆ Superclass

typedef BaseRenderer mitk::VtkPropRenderer::Superclass

Definition at line 65 of file mitkVtkPropRenderer.h.

Member Enumeration Documentation

◆ PickingMode

enum mitk::VtkPropRenderer::PickingMode

Enumerator
WorldPointPicking
PointPicking
CellPicking

Definition at line 102 of file mitkVtkPropRenderer.h.

◆ RenderType

enum mitk::VtkPropRenderer::RenderType

Enumerator
Opaque
Translucent
Overlay
Volumetric

Definition at line 71 of file mitkVtkPropRenderer.h.

Constructor & Destructor Documentation

◆ VtkPropRenderer()

mitk::VtkPropRenderer::VtkPropRenderer	(	const char *	name = `"VtkPropRenderer"`,
		vtkRenderWindow *	renWin = `nullptr`
	)

protected

Definition at line 56 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_CurrentWorldPlaneGeometryNode, mitk::BaseRenderer::m_VtkRenderer, mitk::PlaneGeometryDataVtkMapper3D::New(), and WorldPointPicking.

◆ ~VtkPropRenderer()

mitk::VtkPropRenderer::~VtkPropRenderer ( )

overrideprotected

Destructs the VtkPropRenderer.

Definition at line 87 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_CameraController, mitk::BaseRenderer::m_MapperID, and mitk::BaseRenderer::m_VtkRenderer.

Member Function Documentation

◆ GetCellPicker()

const vtkCellPicker * mitk::VtkPropRenderer::GetCellPicker ( ) const

Definition at line 624 of file mitkVtkPropRenderer.cpp.

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::VtkPropRenderer::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseRenderer.

Definition at line 65 of file mitkVtkPropRenderer.h.

◆ GetClassName()

virtual const char* mitk::VtkPropRenderer::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseRenderer.

◆ GetMappersMap()

mitk::VtkPropRenderer::MappersMapType mitk::VtkPropRenderer::GetMappersMap ( ) const

Definition at line 629 of file mitkVtkPropRenderer.cpp.

◆ GetNextPath()

vtkAssemblyPath * mitk::VtkPropRenderer::GetNextPath ( )

Used by vtkPointPicker/vtkPicker. This will query a list of all objects in MITK and provide every vtk based mapper to the picker.

Definition at line 585 of file mitkVtkPropRenderer.cpp.

◆ GetNumberOfPaths()

int mitk::VtkPropRenderer::GetNumberOfPaths ( )

Definition at line 579 of file mitkVtkPropRenderer.cpp.

References UpdatePaths().

◆ GetPointPicker()

const vtkPointPicker * mitk::VtkPropRenderer::GetPointPicker ( ) const

Definition at line 619 of file mitkVtkPropRenderer.cpp.

◆ GetStaticNameOfClass()

static const char* mitk::VtkPropRenderer::GetStaticNameOfClass ( )

inlinestatic

Definition at line 65 of file mitkVtkPropRenderer.h.

◆ GetTextLabelProperty()

vtkTextProperty * mitk::VtkPropRenderer::GetTextLabelProperty ( int text_id )

CGetTextLabelProperty an be used in order to get a vtkTextProperty for a specific text_id. This property enables the setup of font, font size, etc.

Parameters

text_id the id of the text property.

Deprecated:: (as of 2015_05) Please use mitkTextOverlay2D instead. See mitkTextOverlay2DRenderingTest for an example.

Definition at line 527 of file mitkVtkPropRenderer.cpp.

◆ GetWorldPointPicker()

const vtkWorldPointPicker * mitk::VtkPropRenderer::GetWorldPointPicker ( ) const

Definition at line 614 of file mitkVtkPropRenderer.cpp.

◆ InitPathTraversal()

void mitk::VtkPropRenderer::InitPathTraversal ( )

Used by vtkPointPicker/vtkPicker. This will query a list of all objects in MITK and provide every vtk based mapper to the picker.

Definition at line 532 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_DataStorage, and UpdatePaths().

◆ InitRenderer()

void mitk::VtkPropRenderer::InitRenderer ( vtkRenderWindow * renderwindow )

overridevirtual

This method is called from the two Constructors.

Reimplemented from mitk::BaseRenderer.

Definition at line 328 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::InitRenderer(), mitk::BaseRenderer::m_LastUpdateTime, and RenderingCallback().

◆ InitSize()

void mitk::VtkPropRenderer::InitSize	(	int	w,
		int	h
	)

overridevirtual

Set the initial size. Called by RenderWindow after it has become visible for the first time.

Reimplemented from mitk::BaseRenderer.

Definition at line 369 of file mitkVtkPropRenderer.cpp.

References mitk::CameraController::Fit(), mitk::BaseRenderer::GetCameraController(), mitk::BaseRenderer::InitSize(), mitk::BaseRenderer::m_RenderWindow, mitk::BaseRenderer::m_VtkRenderer, and Update().

◆ itkGetEnumMacro()

mitk::VtkPropRenderer::itkGetEnumMacro	(	PickingMode	,
		PickingMode
	)

◆ itkSetEnumMacro()

mitk::VtkPropRenderer::itkSetEnumMacro	(	PickingMode	,
		PickingMode
	)

Set the picking mode. This method is used to set the picking mode for 3D object picking. The user can select one of the three options WorldPointPicking, PointPicking and CellPicking. The first option uses the zBuffer from graphics rendering, the second uses the 3D points from the closest surface mesh, and the third option uses the cells of that mesh. The last option is the slowest, the first one the fastest. However, the first option cannot use transparent data object and the tolerance of the picked position to the selected point should be considered. PointPicking also need a tolerance around the picking position to select the closest point in the mesh. The CellPicker performs very well, if the foreground surface part (i.e. the surfacepart that is closest to the scene's cameras) needs to be picked.

◆ MakeCurrent()

void mitk::VtkPropRenderer::MakeCurrent ( )

virtual

Activates the current renderwindow.

Definition at line 421 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_RenderWindow.

◆ New()

static Pointer mitk::VtkPropRenderer::New	(	const char *	_arga,
		vtkRenderWindow *	_argb
	)

inlinestatic

Definition at line 66 of file mitkVtkPropRenderer.h.

Referenced by mitk::RenderWindowBase::Initialize(), mitkRenderingManagerTest(), mitkVtkPropRendererTest(), and QmitkSelectableGLWidget::QmitkSelectableGLWidget().

◆ PickObject()

mitk::DataNode * mitk::VtkPropRenderer::PickObject	(	const Point2D &	,
		Point3D &
	)		const

overridevirtual

Determines the object (mitk::DataNode) closest to the current position by means of picking.

Warning: Implementation currently empty for 2D rendering; intended to be implemented for 3D renderers

Reimplemented from mitk::BaseRenderer.

Definition at line 457 of file mitkVtkPropRenderer.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetMapper(), mitk::VtkMapper::GetVtkProp(), mitk::BaseRenderer::m_DataStorage, mitk::BaseRenderer::m_MapperID, mitk::BaseRenderer::m_VtkRenderer, and mitk::vtk2itk().

◆ PickWorldPoint()

void mitk::VtkPropRenderer::PickWorldPoint	(	const Point2D &	diplayPosition,
		Point3D &	worldPosition
	)		const

overridevirtual

Perform a picking: find the x,y,z world coordinate of a display x,y coordinate.

Warning: Has to be overwritten in subclasses for the 3D-case.

Implemented here only for 2D-rendering

Implements mitk::BaseRenderer.

Definition at line 427 of file mitkVtkPropRenderer.cpp.

References CellPicking, mitk::BaseRenderer::GetRenderWindow(), mitk::BaseRenderer::m_VtkRenderer, PointPicking, mitk::vtk2itk(), and WorldPointPicking.

◆ PrepareRender()

void mitk::VtkPropRenderer::PrepareRender ( )

virtual

This methods contains all method neceassary before a VTK Render() call.

Definition at line 674 of file mitkVtkPropRenderer.cpp.

References mitk::CameraController::AdjustCameraToPlane(), mitk::BaseRenderer::GetCameraController(), mitk::BaseRenderer::GetMapperID(), mitk::BaseRenderer::GetRenderWindow(), mitk::BaseRenderer::GetVtkRenderer(), mitk::BaseRenderer::Standard2D, and mitk::BaseRenderer::Standard3D.

Referenced by mitk::RenderingManager::ForceImmediateUpdate(), SaveSliceOrImageAsPNG(), and mitk::InteractionTestHelper::Set3dCameraSettings().

◆ ReleaseGraphicsResources()

void mitk::VtkPropRenderer::ReleaseGraphicsResources ( vtkWindow * renWin )

virtual

Release vtk-based graphics resources. Called by vtkMitkRenderProp::ReleaseGraphicsResources.

Definition at line 590 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_DataStorage, mitk::BaseRenderer::m_MapperID, and mitk::VtkMapper::ReleaseGraphicsResources().

◆ Render()

int mitk::VtkPropRenderer::Render ( RenderType type )

Called by the vtkMitkRenderProp in order to start MITK rendering process.

Definition at line 156 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::BaseRenderer::GetEmptyWorldGeometry(), mitk::BaseRenderer::GetVtkRenderer(), mitk::BaseRenderer::m_DataStorage, mitk::BaseRenderer::m_LastUpdateTime, mitk::BaseRenderer::m_MapperID, mitk::BaseRenderer::m_NumberOfVisibleLODEnabledMappers, mitk::Mapper::MitkRender(), Opaque, Overlay, and Update().

◆ RenderingCallback()

void mitk::VtkPropRenderer::RenderingCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)

staticprotected

Definition at line 350 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::GetInstance(), and mitk::BaseRenderer::RequestUpdate().

Referenced by InitRenderer().

◆ Resize()

void mitk::VtkPropRenderer::Resize	(	int	w,
		int	h
	)

overridevirtual

Resize the OpenGL Window.

Reimplemented from mitk::BaseRenderer.

Definition at line 363 of file mitkVtkPropRenderer.cpp.

References mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindow(), mitk::RenderingManager::RequestUpdate(), and mitk::BaseRenderer::Resize().

◆ SetDataStorage()

void mitk::VtkPropRenderer::SetDataStorage ( mitk::DataStorage * storage )

overridevirtual

set the datastorage that will be used for rendering

Reimplemented from mitk::BaseRenderer.

Examples:: Step1.cpp, Step2.cpp, Step3.cpp, Step4.cpp, Step5.cpp, and Step6.cpp.

Definition at line 119 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_DataStorage, mitk::BaseRenderer::SetDataStorage(), and SetWorldGeometryToDataStorageBounds().

Referenced by main(), SaveSliceOrImageAsPNG(), and Step6::SetupWidgets().

◆ SetMapperID()

void mitk::VtkPropRenderer::SetMapperID ( const MapperSlotId _arg )

overridevirtual

Set the MapperSlotId to use.

Reimplemented from mitk::BaseRenderer.

Examples:: Step3.cpp, Step4.cpp, Step5.cpp, Step6.cpp, and Step8.cpp.

Definition at line 409 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_MapperID, and mitk::BaseRenderer::SetMapperID().

Referenced by main(), Step8::SetupWidgets(), and Step6::SetupWidgets().

◆ SetPropertyKeys()

void mitk::VtkPropRenderer::SetPropertyKeys ( vtkInformation * info )

Store/propagate vtkInformation during rendering.

Definition at line 260 of file mitkVtkPropRenderer.cpp.

References mitk::VtkMapper::GetVtkProp(), and info().

◆ SetWorldGeometryToDataStorageBounds()

bool mitk::VtkPropRenderer::SetWorldGeometryToDataStorageBounds ( )

overridevirtual

This method calculates the bounds of the DataStorage (if it contains any valid data), creates a geometry from these bounds and sets it as world geometry of the renderer.

Call this method to re-initialize the renderer to the current DataStorage (e.g. after loading an additional dataset), to ensure that the view is aligned correctly.

Reimplemented from mitk::BaseRenderer.

Definition at line 133 of file mitkVtkPropRenderer.cpp.

References mitk::CameraController::Fit(), mitk::BaseRenderer::GetCameraController(), mitk::BaseRenderer::GetVtkRenderer(), mitk::BaseRenderer::m_DataStorage, and mitk::BaseRenderer::SetWorldTimeGeometry().

Referenced by SetDataStorage().

◆ Update() [1/2]

void mitk::VtkPropRenderer::Update ( mitk::DataNode * datatreenode )

virtual

Definition at line 288 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::DataNode::GetMapper(), mitk::BaseGeometry::IsValid(), mitk::BaseRenderer::m_MapperID, and mitk::VtkMapper::UpdateVtkTransform().

◆ Update() [2/2]

void mitk::VtkPropRenderer::Update ( )

overrideprotectedvirtual

Call update of all mappers. To be implemented in subclasses.

Implements mitk::BaseRenderer.

Definition at line 310 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::m_DataStorage, and mitk::BaseRenderer::m_LastUpdateTime.

Referenced by InitSize(), and Render().

◆ UpdatePaths()

void mitk::VtkPropRenderer::UpdatePaths ( )

protectedvirtual

Definition at line 541 of file mitkVtkPropRenderer.cpp.

References mitk::VtkMapper::GetVtkProp(), mitk::BaseRenderer::m_DataStorage, and mitk::BaseRenderer::Standard3D.

Referenced by GetNumberOfPaths(), and InitPathTraversal().

◆ useImmediateModeRendering()

bool mitk::VtkPropRenderer::useImmediateModeRendering ( )

static

Definition at line 637 of file mitkVtkPropRenderer.cpp.

References glWorkAroundGlobalCount, mitk::BaseRenderer::m_MapperID, MITK_INFO, and mitk::BaseRenderer::Standard3D.

◆ WriteSimpleText()

int mitk::VtkPropRenderer::WriteSimpleText	(	std::string	text,
		double	posX,
		double	posY,
		double	color1 = `0.0`,
		double	color2 = `1.0`,
		double	color3 = `0.0`,
		float	opacity = `1.0`
	)

WriteSimpleText Write a text in a renderwindow.

Writes some 2D text as overlay. Function returns an unique int Text_ID for each call, which can be used via the GetTextLabelProperty(int text_id) function in order to get a vtkTextProperty. This property enables the setup of font, font size, etc.

Deprecated:: (as of 2015_05) Please use mitkTextOverlay2D instead. See mitkTextOverlay2DRenderingTest for an example.

Definition at line 385 of file mitkVtkPropRenderer.cpp.

References mitk::BaseRenderer::GetVtkRenderer().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ MappersMapType

◆ Pointer

◆ Self

◆ Superclass

Member Enumeration Documentation

◆ PickingMode

◆ RenderType

Constructor & Destructor Documentation

◆ VtkPropRenderer()

◆ ~VtkPropRenderer()

Member Function Documentation

◆ GetCellPicker()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetMappersMap()

◆ GetNextPath()

◆ GetNumberOfPaths()

◆ GetPointPicker()

◆ GetStaticNameOfClass()

◆ GetTextLabelProperty()

◆ GetWorldPointPicker()

◆ InitPathTraversal()

◆ InitRenderer()

◆ InitSize()

◆ itkGetEnumMacro()

◆ itkSetEnumMacro()

◆ MakeCurrent()

◆ New()

◆ PickObject()

◆ PickWorldPoint()

◆ PrepareRender()

◆ ReleaseGraphicsResources()

◆ Render()

◆ RenderingCallback()

◆ Resize()

◆ SetDataStorage()

◆ SetMapperID()

◆ SetPropertyKeys()

◆ SetWorldGeometryToDataStorageBounds()

◆ Update() [1/2]

◆ Update() [2/2]

◆ UpdatePaths()

◆ useImmediateModeRendering()

◆ WriteSimpleText()
