Controls the selection of the slice the associated BaseRenderer will display. More...

#include <mitkSliceNavigationController.h>

Inheritance diagram for mitk::SliceNavigationController:

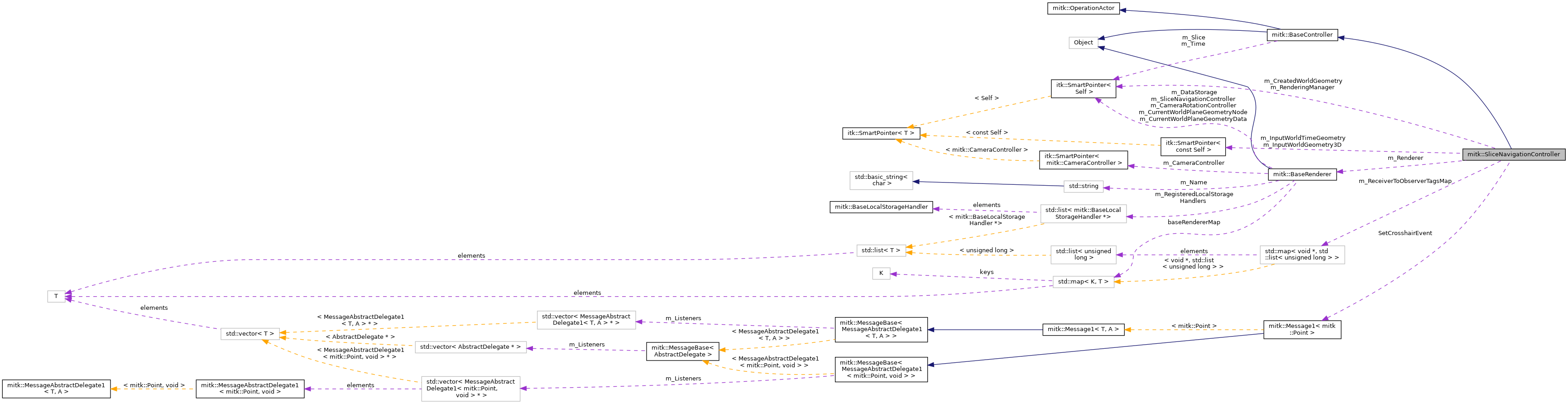

Collaboration diagram for mitk::SliceNavigationController:

[legend]

Classes
class	GeometrySendEvent

class	GeometrySliceEvent

class	GeometryTimeEvent

class	GeometryUpdateEvent

class	TimeGeometryEvent

Public Types
enum	ViewDirection { Axial, Sagittal, Frontal, Original }
	Possible view directions, Original will uses the PlaneGeometry instances in a SlicedGeometry3D provided as input world geometry (by SetInputWorldGeometry). More...

typedef SliceNavigationController	Self

typedef BaseController	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef TimeGeometryEvent	TimeSlicedGeometryEvent

Public Types inherited from mitk::BaseController
typedef BaseController	Self

typedef mitk::OperationActor	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

void	SetInputWorldGeometry3D (const mitk::BaseGeometry *geometry)
	Set the input world geometry3D out of which the geometries for slicing will be created. More...

virtual const mitk::BaseGeometry *	GetInputWorldGeometry3D ()

void	SetInputWorldGeometry (const mitk::TimeSlicedGeometry *geometry)
	Set the input world geometry3D out of which the geometries for slicing will be created. More...

TimeSlicedGeometry *	GetInputWorldGeometry ()

void	SetInputWorldTimeGeometry (const mitk::TimeGeometry *geometry)

virtual const mitk::TimeGeometry *	GetInputWorldTimeGeometry ()

virtual const mitk::TimeGeometry *	GetCreatedWorldGeometry ()
	Access the created geometry. More...

	itkSetEnumMacro (ViewDirection, ViewDirection)
	Set the desired view directions. More...

	itkGetEnumMacro (ViewDirection, ViewDirection)

	itkSetEnumMacro (DefaultViewDirection, ViewDirection)
	Set the default view direction. More...

	itkGetEnumMacro (DefaultViewDirection, ViewDirection)

const char *	GetViewDirectionAsString () const

virtual void	SetViewDirectionToDefault ()

virtual void	Update ()
	Do the actual creation and send it to the connected observers (renderers) More...

virtual void	Update (ViewDirection viewDirection, bool top=true, bool frontside=true, bool rotated=false)
	Extended version of Update, additionally allowing to specify the direction/orientation of the created geometry. More...

virtual void	SendCreatedWorldGeometry ()
	Send the created geometry to the connected observers (renderers) More...

virtual void	SendCreatedWorldGeometryUpdate ()
	Tell observers to re-read the currently selected 2D geometry. More...

virtual void	SendSlice ()
	Send the currently selected slice to the connected observers (renderers) More...

virtual void	SendTime ()
	Send the currently selected time to the connected observers (renderers) More...

	itkEventMacro (UpdateEvent, itk::AnyEvent)

template<typename T >
void	ConnectGeometrySendEvent (T *receiver)

template<typename T >
void	ConnectGeometryUpdateEvent (T *receiver)

template<typename T >
void	ConnectGeometrySliceEvent (T *receiver, bool connectSendEvent=true)

template<typename T >
void	ConnectGeometryTimeEvent (T *receiver, bool connectSendEvent=true)

template<typename T >
void	ConnectGeometryEvents (T *receiver)

template<typename T >
void	Disconnect (T *receiver)

virtual void	SetGeometry (const itk::EventObject &geometrySliceEvent)
	To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface. More...

virtual void	SetGeometrySlice (const itk::EventObject &geometrySliceEvent)
	To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface. More...

virtual void	SetGeometryTime (const itk::EventObject &geometryTimeEvent)
	To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface. More...

void	SelectSliceByPoint (const mitk::Point3D &point)
	Positions the SNC according to the specified point. More...

mitk::TimeGeometry *	GetCreatedWorldGeometry ()
	Returns the TimeGeometry created by the SNC. More...

const mitk::BaseGeometry *	GetCurrentGeometry3D ()
	Returns the BaseGeometry of the currently selected time step. More...

const mitk::PlaneGeometry *	GetCurrentPlaneGeometry ()
	Returns the currently selected Plane in the current BaseGeometry (if existent). More...

void	SetRenderer (BaseRenderer *renderer)
	Sets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC. More...

BaseRenderer *	GetRenderer () const
	Gets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC. Returns nullptr if no BaseRenderer has been specified. More...

void	ReorientSlices (const mitk::Point3D &point, const mitk::Vector3D &normal)
	Re-orients the slice stack. All slices will be oriented to the given normal vector. The given point (world coordinates) defines the selected slice. Careful: The resulting axis vectors are not clearly defined this way. If you want to define them clearly, use ReorientSlices (const mitk::Point3D &point, const mitk::Vector3D &axisVec0, const mitk::Vector3D &axisVec1). More...

void	ReorientSlices (const mitk::Point3D &point, const mitk::Vector3D &axisVec0, const mitk::Vector3D &axisVec1)
	Re-orients the slice stack so that all planes are oriented according to the given axis vectors. The given Point eventually defines selected slice. More...

void	ExecuteOperation (Operation *operation) override

virtual void	SetSliceLocked (bool _arg)
	Feature option to lock planes during mouse interaction. This option flag disables the mouse event which causes the center cross to move near by. More...

virtual bool	GetSliceLocked ()

virtual void	SliceLockedOn ()

virtual void	SliceLockedOff ()

virtual void	SetSliceRotationLocked (bool _arg)
	Feature option to lock slice rotation. More...

virtual bool	GetSliceRotationLocked ()

virtual void	SliceRotationLockedOn ()

virtual void	SliceRotationLockedOff ()

void	AdjustSliceStepperRange ()
	Adjusts the numerical range of the slice stepper according to the current geometry orientation of this SNC's SlicedGeometry. More...

Public Member Functions inherited from mitk::BaseController
mitk::Stepper *	GetSlice ()
	Get the Stepper through the slices. More...

mitk::Stepper *	GetTime ()
	Get the Stepper through the time. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::BaseController
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Public Attributes
Message1< mitk::Point3D >	SetCrosshairEvent

Protected Types
typedef std::map< void *, std::list< unsigned long > >	ObserverTagsMapType

Protected Member Functions
	SliceNavigationController ()

	~SliceNavigationController () override

virtual void	SetTop (bool _arg)

virtual bool	GetTop ()

virtual void	TopOn ()

virtual void	TopOff ()

virtual void	SetFrontSide (bool _arg)

virtual bool	GetFrontSide ()

virtual void	FrontSideOn ()

virtual void	FrontSideOff ()

virtual void	SetRotated (bool _arg)

virtual bool	GetRotated ()

virtual void	RotatedOn ()

virtual void	RotatedOff ()

Protected Member Functions inherited from mitk::BaseController
	BaseController ()
	Default Constructor. More...

	~BaseController () override
	Default Destructor. More...

Protected Attributes
mitk::BaseGeometry::ConstPointer	m_InputWorldGeometry3D

mitk::TimeGeometry::ConstPointer	m_InputWorldTimeGeometry

mitk::TimeGeometry::Pointer	m_CreatedWorldGeometry

ViewDirection	m_ViewDirection

ViewDirection	m_DefaultViewDirection

mitk::RenderingManager::Pointer	m_RenderingManager

mitk::BaseRenderer *	m_Renderer

bool	m_Top

bool	m_FrontSide

bool	m_Rotated

bool	m_BlockUpdate

bool	m_SliceLocked

bool	m_SliceRotationLocked

unsigned int	m_OldPos

ObserverTagsMapType	m_ReceiverToObserverTagsMap

Protected Attributes inherited from mitk::BaseController
Stepper::Pointer	m_Time

Stepper::Pointer	m_Slice

unsigned long	m_LastUpdateTime

Detailed Description

Controls the selection of the slice the associated BaseRenderer will display.

A SliceNavigationController takes a BaseGeometry or a TimeGeometry as input world geometry (TODO what are the exact requirements?) and generates a TimeGeometry as output. The TimeGeometry holds a number of SlicedGeometry3Ds and these in turn hold a series of PlaneGeometries. One of these PlaneGeometries is selected as world geometry for the BaseRenderers associated to 2D views.

The SliceNavigationController holds has Steppers (one for the slice, a second for the time step), which control the selection of a single PlaneGeometry from the TimeGeometry. SliceNavigationController generates ITK events to tell observers, like a BaseRenderer, when the selected slice or timestep changes.

Example:

// Initialization
sliceCtrl = mitk::SliceNavigationController::New();
// Tell the navigator the geometry to be sliced (with geometry a
// BaseGeometry::ConstPointer)
sliceCtrl->SetInputWorldGeometry(geometry.GetPointer());
// Tell the navigator in which direction it shall slice the data
sliceCtrl->SetViewDirection(mitk::SliceNavigationController::Axial);
// Connect one or more BaseRenderer to this navigator, i.e.: events sent
// by the navigator when stepping through the slices (e.g. by
// sliceCtrl->GetSlice()->Next()) will be received by the BaseRenderer
// (in this example only slice-changes, see also ConnectGeometryTimeEvent
// and ConnectGeometryEvents.)
sliceCtrl->ConnectGeometrySliceEvent(renderer.GetPointer());
//create a world geometry and send the information to the connected renderer(s)
sliceCtrl->Update();

You can connect visible navigators to a SliceNavigationController, e.g., a QmitkSliderNavigator (for Qt):

// Create the visible navigator (a slider with a spin-box)
QmitkSliderNavigator* navigator =
  new QmitkSliderNavigator(parent, "slidernavigator");
// Connect the navigator to the slice-stepper of the
// SliceNavigationController. For initialization (position, mininal and
// maximal values) the values of the SliceNavigationController are used.
// Thus, accessing methods of a navigator is normally not necessary, since
// everything can be set via the (Qt-independent) SliceNavigationController.
// The QmitkStepperAdapter converts the Qt-signals to Qt-independent
// itk-events.
new QmitkStepperAdapter(navigator, sliceCtrl->GetSlice(), "navigatoradaptor");

If you do not want that all renderwindows are updated when a new slice is selected, you can use a specific RenderingManager, which updates only those renderwindows that should be updated. This is sometimes useful when a 3D view does not need to be updated when the slices in some 2D views are changed. QmitkSliderNavigator (for Qt):

// create a specific RenderingManager
mitk::RenderingManager::Pointer myManager = mitk::RenderingManager::New();
// tell the RenderingManager to update only renderwindow1 and renderwindow2
myManager->AddRenderWindow(renderwindow1);
myManager->AddRenderWindow(renderwindow2);
// tell the SliceNavigationController of renderwindow1 and renderwindow2
// to use the specific RenderingManager instead of the global one
renderwindow1->GetSliceNavigationController()->SetRenderingManager(myManager);
renderwindow2->GetSliceNavigationController()->SetRenderingManager(myManager);

Definition at line 148 of file mitkSliceNavigationController.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::SliceNavigationController::ConstPointer

Definition at line 151 of file mitkSliceNavigationController.h.

◆ ObserverTagsMapType

typedef std::map<void *, std::list<unsigned long> > mitk::SliceNavigationController::ObserverTagsMapType

protected

Definition at line 500 of file mitkSliceNavigationController.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::SliceNavigationController::Pointer

Definition at line 151 of file mitkSliceNavigationController.h.

◆ Self

typedef SliceNavigationController mitk::SliceNavigationController::Self

Definition at line 151 of file mitkSliceNavigationController.h.

◆ Superclass

typedef BaseController mitk::SliceNavigationController::Superclass

Definition at line 151 of file mitkSliceNavigationController.h.

◆ TimeSlicedGeometryEvent

typedef TimeGeometryEvent mitk::SliceNavigationController::TimeSlicedGeometryEvent

Deprecated:: (as of 2013_09) Please use TimeGeometryEvent instead: For additional information see http://www.mitk.org/Development/Refactoring%20of%20the%20Geometry%20Classes%20-%20Part%201

Definition at line 303 of file mitkSliceNavigationController.h.

Member Enumeration Documentation

◆ ViewDirection

enum mitk::SliceNavigationController::ViewDirection

Possible view directions, Original will uses the PlaneGeometry instances in a SlicedGeometry3D provided as input world geometry (by SetInputWorldGeometry).

Enumerator
Axial
Sagittal
Frontal
Original

Definition at line 162 of file mitkSliceNavigationController.h.

Constructor & Destructor Documentation

◆ SliceNavigationController()

mitk::SliceNavigationController::SliceNavigationController ( )

protected

Definition at line 46 of file mitkSliceNavigationController.cpp.

References m_FrontSide, m_Rotated, mitk::BaseController::m_Slice, mitk::BaseController::m_Time, m_Top, SendSlice(), and SendTime().

◆ ~SliceNavigationController()

mitk::SliceNavigationController::~SliceNavigationController ( )

overrideprotected

Definition at line 84 of file mitkSliceNavigationController.cpp.

Member Function Documentation

◆ AdjustSliceStepperRange()

void mitk::SliceNavigationController::AdjustSliceStepperRange ( )

Adjusts the numerical range of the slice stepper according to the current geometry orientation of this SNC's SlicedGeometry.

Definition at line 544 of file mitkSliceNavigationController.cpp.

References GetCurrentGeometry3D(), k(), mitk::BaseController::m_Slice, max(), and min().

Referenced by mitk::SlicedGeometry3D::ExecuteOperation(), and Update().

◆ ConnectGeometryEvents()

template<typename T >

void mitk::SliceNavigationController::ConnectGeometryEvents ( T * receiver )

inline

Definition at line 355 of file mitkSliceNavigationController.h.

◆ ConnectGeometrySendEvent()

template<typename T >

void mitk::SliceNavigationController::ConnectGeometrySendEvent ( T * receiver )

inline

Definition at line 311 of file mitkSliceNavigationController.h.

◆ ConnectGeometrySliceEvent()

template<typename T >

void mitk::SliceNavigationController::ConnectGeometrySliceEvent	(	T *	receiver,
		bool	connectSendEvent = `true`
	)

inline

Definition at line 331 of file mitkSliceNavigationController.h.

◆ ConnectGeometryTimeEvent()

template<typename T >

void mitk::SliceNavigationController::ConnectGeometryTimeEvent	(	T *	receiver,
		bool	connectSendEvent = `true`
	)

inline

Definition at line 343 of file mitkSliceNavigationController.h.

Referenced by InitializeWindows(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ ConnectGeometryUpdateEvent()

template<typename T >

void mitk::SliceNavigationController::ConnectGeometryUpdateEvent ( T * receiver )

inline

Definition at line 321 of file mitkSliceNavigationController.h.

◆ Disconnect()

template<typename T >

void mitk::SliceNavigationController::Disconnect ( T * receiver )

inline

Definition at line 364 of file mitkSliceNavigationController.h.

Referenced by mitk::InteractionTestHelper::~InteractionTestHelper(), and QmitkStdMultiWidget::~QmitkStdMultiWidget().

◆ ExecuteOperation()

void mitk::SliceNavigationController::ExecuteOperation ( Operation * operation )

overridevirtual

Reimplemented from mitk::BaseController.

Definition at line 578 of file mitkSliceNavigationController.cpp.

References mitk::Operation::GetOperationType(), mitk::BaseController::GetSlice(), m_CreatedWorldGeometry, m_SliceLocked, mitk::OpAPPLYTRANSFORMMATRIX, mitk::OpMOVE, mitk::OpRESTOREPLANEPOSITION, SelectSliceByPoint(), SendCreatedWorldGeometryUpdate(), and mitk::Stepper::SetPos().

◆ FrontSideOff()

virtual void mitk::SliceNavigationController::FrontSideOff ( )

protectedvirtual

◆ FrontSideOn()

virtual void mitk::SliceNavigationController::FrontSideOn ( )

protectedvirtual

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::SliceNavigationController::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseController.

Definition at line 151 of file mitkSliceNavigationController.h.

◆ GetClassName()

virtual const char* mitk::SliceNavigationController::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseController.

◆ GetCreatedWorldGeometry() [1/2]

mitk::TimeGeometry * mitk::SliceNavigationController::GetCreatedWorldGeometry ( )

virtual

Access the created geometry.

Definition at line 513 of file mitkSliceNavigationController.cpp.

References m_CreatedWorldGeometry.

Referenced by mitk::BaseRenderer::SetSliceNavigationController(), and mitk::InteractionTestHelper::SetTimeStep().

◆ GetCreatedWorldGeometry() [2/2]

mitk::TimeGeometry* mitk::SliceNavigationController::GetCreatedWorldGeometry ( )

Returns the TimeGeometry created by the SNC.

◆ GetCurrentGeometry3D()

const mitk::BaseGeometry * mitk::SliceNavigationController::GetCurrentGeometry3D ( )

Returns the BaseGeometry of the currently selected time step.

Definition at line 514 of file mitkSliceNavigationController.cpp.

References mitk::BaseController::GetTime(), and m_CreatedWorldGeometry.

Referenced by mitk::SegTool2D::AddContourmarker(), AdjustSliceStepperRange(), and GetCurrentPlaneGeometry().

◆ GetCurrentPlaneGeometry()

const mitk::PlaneGeometry * mitk::SliceNavigationController::GetCurrentPlaneGeometry ( )

Returns the currently selected Plane in the current BaseGeometry (if existent).

Definition at line 526 of file mitkSliceNavigationController.cpp.

References GetCurrentGeometry3D(), and mitk::BaseController::GetSlice().

Referenced by QmitkSliceBasedInterpolatorWidget::AcceptAllInterpolations(), QmitkSlicesInterpolator::AcceptAllInterpolations(), mitk::PlanarFigureInteractor::AddInitialPoint(), mitk::DisplayInteractor::CheckRotationPossible(), mitk::DisplayActionEventBroadcast::CheckRotationPossible(), mitk::DisplayInteractor::CheckSwivelPossible(), mitk::DisplayActionEventBroadcast::CheckSwivelPossible(), QmitkStdMultiWidget::GetSelectedPosition(), QmitkSliceBasedInterpolatorWidget::OnAcceptInterpolationClicked(), and QmitkSlicesInterpolator::OnAcceptInterpolationClicked().

◆ GetFrontSide()

virtual bool mitk::SliceNavigationController::GetFrontSide ( )

protectedvirtual

◆ GetInputWorldGeometry()

TimeSlicedGeometry* mitk::SliceNavigationController::GetInputWorldGeometry ( )

Deprecated:: (as of 2013_09) Please use TimeGeometry instead of TimeSlicedGeometry. For more information see http://www.mitk.org/Development/Refactoring%20of%20the%20Geometry%20Classes%20-%20Part%201

◆ GetInputWorldGeometry3D()

virtual const mitk::BaseGeometry* mitk::SliceNavigationController::GetInputWorldGeometry3D ( )

virtual

◆ GetInputWorldTimeGeometry()

virtual const mitk::TimeGeometry* mitk::SliceNavigationController::GetInputWorldTimeGeometry ( )

virtual

◆ GetRenderer()

BaseRenderer * mitk::SliceNavigationController::GetRenderer ( ) const

Gets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC. Returns nullptr if no BaseRenderer has been specified.

Definition at line 543 of file mitkSliceNavigationController.cpp.

References m_Renderer.

Referenced by QmitkSliceBasedInterpolatorWidget::CreateActionToSliceDimension(), QmitkStdMultiWidget::HandleCrosshairPositionEventDelayed(), QmitkSlicesInterpolator::OnSliceChanged(), QmitkSlicesInterpolator::OnSurfaceInterpolationFinished(), and QmitkSliceBasedInterpolatorWidget::UpdateVisibleSuggestion().

◆ GetRotated()

virtual bool mitk::SliceNavigationController::GetRotated ( )

protectedvirtual

◆ GetSliceLocked()

virtual bool mitk::SliceNavigationController::GetSliceLocked ( )

virtual

Referenced by mitk::DisplayActionEventFunctions::ScrollSliceStepperAction(), mitk::DisplayActionEventFunctions::ScrollSliceStepperSynchronizedAction(), and QmitkSelectableGLWidget::wheelEvent().

◆ GetSliceRotationLocked()

virtual bool mitk::SliceNavigationController::GetSliceRotationLocked ( )

virtual

◆ GetStaticNameOfClass()

static const char* mitk::SliceNavigationController::GetStaticNameOfClass ( )

inlinestatic

Definition at line 151 of file mitkSliceNavigationController.h.

◆ GetTop()

virtual bool mitk::SliceNavigationController::GetTop ( )

protectedvirtual

◆ GetViewDirectionAsString()

const char * mitk::SliceNavigationController::GetViewDirectionAsString ( ) const

Definition at line 122 of file mitkSliceNavigationController.cpp.

References Axial, Frontal, m_ViewDirection, Original, and Sagittal.

Referenced by QmitkSlicesInterpolator::createActionToSliceDimension().

◆ itkEventMacro()

mitk::SliceNavigationController::itkEventMacro	(	UpdateEvent	,
		itk::AnyEvent
	)

◆ itkGetEnumMacro() [1/2]

mitk::SliceNavigationController::itkGetEnumMacro	(	ViewDirection	,
		ViewDirection
	)

◆ itkGetEnumMacro() [2/2]

mitk::SliceNavigationController::itkGetEnumMacro	(	DefaultViewDirection	,
		ViewDirection
	)

◆ itkSetEnumMacro() [1/2]

mitk::SliceNavigationController::itkSetEnumMacro	(	ViewDirection	,
		ViewDirection
	)

Set the desired view directions.

See also: ViewDirection; Update(ViewDirection viewDirection, bool top = true, bool frontside = true, bool rotated = false)

◆ itkSetEnumMacro() [2/2]

mitk::SliceNavigationController::itkSetEnumMacro	(	DefaultViewDirection	,
		ViewDirection
	)

Set the default view direction.

This is used to re-initialize the view direction of the SNC to the default value with SetViewDirectionToDefault()

See also: ViewDirection; Update(ViewDirection viewDirection, bool top = true, bool frontside = true, bool rotated = false)

◆ New()

static Pointer mitk::SliceNavigationController::New ( )

static

Referenced by mitk::BaseRenderer::BaseRenderer().

◆ ReorientSlices() [1/2]

void mitk::SliceNavigationController::ReorientSlices	(	const mitk::Point3D &	point,
		const mitk::Vector3D &	normal
	)

Re-orients the slice stack. All slices will be oriented to the given normal vector. The given point (world coordinates) defines the selected slice. Careful: The resulting axis vectors are not clearly defined this way. If you want to define them clearly, use ReorientSlices (const mitk::Point3D &point, const mitk::Vector3D &axisVec0, const mitk::Vector3D &axisVec1).

Definition at line 486 of file mitkSliceNavigationController.cpp.

References m_CreatedWorldGeometry, mitk::OpORIENT, and SendCreatedWorldGeometryUpdate().

◆ ReorientSlices() [2/2]

void mitk::SliceNavigationController::ReorientSlices	(	const mitk::Point3D &	point,
		const mitk::Vector3D &	axisVec0,
		const mitk::Vector3D &	axisVec1
	)

Re-orients the slice stack so that all planes are oriented according to the given axis vectors. The given Point eventually defines selected slice.

Definition at line 500 of file mitkSliceNavigationController.cpp.

References m_CreatedWorldGeometry, mitk::OpORIENT, and SendCreatedWorldGeometryUpdate().

◆ RotatedOff()

virtual void mitk::SliceNavigationController::RotatedOff ( )

protectedvirtual

◆ RotatedOn()

virtual void mitk::SliceNavigationController::RotatedOn ( )

protectedvirtual

◆ SelectSliceByPoint()

void mitk::SliceNavigationController::SelectSliceByPoint ( const mitk::Point3D & point )

◆ SendCreatedWorldGeometry()

void mitk::SliceNavigationController::SendCreatedWorldGeometry ( )

virtual

Send the created geometry to the connected observers (renderers)

Called by Update().

Definition at line 347 of file mitkSliceNavigationController.cpp.

References m_BlockUpdate, and m_CreatedWorldGeometry.

Referenced by Update().

◆ SendCreatedWorldGeometryUpdate()

void mitk::SliceNavigationController::SendCreatedWorldGeometryUpdate ( )

virtual

Tell observers to re-read the currently selected 2D geometry.

Definition at line 357 of file mitkSliceNavigationController.cpp.

References m_BlockUpdate, m_CreatedWorldGeometry, and mitk::BaseController::m_Slice.

Referenced by ExecuteOperation(), ReorientSlices(), and SelectSliceByPoint().

◆ SendSlice()

void mitk::SliceNavigationController::SendSlice ( )

virtual

Send the currently selected slice to the connected observers (renderers)

Called by Update().

Definition at line 365 of file mitkSliceNavigationController.cpp.

References mitk::RenderingManager::GetInstance(), m_BlockUpdate, m_CreatedWorldGeometry, mitk::BaseController::m_Slice, and mitk::RenderingManager::RequestUpdateAll().

Referenced by QmitkSliceBasedInterpolatorWidget::OnTimeChanged(), QmitkSlicesInterpolator::OnTimeChanged(), SliceNavigationController(), and Update().

◆ SendTime()

void mitk::SliceNavigationController::SendTime ( )

virtual

Send the currently selected time to the connected observers (renderers)

Called by Update().

Definition at line 377 of file mitkSliceNavigationController.cpp.

References mitk::RenderingManager::GetInstance(), m_BlockUpdate, m_CreatedWorldGeometry, mitk::BaseController::m_Time, and mitk::RenderingManager::RequestUpdateAll().

Referenced by SliceNavigationController(), and Update().

◆ SetFrontSide()

virtual void mitk::SliceNavigationController::SetFrontSide ( bool _arg )

protectedvirtual

Referenced by Update().

◆ SetGeometry()

void mitk::SliceNavigationController::SetGeometry ( const itk::EventObject & geometrySliceEvent )

virtual

To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.

Warning: not implemented

Definition at line 389 of file mitkSliceNavigationController.cpp.

◆ SetGeometrySlice()

void mitk::SliceNavigationController::SetGeometrySlice ( const itk::EventObject & geometrySliceEvent )

virtual

To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.

Definition at line 411 of file mitkSliceNavigationController.cpp.

References mitk::BaseController::GetSlice(), and mitk::Stepper::SetPos().

◆ SetGeometryTime()

void mitk::SliceNavigationController::SetGeometryTime ( const itk::EventObject & geometryTimeEvent )

virtual

To connect multiple SliceNavigationController, we can act as an observer ourselves: implemented interface.

Definition at line 390 of file mitkSliceNavigationController.cpp.

References mitk::BaseController::GetTime(), m_CreatedWorldGeometry, mitk::Stepper::SetPos(), and mitk::TimeGeometry::TimeStepToTimePoint().

◆ SetInputWorldGeometry()

void mitk::SliceNavigationController::SetInputWorldGeometry ( const mitk::TimeSlicedGeometry * geometry )

Set the input world geometry3D out of which the geometries for slicing will be created.

Any previous previous set input geometry (3D or Time) will be ignored in future.

Deprecated:: (as of 2013_09) Please use TimeGeometry instead of TimeSlicedGeometry. For more information see http://www.mitk.org/Development/Refactoring%20of%20the%20Geometry%20Classes%20-%20Part%201

◆ SetInputWorldGeometry3D()

void mitk::SliceNavigationController::SetInputWorldGeometry3D ( const mitk::BaseGeometry * geometry )

Set the input world geometry3D out of which the geometries for slicing will be created.

Any previous previous set input geometry (3D or Time) will be ignored in future.

Definition at line 85 of file mitkSliceNavigationController.cpp.

References mitk::eps, mitk::BaseGeometry::GetBoundingBox(), m_InputWorldGeometry3D, and m_InputWorldTimeGeometry.

◆ SetInputWorldTimeGeometry()

void mitk::SliceNavigationController::SetInputWorldTimeGeometry ( const mitk::TimeGeometry * geometry )

Definition at line 103 of file mitkSliceNavigationController.cpp.

References mitk::eps, mitk::TimeGeometry::GetBoundingBoxInWorld(), m_InputWorldGeometry3D, and m_InputWorldTimeGeometry.

Referenced by mitk::RenderingManager::InitializeView(), QmitkSliceWidget::InitWidget(), and mitk::BaseRenderer::SetSliceNavigationController().

◆ SetRenderer()

void mitk::SliceNavigationController::SetRenderer ( BaseRenderer * renderer )

Sets the BaseRenderer associated with this SNC (if any). While the BaseRenderer is not directly used by SNC, this is a convenience method to enable BaseRenderer access via the SNC.

Definition at line 542 of file mitkSliceNavigationController.cpp.

References m_Renderer.

◆ SetRotated()

virtual void mitk::SliceNavigationController::SetRotated ( bool _arg )

protectedvirtual

Referenced by Update().

◆ SetSliceLocked()

virtual void mitk::SliceNavigationController::SetSliceLocked ( bool _arg )

virtual

Feature option to lock planes during mouse interaction. This option flag disables the mouse event which causes the center cross to move near by.

◆ SetSliceRotationLocked()

virtual void mitk::SliceNavigationController::SetSliceRotationLocked ( bool _arg )

virtual

Feature option to lock slice rotation.

This option flag disables separately the rotation of a slice which is implemented in mitkSliceRotator.

◆ SetTop()

virtual void mitk::SliceNavigationController::SetTop ( bool _arg )

protectedvirtual

Referenced by Update().

◆ SetViewDirectionToDefault()

void mitk::SliceNavigationController::SetViewDirectionToDefault ( )

virtual

Definition at line 121 of file mitkSliceNavigationController.cpp.

References m_DefaultViewDirection, and m_ViewDirection.

Referenced by mitk::RenderingManager::InitializeView(), and mitk::RenderingManager::InitializeViews().

◆ SliceLockedOff()

virtual void mitk::SliceNavigationController::SliceLockedOff ( )

virtual

◆ SliceLockedOn()

virtual void mitk::SliceNavigationController::SliceLockedOn ( )

virtual

◆ SliceRotationLockedOff()

virtual void mitk::SliceNavigationController::SliceRotationLockedOff ( )

virtual

◆ SliceRotationLockedOn()

virtual void mitk::SliceNavigationController::SliceRotationLockedOn ( )

virtual

◆ TopOff()

virtual void mitk::SliceNavigationController::TopOff ( )

protectedvirtual

◆ TopOn()

virtual void mitk::SliceNavigationController::TopOn ( )

protectedvirtual

◆ Update() [1/2]

void mitk::SliceNavigationController::Update ( )

virtual

Do the actual creation and send it to the connected observers (renderers)

Definition at line 150 of file mitkSliceNavigationController.cpp.

References Axial, Frontal, m_BlockUpdate, m_ViewDirection, and Sagittal.

Referenced by mitk::RenderingManager::InitializeView(), mitk::RenderingManager::InitializeViews(), QmitkSliceWidget::InitWidget(), and mitk::BaseRenderer::SetSliceNavigationController().

◆ Update() [2/2]

void mitk::SliceNavigationController::Update	(	SliceNavigationController::ViewDirection	viewDirection,
		bool	top = `true`,
		bool	frontside = `true`,
		bool	rotated = `false`
	)
