mitk::BaseController Class Reference

Baseclass for renderer slice-/camera-control. More...

#include <mitkBaseController.h>

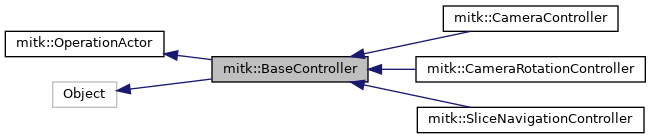

Inheritance diagram for mitk::BaseController:

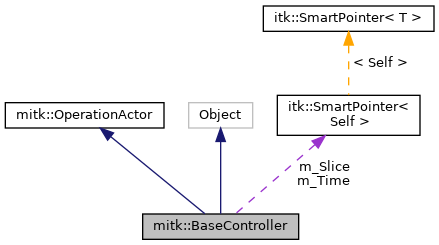

Collaboration diagram for mitk::BaseController:

Public Types
typedef BaseController	Self
typedef mitk::OperationActor	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const
virtual const char *	GetClassName () const
mitk::Stepper *	GetSlice ()
	Get the Stepper through the slices. More...
mitk::Stepper *	GetTime ()
	Get the Stepper through the time. More...
Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()

Protected Member Functions
	BaseController ()
	Default Constructor. More...
	~BaseController () override
	Default Destructor. More...
void	ExecuteOperation (Operation *) override

Protected Attributes
Stepper::Pointer	m_Time
Stepper::Pointer	m_Slice
unsigned long	m_LastUpdateTime

Detailed Description

Baseclass for renderer slice-/camera-control.

Tells the render (subclass of BaseRenderer) which slice (subclass SliceNavigationController) or from which direction (subclass CameraController) it has to render. Contains two Stepper for stepping through the slices or through different camera views (e.g., for the creation of a movie around the data), respectively, and through time, if there is 3D+t data.

Note

not yet implemented

Definition at line 37 of file mitkBaseController.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::BaseController::ConstPointer

Definition at line 41 of file mitkBaseController.h.

Pointer

typedef itk::SmartPointer<Self> mitk::BaseController::Pointer

Definition at line 41 of file mitkBaseController.h.

Self

typedef BaseController mitk::BaseController::Self

Standard class typedefs.

Definition at line 41 of file mitkBaseController.h.

Superclass

typedef mitk::OperationActor mitk::BaseController::Superclass

Definition at line 41 of file mitkBaseController.h.

Constructor & Destructor Documentation

BaseController()

mitk::BaseController::BaseController ( )

protected

Default Constructor.

Definition at line 16 of file mitkBaseController.cpp.

References m_Slice, m_Time, and mitk::Stepper::New().

~BaseController()

mitk::BaseController::~BaseController ( )

overrideprotected

Default Destructor.

Definition at line 22 of file mitkBaseController.cpp.

Member Function Documentation

ExecuteOperation()

void mitk::BaseController::ExecuteOperation ( mitk::Operation *  )

overrideprotectedvirtual

Implements mitk::OperationActor.

Reimplemented in mitk::SliceNavigationController.

Definition at line 26 of file mitkBaseController.cpp.

GetClassHierarchy()

virtual std::vector<std::string> mitk::BaseController::GetClassHierarchy ( ) const

inlinevirtual

Reimplemented in mitk::SliceNavigationController, mitk::CameraController, and mitk::CameraRotationController.

Definition at line 41 of file mitkBaseController.h.

GetClassName()

virtual const char* mitk::BaseController::GetClassName ( ) const

virtual

Reimplemented in mitk::SliceNavigationController, mitk::CameraController, and mitk::CameraRotationController.

GetSlice()

mitk::Stepper * mitk::BaseController::GetSlice

(

)

Get the Stepper through the slices.

Method for creation through ::New

Definition at line 30 of file mitkBaseController.cpp.

References m_Slice.

Referenced by mitk::SegTool2D::AddContourmarker(), mitk::SlicedGeometry3D::ExecuteOperation(), mitk::SliceNavigationController::ExecuteOperation(), mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::RenderingManager::InitializeView(), QmitkSliceWidget::QmitkSliceWidget(), mitk::SlicedGeometry3D::ReinitializePlanes(), mitk::DisplayActionEventFunctions::ScrollSliceStepperAction(), mitk::DisplayActionEventFunctions::ScrollSliceStepperSynchronizedAction(), mitk::SliceNavigationController::SelectSliceByPoint(), mitk::SliceNavigationController::SetGeometrySlice(), and QmitkSelectableGLWidget::wheelEvent().

GetStaticNameOfClass()

static const char* mitk::BaseController::GetStaticNameOfClass ( )

inlinestatic

Definition at line 41 of file mitkBaseController.h.

GetTime()

mitk::Stepper * mitk::BaseController::GetTime

(

)

Get the Stepper through the time.

Definition at line 35 of file mitkBaseController.cpp.

References m_Time.

Referenced by QmitkSliceBasedInterpolatorWidget::AcceptAllInterpolations(), QmitkSlicesInterpolator::AcceptAllInterpolations(), mitk::DisplayInteractor::DecreaseTimeStep(), mitk::DisplayActionEventBroadcast::DecreaseTimeStep(), mitk::WatershedTool::DoIt(), mitk::SliceNavigationController::GetCurrentGeometry3D(), QmitkSliceBasedInterpolatorWidget::GetWorkingSlice(), mitk::DisplayInteractor::IncreaseTimeStep(), mitk::DisplayActionEventBroadcast::IncreaseTimeStep(), QmitkSlicesInterpolator::Initialize(), QmitkSlicesInterpolator::OnAccept3DInterpolationClicked(), QmitkSliceBasedInterpolatorWidget::OnAcceptInterpolationClicked(), QmitkSlicesInterpolator::OnAcceptInterpolationClicked(), QmitkSlicesInterpolator::OnTimeChanged(), mitk::OtsuTool3D::RunSegmentation(), mitk::DisplayActionEventFunctions::ScrollSliceStepperAction(), mitk::DisplayActionEventFunctions::ScrollSliceStepperSynchronizedAction(), mitk::SliceNavigationController::SelectSliceByPoint(), QmitkSlicesInterpolator::SetCurrentContourListID(), mitk::SliceNavigationController::SetGeometryTime(), QmitkSliceBasedInterpolatorWidget::SetSliceNavigationControllers(), mitk::InteractionTestHelper::SetTimeStep(), mitk::SliceNavigationController::Update(), and QmitkSelectableGLWidget::wheelEvent().

New()

static Pointer mitk::BaseController::New ( )

static

Member Data Documentation

m_LastUpdateTime

unsigned long mitk::BaseController::m_LastUpdateTime

protected

Definition at line 73 of file mitkBaseController.h.

Referenced by mitk::SliceNavigationController::Update().

m_Slice

Stepper::Pointer mitk::BaseController::m_Slice

protected

Definition at line 71 of file mitkBaseController.h.

Referenced by mitk::SliceNavigationController::AdjustSliceStepperRange(), BaseController(), mitk::CameraRotationController::CameraRotationController(), GetSlice(), mitk::CameraRotationController::RotateCamera(), mitk::SliceNavigationController::SendCreatedWorldGeometryUpdate(), mitk::SliceNavigationController::SendSlice(), mitk::SliceNavigationController::SliceNavigationController(), and mitk::SliceNavigationController::Update().

m_Time

Stepper::Pointer mitk::BaseController::m_Time

protected

Definition at line 69 of file mitkBaseController.h.

Referenced by BaseController(), GetTime(), mitk::SliceNavigationController::SendTime(), mitk::SliceNavigationController::SliceNavigationController(), and mitk::SliceNavigationController::Update().

---

The documentation for this class was generated from the following files:

• mitkBaseController.h
• mitkBaseController.cpp
