The LookupTable class mitk wrapper for a vtkLookupTableThis class can be used to color images with a LookupTable, such as the vtkLookupTable. More...

#include <mitkLookupTable.h>

Inheritance diagram for mitk::LookupTable:

[legend]

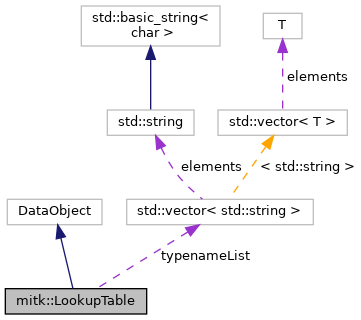

Collaboration diagram for mitk::LookupTable:

[legend]

Public Types
enum	LookupTableType { GRAYSCALE, INVERSE_GRAYSCALE, HOT_IRON, JET, JET_TRANSPARENT, PLASMA, INFERNO, VIRIDIS, MAGMA, LEGACY_BINARY, LEGACY_RAINBOW_COLOR, MULTILABEL, PET_COLOR, PET_20 }
	The LookupTableType enum for different predefined lookup tables. More...

typedef unsigned char	RawLookupTableType
	RawLookupTableType raw lookuptable typedef for convenience. More...

typedef LookupTable	Self

typedef itk::DataObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const

virtual const char *	GetClassName () const

Pointer	Clone () const

virtual vtkSmartPointer< vtkLookupTable >	GetVtkLookupTable () const
	GetVtkLookupTable Getter for the internally wrapped vtkLookupTable. More...

virtual RawLookupTableType *	GetRawLookupTable () const
	GetRawLookupTable Getter for the raw lookuptable array. More...

virtual void	SetVtkLookupTable (vtkSmartPointer< vtkLookupTable > lut)
	SetVtkLookupTable Setter for the internal lookuptable. More...

virtual void	ChangeOpacityForAll (float opacity)
	ChangeOpacityForAll Set the opacity for all table values. More...

virtual void	ChangeOpacity (int index, float opacity)
	ChangeOpacity Set the opacity for a specific table index. More...

virtual void	GetColor (double value, double rgb[3])
	GetColor convenience method wrapping the vtkLookupTable::GetColor() method. More...

virtual void	GetTableValue (int index, double rgba[4])
	GetTableValue convenience method wrapping the vtkLookupTable::GetTableValue() method. More...

virtual void	SetTableValue (int index, double rgba[4])
	SetTableValue convenience method wrapping the vtkLookupTable::SetTableValue() method. More...

virtual void	SetWindow (float _arg)

virtual void	SetLevel (float _arg)

virtual void	SetOpacity (float _arg)

virtual bool	operator== (const mitk::LookupTable &LookupTable) const
	equality operator implementation More...

virtual bool	operator!= (const LookupTable &LookupTable) const
	non equality operator implementation More...

virtual LookupTable &	operator= (const LookupTable &LookupTable)
	implementation necessary because operator made private in itk::Object More...

void	UpdateOutputInformation () override
	Updates the output information of the current object by calling updateOutputInformation of the data objects source object. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Sets the requested Region to the largest possible region. This method is not implemented, since this is the default behavior of the itk pipeline and we do not support the requested-region mechanism for lookup-tables. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Checks, if the requested region lies outside of the buffered region by calling verifyRequestedRegion(). More...

bool	VerifyRequestedRegion () override
	Checks if the requested region is completely contained in the buffered region. Since we always want to process the lookup table as a whole, this method always returns true. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	This method has no effect for lookup tables, since we do not support the region-mechanism. More...

	LookupTable ()

	~LookupTable () override

void	CreateColorTransferFunction (vtkColorTransferFunction *&colorFunction)

void	CreateOpacityTransferFunction (vtkPiecewiseFunction *&opacityFunction)

void	CreateGradientTransferFunction (vtkPiecewiseFunction *&gradientFunction)

vtkSmartPointer< vtkColorTransferFunction >	CreateColorTransferFunction ()

vtkSmartPointer< vtkPiecewiseFunction >	CreateOpacityTransferFunction ()

vtkSmartPointer< vtkPiecewiseFunction >	CreateGradientTransferFunction ()

virtual void	SetType (const LookupTableType type)
	Set the look-up table type by enum (or integer). More...

virtual void	SetType (const std::string &typeName)
	Set the look-up table type by string. More...

virtual LookupTableType	GetActiveType () const
	Return the current look-up table type. More...

virtual std::string	GetActiveTypeAsString () const
	Return the current look-up table type as a string. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Attributes
static std::vector< std::string >	typenameList

Protected Member Functions
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	LookupTable (const LookupTable &other)

virtual void	BuildGrayScaleLookupTable ()

virtual void	BuildLegacyBinaryLookupTable ()

virtual void	BuildLegacyRainbowColorLookupTable ()

virtual void	BuildInverseGrayScaleLookupTable ()

virtual void	BuildHotIronLookupTable ()

virtual void	BuildPlasmaLookupTable ()

virtual void	BuildInfernoLookupTable ()

virtual void	BuildViridisLookupTable ()

virtual void	BuildMagmaLookupTable ()

virtual void	BuildJetLookupTable (bool transparent=false)

virtual void	BuildPETColorLookupTable ()

virtual void	BuildPET20LookupTable ()

virtual void	BuildMultiLabelLookupTable ()

Protected Attributes
vtkSmartPointer< vtkLookupTable >	m_LookupTable

float	m_Window

float	m_Level

float	m_Opacity

LookupTableType	m_Type

Detailed Description

The LookupTable class mitk wrapper for a vtkLookupTable

This class can be used to color images with a LookupTable, such as the vtkLookupTable.

Note: If you want to use this as a property for an mitk::Image, make sure to use the mitk::LookupTableProperty and set the mitk::RenderingModeProperty to a mode which supports lookup tables (e.g. LOOKUPTABLE_COLOR). Make sure to check the documentation of the mitk::RenderingModeProperty. For a code example how to use the mitk::LookupTable check the mitkImageVtkMapper2DLookupTableTest.cpp in Core.

Definition at line 42 of file mitkLookupTable.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::LookupTable::ConstPointer

Definition at line 50 of file mitkLookupTable.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::LookupTable::Pointer

Definition at line 50 of file mitkLookupTable.h.

◆ RawLookupTableType

typedef unsigned char mitk::LookupTable::RawLookupTableType

RawLookupTableType raw lookuptable typedef for convenience.

Definition at line 48 of file mitkLookupTable.h.

◆ Self

typedef LookupTable mitk::LookupTable::Self

Definition at line 50 of file mitkLookupTable.h.

◆ Superclass

typedef itk::DataObject mitk::LookupTable::Superclass

Definition at line 50 of file mitkLookupTable.h.

Member Enumeration Documentation

◆ LookupTableType

enum mitk::LookupTable::LookupTableType

The LookupTableType enum for different predefined lookup tables.

GRAYSCALE Our default level-window (sometimes referred to as window-level by other sources) setup for a test image looks like this:
INVERSE_GRAYSCALE Inverse LookupTable of GRAYSCALE.
HOT_IRON A LookupTable for red colors.
JET A LookupTable for JET color rendering.
LEGACY_BINARY A LookupTable for binary images.
LEGACY_RAINBOW_COLOR A rainbow-like LookupTable.
MULTILABEL A LookupTable for multilabel images.
PET_COLOR A LookupTable for PET color rendering.
PET_20 A LookupTable for PET_20 color rendering.

The different LookupTableTypes can be applied in the MitkWorkbench via right-clicking on an image and choosing a color map.

Enumerator
GRAYSCALE
INVERSE_GRAYSCALE
HOT_IRON
JET
JET_TRANSPARENT
PLASMA
INFERNO
VIRIDIS
MAGMA
LEGACY_BINARY
LEGACY_RAINBOW_COLOR
MULTILABEL
PET_COLOR
PET_20

Definition at line 198 of file mitkLookupTable.h.

Constructor & Destructor Documentation

◆ LookupTable() [1/2]

mitk::LookupTable::LookupTable ( )

Definition at line 47 of file mitkLookupTable.cpp.

References BuildGrayScaleLookupTable().

◆ ~LookupTable()

mitk::LookupTable::~LookupTable ( )

override

Definition at line 68 of file mitkLookupTable.cpp.

◆ LookupTable() [2/2]

mitk::LookupTable::LookupTable ( const LookupTable & other )

protected

Definition at line 57 of file mitkLookupTable.cpp.

References m_LookupTable.

Member Function Documentation

◆ BuildGrayScaleLookupTable()

void mitk::LookupTable::BuildGrayScaleLookupTable ( )

protectedvirtual

Definition at line 414 of file mitkLookupTable.cpp.

References m_LookupTable.

Referenced by LookupTable(), and SetType().

◆ BuildHotIronLookupTable()

void mitk::LookupTable::BuildHotIronLookupTable ( )

protectedvirtual

Definition at line 455 of file mitkLookupTable.cpp.

References HotIron, and m_LookupTable.

Referenced by SetType().

◆ BuildInfernoLookupTable()

void mitk::LookupTable::BuildInfernoLookupTable ( )

protectedvirtual

Definition at line 601 of file mitkLookupTable.cpp.

References Inferno, and m_LookupTable.

Referenced by SetType().

◆ BuildInverseGrayScaleLookupTable()

void mitk::LookupTable::BuildInverseGrayScaleLookupTable ( )

protectedvirtual

Definition at line 441 of file mitkLookupTable.cpp.

References m_LookupTable.

Referenced by SetType().

◆ BuildJetLookupTable()

void mitk::LookupTable::BuildJetLookupTable ( bool transparent = false )

protectedvirtual

Definition at line 471 of file mitkLookupTable.cpp.

References Jet, and m_LookupTable.

Referenced by SetType().

◆ BuildLegacyBinaryLookupTable()

void mitk::LookupTable::BuildLegacyBinaryLookupTable ( )

protectedvirtual

Definition at line 427 of file mitkLookupTable.cpp.

References m_LookupTable.

Referenced by SetType().

◆ BuildLegacyRainbowColorLookupTable()

void mitk::LookupTable::BuildLegacyRainbowColorLookupTable ( )

protectedvirtual

Definition at line 573 of file mitkLookupTable.cpp.

References m_LookupTable.

Referenced by SetType().

◆ BuildMagmaLookupTable()

void mitk::LookupTable::BuildMagmaLookupTable ( )

protectedvirtual

Definition at line 633 of file mitkLookupTable.cpp.

References m_LookupTable, and Magma.

Referenced by SetType().

◆ BuildMultiLabelLookupTable()

void mitk::LookupTable::BuildMultiLabelLookupTable ( )

protectedvirtual

Definition at line 527 of file mitkLookupTable.cpp.

References m_LookupTable, and Multilabel.

Referenced by SetType().

◆ BuildPET20LookupTable()

void mitk::LookupTable::BuildPET20LookupTable ( )

protectedvirtual

Definition at line 511 of file mitkLookupTable.cpp.

References m_Level, m_LookupTable, m_Window, and PET20.

Referenced by SetType().

◆ BuildPETColorLookupTable()

void mitk::LookupTable::BuildPETColorLookupTable ( )

protectedvirtual

Definition at line 494 of file mitkLookupTable.cpp.

References m_Level, m_LookupTable, m_Window, and PETColor.

Referenced by SetType().

◆ BuildPlasmaLookupTable()

void mitk::LookupTable::BuildPlasmaLookupTable ( )

protectedvirtual

Definition at line 585 of file mitkLookupTable.cpp.

References m_LookupTable, and Plasma.

Referenced by SetType().

◆ BuildViridisLookupTable()

void mitk::LookupTable::BuildViridisLookupTable ( )

protectedvirtual

Definition at line 617 of file mitkLookupTable.cpp.

References m_LookupTable, and Viridis.

Referenced by SetType().

◆ ChangeOpacity()

void mitk::LookupTable::ChangeOpacity	(	int	index,
		float	opacity
	)

virtual

ChangeOpacity Set the opacity for a specific table index.

Parameters

index	The lookuptable index.
opacity	Opacity between 0.0 and 1.0.

Definition at line 182 of file mitkLookupTable.cpp.

References m_LookupTable, and MITK_INFO.

◆ ChangeOpacityForAll()

void mitk::LookupTable::ChangeOpacityForAll ( float opacity )

virtual

ChangeOpacityForAll Set the opacity for all table values.

Parameters

opacity Opacity between 0.0 and 1.0.

Definition at line 166 of file mitkLookupTable.cpp.

References m_LookupTable.

◆ Clone()

Pointer mitk::LookupTable::Clone ( ) const

◆ CreateColorTransferFunction() [1/2]

void mitk::LookupTable::CreateColorTransferFunction ( vtkColorTransferFunction *& colorFunction )

Deprecated:: (as of 2014_03) Please use CreateColorTransferFunction() instead

Definition at line 340 of file mitkLookupTable.cpp.

References CreateColorTransferFunction().

◆ CreateColorTransferFunction() [2/2]

vtkSmartPointer< vtkColorTransferFunction > mitk::LookupTable::CreateColorTransferFunction ( )

Definition at line 312 of file mitkLookupTable.cpp.

References GetRawLookupTable(), and m_LookupTable.

Referenced by CreateColorTransferFunction().

◆ CreateGradientTransferFunction() [1/2]

void mitk::LookupTable::CreateGradientTransferFunction ( vtkPiecewiseFunction *& gradientFunction )

Deprecated:: (as of 2014_03) Please use CreateGradientTransferFunction() instead

Definition at line 396 of file mitkLookupTable.cpp.

References CreateGradientTransferFunction().

◆ CreateGradientTransferFunction() [2/2]

vtkSmartPointer< vtkPiecewiseFunction > mitk::LookupTable::CreateGradientTransferFunction ( )

Definition at line 373 of file mitkLookupTable.cpp.

References GetRawLookupTable(), and m_LookupTable.

Referenced by CreateGradientTransferFunction().

◆ CreateOpacityTransferFunction() [1/2]

void mitk::LookupTable::CreateOpacityTransferFunction ( vtkPiecewiseFunction *& opacityFunction )

Deprecated:: (as of 2014_03) Please use CreateOpacityTransferFunction() instead

Definition at line 368 of file mitkLookupTable.cpp.

References CreateOpacityTransferFunction().

◆ CreateOpacityTransferFunction() [2/2]

vtkSmartPointer< vtkPiecewiseFunction > mitk::LookupTable::CreateOpacityTransferFunction ( )

Definition at line 345 of file mitkLookupTable.cpp.

References GetRawLookupTable(), and m_LookupTable.

Referenced by CreateOpacityTransferFunction().

◆ GetActiveType()

mitk::LookupTable::LookupTableType mitk::LookupTable::GetActiveType ( ) const

virtual

Return the current look-up table type.

Definition at line 151 of file mitkLookupTable.cpp.

References m_Type.

◆ GetActiveTypeAsString()

std::string mitk::LookupTable::GetActiveTypeAsString ( ) const

virtual

Return the current look-up table type as a string.

Definition at line 156 of file mitkLookupTable.cpp.

References m_Type, and typenameList.

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::LookupTable::GetClassHierarchy ( ) const

inlinevirtual

Definition at line 50 of file mitkLookupTable.h.

◆ GetClassName()

virtual const char* mitk::LookupTable::GetClassName ( ) const

virtual

◆ GetColor()

void mitk::LookupTable::GetColor	(	double	value,
		double	rgb[3]
	)

virtual

GetColor convenience method wrapping the vtkLookupTable::GetColor() method.

Map one value through the lookup table and return the color as an RGB array of doubles between 0 and 1.

Parameters

value	The value you want to map.
rgb	RGB values between 0 and 1.

Definition at line 201 of file mitkLookupTable.cpp.

References GetVtkLookupTable().

◆ GetRawLookupTable()

mitk::LookupTable::RawLookupTableType * mitk::LookupTable::GetRawLookupTable ( ) const

virtual

GetRawLookupTable Getter for the raw lookuptable array.

Definition at line 221 of file mitkLookupTable.cpp.

References m_LookupTable.

Referenced by CreateColorTransferFunction(), CreateGradientTransferFunction(), and CreateOpacityTransferFunction().

◆ GetStaticNameOfClass()

static const char* mitk::LookupTable::GetStaticNameOfClass ( )

inlinestatic

Definition at line 50 of file mitkLookupTable.h.

◆ GetTableValue()

void mitk::LookupTable::GetTableValue	(	int	index,
		double	rgba[4]
	)

virtual

GetTableValue convenience method wrapping the vtkLookupTable::GetTableValue() method.

Parameters

index	The index you want to get.
rgba	RGB values between 0 and 1.

Definition at line 206 of file mitkLookupTable.cpp.

References GetVtkLookupTable().

◆ GetVtkLookupTable()

vtkSmartPointer< vtkLookupTable > mitk::LookupTable::GetVtkLookupTable ( ) const

virtual

GetVtkLookupTable Getter for the internally wrapped vtkLookupTable.

Definition at line 216 of file mitkLookupTable.cpp.

References m_LookupTable.

Referenced by GetColor(), GetTableValue(), operator=(), operator==(), and SetTableValue().

◆ New()

static Pointer mitk::LookupTable::New ( )

static

Referenced by mitk::Tool::CreateSegmentationNode(), mitk::LookupTablePropertySerializer::Deserialize(), mitk::ColorBarAnnotation::GetLookupTable(), QmitkDataNodeColorMapAction::InitializeAction(), mitk::LabelSet::LabelSet(), mitk::RegEvaluationMapper2D::LocalStorage::LocalStorage(), mitk::ImageVtkMapper2D::LocalStorage::LocalStorage(), mitk::DoseImageVtkMapper2D::LocalStorage::LocalStorage(), mitk::LookupTableProperty::LookupTableProperty(), mitk::LookupTableSource::MakeOutput(), mitkImageVtkMapper2DLookupTableTest(), mitkPropertySerializationTest(), mitk::OtsuTool3D::RunSegmentation(), mitk::GizmoMapper2D::SetDefaultProperties(), mitk::RegEvaluationMapper2D::SetDefaultProperties(), mitk::ImageVtkMapper2D::SetDefaultProperties(), mitk::DoseImageVtkMapper2D::SetDefaultProperties(), and mitk::ColorBarAnnotation::SetLookupTable().

◆ operator!=()

bool mitk::LookupTable::operator!= ( const LookupTable & LookupTable ) const

virtual

non equality operator implementation

Definition at line 262 of file mitkLookupTable.cpp.

◆ operator=()

mitk::LookupTable & mitk::LookupTable::operator= ( const LookupTable & LookupTable )

virtual

implementation necessary because operator made private in itk::Object

Reimplemented in mitk::LabeledImageLookupTable.

Definition at line 267 of file mitkLookupTable.cpp.

References GetVtkLookupTable(), and m_LookupTable.

Referenced by mitk::LabeledImageLookupTable::operator=().

◆ operator==()

bool mitk::LookupTable::operator== ( const mitk::LookupTable & LookupTable ) const

virtual

equality operator implementation

Definition at line 226 of file mitkLookupTable.cpp.

References GetVtkLookupTable(), and m_LookupTable.

◆ PrintSelf()

void mitk::LookupTable::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Definition at line 401 of file mitkLookupTable.cpp.

References m_LookupTable.

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::LookupTable::RequestedRegionIsOutsideOfTheBufferedRegion ( )

override

Checks, if the requested region lies outside of the buffered region by calling verifyRequestedRegion().

Definition at line 292 of file mitkLookupTable.cpp.

◆ SetLevel()

virtual void mitk::LookupTable::SetLevel ( float _arg )

virtual

◆ SetOpacity()

virtual void mitk::LookupTable::SetOpacity ( float _arg )

virtual

◆ SetRequestedRegion()

void mitk::LookupTable::SetRequestedRegion ( const itk::DataObject * data )

override

This method has no effect for lookup tables, since we do not support the region-mechanism.

Definition at line 306 of file mitkLookupTable.cpp.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::LookupTable::SetRequestedRegionToLargestPossibleRegion ( )

override

Sets the requested Region to the largest possible region. This method is not implemented, since this is the default behavior of the itk pipeline and we do not support the requested-region mechanism for lookup-tables.

Definition at line 288 of file mitkLookupTable.cpp.

◆ SetTableValue()

void mitk::LookupTable::SetTableValue	(	int	index,
		double	rgba[4]
	)

virtual

SetTableValue convenience method wrapping the vtkLookupTable::SetTableValue() method.

Parameters

index	The index you want to set.
rgba	RGB values between 0 and 1.

Definition at line 211 of file mitkLookupTable.cpp.

References GetVtkLookupTable().

Referenced by mitk::GizmoInteractor::SetManipulatedObjectNode().

◆ SetType() [1/2]

void mitk::LookupTable::SetType ( const LookupTableType type )

virtual

Set the look-up table type by enum (or integer).

Returns if the given type doesn't exist. Only changes the type if it is different from the current one.

Definition at line 83 of file mitkLookupTable.cpp.

Referenced by SetType().

◆ SetType() [2/2]

void mitk::LookupTable::SetType ( const std::string & typeName )

virtual

Set the look-up table type by string.

Returns if the given type doesn't exist. Only changes the type if it is different from the current one.

Definition at line 140 of file mitkLookupTable.cpp.

References SetType(), and typenameList.

◆ SetVtkLookupTable()

void mitk::LookupTable::SetVtkLookupTable ( vtkSmartPointer< vtkLookupTable > lut )

virtual

SetVtkLookupTable Setter for the internal lookuptable.

Parameters

lut	The lookuptable.

Definition at line 72 of file mitkLookupTable.cpp.

References m_LookupTable.

◆ SetWindow()

virtual void mitk::LookupTable::SetWindow ( float _arg )

virtual

◆ UpdateOutputInformation()

void mitk::LookupTable::UpdateOutputInformation ( )

override

Updates the output information of the current object by calling updateOutputInformation of the data objects source object.

Definition at line 280 of file mitkLookupTable.cpp.

◆ VerifyRequestedRegion()

bool mitk::LookupTable::VerifyRequestedRegion ( )

override

Checks if the requested region is completely contained in the buffered region. Since we always want to process the lookup table as a whole, this method always returns true.

Definition at line 297 of file mitkLookupTable.cpp.

Member Data Documentation

◆ m_Level

float mitk::LookupTable::m_Level

protected

Definition at line 264 of file mitkLookupTable.h.

Referenced by BuildPET20LookupTable(), and BuildPETColorLookupTable().

◆ m_LookupTable

vtkSmartPointer<vtkLookupTable> mitk::LookupTable::m_LookupTable

protected

Definition at line 261 of file mitkLookupTable.h.

◆ m_Opacity

float mitk::LookupTable::m_Opacity

protected

Definition at line 265 of file mitkLookupTable.h.

◆ m_Type

LookupTableType mitk::LookupTable::m_Type

protected

Definition at line 267 of file mitkLookupTable.h.

Referenced by GetActiveType(), GetActiveTypeAsString(), and SetType().

◆ m_Window

float mitk::LookupTable::m_Window

protected

Definition at line 263 of file mitkLookupTable.h.

Referenced by BuildPET20LookupTable(), and BuildPETColorLookupTable().

◆ typenameList

std::vector< std::string > mitk::LookupTable::typenameList

static

Definition at line 216 of file mitkLookupTable.h.

Referenced by GetActiveTypeAsString(), and SetType().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ Pointer

◆ RawLookupTableType

◆ Self

◆ Superclass

Member Enumeration Documentation

◆ LookupTableType

Constructor & Destructor Documentation

◆ LookupTable() [1/2]

◆ ~LookupTable()

◆ LookupTable() [2/2]

Member Function Documentation

◆ BuildGrayScaleLookupTable()

◆ BuildHotIronLookupTable()

◆ BuildInfernoLookupTable()

◆ BuildInverseGrayScaleLookupTable()

◆ BuildJetLookupTable()

◆ BuildLegacyBinaryLookupTable()

◆ BuildLegacyRainbowColorLookupTable()

◆ BuildMagmaLookupTable()

◆ BuildMultiLabelLookupTable()

◆ BuildPET20LookupTable()

◆ BuildPETColorLookupTable()

◆ BuildPlasmaLookupTable()

◆ BuildViridisLookupTable()

◆ ChangeOpacity()

◆ ChangeOpacityForAll()

◆ Clone()

◆ CreateColorTransferFunction() [1/2]

◆ CreateColorTransferFunction() [2/2]

◆ CreateGradientTransferFunction() [1/2]

◆ CreateGradientTransferFunction() [2/2]

◆ CreateOpacityTransferFunction() [1/2]

◆ CreateOpacityTransferFunction() [2/2]

◆ GetActiveType()

◆ GetActiveTypeAsString()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetColor()

◆ GetRawLookupTable()

◆ GetStaticNameOfClass()

◆ GetTableValue()

◆ GetVtkLookupTable()

◆ New()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ PrintSelf()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetLevel()

◆ SetOpacity()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetTableValue()

◆ SetType() [1/2]

◆ SetType() [2/2]

◆ SetVtkLookupTable()

◆ SetWindow()

◆ UpdateOutputInformation()

◆ VerifyRequestedRegion()

Member Data Documentation

◆ m_Level

◆ m_LookupTable

◆ m_Opacity

◆ m_Type

◆ m_Window

◆ typenameList
