mitk::LookupTableProperty Class Reference

The LookupTableProperty class Property to associate mitk::LookupTable to an mitk::DataNode. More...

#include <mitkLookupTableProperty.h>

Inheritance diagram for mitk::LookupTableProperty:

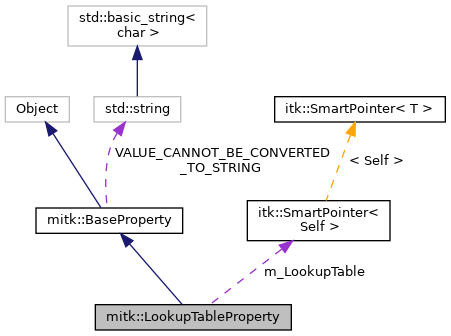

Collaboration diagram for mitk::LookupTableProperty:

Public Types
typedef LookupTable::Pointer	ValueType
typedef LookupTableProperty	Self
typedef BaseProperty	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Public Types inherited from mitk::BaseProperty
typedef BaseProperty	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
virtual LookupTable *	GetLookupTable ()
ValueType	GetValue () const
void	SetLookupTable (const mitk::LookupTable::Pointer aLookupTable)
void	SetValue (const ValueType &)
std::string	GetValueAsString () const override
Public Member Functions inherited from mitk::BaseProperty
Pointer	Clone () const
bool	operator== (const BaseProperty &property) const
	Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More...
BaseProperty &	operator= (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...
bool	AssignProperty (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
static Pointer	New (const mitk::LookupTable::Pointer _arg)
Static Public Member Functions inherited from mitk::BaseProperty
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	LookupTableProperty ()
	LookupTableProperty (const LookupTableProperty &)
	LookupTableProperty (const mitk::LookupTable::Pointer lut)
Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()
	BaseProperty (const BaseProperty &other)
	~BaseProperty () override

Protected Attributes
LookupTable::Pointer	m_LookupTable

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value if a property which can not be returned as string. More...

Detailed Description

The LookupTableProperty class Property to associate mitk::LookupTable to an mitk::DataNode.

Note

If you want to use this property to colorize an mitk::Image, make sure to set the mitk::RenderingModeProperty to a mode which supports lookup tables (e.g. LOOKUPTABLE_COLOR). Make sure to check the documentation of the mitk::RenderingModeProperty. For a code example how to use the mitk::LookupTable and this property check the mitkImageVtkMapper2DLookupTableTest.cpp in Core.

Definition at line 38 of file mitkLookupTableProperty.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::LookupTableProperty::ConstPointer

Definition at line 52 of file mitkLookupTableProperty.h.

Pointer

typedef itk::SmartPointer<Self> mitk::LookupTableProperty::Pointer

Definition at line 52 of file mitkLookupTableProperty.h.

Self

typedef LookupTableProperty mitk::LookupTableProperty::Self

Definition at line 52 of file mitkLookupTableProperty.h.

Superclass

typedef BaseProperty mitk::LookupTableProperty::Superclass

Definition at line 52 of file mitkLookupTableProperty.h.

ValueType

typedef LookupTable::Pointer mitk::LookupTableProperty::ValueType

Definition at line 50 of file mitkLookupTableProperty.h.

Constructor & Destructor Documentation

LookupTableProperty() [1/3]

mitk::LookupTableProperty::LookupTableProperty ( )

protected

Definition at line 15 of file mitkLookupTableProperty.cpp.

References mitk::LookupTable::New(), and SetLookupTable().

LookupTableProperty() [2/3]

mitk::LookupTableProperty::LookupTableProperty ( const LookupTableProperty &  other )

protected

Definition at line 21 of file mitkLookupTableProperty.cpp.

LookupTableProperty() [3/3]

mitk::LookupTableProperty::LookupTableProperty ( const mitk::LookupTable::Pointer  lut )

protected

Definition at line 26 of file mitkLookupTableProperty.cpp.

References m_LookupTable, and SetLookupTable().

Member Function Documentation

Clone()

Pointer mitk::LookupTableProperty::Clone

(

)

const

GetClassHierarchy()

virtual std::vector<std::string> mitk::LookupTableProperty::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 52 of file mitkLookupTableProperty.h.

GetClassName()

virtual const char* mitk::LookupTableProperty::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseProperty.

GetLookupTable()

virtual LookupTable* mitk::LookupTableProperty::GetLookupTable ( )

virtual

Referenced by mitk::GizmoInteractor::SetManipulatedObjectNode().

GetStaticNameOfClass()

static const char* mitk::LookupTableProperty::GetStaticNameOfClass ( )

inlinestatic

Definition at line 52 of file mitkLookupTableProperty.h.

GetValue()

mitk::LookupTableProperty::ValueType mitk::LookupTableProperty::GetValue

(

)

const

Definition at line 49 of file mitkLookupTableProperty.cpp.

References m_LookupTable.

GetValueAsString()

std::string mitk::LookupTableProperty::GetValueAsString ( ) const

overridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 42 of file mitkLookupTableProperty.cpp.

References m_LookupTable.

New() [1/2]

static Pointer mitk::LookupTableProperty::New ( )

static

Referenced by mitk::Tool::CreateSegmentationNode(), mitk::LookupTablePropertySerializer::Deserialize(), QmitkDataNodeColorMapAction::InitializeAction(), mitkImageVtkMapper2DLookupTableTest(), mitkPropertySerializationTest(), mitk::OtsuTool3D::RunSegmentation(), mitk::GizmoMapper2D::SetDefaultProperties(), mitk::RegEvaluationMapper2D::SetDefaultProperties(), mitk::ImageVtkMapper2D::SetDefaultProperties(), mitk::DoseImageVtkMapper2D::SetDefaultProperties(), and mitk::ColorBarAnnotation::SetLookupTable().

New() [2/2]

static Pointer mitk::LookupTableProperty::New ( const mitk::LookupTable::Pointer  _arg )

inlinestatic

Definition at line 57 of file mitkLookupTableProperty.h.

SetLookupTable()

void mitk::LookupTableProperty::SetLookupTable

(

const mitk::LookupTable::Pointer

aLookupTable

)

Definition at line 54 of file mitkLookupTableProperty.cpp.

References m_LookupTable.

Referenced by LookupTableProperty(), and SetValue().

SetValue()

void mitk::LookupTableProperty::SetValue

(

const ValueType &

value

)

Definition at line 63 of file mitkLookupTableProperty.cpp.

References SetLookupTable().

Member Data Documentation

m_LookupTable

LookupTable::Pointer mitk::LookupTableProperty::m_LookupTable

protected

Definition at line 41 of file mitkLookupTableProperty.h.

Referenced by GetValue(), GetValueAsString(), LookupTableProperty(), and SetLookupTable().

---

The documentation for this class was generated from the following files:

• mitkLookupTableProperty.h
• mitkLookupTableProperty.cpp
