GUI for slices interpolation. More...

#include <QmitkSlicesInterpolator.h>

Inheritance diagram for QmitkSlicesInterpolator:

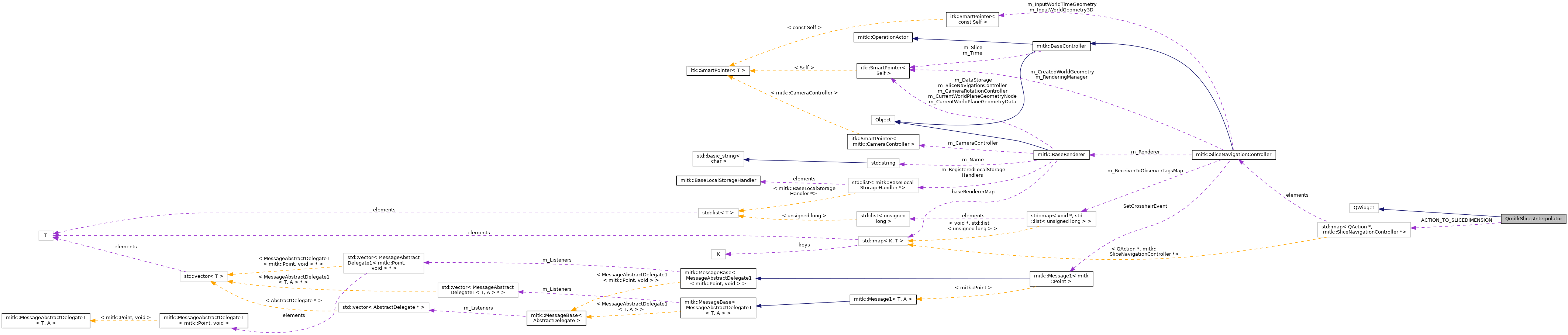

Collaboration diagram for QmitkSlicesInterpolator:

[legend]

Public Slots
virtual void	setEnabled (bool)

void	EnableInterpolation (bool)

void	Enable3DInterpolation (bool)

void	FinishInterpolation (mitk::SliceNavigationController *slicer=nullptr)

Signals
void	SignalRememberContourPositions (bool)

void	SignalShowMarkerNodes (bool)

Public Member Functions
	QmitkSlicesInterpolator (QWidget parent=nullptr, const char name=nullptr)

void	Initialize (mitk::ToolManager toolManager, const QList< mitk::SliceNavigationController > &controllers)

void	Uninitialize ()

	~QmitkSlicesInterpolator () override

void	SetDataStorage (mitk::DataStorage::Pointer storage)

mitk::DataStorage *	GetDataStorage ()

void	OnToolManagerWorkingDataModified ()

void	OnToolManagerReferenceDataModified ()

void	OnTimeChanged (itk::Object *sender, const itk::EventObject &)

void	OnSliceChanged (itk::Object *sender, const itk::EventObject &)

void	OnSliceNavigationControllerDeleted (const itk::Object *sender, const itk::EventObject &)

void	OnInterpolationInfoChanged (const itk::EventObject &)

void	OnSurfaceInterpolationInfoChanged (const itk::EventObject &)

void	Show3DInterpolationResult (bool)
	Set the visibility of the 3d interpolation. More...

Protected Slots
void	OnAcceptInterpolationClicked ()

void	OnAcceptAllInterpolationsClicked ()

void	OnAccept3DInterpolationClicked ()

void	OnReinit3DInterpolation ()

void	OnSuggestPlaneClicked ()

void	OnAcceptAllPopupActivated (QAction *action)

void	OnInterpolationActivated (bool)

void	On3DInterpolationActivated (bool)

void	OnInterpolationMethodChanged (int index)

void	On2DInterpolationEnabled (bool)

void	On3DInterpolationEnabled (bool)

void	OnInterpolationDisabled (bool)

void	OnShowMarkers (bool)

void	Run3DInterpolation ()

void	RunPlaneSuggestion ()

void	OnSurfaceInterpolationFinished ()

void	StartUpdateInterpolationTimer ()

void	StopUpdateInterpolationTimer ()

void	ChangeSurfaceColor ()

Protected Member Functions
const std::map< QAction , mitk::SliceNavigationController >	createActionToSliceDimension ()

void	AcceptAllInterpolations (mitk::SliceNavigationController *slicer)

bool	TranslateAndInterpolateChangedSlice (const itk::EventObject &e, mitk::SliceNavigationController *slicer)

void	Interpolate (mitk::PlaneGeometry plane, unsigned int timeStep, mitk::SliceNavigationController slicer)

void	UpdateVisibleSuggestion ()

void	SetCurrentContourListID ()

Protected Attributes
std::map< QAction , mitk::SliceNavigationController >	ACTION_TO_SLICEDIMENSION

Detailed Description

GUI for slices interpolation.

See also: QmitkInteractiveSegmentation; mitk::SegmentationInterpolation

While mitk::SegmentationInterpolation does the bookkeeping of interpolation (keeping track of which slices contain how much segmentation) and the algorithmic work, QmitkSlicesInterpolator is responsible to watch the GUI, to notice, which slice is currently visible. It triggers generation of interpolation suggestions and also triggers acception of suggestions.

Last contributor:

Author: maleike

Definition at line 72 of file QmitkSlicesInterpolator.h.

Constructor & Destructor Documentation

◆ QmitkSlicesInterpolator()

QmitkSlicesInterpolator::QmitkSlicesInterpolator	(	QWidget *	parent = `nullptr`,
		const char *	name = `nullptr`
	)

Definition at line 69 of file QmitkSlicesInterpolator.cpp.

References ChangeSurfaceColor(), mitk::CoreObjectFactory::GetInstance(), mitk::BaseRenderer::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::BoolProperty::New(), mitk::IntProperty::New(), mitk::FloatProperty::New(), mitk::FeatureBasedEdgeDetectionFilter::New(), mitk::VtkRepresentationProperty::New(), mitk::PointCloudScoringFilter::New(), mitk::StringProperty::New(), mitk::LevelWindowProperty::New(), mitk::ColorProperty::New(), mitk::DataNode::New(), OnAccept3DInterpolationClicked(), OnAcceptAllInterpolationsClicked(), OnAcceptInterpolationClicked(), OnInterpolationInfoChanged(), OnInterpolationMethodChanged(), OnReinit3DInterpolation(), OnShowMarkers(), OnSuggestPlaneClicked(), OnSurfaceInterpolationFinished(), OnSurfaceInterpolationInfoChanged(), SignalShowMarkerNodes(), StartUpdateInterpolationTimer(), StopUpdateInterpolationTimer(), and SURFACE_COLOR_RGB.

◆ ~QmitkSlicesInterpolator()

QmitkSlicesInterpolator::~QmitkSlicesInterpolator ( )

override

Definition at line 312 of file QmitkSlicesInterpolator.cpp.

References Uninitialize().

Member Function Documentation

◆ AcceptAllInterpolations()

void QmitkSlicesInterpolator::AcceptAllInterpolations ( mitk::SliceNavigationController * slicer )

protected

Definition at line 669 of file QmitkSlicesInterpolator.cpp.

References mitk::ProgressBar::AddStepsToDo(), mitk::PlaneGeometry::Clone(), mitk::SegTool2D::DetermineAffectedImageSlice(), mitk::DiffImageApplier::ExecuteOperation(), mitk::PixelType::GetBpe(), mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::UndoController::GetCurrentUndoModel(), mitk::ImageWriteAccessor::GetData(), mitk::Image::GetDimension(), mitk::Image::GetImageDescriptor(), mitk::ProgressBar::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::DiffImageApplier::GetInstanceForUndo(), mitk::Stepper::GetPos(), mitk::SlicedData::GetSlicedGeometry(), mitk::BaseController::GetTime(), mitk::UndoStackItem::IncCurrGroupEventId(), mitk::UndoStackItem::IncCurrObjectEventId(), mitk::BaseGeometry::IndexToWorld(), mitk::ImageTimeSelector::New(), mitk::ExtractSliceFilter::New(), mitk::Image::New(), mitk::OpTEST, mitk::ProgressBar::Progress(), mitk::RenderingManager::RequestUpdateAll(), mitk::ApplyDiffImageOperation::SetFactor(), mitk::UndoModel::SetOperationEvent(), and mitk::BaseGeometry::WorldToIndex().

Referenced by FinishInterpolation(), and OnAcceptAllPopupActivated().

◆ ChangeSurfaceColor

void QmitkSlicesInterpolator::ChangeSurfaceColor ( )

protectedslot

Definition at line 1084 of file QmitkSlicesInterpolator.cpp.

References mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::ColorProperty::New(), mitk::RenderingManager::RequestUpdate(), and SURFACE_COLOR_RGB.

Referenced by QmitkSlicesInterpolator().

◆ createActionToSliceDimension()

const std::map< QAction *, mitk::SliceNavigationController * > QmitkSlicesInterpolator::createActionToSliceDimension ( )

protected

Definition at line 58 of file QmitkSlicesInterpolator.cpp.

References mitk::SliceNavigationController::GetViewDirectionAsString().

Referenced by Initialize().

◆ Enable3DInterpolation

void QmitkSlicesInterpolator::Enable3DInterpolation ( bool on )

slot

Definition at line 1192 of file QmitkSlicesInterpolator.cpp.

References On3DInterpolationActivated().

◆ EnableInterpolation

void QmitkSlicesInterpolator::EnableInterpolation ( bool on )

slot

Call this from the outside to enable/disable interpolation

Definition at line 1185 of file QmitkSlicesInterpolator.cpp.

References OnInterpolationActivated().

◆ FinishInterpolation

void QmitkSlicesInterpolator::FinishInterpolation ( mitk::SliceNavigationController * slicer = nullptr )

slot

Call this from the outside to accept all interpolations

Definition at line 794 of file QmitkSlicesInterpolator.cpp.

References AcceptAllInterpolations(), and OnAcceptAllInterpolationsClicked().

◆ GetDataStorage()

mitk::DataStorage * QmitkSlicesInterpolator::GetDataStorage ( )

Definition at line 221 of file QmitkSlicesInterpolator.cpp.

Referenced by OnToolManagerWorkingDataModified().

◆ Initialize()

void QmitkSlicesInterpolator::Initialize	(	mitk::ToolManager *	toolManager,
		const QList< mitk::SliceNavigationController *> &	controllers
	)

To be called once before real use.

Definition at line 233 of file QmitkSlicesInterpolator.cpp.

References ACTION_TO_SLICEDIMENSION, createActionToSliceDimension(), mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), OnSliceChanged(), OnSliceNavigationControllerDeleted(), OnTimeChanged(), OnToolManagerReferenceDataModified(), OnToolManagerWorkingDataModified(), and Uninitialize().

◆ Interpolate()

void QmitkSlicesInterpolator::Interpolate	(	mitk::PlaneGeometry *	plane,
		unsigned int	timeStep,
		mitk::SliceNavigationController *	slicer
	)

protected

Given a PlaneGeometry, this method figures out which slice of the first working image (of the associated ToolManager) should be interpolated. The actual work is then done by our SegmentationInterpolation object.

Definition at line 561 of file QmitkSlicesInterpolator.cpp.

References mitk::SegTool2D::DetermineAffectedImageSlice(), and mitk::DataNode::GetData().

Referenced by TranslateAndInterpolateChangedSlice().

◆ On2DInterpolationEnabled

void QmitkSlicesInterpolator::On2DInterpolationEnabled ( bool status )

protectedslot

Definition at line 369 of file QmitkSlicesInterpolator.cpp.

References OnInterpolationActivated().

◆ On3DInterpolationActivated

void QmitkSlicesInterpolator::On3DInterpolationActivated ( bool on )

protectedslot

Definition at line 1102 of file QmitkSlicesInterpolator.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::DataNode::IsVisible(), MITK_ERROR, mitk::BoolProperty::New(), mitk::NodePredicateAnd::New(), mitk::NodePredicateDataType::New(), mitk::NodePredicateProperty::New(), mitk::RenderingManager::RequestUpdateAll(), Run3DInterpolation(), and Show3DInterpolationResult().

Referenced by Enable3DInterpolation(), On3DInterpolationEnabled(), OnInterpolationDisabled(), and OnInterpolationMethodChanged().

◆ On3DInterpolationEnabled

void QmitkSlicesInterpolator::On3DInterpolationEnabled ( bool status )

protectedslot

Definition at line 375 of file QmitkSlicesInterpolator.cpp.

References On3DInterpolationActivated().

◆ OnAccept3DInterpolationClicked

void QmitkSlicesInterpolator::OnAccept3DInterpolationClicked ( )

protectedslot

Definition at line 816 of file QmitkSlicesInterpolator.cpp.

References mitk::ProgressBar::AddStepsToDo(), mitk::PlaneProposer::CreatePlaneInfo(), mitk::DataNode::GetColor(), mitk::PixelType::GetComponentType(), mitk::ImageAccessorBase::GetData(), mitk::DataNode::GetData(), mitk::SurfaceInterpolationController::GetDistanceImageSpacing(), mitk::ProgressBar::GetInstance(), mitk::SurfaceInterpolationController::GetInstance(), mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::DataNode::GetName(), mitk::Image::GetPixelType(), mitk::Stepper::GetPos(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::BaseController::GetTime(), MITK_ERROR, mitk::BoolProperty::New(), mitk::FloatProperty::New(), mitk::UnstructuredGrid::New(), mitk::SurfaceToImageFilter::New(), mitk::UnstructuredGridClusteringFilter::New(), mitk::DataNode::New(), mitk::ProgressBar::Progress(), mitk::RenderingManager::RequestUpdateAll(), RunPlaneSuggestion(), mitk::PlaneProposer::SetSliceNavigationController(), mitk::PlaneProposer::SetUnstructuredGrids(), mitk::PlaneProposer::SetUseDistances(), mitk::Image::SetVolume(), and Show3DInterpolationResult().

Referenced by QmitkSlicesInterpolator().

◆ OnAcceptAllInterpolationsClicked

void QmitkSlicesInterpolator::OnAcceptAllInterpolationsClicked ( )

protectedslot

Definition at line 804 of file QmitkSlicesInterpolator.cpp.

References ACTION_TO_SLICEDIMENSION, and OnAcceptAllPopupActivated().

Referenced by FinishInterpolation(), and QmitkSlicesInterpolator().

◆ OnAcceptAllPopupActivated

void QmitkSlicesInterpolator::OnAcceptAllPopupActivated ( QAction * action )

protectedslot

Definition at line 988 of file QmitkSlicesInterpolator.cpp.

References AcceptAllInterpolations(), and ACTION_TO_SLICEDIMENSION.

Referenced by OnAcceptAllInterpolationsClicked().

◆ OnAcceptInterpolationClicked

void QmitkSlicesInterpolator::OnAcceptInterpolationClicked ( )

protectedslot

Reaction to button clicks.

Definition at line 634 of file QmitkSlicesInterpolator.cpp.

References mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::TimeGeometry::GetGeometryForTimeStep(), mitk::RenderingManager::GetInstance(), mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), mitk::BaseData::GetTimeGeometry(), mitk::Image::GetVtkImageData(), mitk::ExtractSliceFilter::New(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by QmitkSlicesInterpolator().

◆ OnInterpolationActivated

void QmitkSlicesInterpolator::OnInterpolationActivated ( bool on )

protectedslot

Called on activation/deactivation

Definition at line 1013 of file QmitkSlicesInterpolator.cpp.

References mitk::DataNode::GetData(), mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), and UpdateVisibleSuggestion().

Referenced by EnableInterpolation(), On2DInterpolationEnabled(), OnInterpolationDisabled(), OnInterpolationMethodChanged(), and OnToolManagerWorkingDataModified().

◆ OnInterpolationDisabled

void QmitkSlicesInterpolator::OnInterpolationDisabled ( bool status )

protectedslot

Definition at line 380 of file QmitkSlicesInterpolator.cpp.

References On3DInterpolationActivated(), OnInterpolationActivated(), and Show3DInterpolationResult().

◆ OnInterpolationInfoChanged()

void QmitkSlicesInterpolator::OnInterpolationInfoChanged ( const itk::EventObject & )

Just public because it is called by itk::Commands. You should not need to call this.

Definition at line 1204 of file QmitkSlicesInterpolator.cpp.

References UpdateVisibleSuggestion().

Referenced by QmitkSlicesInterpolator().

◆ OnInterpolationMethodChanged

void QmitkSlicesInterpolator::OnInterpolationMethodChanged ( int index )

protectedslot

Definition at line 410 of file QmitkSlicesInterpolator.cpp.

References MITK_ERROR, On3DInterpolationActivated(), OnInterpolationActivated(), and Show3DInterpolationResult().

Referenced by QmitkSlicesInterpolator().

◆ OnReinit3DInterpolation

void QmitkSlicesInterpolator::OnReinit3DInterpolation ( )

protectedslot

Definition at line 961 of file QmitkSlicesInterpolator.cpp.

References mitk::SurfaceInterpolationController::GetInstance(), mitk::BoolProperty::New(), mitk::NodePredicateProperty::New(), and mitk::SurfaceInterpolationController::ReinitializeInterpolation().

Referenced by QmitkSlicesInterpolator().

◆ OnShowMarkers

void QmitkSlicesInterpolator::OnShowMarkers ( bool state )

protectedslot

Definition at line 448 of file QmitkSlicesInterpolator.cpp.

References mitk::BoolProperty::New(), and mitk::NodePredicateProperty::New().

Referenced by QmitkSlicesInterpolator().

◆ OnSliceChanged()

void QmitkSlicesInterpolator::OnSliceChanged	(	itk::Object *	sender,
		const itk::EventObject &	e
	)

Definition at line 512 of file QmitkSlicesInterpolator.cpp.

References mitk::SliceNavigationController::GetRenderer(), mitk::BaseRenderer::RequestUpdate(), and TranslateAndInterpolateChangedSlice().

Referenced by Initialize().

◆ OnSliceNavigationControllerDeleted()

void QmitkSlicesInterpolator::OnSliceNavigationControllerDeleted	(	const itk::Object *	sender,
		const itk::EventObject &
	)

Definition at line 1316 of file QmitkSlicesInterpolator.cpp.

Referenced by Initialize().

◆ OnSuggestPlaneClicked

void QmitkSlicesInterpolator::OnSuggestPlaneClicked ( )

protectedslot

Referenced by QmitkSlicesInterpolator().

◆ OnSurfaceInterpolationFinished

void QmitkSlicesInterpolator::OnSurfaceInterpolationFinished ( )

protectedslot

Definition at line 590 of file QmitkSlicesInterpolator.cpp.

References mitk::BaseRenderer::GetInstance(), mitk::SliceNavigationController::GetRenderer(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::DataNode::IsVisible(), mitk::BaseRenderer::RequestUpdate(), and Show3DInterpolationResult().

Referenced by QmitkSlicesInterpolator().

◆ OnSurfaceInterpolationInfoChanged()

void QmitkSlicesInterpolator::OnSurfaceInterpolationInfoChanged ( const itk::EventObject & )

Just public because it is called by itk::Commands. You should not need to call this.

Definition at line 1210 of file QmitkSlicesInterpolator.cpp.

References Run3DInterpolation().

Referenced by QmitkSlicesInterpolator().

◆ OnTimeChanged()

void QmitkSlicesInterpolator::OnTimeChanged	(	itk::Object *	sender,
		const itk::EventObject &	e
	)

Definition at line 493 of file QmitkSlicesInterpolator.cpp.

References mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), and mitk::SliceNavigationController::SendSlice().

Referenced by Initialize().

◆ OnToolManagerReferenceDataModified()

void QmitkSlicesInterpolator::OnToolManagerReferenceDataModified ( )

Just public because it is called by itk::Commands. You should not need to call this.

Definition at line 489 of file QmitkSlicesInterpolator.cpp.

Referenced by Initialize(), and Uninitialize().

◆ OnToolManagerWorkingDataModified()

void QmitkSlicesInterpolator::OnToolManagerWorkingDataModified ( )

Just public because it is called by itk::Commands. You should not need to call this.

Definition at line 460 of file QmitkSlicesInterpolator.cpp.

References GetDataStorage(), OnInterpolationActivated(), mitk::DataStorage::Remove(), and SetCurrentContourListID().

Referenced by Initialize(), and Uninitialize().

◆ Run3DInterpolation

void QmitkSlicesInterpolator::Run3DInterpolation ( )

protectedslot

Definition at line 1066 of file QmitkSlicesInterpolator.cpp.

Referenced by On3DInterpolationActivated(), OnSurfaceInterpolationInfoChanged(), and SetCurrentContourListID().

◆ RunPlaneSuggestion

void QmitkSlicesInterpolator::RunPlaneSuggestion ( )

protectedslot

Referenced by OnAccept3DInterpolationClicked().

◆ SetCurrentContourListID()

void QmitkSlicesInterpolator::SetCurrentContourListID ( )

protected

Definition at line 1221 of file QmitkSlicesInterpolator.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetData(), mitk::BaseData::GetGeometry(), mitk::Stepper::GetPos(), mitk::BaseGeometry::GetSpacing(), mitk::BaseController::GetTime(), Run3DInterpolation(), and Show3DInterpolationResult().

Referenced by OnToolManagerWorkingDataModified().

◆ SetDataStorage()

void QmitkSlicesInterpolator::SetDataStorage ( mitk::DataStorage::Pointer storage )

Definition at line 196 of file QmitkSlicesInterpolator.cpp.

◆ setEnabled

void QmitkSlicesInterpolator::setEnabled ( bool enable )

virtualslot

External enableization...

Definition at line 343 of file QmitkSlicesInterpolator.cpp.

References Show3DInterpolationResult().

◆ Show3DInterpolationResult()

void QmitkSlicesInterpolator::Show3DInterpolationResult ( bool status )

Set the visibility of the 3d interpolation.

Definition at line 1288 of file QmitkSlicesInterpolator.cpp.

References mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by On3DInterpolationActivated(), OnAccept3DInterpolationClicked(), OnInterpolationDisabled(), OnInterpolationMethodChanged(), OnSurfaceInterpolationFinished(), SetCurrentContourListID(), and setEnabled().

◆ SignalRememberContourPositions

void QmitkSlicesInterpolator::SignalRememberContourPositions ( bool )

signal

◆ SignalShowMarkerNodes

void QmitkSlicesInterpolator::SignalShowMarkerNodes ( bool )

signal

Referenced by QmitkSlicesInterpolator().

◆ StartUpdateInterpolationTimer

void QmitkSlicesInterpolator::StartUpdateInterpolationTimer ( )

protectedslot

Definition at line 1071 of file QmitkSlicesInterpolator.cpp.

Referenced by QmitkSlicesInterpolator().

◆ StopUpdateInterpolationTimer

void QmitkSlicesInterpolator::StopUpdateInterpolationTimer ( )

protectedslot

Definition at line 1076 of file QmitkSlicesInterpolator.cpp.

References mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::ColorProperty::New(), mitk::RenderingManager::RequestUpdate(), and SURFACE_COLOR_RGB.

Referenced by QmitkSlicesInterpolator().

◆ TranslateAndInterpolateChangedSlice()

bool QmitkSlicesInterpolator::TranslateAndInterpolateChangedSlice	(	const itk::EventObject &	e,
		mitk::SliceNavigationController *	slicer
	)

protected

Retrieves the currently selected PlaneGeometry from a SlicedGeometry3D that is generated by a SliceNavigationController and calls Interpolate to further process this PlaneGeometry into an interpolation.

Parameters

e	is a actually a mitk::SliceNavigationController::GeometrySliceEvent, sent by a SliceNavigationController
slice	the SliceNavigationController

Definition at line 526 of file QmitkSlicesInterpolator.cpp.

References mitk::TimeGeometry::GetGeometryForTimeStep(), mitk::SlicedGeometry3D::GetPlaneGeometry(), and Interpolate().

Referenced by OnSliceChanged().

◆ Uninitialize()

void QmitkSlicesInterpolator::Uninitialize ( )

Definition at line 288 of file QmitkSlicesInterpolator.cpp.

References ACTION_TO_SLICEDIMENSION, OnToolManagerReferenceDataModified(), and OnToolManagerWorkingDataModified().

Referenced by Initialize(), and ~QmitkSlicesInterpolator().

◆ UpdateVisibleSuggestion()

void QmitkSlicesInterpolator::UpdateVisibleSuggestion ( )

protected

Called internally to update the interpolation suggestion. Finds out about the focused render window and requests an interpolation.

Definition at line 1199 of file QmitkSlicesInterpolator.cpp.

References mitk::RenderingManager::GetInstance(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by OnInterpolationActivated(), and OnInterpolationInfoChanged().

Member Data Documentation

◆ ACTION_TO_SLICEDIMENSION

std::map<QAction *, mitk::SliceNavigationController *> QmitkSlicesInterpolator::ACTION_TO_SLICEDIMENSION

protected

Definition at line 198 of file QmitkSlicesInterpolator.h.

Referenced by Initialize(), OnAcceptAllInterpolationsClicked(), OnAcceptAllPopupActivated(), and Uninitialize().

The documentation for this class was generated from the following files:

Public Slots

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ QmitkSlicesInterpolator()

◆ ~QmitkSlicesInterpolator()

Member Function Documentation

◆ AcceptAllInterpolations()

◆ ChangeSurfaceColor

◆ createActionToSliceDimension()

◆ Enable3DInterpolation

◆ EnableInterpolation

◆ FinishInterpolation

◆ GetDataStorage()

◆ Initialize()

◆ Interpolate()

◆ On2DInterpolationEnabled

◆ On3DInterpolationActivated

◆ On3DInterpolationEnabled

◆ OnAccept3DInterpolationClicked

◆ OnAcceptAllInterpolationsClicked

◆ OnAcceptAllPopupActivated

◆ OnAcceptInterpolationClicked

◆ OnInterpolationActivated

◆ OnInterpolationDisabled

◆ OnInterpolationInfoChanged()

◆ OnInterpolationMethodChanged

◆ OnReinit3DInterpolation

◆ OnShowMarkers

◆ OnSliceChanged()

◆ OnSliceNavigationControllerDeleted()

◆ OnSuggestPlaneClicked

◆ OnSurfaceInterpolationFinished

◆ OnSurfaceInterpolationInfoChanged()

◆ OnTimeChanged()

◆ OnToolManagerReferenceDataModified()

◆ OnToolManagerWorkingDataModified()

◆ Run3DInterpolation

◆ RunPlaneSuggestion

◆ SetCurrentContourListID()

◆ SetDataStorage()

◆ setEnabled

◆ Show3DInterpolationResult()

◆ SignalRememberContourPositions

◆ SignalShowMarkerNodes

◆ StartUpdateInterpolationTimer

◆ StopUpdateInterpolationTimer

◆ TranslateAndInterpolateChangedSlice()

◆ Uninitialize()

◆ UpdateVisibleSuggestion()

Member Data Documentation

◆ ACTION_TO_SLICEDIMENSION
