ExtractSliceFilter extracts a 2D abitrary oriented slice from a 3D volume. More...

#include <mitkExtractSliceFilter.h>

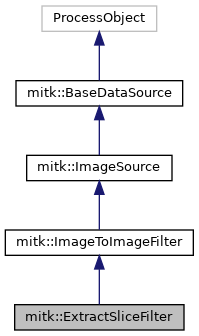

Inheritance diagram for mitk::ExtractSliceFilter:

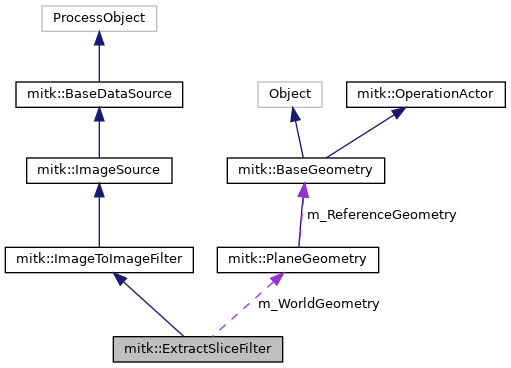

Collaboration diagram for mitk::ExtractSliceFilter:

[legend]

Public Types
enum	ResliceInterpolation { RESLICE_NEAREST, RESLICE_LINEAR, RESLICE_CUBIC }

typedef ExtractSliceFilter	Self

typedef ImageToImageFilter	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::ImageToImageFilter
typedef ImageToImageFilter	Self

typedef ImageSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::OutputImageRegionType	OutputImageRegionType

typedef mitk::Image	InputImageType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef ImageSource	Self

typedef BaseDataSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef BaseData	OutputType

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

void	SetWorldGeometry (const PlaneGeometry *geometry)
	Set the axis where to reslice at. More...

void	SetTimeStep (unsigned int timestep)
	Set the time step in the 4D volume. More...

unsigned int	GetTimeStep ()

void	SetComponent (unsigned int component)
	Set the component of an image to be extracted. More...

void	SetResliceTransformByGeometry (const BaseGeometry *transform)
	Set a transform for the reslice axes. This transform is needed if the image volume itself is transformed. (Effects the reslice axis) More...

void	SetInPlaneResampleExtentByGeometry (bool inPlaneResampleExtentByGeometry)
	Resampling grid corresponds to: false->image true->worldgeometry. More...

void	SetOutputDimensionality (unsigned int dimension)
	Sets the output dimension of the slice. More...

void	SetOutputSpacingZDirection (double zSpacing)
	Set the spacing in z direction manually. Required if the outputDimension is > 2. More...

void	SetOutputExtentZDirection (int zMin, int zMax)
	Set the extent in pixel for direction z manualy. Required if the output dimension is > 2. More...

bool	GetClippedPlaneBounds (double bounds[6])
	Get the bounding box of the slice [xMin, xMax, yMin, yMax, zMin, zMax] The method uses the input of the filter to calculate the bounds. It is recommended to use GetClippedPlaneBounds(const BaseGeometry, const PlaneGeometry, double*) if you are not sure about the input. More...

bool	GetClippedPlaneBounds (const BaseGeometry boundingGeometry, const PlaneGeometry planeGeometry, double *bounds)
	Get the bounding box of the slice [xMin, xMax, yMin, yMax, zMin, zMax]. More...

mitk::ScalarType *	GetOutputSpacing ()
	Get the spacing of the slice. returns mitk::ScalarType[2]. More...

vtkImageData *	GetVtkOutput ()
	Get Output as vtkImageData. Note: SetVtkOutputRequest(true) has to be called at least once before GetVtkOutput(). Otherwise the output is empty for the first update step. More...

void	SetVtkOutputRequest (bool isRequested)

vtkMatrix4x4 *	GetResliceAxes ()
	Get the reslices axis matrix. Note: the axis are recalculated when calling SetResliceTransformByGeometry. More...

void	SetBackgroundLevel (double backgroundLevel)

void	SetInterpolationMode (ExtractSliceFilter::ResliceInterpolation interpolation)

Public Member Functions inherited from mitk::ImageToImageFilter
Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)

virtual void	SetInput (unsigned int, const InputImageType *image)

InputImageType *	GetInput (void)

InputImageType *	GetInput (unsigned int idx)

const InputImageType *	GetInput (void) const

const InputImageType *	GetInput (unsigned int idx) const

Public Member Functions inherited from mitk::ImageSource
Pointer	Clone () const

OutputType *	GetOutput ()
	Get the output data of this image source object. More...

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Make a DataObject of the correct type to used as the specified output. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()

virtual const vtkImageData *	GetVtkImageData () const

Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

static Pointer	New (vtkImageReslice *_arg)

Static Public Member Functions inherited from mitk::ImageToImageFilter
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageSource
static const char *	GetStaticNameOfClass ()

static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	ExtractSliceFilter (vtkImageReslice *reslicer=nullptr)

	~ExtractSliceFilter () override

void	GenerateData () override

void	GenerateOutputInformation () override

void	GenerateInputRequestedRegion () override

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	GenerateInputRequestedRegion () override

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()

	~BaseDataSource () override

Protected Attributes
const PlaneGeometry *	m_WorldGeometry

vtkSmartPointer< vtkImageReslice >	m_Reslicer

unsigned int	m_TimeStep

unsigned int	m_OutputDimension

double	m_ZSpacing

int	m_ZMin

int	m_ZMax

ResliceInterpolation	m_InterpolationMode

bool	m_InPlaneResampleExtentByGeometry

mitk::ScalarType *	m_OutPutSpacing

bool	m_VtkOutputRequested

double	m_BackgroundLevel

unsigned int	m_Component

Additional Inherited Members
Static Protected Member Functions inherited from mitk::ImageSource
static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

ExtractSliceFilter extracts a 2D abitrary oriented slice from a 3D volume.

The filter can reslice in all orthogonal planes such as sagittal, coronal and axial, and is also able to reslice an arbitrary oriented oblique plane. Curved planes are specified via an AbstractTransformGeometry as the input worldgeometry.

Additionally the filter extracts the specified component of a multi-component input image. This is done only if the caller requests an mitk::Image output ('m_VtkOutputRequested' set to false). The default component to be extracted is '0'.

The convenient workflow is:

Set an image as input.
Set the worldPlaneGeometry. This defines a grid where the slice is being extracted
And then start the pipeline.

There are a few more properties that can be set to modify the behavior of the slicing. The properties are:

interpolation mode either Nearestneighbor, Linear or Cubic.
a transform this is a convenient way to adapt the reslice axis for the case that the image is transformed e.g. rotated.
time step the time step in a times volume.
the component to extract from a multi-component input image
vtkoutputrequested, to define whether an mitk::image should be initialized
resample by geometry whether the resampling grid corresponds to the specs of the worldgeometry or is directly derived from the input image

By default the properties are set to:

interpolation mode Nearestneighbor.
a transform nullptr (No transform is set).
time step 0.
component 0.
resample by geometry false (Corresponds to input image).

Definition at line 63 of file mitkExtractSliceFilter.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::ExtractSliceFilter::ConstPointer

Definition at line 66 of file mitkExtractSliceFilter.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::ExtractSliceFilter::Pointer

Definition at line 66 of file mitkExtractSliceFilter.h.

◆ Self

typedef ExtractSliceFilter mitk::ExtractSliceFilter::Self

Definition at line 66 of file mitkExtractSliceFilter.h.

◆ Superclass

typedef ImageToImageFilter mitk::ExtractSliceFilter::Superclass

Definition at line 66 of file mitkExtractSliceFilter.h.

Member Enumeration Documentation

◆ ResliceInterpolation

enum mitk::ExtractSliceFilter::ResliceInterpolation

Enumerator
RESLICE_NEAREST
RESLICE_LINEAR
RESLICE_CUBIC

Definition at line 150 of file mitkExtractSliceFilter.h.

Constructor & Destructor Documentation

◆ ExtractSliceFilter()

mitk::ExtractSliceFilter::ExtractSliceFilter ( vtkImageReslice * reslicer = nullptr )

protected

Definition at line 24 of file mitkExtractSliceFilter.cpp.

References m_BackgroundLevel, m_Component, m_InPlaneResampleExtentByGeometry, m_InterpolationMode, m_OutputDimension, m_OutPutSpacing, m_Reslicer, m_TimeStep, m_VtkOutputRequested, m_ZMax, m_ZMin, m_ZSpacing, and RESLICE_NEAREST.

◆ ~ExtractSliceFilter()

mitk::ExtractSliceFilter::~ExtractSliceFilter ( )

overrideprotected

Definition at line 50 of file mitkExtractSliceFilter.cpp.

References m_OutPutSpacing, and m_WorldGeometry.

Member Function Documentation

◆ Clone()

Pointer mitk::ExtractSliceFilter::Clone ( ) const

◆ GenerateData()

void mitk::ExtractSliceFilter::GenerateData ( )

overrideprotected

◆ GenerateInputRequestedRegion()

void mitk::ExtractSliceFilter::GenerateInputRequestedRegion ( )

overrideprotected

Definition at line 227 of file mitkExtractSliceFilter.cpp.

References mitk::ImageToImageFilter::GetInput().

◆ GenerateOutputInformation()

void mitk::ExtractSliceFilter::GenerateOutputInformation ( )

overrideprotected

Definition at line 57 of file mitkExtractSliceFilter.cpp.

References mitk::PlaneGeometry::Clone(), mitk::TimeGeometry::CountTimeSteps(), GetClippedPlaneBounds(), mitk::BaseGeometry::GetExtent(), mitk::BaseGeometry::GetExtentInMM(), mitk::TimeGeometry::GetGeometryForTimeStep(), mitk::BaseGeometry::GetIndexToWorldTransform(), mitk::ImageToImageFilter::GetInput(), mitk::ImageSource::GetOutput(), mitk::PlaneGeometry::GetReferenceGeometry(), m_InPlaneResampleExtentByGeometry, m_OutPutSpacing, m_TimeStep, m_WorldGeometry, and mitkThrow.

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::ExtractSliceFilter::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::ImageToImageFilter.

Definition at line 66 of file mitkExtractSliceFilter.h.

◆ GetClassName()

virtual const char* mitk::ExtractSliceFilter::GetClassName ( ) const

virtual

Reimplemented from mitk::ImageToImageFilter.

◆ GetClippedPlaneBounds() [1/2]

bool mitk::ExtractSliceFilter::GetClippedPlaneBounds ( double bounds[6] )

Get the bounding box of the slice [xMin, xMax, yMin, yMax, zMin, zMax] The method uses the input of the filter to calculate the bounds. It is recommended to use GetClippedPlaneBounds(const BaseGeometry*, const PlaneGeometry*, double*) if you are not sure about the input.

Definition at line 498 of file mitkExtractSliceFilter.cpp.

References mitk::ImageToImageFilter::GetInput(), mitk::PlaneGeometry::GetReferenceGeometry(), and m_WorldGeometry.

Referenced by GenerateOutputInformation().

◆ GetClippedPlaneBounds() [2/2]

bool mitk::ExtractSliceFilter::GetClippedPlaneBounds	(	const BaseGeometry *	boundingGeometry,
		const PlaneGeometry *	planeGeometry,
		double *	bounds
	)

Get the bounding box of the slice [xMin, xMax, yMin, yMax, zMin, zMax].

Definition at line 507 of file mitkExtractSliceFilter.cpp.

References mitk::PlaneClipping::CalculateClippedPlaneBounds().

◆ GetOutputSpacing()

mitk::ScalarType * mitk::ExtractSliceFilter::GetOutputSpacing ( )

Get the spacing of the slice. returns mitk::ScalarType[2].

Definition at line 238 of file mitkExtractSliceFilter.cpp.

References m_OutPutSpacing.

◆ GetResliceAxes()

vtkMatrix4x4* mitk::ExtractSliceFilter::GetResliceAxes ( )

inline

Get the reslices axis matrix. Note: the axis are recalculated when calling SetResliceTransformByGeometry.

Definition at line 148 of file mitkExtractSliceFilter.h.

◆ GetStaticNameOfClass()

static const char* mitk::ExtractSliceFilter::GetStaticNameOfClass ( )

inlinestatic

Definition at line 66 of file mitkExtractSliceFilter.h.

◆ GetTimeStep()

unsigned int mitk::ExtractSliceFilter::GetTimeStep ( )

inline

Definition at line 81 of file mitkExtractSliceFilter.h.

◆ GetVtkOutput()

vtkImageData* mitk::ExtractSliceFilter::GetVtkOutput ( )

inline

Get Output as vtkImageData. Note: SetVtkOutputRequest(true) has to be called at least once before GetVtkOutput(). Otherwise the output is empty for the first update step.

Definition at line 132 of file mitkExtractSliceFilter.h.

◆ New() [1/2]

static Pointer mitk::ExtractSliceFilter::New ( )

static

Referenced by QmitkSliceBasedInterpolatorWidget::AcceptAllInterpolations(), QmitkSlicesInterpolator::AcceptAllInterpolations(), mitk::DiffSliceOperationApplier::ExecuteOperation(), mitk::ContourModelSetToImageFilter::GenerateData(), mitk::LabelSetImageVtkMapper2D::GenerateDataForRenderer(), mitk::SegTool2D::GetAffectedImageSliceAs2DImage(), QmitkSemanticRelationsUIHelper::GetPixmapFromImageNode(), GetPixmapFromImageNode(), QmitkSliceBasedInterpolatorWidget::GetWorkingSlice(), mitk::SliceBasedInterpolationController::Interpolate(), mitk::SegmentationInterpolationController::Interpolate(), mitk::RegEvaluationMapper2D::LocalStorage::LocalStorage(), mitk::ImageVtkMapper2D::LocalStorage::LocalStorage(), mitk::DoseImageVtkMapper2D::LocalStorage::LocalStorage(), mitkRotatedSlice4DTest(), QmitkSliceBasedInterpolatorWidget::OnAcceptInterpolationClicked(), QmitkSlicesInterpolator::OnAcceptInterpolationClicked(), and mitk::SegTool2D::WriteSliceToVolume().

◆ New() [2/2]

static Pointer mitk::ExtractSliceFilter::New ( vtkImageReslice * _arg )

inlinestatic

Definition at line 70 of file mitkExtractSliceFilter.h.

◆ SetBackgroundLevel()

void mitk::ExtractSliceFilter::SetBackgroundLevel ( double backgroundLevel )

inline

Definition at line 149 of file mitkExtractSliceFilter.h.

◆ SetComponent()

void mitk::ExtractSliceFilter::SetComponent ( unsigned int component )

inline

Set the component of an image to be extracted.

Definition at line 84 of file mitkExtractSliceFilter.h.

◆ SetInPlaneResampleExtentByGeometry()

void mitk::ExtractSliceFilter::SetInPlaneResampleExtentByGeometry ( bool inPlaneResampleExtentByGeometry )

inline

Resampling grid corresponds to: false->image true->worldgeometry.

Definition at line 91 of file mitkExtractSliceFilter.h.

◆ SetInterpolationMode()

void mitk::ExtractSliceFilter::SetInterpolationMode ( ExtractSliceFilter::ResliceInterpolation interpolation )

inline

Definition at line 157 of file mitkExtractSliceFilter.h.

◆ SetOutputDimensionality()

void mitk::ExtractSliceFilter::SetOutputDimensionality ( unsigned int dimension )

inline

Sets the output dimension of the slice.

Definition at line 97 of file mitkExtractSliceFilter.h.

◆ SetOutputExtentZDirection()

void mitk::ExtractSliceFilter::SetOutputExtentZDirection	(	int	zMin,
		int	zMax
	)

inline

Set the extent in pixel for direction z manualy. Required if the output dimension is > 2.

Definition at line 105 of file mitkExtractSliceFilter.h.

◆ SetOutputSpacingZDirection()

void mitk::ExtractSliceFilter::SetOutputSpacingZDirection ( double zSpacing )

inline

Set the spacing in z direction manually. Required if the outputDimension is > 2.

Definition at line 101 of file mitkExtractSliceFilter.h.

◆ SetResliceTransformByGeometry()

void mitk::ExtractSliceFilter::SetResliceTransformByGeometry ( const BaseGeometry * transform )

inline

Set a transform for the reslice axes. This transform is needed if the image volume itself is transformed. (Effects the reslice axis)

Definition at line 89 of file mitkExtractSliceFilter.h.

◆ SetTimeStep()

void mitk::ExtractSliceFilter::SetTimeStep ( unsigned int timestep )

inline

Set the time step in the 4D volume.

Definition at line 80 of file mitkExtractSliceFilter.h.

◆ SetVtkOutputRequest()

void mitk::ExtractSliceFilter::SetVtkOutputRequest ( bool isRequested )

inline

Set VtkOutPutRequest to suppress the convertion of the image. It is suggested to use this with GetVtkOutput(). Note: SetVtkOutputRequest(true) has to be called at least once before GetVtkOutput(). Otherwise the output is empty for the first update step.

Definition at line 144 of file mitkExtractSliceFilter.h.

◆ SetWorldGeometry()

void mitk::ExtractSliceFilter::SetWorldGeometry ( const PlaneGeometry * geometry )

inline

Set the axis where to reslice at.

Definition at line 73 of file mitkExtractSliceFilter.h.

Member Data Documentation

◆ m_BackgroundLevel

double mitk::ExtractSliceFilter::m_BackgroundLevel

protected

Definition at line 191 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_Component

unsigned int mitk::ExtractSliceFilter::m_Component

protected

Definition at line 193 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_InPlaneResampleExtentByGeometry

bool mitk::ExtractSliceFilter::m_InPlaneResampleExtentByGeometry

protected

Definition at line 185 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateOutputInformation().

◆ m_InterpolationMode

ResliceInterpolation mitk::ExtractSliceFilter::m_InterpolationMode

protected

Definition at line 183 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_OutputDimension

unsigned int mitk::ExtractSliceFilter::m_OutputDimension

protected

Definition at line 175 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_OutPutSpacing

mitk::ScalarType* mitk::ExtractSliceFilter::m_OutPutSpacing

protected

Definition at line 187 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), GenerateData(), GenerateOutputInformation(), GetOutputSpacing(), and ~ExtractSliceFilter().

◆ m_Reslicer

vtkSmartPointer<vtkImageReslice> mitk::ExtractSliceFilter::m_Reslicer

protected

Definition at line 171 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_TimeStep

unsigned int mitk::ExtractSliceFilter::m_TimeStep

protected

Definition at line 173 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), GenerateData(), and GenerateOutputInformation().

◆ m_VtkOutputRequested

bool mitk::ExtractSliceFilter::m_VtkOutputRequested

protected

Definition at line 189 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_WorldGeometry

const PlaneGeometry* mitk::ExtractSliceFilter::m_WorldGeometry

protected

Definition at line 170 of file mitkExtractSliceFilter.h.

Referenced by GenerateData(), GenerateOutputInformation(), GetClippedPlaneBounds(), and ~ExtractSliceFilter().

◆ m_ZMax

int mitk::ExtractSliceFilter::m_ZMax

protected

Definition at line 181 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_ZMin

int mitk::ExtractSliceFilter::m_ZMin

protected

Definition at line 179 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

◆ m_ZSpacing

double mitk::ExtractSliceFilter::m_ZSpacing

protected

Definition at line 177 of file mitkExtractSliceFilter.h.

Referenced by ExtractSliceFilter(), and GenerateData().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ Pointer

◆ Self

◆ Superclass

Member Enumeration Documentation

◆ ResliceInterpolation

Constructor & Destructor Documentation

◆ ExtractSliceFilter()

◆ ~ExtractSliceFilter()

Member Function Documentation

◆ Clone()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetClippedPlaneBounds() [1/2]

◆ GetClippedPlaneBounds() [2/2]

◆ GetOutputSpacing()

◆ GetResliceAxes()

◆ GetStaticNameOfClass()

◆ GetTimeStep()

◆ GetVtkOutput()

◆ New() [1/2]

◆ New() [2/2]

◆ SetBackgroundLevel()

◆ SetComponent()

◆ SetInPlaneResampleExtentByGeometry()

◆ SetInterpolationMode()

◆ SetOutputDimensionality()

◆ SetOutputExtentZDirection()

◆ SetOutputSpacingZDirection()

◆ SetResliceTransformByGeometry()

◆ SetTimeStep()

◆ SetVtkOutputRequest()

◆ SetWorldGeometry()

Member Data Documentation

◆ m_BackgroundLevel

◆ m_Component

◆ m_InPlaneResampleExtentByGeometry

◆ m_InterpolationMode

◆ m_OutputDimension

◆ m_OutPutSpacing

◆ m_Reslicer

◆ m_TimeStep

◆ m_VtkOutputRequested

◆ m_WorldGeometry

◆ m_ZMax

◆ m_ZMin

◆ m_ZSpacing
