nnInteractive interactor for placing individual points. More...

#include <mitknnInteractivePointInteractor.h>

Inheritance diagram for mitk::nnInteractive::PointInteractor:

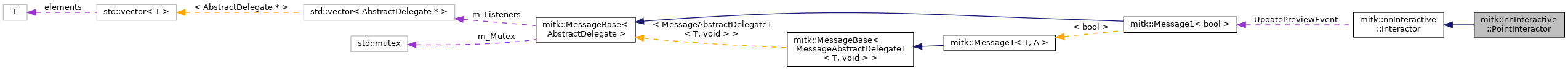

Collaboration diagram for mitk::nnInteractive::PointInteractor:

[legend]

Public Member Functions
	PointInteractor ()
	Constructs a PointInteractor with InteractionType::Point. More...

	~PointInteractor () override
	Destructor. Calls OnReset() to clean up data nodes. More...

bool	HasInteractions () const override
	Checks whether any points have been placed. More...

std::optional< Point3D >	GetLastPoint () const
	Returns the most recently placed point for the current prompt type. More...

void	RemoveLastInteraction (PromptType promptType) override
	Removes the most recently placed point for the given prompt type. More...

Public Member Functions inherited from mitk::nnInteractive::Interactor
virtual	~Interactor ()
	Destructor. More...

InteractionType	GetType () const
	Returns the interaction type associated with this interactor. More...

void	SetToolManager (ToolManager *toolManager)
	Sets the ToolManager for this interactor. More...

void	HandleEvent (InteractionEvent *event)
	Handles an interaction event. More...

void	Enable (PromptType promptType)
	Enables the interactor for the given prompt type. More...

void	Disable ()
	Disables the interactor. More...

bool	IsEnabled () const
	Checks whether the interactor is currently enabled. More...

void	Reset ()
	Resets the interactor to its initial state. More...

std::string	GetIcon () const
	Retrieves the SVG icon as a string from module resources. More...

std::string	GetCursor (PromptType promptType) const
	Retrieves the SVG cursor as a string from module resources based on PromptType. More...

Additional Inherited Members
Public Attributes inherited from mitk::nnInteractive::Interactor
Message1< bool >	UpdatePreviewEvent
	Event triggered after an interaction has occurred. More...

Protected Member Functions inherited from mitk::nnInteractive::Interactor
	Interactor (InteractionType type)
	Constructs an interactor with a given type. More...

virtual void	OnSetToolManager ()
	Called when a ToolManager is assigned. More...

virtual void	OnHandleEvent (InteractionEvent *event)
	Called when an interaction event is received. More...

ToolManager *	GetToolManager () const
	Returns the ToolManager associated with this interactor. More...

DataStorage *	GetDataStorage () const
	Convenience method for accessing the DataStorage. More...

PromptType	GetCurrentPromptType () const
	Returns the currently active prompt type. More...

Detailed Description

nnInteractive interactor for placing individual points.

Points are managed in up to two PointSet data nodes, separated by prompt type. Point placement is restricted to the bounds of the reference image.

Interaction is handled through the PointSetDataInteractor. Left mouse button display interaction (crosshair navigation) is blocked while this interactor is enabled, allowing plain left clicks for point placement.

See also: Interactor, PointSet, nnInteractiveTool

Definition at line 35 of file mitknnInteractivePointInteractor.h.

Constructor & Destructor Documentation

◆ PointInteractor()

mitk::nnInteractive::PointInteractor::PointInteractor ( )

Constructs a PointInteractor with InteractionType::Point.

◆ ~PointInteractor()

mitk::nnInteractive::PointInteractor::~PointInteractor ( )

override

Destructor. Calls OnReset() to clean up data nodes.

Member Function Documentation

◆ GetLastPoint()

std::optional<Point3D> mitk::nnInteractive::PointInteractor::GetLastPoint ( ) const

Returns the most recently placed point for the current prompt type.

Returns: The last point's 3D coordinates if at least one point exists for the current prompt type, std::nullopt otherwise.

See also: GetCurrentPromptType()

◆ HasInteractions()

bool mitk::nnInteractive::PointInteractor::HasInteractions ( ) const

overridevirtual

Checks whether any points have been placed.

Returns: true if at least one point exists in any PointSet for any prompt type, false otherwise.

Implements mitk::nnInteractive::Interactor.

◆ RemoveLastInteraction()

void mitk::nnInteractive::PointInteractor::RemoveLastInteraction ( PromptType promptType )

overridevirtual

Removes the most recently placed point for the given prompt type.

A no-op if no point set exists for promptType or it is already empty. The point set node is left in place (it may be the actively bound node); empty sets are cleaned up by OnDisable() / OnReset() as before.

Parameters

[in] promptType The prompt type whose last point should be removed.
