Base class for all nnInteractive interactors. More...

#include <mitknnInteractiveInteractor.h>

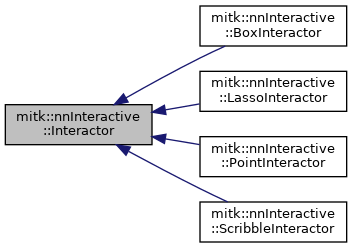

Inheritance diagram for mitk::nnInteractive::Interactor:

[legend]

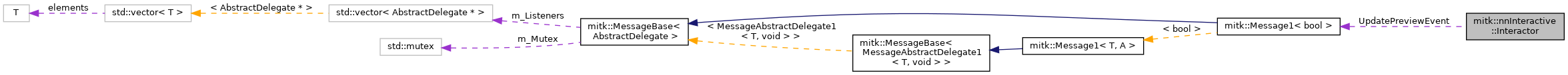

Collaboration diagram for mitk::nnInteractive::Interactor:

[legend]

Public Member Functions
virtual	~Interactor ()
	Destructor. More...

InteractionType	GetType () const
	Returns the interaction type associated with this interactor. More...

void	SetToolManager (ToolManager *toolManager)
	Sets the ToolManager for this interactor. More...

void	HandleEvent (InteractionEvent *event)
	Handles an interaction event. More...

void	Enable (PromptType promptType)
	Enables the interactor for the given prompt type. More...

void	Disable ()
	Disables the interactor. More...

bool	IsEnabled () const
	Checks whether the interactor is currently enabled. More...

void	Reset ()
	Resets the interactor to its initial state. More...

std::string	GetIcon () const
	Retrieves the SVG icon as a string from module resources. More...

std::string	GetCursor (PromptType promptType) const
	Retrieves the SVG cursor as a string from module resources based on PromptType. More...

virtual bool	HasInteractions () const =0
	Checks whether any interactions have occurred. More...

virtual void	RemoveLastInteraction (PromptType promptType)=0
	Removes the most recent interaction for the given prompt type. More...

Public Attributes
Message1< bool >	UpdatePreviewEvent
	Event triggered after an interaction has occurred. More...

Protected Member Functions
	Interactor (InteractionType type)
	Constructs an interactor with a given type. More...

virtual void	OnSetToolManager ()
	Called when a ToolManager is assigned. More...

virtual void	OnHandleEvent (InteractionEvent *event)
	Called when an interaction event is received. More...

virtual void	OnEnable ()=0
	Called when the interactor is enabled. More...

virtual void	OnDisable ()=0
	Called when the interactor is disabled. More...

virtual void	OnReset ()=0
	Called when the interactor is reset. More...

ToolManager *	GetToolManager () const
	Returns the ToolManager associated with this interactor. More...

DataStorage *	GetDataStorage () const
	Convenience method for accessing the DataStorage. More...

PromptType	GetCurrentPromptType () const
	Returns the currently active prompt type. More...

Detailed Description

Base class for all nnInteractive interactors.

This class encapsulates the common logic and control interface for nnInteractive interactors. Essentially, they can be enabled, disabled, and reset. Derived classes must respond to these events by overriding the corresponding methods: OnEnable(), OnDisable(), and OnReset().

nnInteractive interactors are typically implemented by reusing an existing MITK interactor or by driving a custom EventStateMachine. In the latter case, OnHandleEvent() can be overridden to forward relevant events to the state machine.

Utility methods such as GetToolManager(), GetDataStorage(), and GetCurrentPromptType() provide essential functionality for derived classes.

Derived classes are pragmatically linked to this base class through their InteractionType, an enum class with enumerators for each interactor. This simplifies handling collections of interactors, such as using InteractionType as a key in maps (see GetType()).

This base class blocks global crosshair navigation via left clicks while an nnInteractive interactor is enabled. This allows derived classes to use plain left clicks in MITK interactor event configurations, which would otherwise require modifier keys.

nnInteractive interactors are mutually exclusive, and the client is responsible for ensuring that no more than one interactor is enabled at a time.

Definition at line 57 of file mitknnInteractiveInteractor.h.

Constructor & Destructor Documentation

◆ ~Interactor()

virtual mitk::nnInteractive::Interactor::~Interactor ( )

virtual

Destructor.

◆ Interactor()

mitk::nnInteractive::Interactor::Interactor ( InteractionType type )

explicitprotected

Constructs an interactor with a given type.

Note: Enumerators of InteractionType must not be reused across different derived classes. Each interactor must be associated with a unique interaction type.

Parameters

type	The interaction type associated with this interactor.

Member Function Documentation

◆ Disable()

void mitk::nnInteractive::Interactor::Disable ( )

Disables the interactor.

Derived classes must implement OnDisable() to define specific behavior.

Restores left mouse button crosshair navigation that was blocked while the interactor was enabled.

See also: OnDisable()

◆ Enable()

void mitk::nnInteractive::Interactor::Enable ( PromptType promptType )

Enables the interactor for the given prompt type.

Derived classes must implement OnEnable() to define specific behavior. To switch the prompt type for an enabled interactor, simply call this method again and it will automatically call Disable() before re-enabling the interactor for the other prompt type.

Crosshair navigation via left click is blocked while the interactor is enabled and restored on Disable().

Parameters

[in] promptType The prompt type (positive or negative) to enable this interactor for.

See also: OnEnable(), Disable(), GetCurrentPromptType()

◆ GetCurrentPromptType()

PromptType mitk::nnInteractive::Interactor::GetCurrentPromptType ( ) const

protected

Returns the currently active prompt type.

The active prompt type is determined by the most recent call to Enable(). Before the first call to Enable(), the default is PromptType::Positive.

Returns: The currently active PromptType.

See also: Enable()

◆ GetCursor()

std::string mitk::nnInteractive::Interactor::GetCursor ( PromptType promptType ) const

Retrieves the SVG cursor as a string from module resources based on PromptType.

The cursor path is automatically determined using the InteractionType and the specified PromptType, e.g., "nnInteractive/PositivePointCursor.svg".

Parameters

[in] promptType The prompt type used to determine the cursor variant.

Returns: The SVG cursor data as a string, or an empty string if the cursor is not found in the resources.

◆ GetDataStorage()

DataStorage* mitk::nnInteractive::Interactor::GetDataStorage ( ) const

protected

Convenience method for accessing the DataStorage.

Retrieves the DataStorage from the associated ToolManager.

Precondition: SetToolManager() must have been called beforehand.

Returns: Pointer to the DataStorage, or nullptr if no ToolManager has been set.

See also: SetToolManager(), GetToolManager()

◆ GetIcon()

std::string mitk::nnInteractive::Interactor::GetIcon ( ) const

Retrieves the SVG icon as a string from module resources.

The icon path is automatically determined based on the InteractionType, e.g., "nnInteractive/Point.svg".

Returns: The SVG icon data as a string, or an empty string if the icon is not found in the resources.

◆ GetToolManager()

ToolManager* mitk::nnInteractive::Interactor::GetToolManager ( ) const

protected

Returns the ToolManager associated with this interactor.

Precondition: SetToolManager() must have been called beforehand.

Returns: Pointer to the associated ToolManager, or nullptr if none has been set.

See also: SetToolManager()

◆ GetType()

InteractionType mitk::nnInteractive::Interactor::GetType ( ) const

Returns the interaction type associated with this interactor.

The interaction type serves as a unique identifier for each interactor, allowing them to be easily distinguished or mapped in data structures.

Returns: The InteractionType that was assigned during construction.

◆ HandleEvent()

void mitk::nnInteractive::Interactor::HandleEvent ( InteractionEvent * event )

Handles an interaction event.

This method forwards input events to enabled interactors. If a derived class uses a segmentation tool class, override OnHandleEvent() to call Tool::HandleEvent().

Events are only forwarded when the interactor is enabled.

Parameters

[in] event The interaction event to handle.

Precondition: The interactor must be enabled for the event to be processed.

See also: OnHandleEvent(), IsEnabled()

◆ HasInteractions()

virtual bool mitk::nnInteractive::Interactor::HasInteractions ( ) const

pure virtual

Checks whether any interactions have occurred.

Derived classes must implement this method to determine whether the interactor has processed any interactions.

Returns: true if at least one interaction has been recorded, false otherwise.

Implemented in mitk::nnInteractive::ScribbleInteractor, mitk::nnInteractive::PointInteractor, mitk::nnInteractive::LassoInteractor, and mitk::nnInteractive::BoxInteractor.

◆ IsEnabled()

bool mitk::nnInteractive::Interactor::IsEnabled ( ) const

Checks whether the interactor is currently enabled.

Returns: true if the interactor has been enabled via Enable() and has not yet been disabled, false otherwise.

See also: Enable(), Disable()

◆ OnDisable()

virtual void mitk::nnInteractive::Interactor::OnDisable ( )

protectedpure virtual

Called when the interactor is disabled.

Derived classes must implement this method to define specific behavior when the interactor is deactivated.

See also: Disable()

◆ OnEnable()

virtual void mitk::nnInteractive::Interactor::OnEnable ( )

protectedpure virtual

Called when the interactor is enabled.

Derived classes must implement this method to define specific behavior when the interactor is activated.

See also: Enable()

◆ OnHandleEvent()

virtual void mitk::nnInteractive::Interactor::OnHandleEvent ( InteractionEvent * event )

protectedvirtual

Called when an interaction event is received.

Invoked only when the interactor is enabled.

Derived classes can override this method to forward the event to an internal state machine.

Parameters

[in] event The interaction event to handle.

See also: HandleEvent()

◆ OnReset()

virtual void mitk::nnInteractive::Interactor::OnReset ( )

protectedpure virtual

Called when the interactor is reset.

Derived classes must implement this method to handle reset logic, ensuring the interactor returns to a clean state.

Note: Consider calling this method also from a derived class destructor to perform clean up.

See also: Reset()

◆ OnSetToolManager()

virtual void mitk::nnInteractive::Interactor::OnSetToolManager ( )

protectedvirtual

Called when a ToolManager is assigned.

Derived classes can override this method to configure tools and set up necessary connections when a ToolManager is assigned.

See also: SetToolManager(), GetToolManager()

◆ RemoveLastInteraction()

virtual void mitk::nnInteractive::Interactor::RemoveLastInteraction ( PromptType promptType )

pure virtual

Removes the most recent interaction for the given prompt type.

Drops the last recorded prompt of promptType (the most recently placed point, box, scribble, or lasso) and its visualization. Used to undo the last interaction; the prompt type is the one that was active when that interaction was made, which is not necessarily the currently active prompt type. A no-op if no such interaction exists.

Parameters

[in] promptType The prompt type whose most recent interaction should be removed.

Implemented in mitk::nnInteractive::ScribbleInteractor, mitk::nnInteractive::PointInteractor, mitk::nnInteractive::LassoInteractor, and mitk::nnInteractive::BoxInteractor.

◆ Reset()

void mitk::nnInteractive::Interactor::Reset ( )

Resets the interactor to its initial state.

This function clears any ongoing interactions and restores the interactor to a clean state.

Derived classes must implement OnReset() for specific behavior.

See also: OnReset()

◆ SetToolManager()

void mitk::nnInteractive::Interactor::SetToolManager ( ToolManager * toolManager )

Sets the ToolManager for this interactor.

The ToolManager is responsible for managing segmentation tools potentially used by derived classes. This method should be called as early as possible to ensure that derived classes have access to the tool manager (and data storage) if needed.

If the provided ToolManager is the same as the currently set one, this method is a no-op.

Parameters

[in] toolManager Pointer to the ToolManager to associate with this interactor.

See also: OnSetToolManager(), GetToolManager(), GetDataStorage()

Member Data Documentation

◆ UpdatePreviewEvent

Message1<bool> mitk::nnInteractive::Interactor::UpdatePreviewEvent

Event triggered after an interaction has occurred.

Observers of this event are notified whenever a new interaction is completed (e.g., a point is placed, a box is drawn). The boolean parameter signature matches SegWithPreviewTool::UpdatePreview().

See also: mitk::nnInteractiveTool

Definition at line 207 of file mitknnInteractiveInteractor.h.

The documentation for this class was generated from the following file:

mitknnInteractiveInteractor.h
