nnInteractive interactor for drawing rectangular boxes. More...

#include <mitknnInteractiveBoxInteractor.h>

Inheritance diagram for mitk::nnInteractive::BoxInteractor:

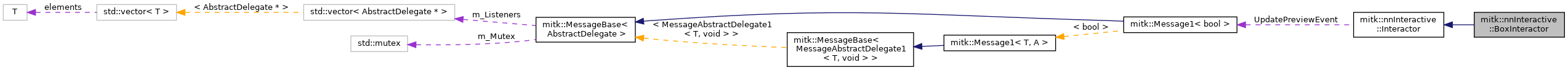

Collaboration diagram for mitk::nnInteractive::BoxInteractor:

[legend]

Public Member Functions
	BoxInteractor ()
	Constructs a BoxInteractor with InteractionType::Box. More...

	~BoxInteractor () override
	Destructor. Calls OnReset() to clean up data nodes. More...

bool	HasInteractions () const override
	Checks whether any boxes have been drawn. More...

const PlanarFigure *	GetLastBox () const
	Returns the most recently completed box for the current prompt type. More...

void	RemoveLastInteraction (PromptType promptType) override
	Removes the most recently completed box for the given prompt type. More...

Public Member Functions inherited from mitk::nnInteractive::Interactor
virtual	~Interactor ()
	Destructor. More...

InteractionType	GetType () const
	Returns the interaction type associated with this interactor. More...

void	SetToolManager (ToolManager *toolManager)
	Sets the ToolManager for this interactor. More...

void	HandleEvent (InteractionEvent *event)
	Handles an interaction event. More...

void	Enable (PromptType promptType)
	Enables the interactor for the given prompt type. More...

void	Disable ()
	Disables the interactor. More...

bool	IsEnabled () const
	Checks whether the interactor is currently enabled. More...

void	Reset ()
	Resets the interactor to its initial state. More...

std::string	GetIcon () const
	Retrieves the SVG icon as a string from module resources. More...

std::string	GetCursor (PromptType promptType) const
	Retrieves the SVG cursor as a string from module resources based on PromptType. More...

Additional Inherited Members
Public Attributes inherited from mitk::nnInteractive::Interactor
Message1< bool >	UpdatePreviewEvent
	Event triggered after an interaction has occurred. More...

Protected Member Functions inherited from mitk::nnInteractive::Interactor
	Interactor (InteractionType type)
	Constructs an interactor with a given type. More...

virtual void	OnSetToolManager ()
	Called when a ToolManager is assigned. More...

virtual void	OnHandleEvent (InteractionEvent *event)
	Called when an interaction event is received. More...

ToolManager *	GetToolManager () const
	Returns the ToolManager associated with this interactor. More...

DataStorage *	GetDataStorage () const
	Convenience method for accessing the DataStorage. More...

PromptType	GetCurrentPromptType () const
	Returns the currently active prompt type. More...

Detailed Description

nnInteractive interactor for drawing rectangular boxes.

Boxes are managed as a list of PlanarRectangle data nodes, organized by PromptType. The currently drawn PlanarRectangle is stored in a separate data node until it is completed.

Interaction is handled through the PlanarFigureInteractor. Left mouse button display interaction (crosshair navigation) is blocked while this interactor is enabled, allowing plain left clicks for box placement.

See also: Interactor, PlanarFigure, nnInteractiveTool

Definition at line 37 of file mitknnInteractiveBoxInteractor.h.

Constructor & Destructor Documentation

◆ BoxInteractor()

mitk::nnInteractive::BoxInteractor::BoxInteractor ( )

Constructs a BoxInteractor with InteractionType::Box.

◆ ~BoxInteractor()

mitk::nnInteractive::BoxInteractor::~BoxInteractor ( )

override

Destructor. Calls OnReset() to clean up data nodes.

Member Function Documentation

◆ GetLastBox()

const PlanarFigure* mitk::nnInteractive::BoxInteractor::GetLastBox ( ) const

Returns the most recently completed box for the current prompt type.

Returns: Pointer to the last completed PlanarFigure (PlanarRectangle), or nullptr if no boxes have been completed for the current prompt type.

See also: GetCurrentPromptType()

◆ HasInteractions()

bool mitk::nnInteractive::BoxInteractor::HasInteractions ( ) const

overridevirtual

Checks whether any boxes have been drawn.

Returns: true if at least one completed box exists for any prompt type, false otherwise.

Implements mitk::nnInteractive::Interactor.

◆ RemoveLastInteraction()

void mitk::nnInteractive::BoxInteractor::RemoveLastInteraction ( PromptType promptType )

overridevirtual

Removes the most recently completed box for the given prompt type.

Removes the last box node of promptType from the data storage. A no-op if no completed box exists for that prompt type. The in-progress "next box" node is left untouched.

Parameters

[in] promptType The prompt type whose last box should be removed.
