nnInteractive interactor for freehand brushstrokes. More...

#include <mitknnInteractiveScribbleInteractor.h>

Inheritance diagram for mitk::nnInteractive::ScribbleInteractor:

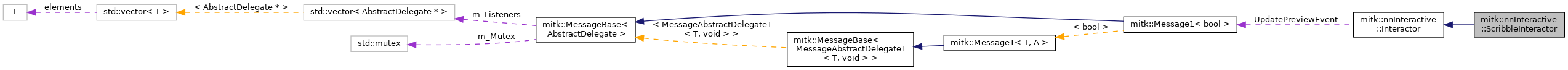

Collaboration diagram for mitk::nnInteractive::ScribbleInteractor:

[legend]

Public Member Functions
	ScribbleInteractor ()
	Constructs a ScribbleInteractor with InteractionType::Scribble. More...

	~ScribbleInteractor () override
	Destructor. Calls OnReset() to clean up data nodes. More...

bool	HasInteractions () const override
	Checks whether any scribbles have been drawn. More...

Image::ConstPointer	GetLastScribbleMask () const
	Returns the binary mask slice of the most recent brushstroke. More...

const InteractionBoundingBox *	GetLastScribbleBoundingBox () const
	Returns the interaction bounding box for the most recent brushstroke. More...

void	RemoveLastInteraction (PromptType promptType) override
	Removes the most recently drawn brushstroke for the given prompt type. More...

Public Member Functions inherited from mitk::nnInteractive::Interactor
virtual	~Interactor ()
	Destructor. More...

InteractionType	GetType () const
	Returns the interaction type associated with this interactor. More...

void	SetToolManager (ToolManager *toolManager)
	Sets the ToolManager for this interactor. More...

void	HandleEvent (InteractionEvent *event)
	Handles an interaction event. More...

void	Enable (PromptType promptType)
	Enables the interactor for the given prompt type. More...

void	Disable ()
	Disables the interactor. More...

bool	IsEnabled () const
	Checks whether the interactor is currently enabled. More...

void	Reset ()
	Resets the interactor to its initial state. More...

std::string	GetIcon () const
	Retrieves the SVG icon as a string from module resources. More...

std::string	GetCursor (PromptType promptType) const
	Retrieves the SVG cursor as a string from module resources based on PromptType. More...

Additional Inherited Members
Public Attributes inherited from mitk::nnInteractive::Interactor
Message1< bool >	UpdatePreviewEvent
	Event triggered after an interaction has occurred. More...

Protected Member Functions inherited from mitk::nnInteractive::Interactor
	Interactor (InteractionType type)
	Constructs an interactor with a given type. More...

virtual void	OnSetToolManager ()
	Called when a ToolManager is assigned. More...

ToolManager *	GetToolManager () const
	Returns the ToolManager associated with this interactor. More...

DataStorage *	GetDataStorage () const
	Convenience method for accessing the DataStorage. More...

PromptType	GetCurrentPromptType () const
	Returns the currently active prompt type. More...

Detailed Description

nnInteractive interactor for freehand brushstrokes.

Each completed brushstroke is stored as a small 2D uint8 mitk::Image positioned at the stroke's slicing plane and wrapped in a DataNode that gets added to the data storage for persistent cross-slice visualization. Strokes are organized by PromptType (each completed node keeps the color of the prompt type active when it was drawn). The most recent brushstroke is also exposed as a pointer to the 2D mask plus an axis-aligned interaction bounding box in nnInteractive coordinates so the Python call can skip the full 3D volume round-trip.

Interaction is handled through an internal brush state machine that paints directly into a 2D uint8 Image – no 3D working segmentation is involved. Left mouse button display interaction (crosshair navigation) is blocked while the interactor is enabled so that brush strokes do not move the crosshair.

See also: Interactor, nnInteractiveTool

Definition at line 41 of file mitknnInteractiveScribbleInteractor.h.

Constructor & Destructor Documentation

◆ ScribbleInteractor()

mitk::nnInteractive::ScribbleInteractor::ScribbleInteractor ( )

Constructs a ScribbleInteractor with InteractionType::Scribble.

◆ ~ScribbleInteractor()

mitk::nnInteractive::ScribbleInteractor::~ScribbleInteractor ( )

override

Destructor. Calls OnReset() to clean up data nodes.

Member Function Documentation

◆ GetLastScribbleBoundingBox()

const InteractionBoundingBox* mitk::nnInteractive::ScribbleInteractor::GetLastScribbleBoundingBox ( ) const

Returns the interaction bounding box for the most recent brushstroke.

The box is in nnInteractive's coordinate order (reverse of MITK index order): {{z_min,z_max}, {y_min,y_max}, {x_min,x_max}}.

Returns: Pointer to the bounding box, or nullptr if no brushstroke has been drawn yet.

◆ GetLastScribbleMask()

Image::ConstPointer mitk::nnInteractive::ScribbleInteractor::GetLastScribbleMask ( ) const

Returns the binary mask slice of the most recent brushstroke.

The mask is a uint8 image whose extent matches the corresponding interaction bounding box (one voxel thick along the slicing axis). Intended to be passed alongside GetLastScribbleBoundingBox() to session.add_scribble_interaction via nnInteractiveTool. Returning a smart pointer makes the lifetime explicit so callers do not need to know that the underlying member is replaced on the next stroke.

Returns: The mask Image, or a null smart pointer if no brushstroke has been drawn yet.

◆ HasInteractions()

bool mitk::nnInteractive::ScribbleInteractor::HasInteractions ( ) const

overridevirtual

Checks whether any scribbles have been drawn.

Returns: true if at least one completed brushstroke node exists for any prompt type, false otherwise.

Implements mitk::nnInteractive::Interactor.

◆ RemoveLastInteraction()

void mitk::nnInteractive::ScribbleInteractor::RemoveLastInteraction ( PromptType promptType )

overridevirtual

Removes the most recently drawn brushstroke for the given prompt type.

Removes the last stroke overlay node of promptType from the data storage. A no-op if no stroke exists for that prompt type.

Parameters

[in] promptType The prompt type whose last stroke should be removed.
