Filter for comparing two multi-channel mitk::Image objects by pixel values. More...

#include <mitkMultiComponentImageDataComparisonFilter.h>

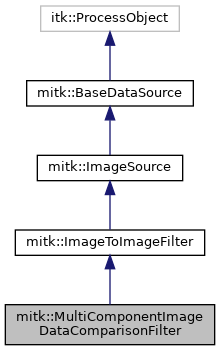

Inheritance diagram for mitk::MultiComponentImageDataComparisonFilter:

[legend]

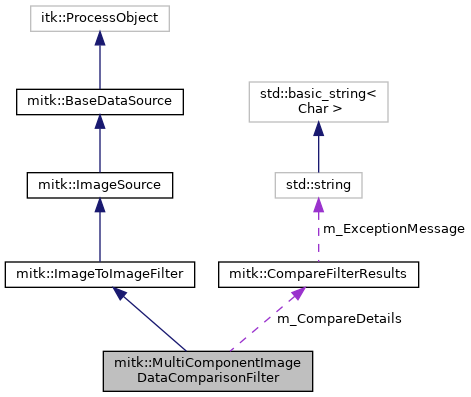

Collaboration diagram for mitk::MultiComponentImageDataComparisonFilter:

[legend]

Public Member Functions
	mitkClassMacro (MultiComponentImageDataComparisonFilter, ImageToImageFilter)

	itkSimpleNewMacro (Self)

void	SetTestImage (const Image *_arg)
	Set the test image to compare against the valid (reference) image. More...

const Image *	GetTestImage ()
	Get the test image. More...

void	SetValidImage (const Image *_arg)
	Set the valid (reference) image for comparison. More...

const Image *	GetValidImage ()
	Get the valid (reference) image. More...

virtual void	SetTolerance (double _arg)
	Specify the tolerance for per-pixel comparison. More...

virtual double	GetTolerance ()
	Get the tolerance for per-pixel comparison. More...

void	SetCompareFilterResult (CompareFilterResults *results)
	Set a CompareFilterResults struct to receive detailed comparison results. More...

CompareFilterResults *	GetCompareFilterResult ()
	Get the detailed results of the comparison run. More...

bool	GetResult (double threshold=0.0f)
	Get the overall result of the comparison. More...

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Protected Member Functions
	MultiComponentImageDataComparisonFilter ()

	~MultiComponentImageDataComparisonFilter () override

void	GenerateData () override

template<typename TPixel >
void	CompareMultiComponentImage (const Image testImage, const Image validImage)

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
double	m_Tolerance

bool	m_CompareResult

CompareFilterResults *	m_CompareDetails

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Filter for comparing two multi-channel mitk::Image objects by pixel values.

The comparison is performed channel-wise and pixel-wise. The filter supports all common pixel component types (char, short, int, long, float, double and their unsigned variants).

See also: CompareImageDataFilter; ImageToImageFilter

Definition at line 35 of file mitkMultiComponentImageDataComparisonFilter.h.

Constructor & Destructor Documentation

◆ MultiComponentImageDataComparisonFilter()

mitk::MultiComponentImageDataComparisonFilter::MultiComponentImageDataComparisonFilter ( )

protected

◆ ~MultiComponentImageDataComparisonFilter()

mitk::MultiComponentImageDataComparisonFilter::~MultiComponentImageDataComparisonFilter ( )

overrideprotected

Member Function Documentation

◆ CompareMultiComponentImage()

template<typename TPixel >

void mitk::MultiComponentImageDataComparisonFilter::CompareMultiComponentImage	(	const Image *	testImage,
		const Image *	validImage
	)

protected

◆ GenerateData()

void mitk::MultiComponentImageDataComparisonFilter::GenerateData ( )

overrideprotected

◆ GetCompareFilterResult()

CompareFilterResults* mitk::MultiComponentImageDataComparisonFilter::GetCompareFilterResult ( )

Get the detailed results of the comparison run.

Returns: Pointer to the CompareFilterResults struct, or nullptr if none was set.

See also: CompareFilterResults

◆ GetResult()

bool mitk::MultiComponentImageDataComparisonFilter::GetResult ( double threshold = 0.0f )

Get the overall result of the comparison.

Compares the number of pixels with differences against the given threshold. Returns true if the number of differing pixels is at or below the threshold. Returns false if the comparison found differences above the threshold or if the filter raised an exception during update.

Parameters

threshold Allowed number of pixels with differences. Default is 0.0.

Returns: true if the images are considered equal within tolerance and threshold.

See also: GetCompareFilterResult

◆ GetTestImage()

const Image* mitk::MultiComponentImageDataComparisonFilter::GetTestImage ( )

Get the test image.

◆ GetTolerance()

virtual double mitk::MultiComponentImageDataComparisonFilter::GetTolerance ( )

virtual

Get the tolerance for per-pixel comparison.

◆ GetValidImage()

const Image* mitk::MultiComponentImageDataComparisonFilter::GetValidImage ( )

Get the valid (reference) image.

◆ itkSimpleNewMacro()

mitk::MultiComponentImageDataComparisonFilter::itkSimpleNewMacro ( Self )

◆ mitkClassMacro()

mitk::MultiComponentImageDataComparisonFilter::mitkClassMacro	(	MultiComponentImageDataComparisonFilter	,
		ImageToImageFilter
	)

◆ SetCompareFilterResult()

void mitk::MultiComponentImageDataComparisonFilter::SetCompareFilterResult ( CompareFilterResults * results )

Set a CompareFilterResults struct to receive detailed comparison results.

Parameters

results Pointer to the results struct that will be populated during GenerateData().

◆ SetTestImage()

void mitk::MultiComponentImageDataComparisonFilter::SetTestImage ( const Image * _arg )

Set the test image to compare against the valid (reference) image.

This image is set as the second input (index 1) of the filter.

◆ SetTolerance()

virtual void mitk::MultiComponentImageDataComparisonFilter::SetTolerance ( double _arg )

virtual

Specify the tolerance for per-pixel comparison.

Pixel differences at or below this tolerance are not counted as differences. Default is 0.0.

◆ SetValidImage()

void mitk::MultiComponentImageDataComparisonFilter::SetValidImage ( const Image * _arg )

Set the valid (reference) image for comparison.

This image is set as the first input (index 0) of the filter.

Member Data Documentation

◆ m_CompareDetails

CompareFilterResults* mitk::MultiComponentImageDataComparisonFilter::m_CompareDetails

protected

Definition at line 113 of file mitkMultiComponentImageDataComparisonFilter.h.

◆ m_CompareResult

bool mitk::MultiComponentImageDataComparisonFilter::m_CompareResult

protected

Definition at line 111 of file mitkMultiComponentImageDataComparisonFilter.h.

◆ m_Tolerance

double mitk::MultiComponentImageDataComparisonFilter::m_Tolerance

protected

Definition at line 110 of file mitkMultiComponentImageDataComparisonFilter.h.

The documentation for this class was generated from the following file:

mitkMultiComponentImageDataComparisonFilter.h
