Filter for pixel-wise comparison of two mitk::Image objects. More...

#include <mitkCompareImageDataFilter.h>

Inheritance diagram for mitk::CompareImageDataFilter:

[legend]

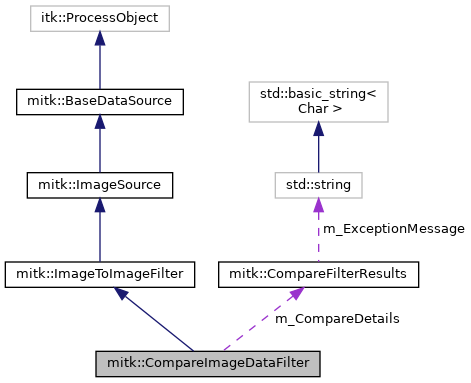

Collaboration diagram for mitk::CompareImageDataFilter:

[legend]

Public Member Functions
	mitkClassMacro (CompareImageDataFilter, ImageToImageFilter)

	itkSimpleNewMacro (Self)

bool	GetResult (size_t threshold=0)
	Check whether the comparison passes a given threshold. More...

CompareFilterResults	GetCompareResults ()
	Get the detailed results of the comparison run. More...

void	SetTolerance (double eps)
	Set the tolerance for per-pixel difference comparison. More...

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Protected Member Functions
	CompareImageDataFilter ()
	Constructor. Sets the number of required inputs to 2. More...

	~CompareImageDataFilter () override
	Destructor. More...

void	GenerateData () override
	Perform the pixel-wise comparison. More...

void	ResetCompareResultsToInitial ()
	Reset the comparison detail struct to its initial state. More...

template<typename TPixel , unsigned int VImageDimension>
void	EstimateValueDifference (const itk::Image< TPixel, VImageDimension > itkImage1, const mitk::Image referenceImage)
	Run itk::Testing::ComparisonImageFilter on the two inputs. More...

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
bool	m_CompareResult
	Overall pass/fail result. More...

CompareFilterResults	m_CompareDetails
	Detailed comparison statistics. More...

double	m_Tolerance
	Per-pixel tolerance value. More...

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Filter for pixel-wise comparison of two mitk::Image objects.

Uses itk::Testing::ComparisonImageFilter internally to find per-pixel differences. Provide two images via SetInput(0, image1) and SetInput(1, image2). For multi-component images the MultiComponentImageDataComparisonFilter is used instead.

See also: CompareFilterResults ImageToImageFilter

Definition at line 69 of file mitkCompareImageDataFilter.h.

Constructor & Destructor Documentation

◆ CompareImageDataFilter()

mitk::CompareImageDataFilter::CompareImageDataFilter ( )

protected

Constructor. Sets the number of required inputs to 2.

◆ ~CompareImageDataFilter()

mitk::CompareImageDataFilter::~CompareImageDataFilter ( )

inlineoverrideprotected

Destructor.

Definition at line 106 of file mitkCompareImageDataFilter.h.

Member Function Documentation

◆ EstimateValueDifference()

template<typename TPixel , unsigned int VImageDimension>

void mitk::CompareImageDataFilter::EstimateValueDifference	(	const itk::Image< TPixel, VImageDimension > *	itkImage1,
		const mitk::Image *	referenceImage
	)

protected

Run itk::Testing::ComparisonImageFilter on the two inputs.

Template Parameters

TPixel	The pixel type of the input image.
VImageDimension	The dimension of the input image.

◆ GenerateData()

void mitk::CompareImageDataFilter::GenerateData ( )

overrideprotected

Perform the pixel-wise comparison.

◆ GetCompareResults()

CompareFilterResults mitk::CompareImageDataFilter::GetCompareResults ( )

inline

Get the detailed results of the comparison run.

Returns: A CompareFilterResults struct with all comparison statistics.

See also: CompareFilterResults

Definition at line 94 of file mitkCompareImageDataFilter.h.

◆ GetResult()

bool mitk::CompareImageDataFilter::GetResult ( size_t threshold = 0 )

Check whether the comparison passes a given threshold.

Returns true if the number of pixels with differences is at or below the specified threshold. Returns false if the ITK ComparisonImageFilter raised an exception during Update().

Parameters

threshold Maximum allowed number of pixels with differences (default 0).

Returns: true if the comparison passes, false otherwise.

See also: GetCompareResults

◆ itkSimpleNewMacro()

mitk::CompareImageDataFilter::itkSimpleNewMacro ( Self )

◆ mitkClassMacro()

mitk::CompareImageDataFilter::mitkClassMacro	(	CompareImageDataFilter	,
		ImageToImageFilter
	)

◆ ResetCompareResultsToInitial()

void mitk::CompareImageDataFilter::ResetCompareResultsToInitial ( )

protected

Reset the comparison detail struct to its initial state.

◆ SetTolerance()

void mitk::CompareImageDataFilter::SetTolerance ( double eps )

inline

Set the tolerance for per-pixel difference comparison.

Parameters

eps	Allowed absolute difference per pixel.

Definition at line 100 of file mitkCompareImageDataFilter.h.

References mitk::eps.

Member Data Documentation

◆ m_CompareDetails

CompareFilterResults mitk::CompareImageDataFilter::m_CompareDetails

protected

Detailed comparison statistics.

Definition at line 124 of file mitkCompareImageDataFilter.h.

◆ m_CompareResult

bool mitk::CompareImageDataFilter::m_CompareResult

protected

Overall pass/fail result.

Definition at line 123 of file mitkCompareImageDataFilter.h.

◆ m_Tolerance

double mitk::CompareImageDataFilter::m_Tolerance

protected

Per-pixel tolerance value.

Definition at line 125 of file mitkCompareImageDataFilter.h.

The documentation for this class was generated from the following file:

mitkCompareImageDataFilter.h
