Public Member Functions |
Static Public Member Functions |
Protected Member Functions |
Protected Attributes |
List of all members
mitk::BoundingObjectToSegmentationFilter Class Reference
Converts a BoundingObject or BoundingObjectGroup into a binary segmentation image. More...
#include <mitkBoundingObjectToSegmentationFilter.h>
Inheritance diagram for mitk::BoundingObjectToSegmentationFilter:

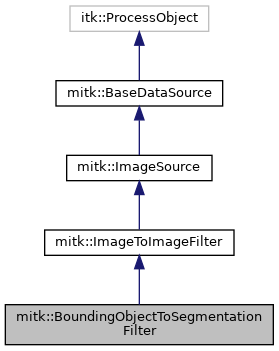

Collaboration diagram for mitk::BoundingObjectToSegmentationFilter:
Public Member Functions | |
| mitkClassMacro (BoundingObjectToSegmentationFilter, ImageToImageFilter) | |
| Pointer | Clone () const |
| void | SetBoundingObject (mitk::BoundingObject::Pointer boundingObject) |
| Set the bounding object to be rasterized into the segmentation. More... | |
 Public Member Functions inherited from mitk::ImageToImageFilter | |
| mitkClassMacro (ImageToImageFilter, ImageSource) | |
| Pointer | Clone () const |
| virtual void | SetInput (const InputImageType *image) |
| Set the image input of this process object. More... | |
| virtual void | SetInput (unsigned int idx, const InputImageType *image) |
| Set the image input at the specified index. More... | |
| InputImageType * | GetInput (void) |
| Get the input image (non-const). More... | |
| InputImageType * | GetInput (unsigned int idx) |
| Get the input image at the specified index (non-const). More... | |
| const InputImageType * | GetInput (void) const |
| Get the input image (const). More... | |
| const InputImageType * | GetInput (unsigned int idx) const |
| Get the input image at the specified index (const). More... | |
| Public Member Functions inherited from mitk::ImageSource | |
| mitkClassMacro (ImageSource, BaseDataSource) | |
| Pointer | Clone () const |
| mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer | MakeOutput (DataObjectPointerArraySizeType idx) override |
| Get the output data of this image source object. More... | |
| itk::DataObject::Pointer | MakeOutput (const DataObjectIdentifierType &name) override |
| virtual vtkImageData * | GetVtkImageData () |
| Get the output as VTK image data (non-const version). More... | |
| virtual const vtkImageData * | GetVtkImageData () const |
| Get the output as VTK image data (const version). More... | |
| Public Member Functions inherited from mitk::BaseDataSource | |
| mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject) | |
| OutputType * | GetOutput () |
| const OutputType * | GetOutput () const |
| OutputType * | GetOutput (DataObjectPointerArraySizeType idx) |
| const OutputType * | GetOutput (DataObjectPointerArraySizeType idx) const |
| virtual void | GraftOutput (OutputType *output) |
| Graft the specified BaseData onto this BaseDataSource's output. More... | |
| virtual void | GraftOutput (const DataObjectIdentifierType &key, OutputType *output) |
| Graft the specified base data object onto a named output. More... | |
| virtual void | GraftNthOutput (unsigned int idx, OutputType *output) |
| Graft the specified base data object onto this BaseDataSource's idx'th output. More... | |
| bool | Updating () const |
| Check whether the pipeline is currently executing. More... | |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::ImageToImageFilter | |
| static Pointer | New () |
| Method for creation through the object factory. More... | |
| Static Public Member Functions inherited from mitk::ImageSource | |
| static Pointer | New () |
| Method for creation through the object factory. More... | |
Protected Member Functions | |
| BoundingObjectToSegmentationFilter () | |
| ~BoundingObjectToSegmentationFilter () override | |
| void | GenerateData () override |
| Protected Member Functions inherited from mitk::ImageToImageFilter | |
| ImageToImageFilter () | |
| ~ImageToImageFilter () override | |
| void | PrintSelf (std::ostream &os, itk::Indent indent) const override |
| Print self information to the given stream. More... | |
| void | GenerateInputRequestedRegion () override |
| Determine the input requested region to produce the output requested region. More... | |
| Protected Member Functions inherited from mitk::ImageSource | |
| ImageSource () | |
| ~ImageSource () override | |
| void | GenerateData () override |
| A version of GenerateData() specific for image processing filters. More... | |
| virtual void | ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) |
| If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More... | |
| void | PrepareOutputs () override |
| This method is intentionally left blank. More... | |
| virtual void | AllocateOutputs () |
| The GenerateData method normally allocates the buffers for all of the outputs of a filter. More... | |
| virtual void | BeforeThreadedGenerateData () |
| If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More... | |
| virtual void | AfterThreadedGenerateData () |
| If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More... | |
| virtual unsigned int | SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion) |
| Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More... | |
| Protected Member Functions inherited from mitk::BaseDataSource | |
| BaseDataSource () | |
| Constructor. More... | |
| ~BaseDataSource () override | |
| Destructor. More... | |
Protected Attributes | |
| mitk::BoundingObjectGroup::Pointer | m_boundingObjectGroup |
Additional Inherited Members | |
| Public Types inherited from mitk::ImageToImageFilter | |
| typedef Superclass::OutputImageRegionType | OutputImageRegionType |
| Superclass typedefs. More... | |
| typedef mitk::Image | InputImageType |
| Some convenient typedefs. More... | |
| typedef InputImageType::Pointer | InputImagePointer |
| typedef InputImageType::ConstPointer | InputImageConstPointer |
| typedef SlicedData::RegionType | InputImageRegionType |
| Public Types inherited from mitk::ImageSource | |
| typedef mitk::Image | OutputImageType |
| Some convenient typedefs. More... | |
| typedef OutputImageType | OutputType |
| typedef OutputImageType::Pointer | OutputImagePointer |
| typedef SlicedData::RegionType | OutputImageRegionType |
| Public Types inherited from mitk::BaseDataSource | |
| typedef BaseData | OutputType |
| Output data type. More... | |
| typedef itk::DataObject::DataObjectIdentifierType | DataObjectIdentifierType |
| Identifier type for named data objects. More... | |
| Static Protected Member Functions inherited from mitk::ImageSource | |
| static itk::ITK_THREAD_RETURN_TYPE | ThreaderCallback (void *arg) |
| Static function used as a "callback" by the MultiThreader. More... | |
| Static Protected Member Functions inherited from mitk::BaseDataSource | |
| static Pointer | New () |
Detailed Description
Converts a BoundingObject or BoundingObjectGroup into a binary segmentation image.
This filter takes an input image and a BoundingObject, and produces an output image of the same size where pixels inside the bounding object are set to 1 and pixels outside remain 0. If a single BoundingObject is provided, it is wrapped into a BoundingObjectGroup internally. If a BoundingObjectGroup is provided directly, all contained bounding objects are rasterized. The positive/negative flag of each BoundingObject controls whether its interior is filled (1) or cleared (0).
Definition at line 37 of file mitkBoundingObjectToSegmentationFilter.h.
Constructor & Destructor Documentation
◆ BoundingObjectToSegmentationFilter()
|
protected |
◆ ~BoundingObjectToSegmentationFilter()
|
overrideprotected |
Member Function Documentation
◆ Clone()
| Pointer mitk::BoundingObjectToSegmentationFilter::Clone | ( | ) | const |
◆ GenerateData()
|
overrideprotected |
◆ mitkClassMacro()
| mitk::BoundingObjectToSegmentationFilter::mitkClassMacro | ( | BoundingObjectToSegmentationFilter | , |
| ImageToImageFilter | |||
| ) |
◆ New()
|
static |
◆ SetBoundingObject()
| void mitk::BoundingObjectToSegmentationFilter::SetBoundingObject | ( | mitk::BoundingObject::Pointer | boundingObject | ) |
Set the bounding object to be rasterized into the segmentation.
If a BoundingObjectGroup is passed, it is used directly. If a single BoundingObject is passed, it is wrapped in a new BoundingObjectGroup.
- Parameters
-
[in] boundingObject The bounding object (or group) to rasterize.
Member Data Documentation
◆ m_boundingObjectGroup
|
protected |
Definition at line 60 of file mitkBoundingObjectToSegmentationFilter.h.
The documentation for this class was generated from the following file:
