Cuts a BoundingObject region out of a mitk::Image. More...

#include <mitkBoundingObjectCutter.h>

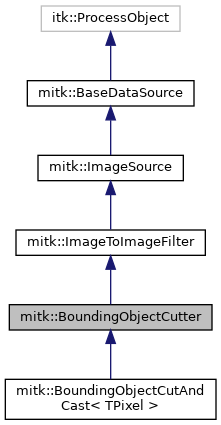

Inheritance diagram for mitk::BoundingObjectCutter:

[legend]

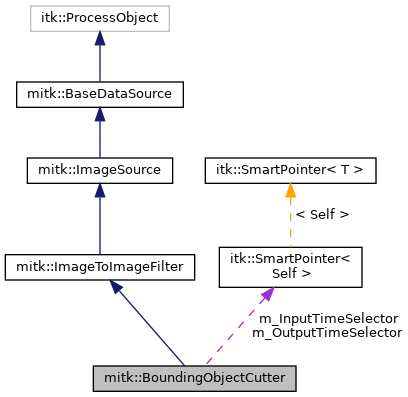

Collaboration diagram for mitk::BoundingObjectCutter:

[legend]

Public Member Functions
	mitkClassMacro (BoundingObjectCutter, ImageToImageFilter)

Pointer	Clone () const

void	SetBoundingObject (const mitk::BoundingObject *boundingObject)
	Set the bounding object that defines the cutting region. More...

const mitk::BoundingObject *	GetBoundingObject () const
	Get the bounding object that defines the cutting region. More...

virtual void	SetInsideValue (ScalarType _arg)
	Set the pixel value for inside pixels, used when m_UseInsideValue is true. More...

virtual ScalarType	GetInsideValue ()
	Get the pixel value for inside pixels. More...

virtual void	SetOutsideValue (ScalarType _arg)
	Set the pixel value for outside pixels, used when m_AutoOutsideValue is false. More...

virtual ScalarType	GetOutsideValue ()
	Get the pixel value for outside pixels. More...

virtual void	SetUseInsideValue (bool _arg)
	Set whether to use m_InsideValue for inside pixels (default: false). More...

virtual bool	GetUseInsideValue ()
	Get whether m_InsideValue is used for inside pixels. More...

virtual void	UseInsideValueOn ()
	Toggle UseInsideValue on/off. More...

virtual void	UseInsideValueOff ()

virtual void	SetAutoOutsideValue (bool _arg)
	Set whether to automatically determine the outside value. More...

virtual bool	GetAutoOutsideValue ()
	Get whether the outside value is automatically determined. More...

virtual void	AutoOutsideValueOn ()
	Toggle AutoOutsideValue on/off. More...

virtual void	AutoOutsideValueOff ()

virtual unsigned int	GetInsidePixelCount ()
	Get the number of pixels inside the bounding object after the last execution. More...

virtual unsigned int	GetOutsidePixelCount ()
	Get the number of pixels outside the bounding object after the last execution. More...

virtual void	SetUseWholeInputRegion (bool _arg)
	Set whether to use the whole input region instead of a subregion. More...

virtual bool	GetUseWholeInputRegion ()
	Get whether the whole input region is used. More...

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Member Functions
	BoundingObjectCutter ()

	~BoundingObjectCutter () override

virtual const PixelType	GetOutputPixelType ()

void	GenerateInputRequestedRegion () override

void	GenerateOutputInformation () override

void	GenerateData () override

virtual void	ComputeData (mitk::Image *input3D, int boTimeStep)

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
mitk::BoundingObject::Pointer	m_BoundingObject
	BoundingObject that will be cut. More...

ScalarType	m_InsideValue
	Value for inside pixels, used when m_UseInsideValue is true. More...

ScalarType	m_OutsideValue
	Value for outside pixels (default: 0). Used only if m_AutoOutsideValue is false. More...

bool	m_AutoOutsideValue
	If true, the minimum of the output pixel type is used as outside value (default: false). More...

bool	m_UseInsideValue
	Use m_InsideValue for inside pixels (default: false). More...

unsigned int	m_OutsidePixelCount

unsigned int	m_InsidePixelCount

mitk::SlicedData::RegionType	m_InputRequestedRegion
	Region of input needed for cutting. More...

itk::TimeStamp	m_TimeOfHeaderInitialization
	Time when header was last initialized. More...

mitk::ImageTimeSelector::Pointer	m_InputTimeSelector

mitk::ImageTimeSelector::Pointer	m_OutputTimeSelector

bool	m_UseWholeInputRegion

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Cuts a BoundingObject region out of a mitk::Image.

This filter extracts the region defined by a BoundingObject from an input image. If no input image is provided, inside pixels are filled with m_InsideValue. If an input image is provided, inside pixels retain the original image values (unless m_UseInsideValue is set to true, in which case they are replaced with m_InsideValue). Pixels outside the BoundingObject are set to m_OutsideValue (or the pixel type minimum if m_AutoOutsideValue is true).

See also: BoundingObject; BoundingObjectCutAndCast; BoundingObjectToSegmentationFilter

Definition at line 40 of file mitkBoundingObjectCutter.h.

Constructor & Destructor Documentation

◆ BoundingObjectCutter()

mitk::BoundingObjectCutter::BoundingObjectCutter ( )

protected

◆ ~BoundingObjectCutter()

mitk::BoundingObjectCutter::~BoundingObjectCutter ( )

overrideprotected

Member Function Documentation

◆ AutoOutsideValueOff()

virtual void mitk::BoundingObjectCutter::AutoOutsideValueOff ( )

virtual

◆ AutoOutsideValueOn()

virtual void mitk::BoundingObjectCutter::AutoOutsideValueOn ( )

virtual

Toggle AutoOutsideValue on/off.

◆ Clone()

Pointer mitk::BoundingObjectCutter::Clone ( ) const

◆ ComputeData()

virtual void mitk::BoundingObjectCutter::ComputeData	(	mitk::Image *	input3D,
		int	boTimeStep
	)

protectedvirtual

Reimplemented in mitk::BoundingObjectCutAndCast< TPixel >.

◆ GenerateData()

void mitk::BoundingObjectCutter::GenerateData ( )

overrideprotected

◆ GenerateInputRequestedRegion()

void mitk::BoundingObjectCutter::GenerateInputRequestedRegion ( )

overrideprotected

◆ GenerateOutputInformation()

void mitk::BoundingObjectCutter::GenerateOutputInformation ( )

overrideprotected

◆ GetAutoOutsideValue()

virtual bool mitk::BoundingObjectCutter::GetAutoOutsideValue ( )

virtual

Get whether the outside value is automatically determined.

Returns: True if automatic outside value is enabled.

◆ GetBoundingObject()

const mitk::BoundingObject* mitk::BoundingObjectCutter::GetBoundingObject ( ) const

Get the bounding object that defines the cutting region.

Returns: Const pointer to the bounding object.

◆ GetInsidePixelCount()

virtual unsigned int mitk::BoundingObjectCutter::GetInsidePixelCount ( )

virtual

Get the number of pixels inside the bounding object after the last execution.

Returns: The inside pixel count.

◆ GetInsideValue()

virtual ScalarType mitk::BoundingObjectCutter::GetInsideValue ( )

virtual

Get the pixel value for inside pixels.

Returns: The inside pixel value.

◆ GetOutputPixelType()

virtual const PixelType mitk::BoundingObjectCutter::GetOutputPixelType ( )

protectedvirtual

Reimplemented in mitk::BoundingObjectCutAndCast< TPixel >.

◆ GetOutsidePixelCount()

virtual unsigned int mitk::BoundingObjectCutter::GetOutsidePixelCount ( )

virtual

Get the number of pixels outside the bounding object after the last execution.

Returns: The outside pixel count.

◆ GetOutsideValue()

virtual ScalarType mitk::BoundingObjectCutter::GetOutsideValue ( )

virtual

Get the pixel value for outside pixels.

Returns: The outside pixel value.

◆ GetUseInsideValue()

virtual bool mitk::BoundingObjectCutter::GetUseInsideValue ( )

virtual

Get whether m_InsideValue is used for inside pixels.

Returns: True if inside pixels are replaced with m_InsideValue.

◆ GetUseWholeInputRegion()

virtual bool mitk::BoundingObjectCutter::GetUseWholeInputRegion ( )

virtual

Get whether the whole input region is used.

Returns: True if using the whole input region.

◆ mitkClassMacro()

mitk::BoundingObjectCutter::mitkClassMacro	(	BoundingObjectCutter	,
		ImageToImageFilter
	)

◆ New()

static Pointer mitk::BoundingObjectCutter::New ( )

static

◆ SetAutoOutsideValue()

virtual void mitk::BoundingObjectCutter::SetAutoOutsideValue ( bool _arg )

virtual

Set whether to automatically determine the outside value.

If true, the minimum value of the output pixel type is used as the outside value (default: false).

Parameters

[in] _arg True to use automatic outside value.

◆ SetBoundingObject()

void mitk::BoundingObjectCutter::SetBoundingObject ( const mitk::BoundingObject * boundingObject )

Set the bounding object that defines the cutting region.

Parameters

[in] boundingObject The bounding object to use.

◆ SetInsideValue()

virtual void mitk::BoundingObjectCutter::SetInsideValue ( ScalarType _arg )

virtual

Set the pixel value for inside pixels, used when m_UseInsideValue is true.

Parameters

[in] _arg The inside pixel value.

◆ SetOutsideValue()

virtual void mitk::BoundingObjectCutter::SetOutsideValue ( ScalarType _arg )

virtual

Set the pixel value for outside pixels, used when m_AutoOutsideValue is false.

Parameters

[in] _arg The outside pixel value (default: 0).

◆ SetUseInsideValue()

virtual void mitk::BoundingObjectCutter::SetUseInsideValue ( bool _arg )

virtual

Set whether to use m_InsideValue for inside pixels (default: false).

If true, all pixels inside the bounding object are set to m_InsideValue. If false, they retain their original image values.

Parameters

[in] _arg True to replace inside pixels with m_InsideValue.

◆ SetUseWholeInputRegion()

virtual void mitk::BoundingObjectCutter::SetUseWholeInputRegion ( bool _arg )

virtual

Set whether to use the whole input region instead of a subregion.

Parameters

[in] _arg True to use the whole input region.

◆ UseInsideValueOff()

virtual void mitk::BoundingObjectCutter::UseInsideValueOff ( )

virtual

◆ UseInsideValueOn()

virtual void mitk::BoundingObjectCutter::UseInsideValueOn ( )

virtual

Toggle UseInsideValue on/off.

Member Data Documentation

◆ m_AutoOutsideValue

bool mitk::BoundingObjectCutter::m_AutoOutsideValue

protected

If true, the minimum of the output pixel type is used as outside value (default: false).

Definition at line 189 of file mitkBoundingObjectCutter.h.

◆ m_BoundingObject

mitk::BoundingObject::Pointer mitk::BoundingObjectCutter::m_BoundingObject

protected

BoundingObject that will be cut.

Definition at line 176 of file mitkBoundingObjectCutter.h.

◆ m_InputRequestedRegion

mitk::SlicedData::RegionType mitk::BoundingObjectCutter::m_InputRequestedRegion

protected

Region of input needed for cutting.

Definition at line 203 of file mitkBoundingObjectCutter.h.

◆ m_InputTimeSelector

mitk::ImageTimeSelector::Pointer mitk::BoundingObjectCutter::m_InputTimeSelector

protected

Definition at line 208 of file mitkBoundingObjectCutter.h.

◆ m_InsidePixelCount

unsigned int mitk::BoundingObjectCutter::m_InsidePixelCount

protected

Definition at line 200 of file mitkBoundingObjectCutter.h.

◆ m_InsideValue

ScalarType mitk::BoundingObjectCutter::m_InsideValue

protected

Value for inside pixels, used when m_UseInsideValue is true.

See also: m_UseInsideValue

Definition at line 181 of file mitkBoundingObjectCutter.h.

◆ m_OutputTimeSelector

mitk::ImageTimeSelector::Pointer mitk::BoundingObjectCutter::m_OutputTimeSelector

protected

Definition at line 209 of file mitkBoundingObjectCutter.h.

◆ m_OutsidePixelCount

unsigned int mitk::BoundingObjectCutter::m_OutsidePixelCount

protected

Definition at line 199 of file mitkBoundingObjectCutter.h.

◆ m_OutsideValue

ScalarType mitk::BoundingObjectCutter::m_OutsideValue

protected

Value for outside pixels (default: 0). Used only if m_AutoOutsideValue is false.

Definition at line 186 of file mitkBoundingObjectCutter.h.

◆ m_TimeOfHeaderInitialization

itk::TimeStamp mitk::BoundingObjectCutter::m_TimeOfHeaderInitialization

protected

Time when header was last initialized.

Definition at line 206 of file mitkBoundingObjectCutter.h.

◆ m_UseInsideValue

bool mitk::BoundingObjectCutter::m_UseInsideValue

protected

Use m_InsideValue for inside pixels (default: false).

If true, pixels that are inside m_BoundingObject will get m_InsideValue in the cutting process. If false, they keep their original value.

See also: m_InsideValue

Definition at line 197 of file mitkBoundingObjectCutter.h.

◆ m_UseWholeInputRegion

bool mitk::BoundingObjectCutter::m_UseWholeInputRegion

protected

Definition at line 211 of file mitkBoundingObjectCutter.h.

The documentation for this class was generated from the following file:

mitkBoundingObjectCutter.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BoundingObjectCutter()

◆ ~BoundingObjectCutter()

Member Function Documentation

◆ AutoOutsideValueOff()

◆ AutoOutsideValueOn()

◆ Clone()

◆ ComputeData()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetAutoOutsideValue()

◆ GetBoundingObject()

◆ GetInsidePixelCount()

◆ GetInsideValue()

◆ GetOutputPixelType()

◆ GetOutsidePixelCount()

◆ GetOutsideValue()

◆ GetUseInsideValue()

◆ GetUseWholeInputRegion()

◆ mitkClassMacro()

◆ New()

◆ SetAutoOutsideValue()

◆ SetBoundingObject()

◆ SetInsideValue()

◆ SetOutsideValue()

◆ SetUseInsideValue()

◆ SetUseWholeInputRegion()

◆ UseInsideValueOff()

◆ UseInsideValueOn()

Member Data Documentation

◆ m_AutoOutsideValue

◆ m_BoundingObject

◆ m_InputRequestedRegion

◆ m_InputTimeSelector

◆ m_InsidePixelCount

◆ m_InsideValue

◆ m_OutputTimeSelector

◆ m_OutsidePixelCount

◆ m_OutsideValue

◆ m_TimeOfHeaderInitialization

◆ m_UseInsideValue

◆ m_UseWholeInputRegion
