MITK implementation of the QVTKWidget. More...

#include <QmitkRenderWindow.h>

Inheritance diagram for QmitkRenderWindow:

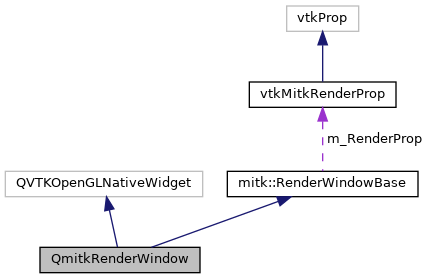

Collaboration diagram for QmitkRenderWindow:

[legend]

Signals
void	LayoutDesignChanged (QmitkRenderWindowMenu::LayoutDesign)

void	ResetView ()

void	ResetGeometry ()

void	CrosshairRotationModeChanged (int)

void	CrosshairVisibilityChanged (bool)

void	Crosshair3DVisibilityChanged (bool)

void	moved ()

void	NodesDropped (QmitkRenderWindow thisWindow, std::vector< mitk::DataNode > nodes)
	Emits a signal to say that this window has had the following nodes dropped on it. More...

Public Member Functions
	QmitkRenderWindow (QWidget parent=nullptr, const QString &name="unnamed renderwindow", mitk::VtkPropRenderer renderer=nullptr)

	~QmitkRenderWindow () override

virtual void	SetResendQtEvents (bool resend)
	Whether Qt events should be passed to parent (default: true) More...

void	SetLayoutIndex (QmitkRenderWindowMenu::LayoutIndex layoutIndex)
	Sets the layout index to define the layout type. More...

QmitkRenderWindowMenu::LayoutIndex	GetLayoutIndex ()
	Returns the current layout index. More...

void	UpdateLayoutDesignList (QmitkRenderWindowMenu::LayoutDesign layoutDesign)
	Updates the layout design list in the menu widget when the layout has changed. More...

void	UpdateCrosshairVisibility (bool visible)
	Updates the crosshair visibility state in the menu widget. More...

void	UpdateCrosshair3DVisibility (bool visible)
	Updates the 3D-only crosshair visibility state in the menu widget. More...

void	UpdateCrosshairRotationMode (int mode)
	Updates the crosshair rotation mode in the menu widget. More...

void	ActivateMenuWidget (bool state)
	Activates or deactivates the render window menu widget. More...

bool	GetActivateMenuWidgetFlag ()
	Returns whether the menu widget is activated. More...

void	ShowOverlayMessage (bool show)
	Shows or hides the geometry violation warning overlay. More...

vtkRenderWindow *	GetVtkRenderWindow () override
	Returns the underlying VTK render window. More...

vtkRenderWindowInteractor *	GetVtkRenderWindowInteractor () override
	Returns nullptr since no interactor is used. More...

Public Member Functions inherited from mitk::RenderWindowBase
virtual	~RenderWindowBase ()
	Virtual destructor. More...

void	InitRenderer ()
	Initializes the renderer associated with this render window. More...

virtual mitk::SliceNavigationController *	GetSliceNavigationController ()
	Returns the SliceNavigationController for navigating through slices. More...

virtual mitk::CameraRotationController *	GetCameraRotationController ()
	Returns the CameraRotationController for 3D camera rotation. More...

virtual mitk::BaseController *	GetController ()
	Returns the appropriate controller for the current mapper mode. More...

virtual mitk::VtkPropRenderer *	GetRenderer ()
	Returns the VtkPropRenderer associated with this render window. More...

virtual bool	HandleEvent (InteractionEvent *interactionEvent)
	Dispatches an interaction event to the renderer's event dispatcher. More...

Protected Member Functions
bool	event (QEvent *e) override

void	moveEvent (QMoveEvent *event) override

void	showEvent (QShowEvent *event) override

void	enterEvent (QEnterEvent *) override

void	leaveEvent (QEvent *) override

void	resizeGL (int w, int h) override

void	dragEnterEvent (QDragEnterEvent *event) override
	Simply says we accept the event type. More...

void	dropEvent (QDropEvent *event) override
	If the dropped type is application/x-mitk-datanodes we process the request by converting to mitk::DataNode pointers and emitting the NodesDropped signal. More...

Protected Member Functions inherited from mitk::RenderWindowBase
	RenderWindowBase ()
	Constructor. More...

void	Initialize (const char *name="unnamed renderer")
	Initializes the renderer and adds it to the RenderingManager. More...

void	Destroy ()
	Tears down the renderer and removes it from the RenderingManager. More...

Additional Inherited Members
Protected Attributes inherited from mitk::RenderWindowBase
mitk::VtkPropRenderer::Pointer	m_Renderer

vtkMitkRenderProp *	m_RenderProp

bool	m_InResize

Detailed Description

MITK implementation of the QVTKWidget.

Definition at line 38 of file QmitkRenderWindow.h.

Constructor & Destructor Documentation

◆ QmitkRenderWindow()

QmitkRenderWindow::QmitkRenderWindow	(	QWidget *	parent = `nullptr`,
		const QString &	name = `"unnamed renderwindow"`,
		mitk::VtkPropRenderer *	renderer = `nullptr`
	)

◆ ~QmitkRenderWindow()

QmitkRenderWindow::~QmitkRenderWindow ( )

override

Member Function Documentation

◆ ActivateMenuWidget()

void QmitkRenderWindow::ActivateMenuWidget ( bool state )

Activates or deactivates the render window menu widget.

Parameters

[in] state True to activate the menu, false to deactivate.

◆ Crosshair3DVisibilityChanged

void QmitkRenderWindow::Crosshair3DVisibilityChanged ( bool )

signal

◆ CrosshairRotationModeChanged

void QmitkRenderWindow::CrosshairRotationModeChanged ( int )

signal

◆ CrosshairVisibilityChanged

void QmitkRenderWindow::CrosshairVisibilityChanged ( bool )

signal

◆ dragEnterEvent()

void QmitkRenderWindow::dragEnterEvent ( QDragEnterEvent * event )

overrideprotected

Simply says we accept the event type.

◆ dropEvent()

void QmitkRenderWindow::dropEvent ( QDropEvent * event )

overrideprotected

If the dropped type is application/x-mitk-datanodes we process the request by converting to mitk::DataNode pointers and emitting the NodesDropped signal.

◆ enterEvent()

void QmitkRenderWindow::enterEvent ( QEnterEvent * )

overrideprotected

◆ event()

bool QmitkRenderWindow::event ( QEvent * e )

overrideprotected

◆ GetActivateMenuWidgetFlag()

bool QmitkRenderWindow::GetActivateMenuWidgetFlag ( )

inline

Returns whether the menu widget is activated.

Definition at line 107 of file QmitkRenderWindow.h.

◆ GetLayoutIndex()

QmitkRenderWindowMenu::LayoutIndex QmitkRenderWindow::GetLayoutIndex ( )

Returns the current layout index.

◆ GetVtkRenderWindow()

vtkRenderWindow* QmitkRenderWindow::GetVtkRenderWindow ( )

inlineoverridevirtual

Returns the underlying VTK render window.

Implements mitk::RenderWindowBase.

Definition at line 116 of file QmitkRenderWindow.h.

◆ GetVtkRenderWindowInteractor()

vtkRenderWindowInteractor* QmitkRenderWindow::GetVtkRenderWindowInteractor ( )

inlineoverridevirtual

Returns nullptr since no interactor is used.

Implements mitk::RenderWindowBase.

Definition at line 119 of file QmitkRenderWindow.h.

◆ LayoutDesignChanged

void QmitkRenderWindow::LayoutDesignChanged ( QmitkRenderWindowMenu::LayoutDesign )

signal

◆ leaveEvent()

void QmitkRenderWindow::leaveEvent ( QEvent * )

overrideprotected

◆ moved

void QmitkRenderWindow::moved ( )

signal

◆ moveEvent()

void QmitkRenderWindow::moveEvent ( QMoveEvent * event )

overrideprotected

◆ NodesDropped

void QmitkRenderWindow::NodesDropped	(	QmitkRenderWindow *	thisWindow,
		std::vector< mitk::DataNode * >	nodes
	)

signal

Emits a signal to say that this window has had the following nodes dropped on it.

◆ ResetGeometry

void QmitkRenderWindow::ResetGeometry ( )

signal

◆ ResetView

void QmitkRenderWindow::ResetView ( )

signal

◆ resizeGL()

void QmitkRenderWindow::resizeGL	(	int	w,
		int	h
	)

overrideprotected

◆ SetLayoutIndex()

void QmitkRenderWindow::SetLayoutIndex ( QmitkRenderWindowMenu::LayoutIndex layoutIndex )

Sets the layout index to define the layout type.

Parameters

[in] layoutIndex The layout index to set.

◆ SetResendQtEvents()

virtual void QmitkRenderWindow::SetResendQtEvents ( bool resend )

virtual

Whether Qt events should be passed to parent (default: true)

With introduction of the QVTKWidget the behaviour regarding Qt events changed. QVTKWidget "accepts" Qt events like mouse clicks (i.e. set an "accepted" flag). When this flag is set, Qt fininshed handling of this event – otherwise it is reached through to the widget's parent.

This reaching through to the parent was implicitly required by QmitkMaterialWidget / QmitkMaterialShowCase.

The default behaviour of QmitkRenderWindow is now to clear the "accepted" flag of Qt events after they were handled by QVTKWidget. This way parents can also handle events.

If you don't want this behaviour, call SetResendQtEvents(true) on your render window.

◆ showEvent()

void QmitkRenderWindow::showEvent ( QShowEvent * event )

overrideprotected

◆ ShowOverlayMessage()

void QmitkRenderWindow::ShowOverlayMessage ( bool show )

Shows or hides the geometry violation warning overlay.

Parameters

[in] show True to show, false to hide.

◆ UpdateCrosshair3DVisibility()

void QmitkRenderWindow::UpdateCrosshair3DVisibility ( bool visible )

Updates the 3D-only crosshair visibility state in the menu widget.

Parameters

[in] visible True to show the crosshair in the 3D render window, false to hide it.

◆ UpdateCrosshairRotationMode()

void QmitkRenderWindow::UpdateCrosshairRotationMode ( int mode )

Updates the crosshair rotation mode in the menu widget.

Parameters

[in] mode The new rotation mode.

◆ UpdateCrosshairVisibility()

void QmitkRenderWindow::UpdateCrosshairVisibility ( bool visible )

Updates the crosshair visibility state in the menu widget.

Parameters

[in] visible True to show the crosshair, false to hide it.

◆ UpdateLayoutDesignList()

void QmitkRenderWindow::UpdateLayoutDesignList ( QmitkRenderWindowMenu::LayoutDesign layoutDesign )

Updates the layout design list in the menu widget when the layout has changed.

Parameters

[in] layoutDesign The new layout design.

The documentation for this class was generated from the following file:

QmitkRenderWindow.h
