QRunnable job that maps (transforms) data using a MatchPoint registration in a background thread. More...

#include <QmitkMappingJob.h>

Inheritance diagram for QmitkMappingJob:

[legend]

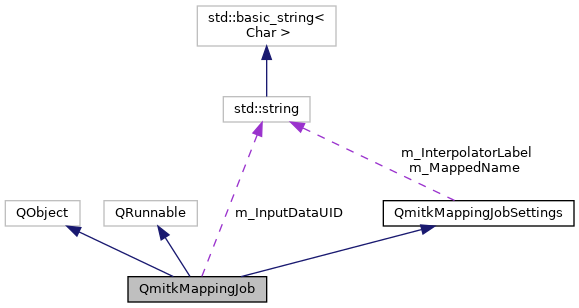

Collaboration diagram for QmitkMappingJob:

[legend]

Signals
void	Error (QString err)
	Emitted when an error occurs during mapping. More...

void	MapResultIsAvailable (mitk::BaseData::Pointer spMappedData, const QmitkMappingJob *job)
	Emitted when the mapped result data is available. More...

void	AlgorithmInfo (QString info)
	Emitted for general MatchPoint algorithm event messages during mapping. More...

Public Member Functions
	QmitkMappingJob ()
	Default constructor. Initializes with default mapping settings. More...

	~QmitkMappingJob () override
	Destructor. More...

void	run () override
	Executes the mapping or geometry refinement operation. More...

const map::core::RegistrationBase *	GetRegistration () const
	Returns the MatchPoint registration extracted from the registration data node. More...

Public Member Functions inherited from QmitkMappingJobSettings
	QmitkMappingJobSettings ()
	Constructs default mapping job settings. More...

Public Attributes
mitk::DataNode::Pointer	m_spRegNode
	Data node containing the mitk::MAPRegistrationWrapper to use for mapping. More...

mitk::BaseData::ConstPointer	m_spInputData
	The input data to be mapped (image, point set, or multi-label segmentation). More...

mitk::NodeUIDType	m_InputDataUID
	UID of the input data node for provenance tracking. More...

mitk::BaseGeometry::Pointer	m_spRefGeometry
	Optional reference geometry for image mapping. If null, the registration determines the output geometry. More...

Public Attributes inherited from QmitkMappingJobSettings
std::string	m_MappedName
	Display name for the mapped result. More...

bool	m_doGeometryRefinement
	If true, the mapper refines the image geometry instead of performing a full pixel-wise mapping. More...

bool	m_allowUndefPixels
	If true, undefined pixels (outside the field of view) are allowed and filled with m_paddingValue. If false, the mapping will fail when undefined pixels are encountered. More...

double	m_paddingValue
	Value assigned to undefined pixels. Only relevant if m_allowUndefPixels is true. More...

bool	m_allowUnregPixels
	If true, pixels not covered by the registration are allowed and filled with m_errorValue. If false, the mapping will fail when unregistered pixels are encountered. More...

double	m_errorValue
	Value assigned to unregistered pixels. Only relevant if m_allowUnregPixels is true. More...

mitk::ImageMappingInterpolator::Type	m_InterpolatorType
	Interpolation method used for image mapping. Only relevant for images when m_doGeometryRefinement is false. More...

std::string	m_InterpolatorLabel
	Human-readable display name of the selected interpolation method. More...

Protected Member Functions
const mitk::Image *	GetInputDataAsImage () const

const mitk::PointSet *	GetInputDataAsPointSet () const

void	OnMapAlgorithmEvent (::itk::Object *, const itk::EventObject &event)

Protected Attributes
mitk::BaseData::Pointer	m_spMappedData

::itk::MemberCommand< QmitkMappingJob >::Pointer	m_spCommand

unsigned long	m_ObserverID

Detailed Description

QRunnable job that maps (transforms) data using a MatchPoint registration in a background thread.

This job applies a registration stored in a mitk::MAPRegistrationWrapper (wrapped in a DataNode) to input data, which can be a mitk::Image, mitk::PointSet, or mitk::MultiLabelSegmentation. The mapping behavior is controlled by the inherited QmitkMappingJobSettings.

When m_doGeometryRefinement is true, the job performs geometry refinement instead of full pixel-wise mapping (only applicable to images).

The job emits MapResultIsAvailable with the transformed data upon success, or Error with a description string upon failure.

See also: QmitkMappingJobSettings, QmitkRegistrationJob, QmitkFramesRegistrationJob

Definition at line 100 of file QmitkMappingJob.h.

Constructor & Destructor Documentation

◆ QmitkMappingJob()

QmitkMappingJob::QmitkMappingJob ( )

Default constructor. Initializes with default mapping settings.

◆ ~QmitkMappingJob()

QmitkMappingJob::~QmitkMappingJob ( )

override

Destructor.

Member Function Documentation

◆ AlgorithmInfo

void QmitkMappingJob::AlgorithmInfo ( QString info )

signal

Emitted for general MatchPoint algorithm event messages during mapping.

Parameters

[in] info Information message string.

◆ Error

void QmitkMappingJob::Error ( QString err )

signal

Emitted when an error occurs during mapping.

Parameters

[in] err Description of the error.

◆ GetInputDataAsImage()

const mitk::Image* QmitkMappingJob::GetInputDataAsImage ( ) const

protected

◆ GetInputDataAsPointSet()

const mitk::PointSet* QmitkMappingJob::GetInputDataAsPointSet ( ) const

protected

◆ GetRegistration()

const map::core::RegistrationBase* QmitkMappingJob::GetRegistration ( ) const

Returns the MatchPoint registration extracted from the registration data node.

Returns: Const pointer to the underlying MatchPoint registration.

Precondition: m_spRegNode must contain a valid mitk::MAPRegistrationWrapper.

◆ MapResultIsAvailable

void QmitkMappingJob::MapResultIsAvailable	(	mitk::BaseData::Pointer	spMappedData,
		const QmitkMappingJob *	job
	)

signal

Emitted when the mapped result data is available.

Parameters

[in]	spMappedData	The transformed/mapped data.
[in]	job	Pointer to this job instance for context.

◆ OnMapAlgorithmEvent()

void QmitkMappingJob::OnMapAlgorithmEvent	(	::itk::Object *	,
		const itk::EventObject &	event
	)

protected

◆ run()

void QmitkMappingJob::run ( )

override

Executes the mapping or geometry refinement operation.

Depending on m_doGeometryRefinement, either refines the image geometry or maps the input data (image, point set, or multi-label segmentation) using the stored registration. Emits MapResultIsAvailable on success or Error on failure.

Member Data Documentation

◆ m_InputDataUID

mitk::NodeUIDType QmitkMappingJob::m_InputDataUID

UID of the input data node for provenance tracking.

Definition at line 152 of file QmitkMappingJob.h.

◆ m_ObserverID

unsigned long QmitkMappingJob::m_ObserverID

protected

Definition at line 169 of file QmitkMappingJob.h.

◆ m_spCommand

::itk::MemberCommand<QmitkMappingJob>::Pointer QmitkMappingJob::m_spCommand

protected

Definition at line 168 of file QmitkMappingJob.h.

◆ m_spInputData

mitk::BaseData::ConstPointer QmitkMappingJob::m_spInputData

The input data to be mapped (image, point set, or multi-label segmentation).

Definition at line 149 of file QmitkMappingJob.h.

◆ m_spMappedData

mitk::BaseData::Pointer QmitkMappingJob::m_spMappedData

protected

Definition at line 166 of file QmitkMappingJob.h.

◆ m_spRefGeometry

mitk::BaseGeometry::Pointer QmitkMappingJob::m_spRefGeometry

Optional reference geometry for image mapping. If null, the registration determines the output geometry.

Definition at line 155 of file QmitkMappingJob.h.

◆ m_spRegNode

mitk::DataNode::Pointer QmitkMappingJob::m_spRegNode

Data node containing the mitk::MAPRegistrationWrapper to use for mapping.

Definition at line 146 of file QmitkMappingJob.h.

The documentation for this class was generated from the following file:

QmitkMappingJob.h
