QRunnable job that performs image registration using a MatchPoint algorithm in a background thread. More...

#include <QmitkRegistrationJob.h>

Inheritance diagram for QmitkRegistrationJob:

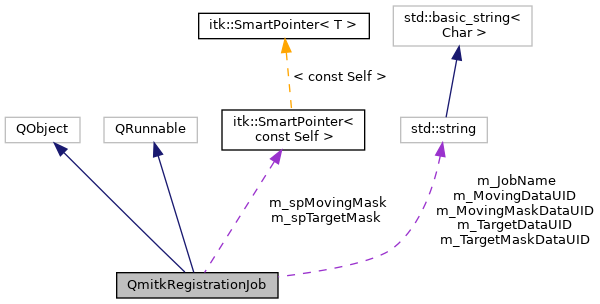

Collaboration diagram for QmitkRegistrationJob:

[legend]

Signals
void	Finished ()
	Emitted when the job has completed (regardless of success or failure). More...

void	Error (QString err)
	Emitted when an error occurs during registration. More...

void	RegResultIsAvailable (mitk::MAPRegistrationWrapper::Pointer spResultRegistration, const QmitkRegistrationJob *pJob)
	Emitted when the registration result is available. More...

void	AlgorithmIterated (QString info, bool hasIterationCount, unsigned long currentIteration)
	Emitted when the algorithm completes an iteration. More...

void	LevelChanged (QString info, bool hasLevelCount, unsigned long currentLevel)
	Emitted when the algorithm changes its multi-resolution level. More...

void	AlgorithmStatusChanged (QString info)
	Emitted when the algorithm status changes (e.g., initializing, starting, stopping). More...

void	AlgorithmInfo (QString info)
	Emitted for general algorithm information messages. More...

Public Member Functions
	QmitkRegistrationJob (::map::algorithm::RegistrationAlgorithmBase *pAlgorithm)
	Constructs the registration job with the given algorithm. More...

	~QmitkRegistrationJob () override
	Destructor. Removes the algorithm event observer. More...

void	run () override
	Executes the registration algorithm. More...

const ::map::algorithm::RegistrationAlgorithmBase *	GetLoadedAlgorithm () const
	Returns the registration algorithm used by this job. More...

Public Attributes
mitk::BaseData::ConstPointer	m_spTargetData
	The target (fixed) data for the registration. More...

mitk::BaseData::ConstPointer	m_spMovingData
	The moving data for the registration. More...

mitk::Image::ConstPointer	m_spTargetMask
	Optional mask image for the target data. More...

mitk::Image::ConstPointer	m_spMovingMask
	Optional mask image for the moving data. More...

bool	m_MapEntity
	If true, the job also maps the moving entity using the computed registration. More...

bool	m_StoreReg
	If true, the registration result is stored. More...

bool	m_ErrorOccured
	Flag indicating whether an error occurred during execution. More...

std::string	m_JobName
	Human-readable name for the registration job. More...

mitk::NodeUIDType	m_TargetDataUID
	UID of the target data node for provenance tracking. More...

mitk::NodeUIDType	m_MovingDataUID
	UID of the moving data node for provenance tracking. More...

mitk::NodeUIDType	m_TargetMaskDataUID
	UID of the target mask data node for provenance tracking. More...

mitk::NodeUIDType	m_MovingMaskDataUID
	UID of the moving mask data node for provenance tracking. More...

Protected Types
typedef ::map::algorithm::facet::IterativeAlgorithmInterface	IIterativeAlgorithm

typedef ::map::algorithm::facet::MultiResRegistrationAlgorithmInterface	IMultiResAlgorithm

Protected Member Functions
const mitk::Image *	GetTargetDataAsImage () const

const mitk::Image *	GetMovingDataAsImage () const

void	OnMapAlgorithmEvent (::itk::Object *, const itk::EventObject &event)

Protected Attributes
::map::core::RegistrationBase::Pointer	m_spResultRegistration

mitk::DataNode::Pointer	m_spRegNode

mitk::DataNode::Pointer	m_spMappedImageNode

::itk::MemberCommand< QmitkRegistrationJob >::Pointer	m_spCommand

unsigned long	m_ObserverID

::map::algorithm::RegistrationAlgorithmBase::Pointer	m_spLoadedAlgorithm

Detailed Description

QRunnable job that performs image registration using a MatchPoint algorithm in a background thread.

This job executes a MatchPoint registration algorithm on a pair of moving and target data sets (typically images) in a QThreadPool, keeping the GUI thread responsive. It observes algorithm events (iterations, level changes, status updates) and relays them as Qt signals for progress reporting.

Optional masks can be set for both moving and target data. On successful completion, the job emits RegResultIsAvailable with a mitk::MAPRegistrationWrapper containing the computed registration. The Finished signal is always emitted at the end.

See also: QmitkFramesRegistrationJob, QmitkMappingJob, mitk::MAPAlgorithmHelper

Definition at line 53 of file QmitkRegistrationJob.h.

Member Typedef Documentation

◆ IIterativeAlgorithm

typedef ::map::algorithm::facet::IterativeAlgorithmInterface QmitkRegistrationJob::IIterativeAlgorithm

protected

Definition at line 177 of file QmitkRegistrationJob.h.

◆ IMultiResAlgorithm

typedef ::map::algorithm::facet::MultiResRegistrationAlgorithmInterface QmitkRegistrationJob::IMultiResAlgorithm

protected

Definition at line 178 of file QmitkRegistrationJob.h.

Constructor & Destructor Documentation

◆ QmitkRegistrationJob()

QmitkRegistrationJob::QmitkRegistrationJob ( ::map::algorithm::RegistrationAlgorithmBase * pAlgorithm )

Constructs the registration job with the given algorithm.

Registers an ITK observer on the algorithm to receive algorithm events and initializes default member values.

Parameters

[in] pAlgorithm Pointer to the MatchPoint registration algorithm to use. The job takes shared ownership via a smart pointer.

Precondition: pAlgorithm must not be nullptr.

◆ ~QmitkRegistrationJob()

QmitkRegistrationJob::~QmitkRegistrationJob ( )

override

Destructor. Removes the algorithm event observer.

Member Function Documentation

◆ AlgorithmInfo

void QmitkRegistrationJob::AlgorithmInfo ( QString info )

signal

Emitted for general algorithm information messages.

Parameters

[in] info Information message string.

◆ AlgorithmIterated

void QmitkRegistrationJob::AlgorithmIterated	(	QString	info,
		bool	hasIterationCount,
		unsigned long	currentIteration
	)

signal

Emitted when the algorithm completes an iteration.

Parameters

[in]	info	Descriptive text about the iteration.
[in]	hasIterationCount	True if the algorithm provides an iteration count.
[in]	currentIteration	The current iteration number (valid only if `hasIterationCount` is true).

◆ AlgorithmStatusChanged

void QmitkRegistrationJob::AlgorithmStatusChanged ( QString info )

signal

Emitted when the algorithm status changes (e.g., initializing, starting, stopping).

Parameters

[in] info Status description string.

◆ Error

void QmitkRegistrationJob::Error ( QString err )

signal

Emitted when an error occurs during registration.

Parameters

[in] err Description of the error.

◆ Finished

void QmitkRegistrationJob::Finished ( )

signal

Emitted when the job has completed (regardless of success or failure).

◆ GetLoadedAlgorithm()

const ::map::algorithm::RegistrationAlgorithmBase* QmitkRegistrationJob::GetLoadedAlgorithm ( ) const

Returns the registration algorithm used by this job.

Returns: Const pointer to the loaded MatchPoint registration algorithm.

◆ GetMovingDataAsImage()

const mitk::Image* QmitkRegistrationJob::GetMovingDataAsImage ( ) const

protected

◆ GetTargetDataAsImage()

const mitk::Image* QmitkRegistrationJob::GetTargetDataAsImage ( ) const

protected

◆ LevelChanged

void QmitkRegistrationJob::LevelChanged	(	QString	info,
		bool	hasLevelCount,
		unsigned long	currentLevel
	)

signal

Emitted when the algorithm changes its multi-resolution level.

Parameters

[in]	info	Descriptive text about the level change.
[in]	hasLevelCount	True if the algorithm provides a level count.
[in]	currentLevel	The current level number (valid only if `hasLevelCount` is true).

◆ OnMapAlgorithmEvent()

void QmitkRegistrationJob::OnMapAlgorithmEvent	(	::itk::Object *	,
		const itk::EventObject &	event
	)

protected

◆ RegResultIsAvailable

void QmitkRegistrationJob::RegResultIsAvailable	(	mitk::MAPRegistrationWrapper::Pointer	spResultRegistration,
		const QmitkRegistrationJob *	pJob
	)

signal

Emitted when the registration result is available.

Parameters

[in]	spResultRegistration	The computed registration wrapped in a MAPRegistrationWrapper.
[in]	pJob	Pointer to this job instance for context.

◆ run()

void QmitkRegistrationJob::run ( )

override

Executes the registration algorithm.

Sets moving and target data (and optional masks) on the algorithm via mitk::MAPAlgorithmHelper, runs the registration, and wraps the result in a mitk::MAPRegistrationWrapper. Emits RegResultIsAvailable on success or Error on failure. Always emits Finished.

Member Data Documentation

◆ m_ErrorOccured

bool QmitkRegistrationJob::m_ErrorOccured

Flag indicating whether an error occurred during execution.

Definition at line 153 of file QmitkRegistrationJob.h.

◆ m_JobName

std::string QmitkRegistrationJob::m_JobName

Human-readable name for the registration job.

Definition at line 156 of file QmitkRegistrationJob.h.

◆ m_MapEntity

bool QmitkRegistrationJob::m_MapEntity

If true, the job also maps the moving entity using the computed registration.

Definition at line 147 of file QmitkRegistrationJob.h.

◆ m_MovingDataUID

mitk::NodeUIDType QmitkRegistrationJob::m_MovingDataUID

UID of the moving data node for provenance tracking.

Definition at line 162 of file QmitkRegistrationJob.h.

◆ m_MovingMaskDataUID

mitk::NodeUIDType QmitkRegistrationJob::m_MovingMaskDataUID

UID of the moving mask data node for provenance tracking.

Definition at line 168 of file QmitkRegistrationJob.h.

◆ m_ObserverID

unsigned long QmitkRegistrationJob::m_ObserverID

protected

Definition at line 187 of file QmitkRegistrationJob.h.

◆ m_spCommand

::itk::MemberCommand<QmitkRegistrationJob>::Pointer QmitkRegistrationJob::m_spCommand

protected

Definition at line 186 of file QmitkRegistrationJob.h.

◆ m_spLoadedAlgorithm

::map::algorithm::RegistrationAlgorithmBase::Pointer QmitkRegistrationJob::m_spLoadedAlgorithm

protected

Definition at line 188 of file QmitkRegistrationJob.h.

◆ m_spMappedImageNode

mitk::DataNode::Pointer QmitkRegistrationJob::m_spMappedImageNode

protected

Definition at line 184 of file QmitkRegistrationJob.h.

◆ m_spMovingData

mitk::BaseData::ConstPointer QmitkRegistrationJob::m_spMovingData

The moving data for the registration.

Definition at line 138 of file QmitkRegistrationJob.h.

◆ m_spMovingMask

mitk::Image::ConstPointer QmitkRegistrationJob::m_spMovingMask

Optional mask image for the moving data.

Definition at line 144 of file QmitkRegistrationJob.h.

◆ m_spRegNode

mitk::DataNode::Pointer QmitkRegistrationJob::m_spRegNode

protected

Definition at line 182 of file QmitkRegistrationJob.h.

◆ m_spResultRegistration

::map::core::RegistrationBase::Pointer QmitkRegistrationJob::m_spResultRegistration

protected

Definition at line 181 of file QmitkRegistrationJob.h.

◆ m_spTargetData

mitk::BaseData::ConstPointer QmitkRegistrationJob::m_spTargetData

The target (fixed) data for the registration.

Definition at line 135 of file QmitkRegistrationJob.h.

◆ m_spTargetMask

mitk::Image::ConstPointer QmitkRegistrationJob::m_spTargetMask

Optional mask image for the target data.

Definition at line 141 of file QmitkRegistrationJob.h.

◆ m_StoreReg

bool QmitkRegistrationJob::m_StoreReg

If true, the registration result is stored.

Definition at line 150 of file QmitkRegistrationJob.h.

◆ m_TargetDataUID

mitk::NodeUIDType QmitkRegistrationJob::m_TargetDataUID

UID of the target data node for provenance tracking.

Definition at line 159 of file QmitkRegistrationJob.h.

◆ m_TargetMaskDataUID

mitk::NodeUIDType QmitkRegistrationJob::m_TargetMaskDataUID

UID of the target mask data node for provenance tracking.

Definition at line 165 of file QmitkRegistrationJob.h.

The documentation for this class was generated from the following file:

QmitkRegistrationJob.h

Signals

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ IIterativeAlgorithm

◆ IMultiResAlgorithm

Constructor & Destructor Documentation

◆ QmitkRegistrationJob()

◆ ~QmitkRegistrationJob()

Member Function Documentation

◆ AlgorithmInfo

◆ AlgorithmIterated

◆ AlgorithmStatusChanged

◆ Error

◆ Finished

◆ GetLoadedAlgorithm()

◆ GetMovingDataAsImage()

◆ GetTargetDataAsImage()

◆ LevelChanged

◆ OnMapAlgorithmEvent()

◆ RegResultIsAvailable

◆ run()

Member Data Documentation

◆ m_ErrorOccured

◆ m_JobName

◆ m_MapEntity

◆ m_MovingDataUID

◆ m_MovingMaskDataUID

◆ m_ObserverID

◆ m_spCommand

◆ m_spLoadedAlgorithm

◆ m_spMappedImageNode

◆ m_spMovingData

◆ m_spMovingMask

◆ m_spRegNode

◆ m_spResultRegistration

◆ m_spTargetData

◆ m_spTargetMask

◆ m_StoreReg

◆ m_TargetDataUID

◆ m_TargetMaskDataUID
