QRunnable job that performs frame-by-frame registration of a 4D image in a background thread. More...

#include <QmitkFramesRegistrationJob.h>

Inheritance diagram for QmitkFramesRegistrationJob:

[legend]

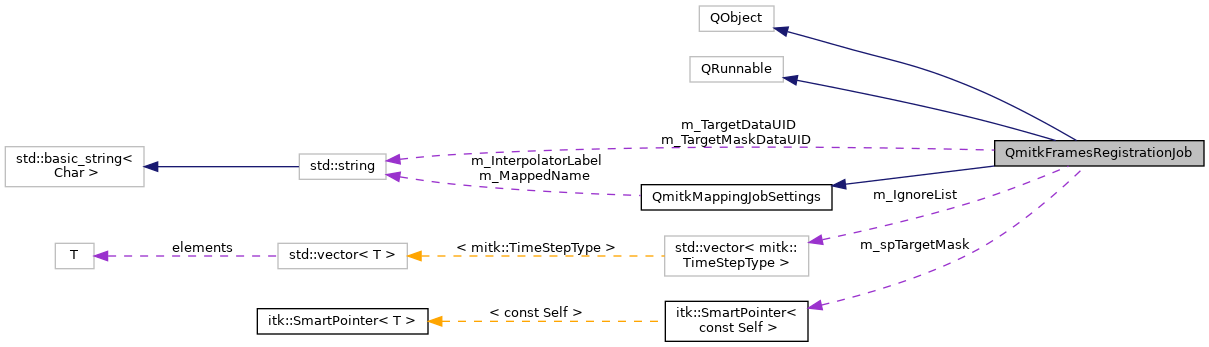

Collaboration diagram for QmitkFramesRegistrationJob:

[legend]

Signals
void	Finished ()
	Emitted when the job has completed (regardless of success or failure). More...

void	Error (QString err)
	Emitted when an error occurs during registration. More...

void	ResultIsAvailable (mitk::Image::Pointer spResult, const QmitkFramesRegistrationJob *pJob)
	Emitted when the registered result image is available. More...

void	AlgorithmIterated (QString info, bool hasIterationCount, unsigned long currentIteration)
	Emitted when the algorithm completes an iteration. More...

void	LevelChanged (QString info, bool hasLevelCount, unsigned long currentLevel)
	Emitted when the algorithm changes its multi-resolution level. More...

void	AlgorithmStatusChanged (QString info)
	Emitted when the algorithm status changes (e.g., initializing, starting, stopping). More...

void	AlgorithmInfo (QString info)
	Emitted for general algorithm information messages. More...

void	FrameProcessed (double progress)
	Emitted during frame processing with overall progress. More...

void	FrameRegistered (double progress)
	Emitted when a single frame has been registered. More...

void	FrameMapped (double progress)
	Emitted when a single frame has been mapped. More...

Public Member Functions
	QmitkFramesRegistrationJob (map::algorithm::RegistrationAlgorithmBase *pAlgorithm)
	Constructs the frames registration job with the given algorithm. More...

	~QmitkFramesRegistrationJob () override
	Destructor. Removes the algorithm event observer. More...

void	run () override
	Executes the frame-by-frame registration and mapping. More...

const map::algorithm::RegistrationAlgorithmBase *	GetLoadedAlgorithm () const
	Returns the registration algorithm used by this job. More...

Public Member Functions inherited from QmitkMappingJobSettings
	QmitkMappingJobSettings ()
	Constructs default mapping job settings. More...

Public Attributes
mitk::BaseData::ConstPointer	m_spTargetData
	The 4D target image data to be registered frame-by-frame. More...

mitk::Image::ConstPointer	m_spTargetMask
	Optional mask image applied to the target during registration. More...

mitk::TimeFramesRegistrationHelper::IgnoreListType	m_IgnoreList
	List of time frame indices to exclude from registration. More...

mitk::NodeUIDType	m_TargetDataUID
	UID of the target data node for provenance tracking. More...

mitk::NodeUIDType	m_TargetMaskDataUID
	UID of the target mask data node for provenance tracking. More...

Public Attributes inherited from QmitkMappingJobSettings
std::string	m_MappedName
	Display name for the mapped result. More...

bool	m_doGeometryRefinement
	If true, the mapper refines the image geometry instead of performing a full pixel-wise mapping. More...

bool	m_allowUndefPixels
	If true, undefined pixels (outside the field of view) are allowed and filled with m_paddingValue. If false, the mapping will fail when undefined pixels are encountered. More...

double	m_paddingValue
	Value assigned to undefined pixels. Only relevant if m_allowUndefPixels is true. More...

bool	m_allowUnregPixels
	If true, pixels not covered by the registration are allowed and filled with m_errorValue. If false, the mapping will fail when unregistered pixels are encountered. More...

double	m_errorValue
	Value assigned to unregistered pixels. Only relevant if m_allowUnregPixels is true. More...

mitk::ImageMappingInterpolator::Type	m_InterpolatorType
	Interpolation method used for image mapping. Only relevant for images when m_doGeometryRefinement is false. More...

std::string	m_InterpolatorLabel
	Human-readable display name of the selected interpolation method. More...

Detailed Description

QRunnable job that performs frame-by-frame registration of a 4D image in a background thread.

This job registers individual time frames of a 4D image using a MatchPoint registration algorithm and maps the registered frames back into a single result image. It is typically used by GUI plugins to keep the UI responsive while the potentially long-running registration and mapping operations proceed in a QThreadPool.

The job inherits mapping settings from QmitkMappingJobSettings (interpolation, padding, error handling) and observes algorithm events to relay progress and status information via Qt signals.

See also: QmitkRegistrationJob, QmitkMappingJob, QmitkMappingJobSettings

Definition at line 56 of file QmitkFramesRegistrationJob.h.

Constructor & Destructor Documentation

◆ QmitkFramesRegistrationJob()

QmitkFramesRegistrationJob::QmitkFramesRegistrationJob ( map::algorithm::RegistrationAlgorithmBase * pAlgorithm )

Constructs the frames registration job with the given algorithm.

Registers an ITK observer on the algorithm to receive algorithm events.

Parameters

[in] pAlgorithm Pointer to the MatchPoint registration algorithm to use. The job takes shared ownership via a smart pointer.

Precondition: pAlgorithm must not be nullptr.

◆ ~QmitkFramesRegistrationJob()

QmitkFramesRegistrationJob::~QmitkFramesRegistrationJob ( )

override

Destructor. Removes the algorithm event observer.

Member Function Documentation

◆ AlgorithmInfo

void QmitkFramesRegistrationJob::AlgorithmInfo ( QString info )

signal

Emitted for general algorithm information messages.

Parameters

[in] info Information message string.

◆ AlgorithmIterated

void QmitkFramesRegistrationJob::AlgorithmIterated	(	QString	info,
		bool	hasIterationCount,
		unsigned long	currentIteration
	)

signal

Emitted when the algorithm completes an iteration.

Parameters

[in]	info	Descriptive text about the iteration.
[in]	hasIterationCount	True if the algorithm provides an iteration count.
[in]	currentIteration	The current iteration number (valid only if `hasIterationCount` is true).

◆ AlgorithmStatusChanged

void QmitkFramesRegistrationJob::AlgorithmStatusChanged ( QString info )

signal

Emitted when the algorithm status changes (e.g., initializing, starting, stopping).

Parameters

[in] info Status description string.

◆ Error

void QmitkFramesRegistrationJob::Error ( QString err )

signal

Emitted when an error occurs during registration.

Parameters

[in] err Description of the error.

◆ Finished

void QmitkFramesRegistrationJob::Finished ( )

signal

Emitted when the job has completed (regardless of success or failure).

◆ FrameMapped

void QmitkFramesRegistrationJob::FrameMapped ( double progress )

signal

Emitted when a single frame has been mapped.

Parameters

[in] progress Progress value in the range [0, 1].

◆ FrameProcessed

void QmitkFramesRegistrationJob::FrameProcessed ( double progress )

signal

Emitted during frame processing with overall progress.

Parameters

[in] progress Progress value in the range [0, 1].

◆ FrameRegistered

void QmitkFramesRegistrationJob::FrameRegistered ( double progress )

signal

Emitted when a single frame has been registered.

Parameters

[in] progress Progress value in the range [0, 1].

◆ GetLoadedAlgorithm()

const map::algorithm::RegistrationAlgorithmBase* QmitkFramesRegistrationJob::GetLoadedAlgorithm ( ) const

Returns the registration algorithm used by this job.

Returns: Const pointer to the loaded MatchPoint registration algorithm.

◆ LevelChanged

void QmitkFramesRegistrationJob::LevelChanged	(	QString	info,
		bool	hasLevelCount,
		unsigned long	currentLevel
	)

signal

Emitted when the algorithm changes its multi-resolution level.

Parameters

[in]	info	Descriptive text about the level change.
[in]	hasLevelCount	True if the algorithm provides a level count.
[in]	currentLevel	The current level number (valid only if `hasLevelCount` is true).

◆ ResultIsAvailable

void QmitkFramesRegistrationJob::ResultIsAvailable	(	mitk::Image::Pointer	spResult,
		const QmitkFramesRegistrationJob *	pJob
	)

signal

Emitted when the registered result image is available.

Parameters

[in]	spResult	The resulting registered 4D image.
[in]	pJob	Pointer to this job instance for context.

◆ run()

void QmitkFramesRegistrationJob::run ( )

override

Executes the frame-by-frame registration and mapping.

Uses mitk::TimeFramesRegistrationHelper to iterate over all time frames (except those in the ignore list), register each frame, and map it according to the configured mapping settings. Emits ResultIsAvailable on success, or Error on failure. Always emits Finished when done.

Member Data Documentation

◆ m_IgnoreList

mitk::TimeFramesRegistrationHelper::IgnoreListType QmitkFramesRegistrationJob::m_IgnoreList

List of time frame indices to exclude from registration.

Definition at line 162 of file QmitkFramesRegistrationJob.h.

◆ m_spTargetData

mitk::BaseData::ConstPointer QmitkFramesRegistrationJob::m_spTargetData

The 4D target image data to be registered frame-by-frame.

Definition at line 156 of file QmitkFramesRegistrationJob.h.

◆ m_spTargetMask

mitk::Image::ConstPointer QmitkFramesRegistrationJob::m_spTargetMask

Optional mask image applied to the target during registration.

Definition at line 159 of file QmitkFramesRegistrationJob.h.

◆ m_TargetDataUID

mitk::NodeUIDType QmitkFramesRegistrationJob::m_TargetDataUID

UID of the target data node for provenance tracking.

Definition at line 165 of file QmitkFramesRegistrationJob.h.

◆ m_TargetMaskDataUID

mitk::NodeUIDType QmitkFramesRegistrationJob::m_TargetMaskDataUID

UID of the target mask data node for provenance tracking.

Definition at line 168 of file QmitkFramesRegistrationJob.h.

The documentation for this class was generated from the following file:

QmitkFramesRegistrationJob.h
