Mechanism for rendering a vtkWidget in the foreground of a RenderWindow. More...

#include <mitkVtkWidgetRendering.h>

Inheritance diagram for mitk::VtkWidgetRendering:

[legend]

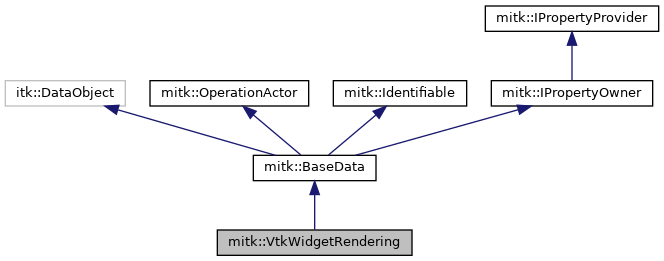

Collaboration diagram for mitk::VtkWidgetRendering:

[legend]

Public Member Functions
	mitkClassMacro (VtkWidgetRendering, BaseData)

Pointer	Clone () const

virtual void	SetRenderWindow (vtkRenderWindow *renderWindow)
	Set the render window in which the widget will be shown. More...

virtual void	Enable ()
	Enable drawing of the widget. More...

virtual void	Disable ()
	Disable drawing of the widget. More...

virtual bool	IsEnabled ()
	Check whether the widget is currently enabled (visible). More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Empty implementation; VtkWidgetRendering does not support the requested region concept. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Empty implementation; VtkWidgetRendering does not support the requested region concept. More...

bool	VerifyRequestedRegion () override
	Empty implementation; VtkWidgetRendering does not support the requested region concept. More...

void	SetRequestedRegion (const itk::DataObject *) override
	Empty implementation; VtkWidgetRendering does not support the requested region concept. More...

virtual vtkRenderWindow *	GetRenderWindow ()
	Get the vtkRenderWindow used for displaying the widget. More...

virtual vtkRenderer *	GetVtkRenderer ()
	Get the renderer responsible for rendering the widget into the vtkRenderWindow. More...

void	SetVtkWidget (vtkInteractorObserver *widget)
	Set the vtkWidget to be rendered. More...

vtkInteractorObserver *	GetVtkWidget () const
	Get the vtkWidget that is being rendered. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

virtual void	Expand (unsigned int timeSteps)
	Expand the TimeGeometry to a number of time steps. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether the object contains data at the specified time step. More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	VtkWidgetRendering ()
	Constructor. Creates an internal vtkRenderer. More...

	~VtkWidgetRendering () override
	Destructor. Disables the widget if still enabled. More...

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Protected Attributes
vtkRenderWindow *	m_RenderWindow

vtkRenderer *	m_Renderer

vtkInteractorObserver *	m_VtkWidget

bool	m_IsEnabled

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Additional Inherited Members
Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Detailed Description

Mechanism for rendering a vtkWidget in the foreground of a RenderWindow.

To use this class, specify the vtkRenderWindow of the window into which the vtkWidget shall be placed, and set the vtkWidget using SetVtkWidget(). After enabling the vtkWidget and calling Enable() of this class, the widget should be rendered.

Note: This class only provides a basic mechanism for adding a widget; all widget configuration such as placement, size, and en-/disabling of interaction mechanisms need to be done in the vtkWidget object.

Definition at line 38 of file mitkVtkWidgetRendering.h.

Constructor & Destructor Documentation

◆ VtkWidgetRendering()

mitk::VtkWidgetRendering::VtkWidgetRendering ( )

protected

Constructor. Creates an internal vtkRenderer.

◆ ~VtkWidgetRendering()

mitk::VtkWidgetRendering::~VtkWidgetRendering ( )

overrideprotected

Destructor. Disables the widget if still enabled.

Member Function Documentation

◆ Clone()

Pointer mitk::VtkWidgetRendering::Clone ( ) const

◆ Disable()

virtual void mitk::VtkWidgetRendering::Disable ( )

virtual

Disable drawing of the widget.

If you want to enable it, call the Enable() function.

◆ Enable()

virtual void mitk::VtkWidgetRendering::Enable ( )

virtual

Enable drawing of the widget.

If you want to disable it, call the Disable() function.

Precondition: SetRenderWindow() and SetVtkWidget() must have been called.

◆ GetRenderWindow()

virtual vtkRenderWindow* mitk::VtkWidgetRendering::GetRenderWindow ( )

virtual

Get the vtkRenderWindow used for displaying the widget.

Returns: The associated vtkRenderWindow, or nullptr if not yet set.

◆ GetVtkRenderer()

virtual vtkRenderer* mitk::VtkWidgetRendering::GetVtkRenderer ( )

virtual

Get the renderer responsible for rendering the widget into the vtkRenderWindow.

Returns: The internal vtkRenderer instance.

◆ GetVtkWidget()

vtkInteractorObserver* mitk::VtkWidgetRendering::GetVtkWidget ( ) const

Get the vtkWidget that is being rendered.

Returns: The currently set vtkInteractorObserver (widget), or nullptr.

◆ IsEnabled()

virtual bool mitk::VtkWidgetRendering::IsEnabled ( )

virtual

Check whether the widget is currently enabled (visible).

Returns: True if the widget is enabled, false otherwise.

◆ mitkClassMacro()

mitk::VtkWidgetRendering::mitkClassMacro	(	VtkWidgetRendering	,
		BaseData
	)

◆ New()

static Pointer mitk::VtkWidgetRendering::New ( )

static

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::VtkWidgetRendering::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Empty implementation; VtkWidgetRendering does not support the requested region concept.

Returns: Always false.

Implements mitk::BaseData.

◆ SetRenderWindow()

virtual void mitk::VtkWidgetRendering::SetRenderWindow ( vtkRenderWindow * renderWindow )

virtual

Set the render window in which the widget will be shown.

Precondition: Must be called before calling Enable().

Parameters

[in] renderWindow The vtkRenderWindow into which the widget is placed.

◆ SetRequestedRegion()

void mitk::VtkWidgetRendering::SetRequestedRegion ( const itk::DataObject * )

overridevirtual

Empty implementation; VtkWidgetRendering does not support the requested region concept.

Implements mitk::BaseData.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::VtkWidgetRendering::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Empty implementation; VtkWidgetRendering does not support the requested region concept.

Implements mitk::BaseData.

◆ SetVtkWidget()

void mitk::VtkWidgetRendering::SetVtkWidget ( vtkInteractorObserver * widget )

Set the vtkWidget to be rendered.

Parameters

[in] widget The vtkInteractorObserver (widget) to render.

◆ VerifyRequestedRegion()

bool mitk::VtkWidgetRendering::VerifyRequestedRegion ( )

overridevirtual

Empty implementation; VtkWidgetRendering does not support the requested region concept.

Returns: Always true.

Implements mitk::BaseData.

Member Data Documentation

◆ m_IsEnabled

bool mitk::VtkWidgetRendering::m_IsEnabled

protected

Definition at line 148 of file mitkVtkWidgetRendering.h.

◆ m_Renderer

vtkRenderer* mitk::VtkWidgetRendering::m_Renderer

protected

Definition at line 144 of file mitkVtkWidgetRendering.h.

◆ m_RenderWindow

vtkRenderWindow* mitk::VtkWidgetRendering::m_RenderWindow

protected

Definition at line 143 of file mitkVtkWidgetRendering.h.

◆ m_VtkWidget

vtkInteractorObserver* mitk::VtkWidgetRendering::m_VtkWidget

protected

Definition at line 146 of file mitkVtkWidgetRendering.h.

The documentation for this class was generated from the following file:

mitkVtkWidgetRendering.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ VtkWidgetRendering()

◆ ~VtkWidgetRendering()

Member Function Documentation

◆ Clone()

◆ Disable()

◆ Enable()

◆ GetRenderWindow()

◆ GetVtkRenderer()

◆ GetVtkWidget()

◆ IsEnabled()

◆ mitkClassMacro()

◆ New()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetRenderWindow()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetVtkWidget()

◆ VerifyRequestedRegion()

Member Data Documentation

◆ m_IsEnabled

◆ m_Renderer

◆ m_RenderWindow

◆ m_VtkWidget
