A collection of region of interests (ROIs). More...

#include <mitkROI.h>

Inheritance diagram for mitk::ROI:

[legend]

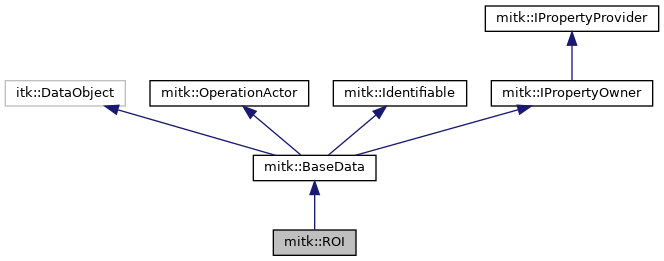

Collaboration diagram for mitk::ROI:

[legend]

Classes
class	Element
	Encapsulates a single (possibly time-resolved) ROI. More...

Public Types
using	ElementsType = std::map< unsigned int, Element >
	Map type associating element IDs to their Element objects. More...

using	Iterator = ElementsType::iterator
	Mutable iterator over ROI elements. More...

using	ConstIterator = ElementsType::const_iterator
	Const iterator over ROI elements. More...

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (ROI, BaseData) static Pointer New()

Pointer	Clone () const

size_t	GetNumberOfElements () const
	Get the number of ROI elements in the collection. More...

void	AddElement (const Element &element)
	Add a ROI::Element to the collection. More...

const Element &	GetElement (unsigned int id) const
	Get a const reference to an element by its ID. More...

Element &	GetElement (unsigned int id)
	Get a mutable reference to an element by its ID. More...

ConstIterator	begin () const
	Get a const iterator to the first element. More...

ConstIterator	end () const
	Get a const iterator past the last element. More...

Iterator	begin ()
	Get a mutable iterator to the first element. More...

Iterator	end ()
	Get a mutable iterator past the last element. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region (no-op for ROI). More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Check whether the requested region is outside of the buffered region. More...

bool	VerifyRequestedRegion () override
	Verify the requested region. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object (no-op for ROI). More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

virtual void	Expand (unsigned int timeSteps)
	Expand the TimeGeometry to a number of time steps. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether the object contains data at the specified time step. More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Protected Member Functions
	mitkCloneMacro (Self) ROI()

	ROI (const Self &other)

	~ROI () override

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Additional Inherited Members
Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

A collection of region of interests (ROIs).

Note: This class is considered experimental and subject to substational change. We mean it.

ROIs, essentially defined by the minimum and maximum index coordinates of an axis-aligned box, are represented by the nested ROI::Element class. These index coordinates are relative to a common TimeGeometry.

All ROIs are required to have a unique ID by which they can be accessed.

ROIs can optionally have properties (PropertyList), also called default properties. In case of time-resolved ROIs, each time step can optionally have properties, too. These properties have precedence over the default properties. In other words, the default properties may contain fallback properties which are queried when a property is not defined at a certain time step. This allows for an opt-in dynamic appearance of ROIs over time, for example by changing color or opacity.

ROIs are rendered both in 3-d and 2-d views as cubes, resp. cutting slices of these cubes. They support the following ROI::Element properties:

color (ColorProperty): Color of the cube
opacity (FloatProperty): Opacity of the cube
lineWidth (FloatProperty): Line width of the cube edges

ROIs display a customizable caption at their bottom-left corner. It is defined by the base data property caption (StringProperty). By default it is set to "{name} ({ID})". Braces are used to define placeholders which are replaced by their corresponding ROI::Element properties. {ID} is a special placeholder which will be replaced by the ID of the ROI::Element instead. The caption is allowed to include line breaks. Rendering of captions can be customized through the following data node properties:

font.size (IntProperty) Font size in points
font.bold (BoolProperty) Bold font style
font.italic (BoolProperty) Italic font style

See MITK ROI for details on the JSON-based MITK ROI file format.

Definition at line 58 of file mitkROI.h.

Member Typedef Documentation

◆ ConstIterator

using mitk::ROI::ConstIterator = ElementsType::const_iterator

Const iterator over ROI elements.

Definition at line 332 of file mitkROI.h.

◆ ElementsType

using mitk::ROI::ElementsType = std::map<unsigned int, Element>

Map type associating element IDs to their Element objects.

Definition at line 326 of file mitkROI.h.

◆ Iterator

using mitk::ROI::Iterator = ElementsType::iterator

Mutable iterator over ROI elements.

Definition at line 329 of file mitkROI.h.

Constructor & Destructor Documentation

◆ ROI()

mitk::ROI::ROI ( const Self & other )

protected

◆ ~ROI()

mitk::ROI::~ROI ( )

overrideprotected

Member Function Documentation

◆ AddElement()

void mitk::ROI::AddElement ( const Element & element )

Add a ROI::Element to the collection.

Parameters

[in] element The element to add. Its ID must be unique within this collection.

Precondition: The element's ID must not already exist in this collection.

Exceptions

mitk::Exception if an element with the same ID already exists.

◆ begin() [1/2]

Iterator mitk::ROI::begin ( )

Get a mutable iterator to the first element.

◆ begin() [2/2]

ConstIterator mitk::ROI::begin ( ) const

Get a const iterator to the first element.

◆ Clone()

Pointer mitk::ROI::Clone ( ) const

◆ end() [1/2]

Iterator mitk::ROI::end ( )

Get a mutable iterator past the last element.

◆ end() [2/2]

ConstIterator mitk::ROI::end ( ) const

Get a const iterator past the last element.

◆ GetElement() [1/2]

Element& mitk::ROI::GetElement ( unsigned int id )

Get a mutable reference to an element by its ID.

Parameters

[in] id The unique identifier of the element.

Returns: Mutable reference to the element.

Exceptions

std::out_of_range if no element with the given ID exists.

◆ GetElement() [2/2]

const Element& mitk::ROI::GetElement ( unsigned int id ) const

Get a const reference to an element by its ID.

Parameters

[in] id The unique identifier of the element.

Returns: Const reference to the element.

Exceptions

std::out_of_range if no element with the given ID exists.

◆ GetNumberOfElements()

size_t mitk::ROI::GetNumberOfElements ( ) const

Get the number of ROI elements in the collection.

Returns: The number of elements.

◆ mitkClassMacro()

mitk::ROI::mitkClassMacro	(	ROI	,
		BaseData
	)

◆ mitkCloneMacro()

mitk::ROI::mitkCloneMacro ( Self )

protected

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::ROI::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Check whether the requested region is outside of the buffered region.

Returns: Always returns false for ROI.

Implements mitk::BaseData.

◆ SetRequestedRegion()

void mitk::ROI::SetRequestedRegion ( const itk::DataObject * data )

overridevirtual

Set the requested region from another data object (no-op for ROI).

Parameters

[in] data The data object to copy the requested region from (ignored).

Implements mitk::BaseData.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::ROI::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Set the requested region to the largest possible region (no-op for ROI).

Implements mitk::BaseData.

◆ VerifyRequestedRegion()

bool mitk::ROI::VerifyRequestedRegion ( )

overridevirtual

Verify the requested region.

Returns: Always returns true for ROI.

Implements mitk::BaseData.

The documentation for this class was generated from the following file:

mitkROI.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstIterator

◆ ElementsType

◆ Iterator

Constructor & Destructor Documentation

◆ ROI()

◆ ~ROI()

Member Function Documentation

◆ AddElement()

◆ begin() [1/2]

◆ begin() [2/2]

◆ Clone()

◆ end() [1/2]

◆ end() [2/2]

◆ GetElement() [1/2]

◆ GetElement() [2/2]

◆ GetNumberOfElements()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ VerifyRequestedRegion()
