Base class for (dynamic) models. More...

#include <mitkModelBase.h>

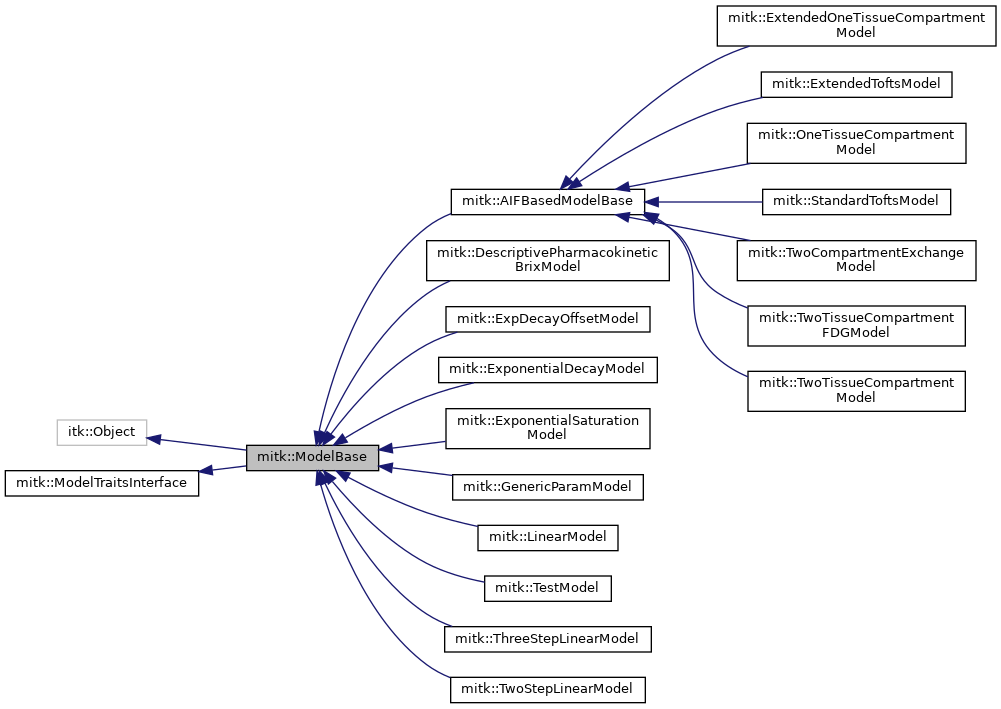

Inheritance diagram for mitk::ModelBase:

[legend]

Collaboration diagram for mitk::ModelBase:

Public Types
typedef ModelBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef ModelTraitsInterface::ModelResultType	ModelResultType

typedef ModelTraitsInterface::ParameterValueType	ParameterValueType

typedef ModelTraitsInterface::ParametersType	ParametersType

typedef itk::Array< double >	TimeGridType
	Type defining the time grid used by models. More...

typedef ModelTraitsInterface::ParameterNameType	ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType	ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType	ParametersSizeType

typedef ModelTraitsInterface::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType	DerivedParametersSizeType

typedef double	StaticParameterValueType

typedef std::vector< StaticParameterValueType >	StaticParameterValuesType

typedef std::map< ParameterNameType, StaticParameterValuesType >	StaticParameterMapType

typedef double	DerivedParameterValueType

typedef std::map< ParameterNameType, DerivedParameterValueType >	DerivedParameterMapType

Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double >	ModelResultType
	Type representing the model output signal as an array of doubles. More...

using	ParameterValueType = double
	Type of a single parameter value. More...

typedef itk::Array< ParameterValueType >	ParametersType
	Type representing a vector of parameter values. More...

typedef std::string	ParameterNameType
	Type used for parameter names. More...

typedef std::vector< ParameterNameType >	ParameterNamesType
	Type for a list of parameter names. More...

typedef ParametersType::SizeValueType	ParametersSizeType
	Type for the count of parameters. More...

typedef ParameterNamesType	DerivedParameterNamesType
	Type for a list of derived parameter names. More...

typedef ParametersSizeType	DerivedParametersSizeType
	Type for the count of derived parameters. More...

typedef std::map< ParameterNameType, double >	ParamterScaleMapType
	Map type associating parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	ParamterUnitMapType
	Map type associating parameter names to their unit strings. More...

typedef std::map< ParameterNameType, double >	DerivedParamterScaleMapType
	Map type associating derived parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	DerivedParamterUnitMapType
	Map type associating derived parameter names to their unit strings. More...

typedef std::string	FunctionStringType
	Type for the function string representation of the model. More...

typedef std::string	ModellClassIDType
	Type for the unique class identifier of the model. More...

Public Member Functions
virtual const char *	GetClassName () const

ParamterScaleMapType	GetParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined parameter. More...

ParamterUnitMapType	GetParameterUnits () const override
	Default implementation returns no unit string ("") for every defined parameter. More...

DerivedParamterScaleMapType	GetDerivedParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined derived parameter. More...

DerivedParamterUnitMapType	GetDerivedParameterUnits () const override
	Default implementation returns no unit string ("") for every defined derived parameter. More...

std::string	GetModelDisplayName () const override
	Default implementation returns GetClassID as display name. More...

std::string	GetModelType () const override
	Default implementation returns "Unknown" as model type. More...

FunctionStringType	GetFunctionString () const override
	Default implementation returns an empty function string. More...

ModellClassIDType	GetClassID () const override
	Default implementation returns the class name of the concrete instance as ID. More...

std::string	GetXName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisUnit () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisUnit () const override
	Default implementation returns an empty string. More...

virtual ParameterNamesType	GetStaticParameterNames () const =0
	Returns the names of static parameters used when computing the signal. More...

virtual ParametersSizeType	GetNumberOfStaticParameters () const =0
	Returns the number of static parameters. More...

virtual ParamterUnitMapType	GetStaticParameterUnits () const
	Default implementation returns no unit string ("") for every defined static parameter. More...

DerivedParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

DerivedParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

void	SetStaticParameters (const StaticParameterMapType &parameters, bool allParameters=true)
	Sets the static parameters of the model before it is used. More...

StaticParameterMapType	GetStaticParameters () const
	Retrieves the static parameters of the model (e.g. for serialization). More...

DerivedParameterMapType	GetDerivedParameters (const ParametersType &parameters) const
	Computes all derived parameters for the given model parameters. More...

virtual void	SetTimeGrid (const TimeGridType &grid)
	Sets the time grid of the model. More...

virtual const TimeGridType &	GetTimeGrid ()
	Gets the time grid of the model. More...

ModelResultType	GetSignal (const ParametersType &parameters) const
	Computes and returns the model signal for the given parameters. More...

Public Member Functions inherited from mitk::ModelTraitsInterface
virtual ParameterNamesType	GetParameterNames () const =0
	Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

virtual ParametersSizeType	GetNumberOfParameters () const =0
	Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

Protected Member Functions
virtual ModelResultType	ComputeModelfunction (const ParametersType &parameters) const =0
	Computes the model function for the given parameters. More...

virtual bool	ValidateModel (std::string &error) const
	Validates whether the model is in a valid state to compute the signal. More...

virtual DerivedParameterMapType	ComputeDerivedParameters (const ParametersType &parameters) const
	Computes derived parameters from the given model parameters. More...

virtual void	SetStaticParameter (const ParameterNameType &name, const StaticParameterValuesType &values)=0
	Sets a single static parameter by name. More...

virtual StaticParameterValuesType	GetStaticParameterValue (const ParameterNameType &name) const =0
	Retrieves a single static parameter value by name. More...

	ModelBase ()

	~ModelBase () override

	ModelBase (const ModelBase &source)

void	PrintSelf (std::ostream &os, ::itk::Indent indent) const override

Protected Member Functions inherited from mitk::ModelTraitsInterface
	ModelTraitsInterface ()

virtual	~ModelTraitsInterface ()

Protected Attributes
TimeGridType	m_TimeGrid

Detailed Description

Base class for (dynamic) models.

A model can be used to calculate its signal given the discrete time grid of the signal and the parameters of the model.

A model has 3 types of parameters:

parameters
static parameters
derived parameters

"Parameters" and "static parameters" are used to compute the signal of the model. "Parameters" are the ones that will be changed for/by model fitting. "Static parameters" are used to configure the model for fitting but are itself not part of the fitting scope (compare itk::Transform parameters and static parameters). "Derived parameters" are model specific parameters computed from "Parameters" e.g. (DerivedParam1 = Param1/Param2). It may be implemented if e.g. for practical usage not the fitted parameters are needed but derivation of them.

Remarks: If you implement your own model calls regard const correctness and do not change or undermine the constness of this base class. It is important because in case of fitting models are used in a multi threaded environment and must be thread safe. Thus the getter and computation functions are implemented as const and thread safe methods.

See also: ModelTraitsInterface, ModelFactoryBase, ModelParameterizerBase

Definition at line 55 of file mitkModelBase.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::ModelBase::ConstPointer

Definition at line 61 of file mitkModelBase.h.

◆ DerivedParameterMapType

typedef std::map<ParameterNameType, DerivedParameterValueType> mitk::ModelBase::DerivedParameterMapType

Definition at line 83 of file mitkModelBase.h.

◆ DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParameterNamesType mitk::ModelBase::DerivedParameterNamesType

Definition at line 75 of file mitkModelBase.h.

◆ DerivedParametersSizeType

typedef ModelTraitsInterface::DerivedParametersSizeType mitk::ModelBase::DerivedParametersSizeType

Definition at line 76 of file mitkModelBase.h.

◆ DerivedParameterValueType

typedef double mitk::ModelBase::DerivedParameterValueType

Definition at line 82 of file mitkModelBase.h.

◆ ModelResultType

typedef ModelTraitsInterface::ModelResultType mitk::ModelBase::ModelResultType

Definition at line 65 of file mitkModelBase.h.

◆ ParameterNamesType

typedef ModelTraitsInterface::ParameterNamesType mitk::ModelBase::ParameterNamesType

Definition at line 72 of file mitkModelBase.h.

◆ ParameterNameType

typedef ModelTraitsInterface::ParameterNameType mitk::ModelBase::ParameterNameType

Definition at line 71 of file mitkModelBase.h.

◆ ParametersSizeType

typedef ModelTraitsInterface::ParametersSizeType mitk::ModelBase::ParametersSizeType

Definition at line 73 of file mitkModelBase.h.

◆ ParametersType

typedef ModelTraitsInterface::ParametersType mitk::ModelBase::ParametersType

Definition at line 67 of file mitkModelBase.h.

◆ ParameterValueType

typedef ModelTraitsInterface::ParameterValueType mitk::ModelBase::ParameterValueType

Definition at line 66 of file mitkModelBase.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::ModelBase::Pointer

Definition at line 60 of file mitkModelBase.h.

◆ Self

typedef ModelBase mitk::ModelBase::Self

Definition at line 58 of file mitkModelBase.h.

◆ StaticParameterMapType

typedef std::map<ParameterNameType, StaticParameterValuesType> mitk::ModelBase::StaticParameterMapType

Definition at line 80 of file mitkModelBase.h.

◆ StaticParameterValuesType

typedef std::vector<StaticParameterValueType> mitk::ModelBase::StaticParameterValuesType

Definition at line 79 of file mitkModelBase.h.

◆ StaticParameterValueType

typedef double mitk::ModelBase::StaticParameterValueType

Definition at line 78 of file mitkModelBase.h.

◆ Superclass

typedef itk::Object mitk::ModelBase::Superclass

Definition at line 59 of file mitkModelBase.h.

◆ TimeGridType

typedef itk::Array<double> mitk::ModelBase::TimeGridType

Type defining the time grid used by models.

Remarks: The model time grid has a resolution in seconds, not milliseconds like the time geometry.

Definition at line 70 of file mitkModelBase.h.

Constructor & Destructor Documentation

◆ ModelBase() [1/2]

mitk::ModelBase::ModelBase ( )

protected

◆ ~ModelBase()

mitk::ModelBase::~ModelBase ( )

overrideprotected

◆ ModelBase() [2/2]

mitk::ModelBase::ModelBase ( const ModelBase & source )

protected

Member Function Documentation

◆ ComputeDerivedParameters()

virtual DerivedParameterMapType mitk::ModelBase::ComputeDerivedParameters ( const ParametersType & parameters ) const

protectedvirtual

Computes derived parameters from the given model parameters.

Helper function called by GetDerivedParameters(). Implement in derived classes to realize the concrete computation of derived parameters.

Remarks: Default implementation has no derived parameters.

Reimplemented in mitk::StandardToftsModel, mitk::ExtendedToftsModel, mitk::TwoStepLinearModel, mitk::ThreeStepLinearModel, mitk::TestModel, mitk::LinearModel, and mitk::ExponentialDecayModel.

◆ ComputeModelfunction()

virtual ModelResultType mitk::ModelBase::ComputeModelfunction ( const ParametersType & parameters ) const

protectedpure virtual

Computes the model function for the given parameters.

Must be implemented by derived classes.

Parameters

parameters The model parameters.

Returns: The computed model result.

Implemented in mitk::TwoTissueCompartmentModel, mitk::TwoTissueCompartmentFDGModel, mitk::TwoCompartmentExchangeModel, mitk::StandardToftsModel, mitk::OneTissueCompartmentModel, mitk::ExtendedToftsModel, mitk::ExtendedOneTissueCompartmentModel, mitk::DescriptivePharmacokineticBrixModel, mitk::TwoStepLinearModel, mitk::ThreeStepLinearModel, mitk::TestModel, mitk::LinearModel, mitk::GenericParamModel, mitk::ExponentialSaturationModel, mitk::ExponentialDecayModel, and mitk::ExpDecayOffsetModel.

◆ GetClassID()

ModellClassIDType mitk::ModelBase::GetClassID ( ) const

overridevirtual

Default implementation returns the class name of the concrete instance as ID.

void mitk::ModelBase::SetStaticParameters	(	const StaticParameterMapType &	parameters,
		bool	allParameters = `true`
	)

parameters	The map with the static parameters and their values.
allParameters	If true, an exception will be thrown if the keys of passed parameters do not equal the return of GetStaticParameterNames. Thus if true, one must set all static parameters of the model.

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ DerivedParameterMapType

◆ DerivedParameterNamesType

◆ DerivedParametersSizeType

◆ DerivedParameterValueType

◆ ModelResultType

◆ ParameterNamesType

◆ ParameterNameType

◆ ParametersSizeType

◆ ParametersType

◆ ParameterValueType

◆ Pointer

◆ Self

◆ StaticParameterMapType

◆ StaticParameterValuesType

◆ StaticParameterValueType

◆ Superclass

◆ TimeGridType

Constructor & Destructor Documentation

◆ ModelBase() [1/2]

◆ ~ModelBase()

◆ ModelBase() [2/2]

Member Function Documentation

◆ ComputeDerivedParameters()

◆ ComputeModelfunction()

◆ GetClassID()

◆ GetClassName()

◆ GetDerivedParameterNames()

◆ GetDerivedParameters()

◆ GetDerivedParameterScales()

◆ GetDerivedParameterUnits()

◆ GetFunctionString()

◆ GetModelDisplayName()

◆ GetModelType()

◆ GetNumberOfDerivedParameters()

◆ GetNumberOfStaticParameters()

◆ GetParameterScales()

◆ GetParameterUnits()

◆ GetSignal()

◆ GetStaticParameterNames()

◆ GetStaticParameters()

◆ GetStaticParameterUnits()

◆ GetStaticParameterValue()

◆ GetTimeGrid()

◆ GetXAxisName()

◆ GetXAxisUnit()

◆ GetXName()

◆ GetYAxisName()

◆ GetYAxisUnit()

◆ PrintSelf()

◆ SetStaticParameter()

◆ SetStaticParameters()

◆ SetTimeGrid()

◆ ValidateModel()

Member Data Documentation

◆ m_TimeGrid
