Simple model of exponential decay: y(x) = y-intercept * exp(-x/lambda). More...

#include <mitkExponentialDecayModel.h>

Inheritance diagram for mitk::ExponentialDecayModel:

[legend]

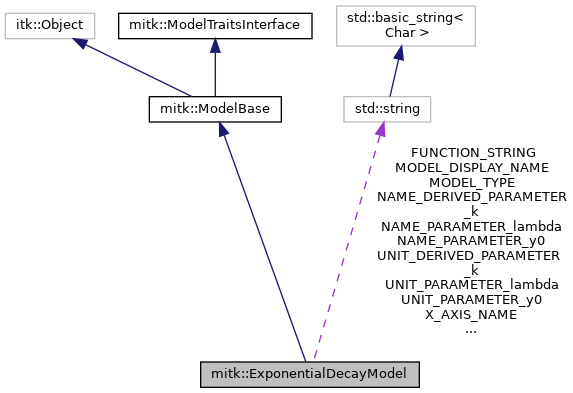

Collaboration diagram for mitk::ExponentialDecayModel:

[legend]

Public Types
typedef ExponentialDecayModel	Self

typedef mitk::ModelBase	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::ParameterNameType	ParameterNameType

typedef Superclass::ParametersSizeType	ParametersSizeType

Public Types inherited from mitk::ModelBase
typedef ModelBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef ModelTraitsInterface::ModelResultType	ModelResultType

typedef ModelTraitsInterface::ParameterValueType	ParameterValueType

typedef ModelTraitsInterface::ParametersType	ParametersType

typedef itk::Array< double >	TimeGridType
	Type defining the time grid used by models. More...

typedef ModelTraitsInterface::ParameterNameType	ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType	ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType	ParametersSizeType

typedef ModelTraitsInterface::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType	DerivedParametersSizeType

typedef double	StaticParameterValueType

typedef std::vector< StaticParameterValueType >	StaticParameterValuesType

typedef std::map< ParameterNameType, StaticParameterValuesType >	StaticParameterMapType

typedef double	DerivedParameterValueType

typedef std::map< ParameterNameType, DerivedParameterValueType >	DerivedParameterMapType

Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double >	ModelResultType
	Type representing the model output signal as an array of doubles. More...

using	ParameterValueType = double
	Type of a single parameter value. More...

typedef itk::Array< ParameterValueType >	ParametersType
	Type representing a vector of parameter values. More...

typedef std::string	ParameterNameType
	Type used for parameter names. More...

typedef std::vector< ParameterNameType >	ParameterNamesType
	Type for a list of parameter names. More...

typedef ParametersType::SizeValueType	ParametersSizeType
	Type for the count of parameters. More...

typedef ParameterNamesType	DerivedParameterNamesType
	Type for a list of derived parameter names. More...

typedef ParametersSizeType	DerivedParametersSizeType
	Type for the count of derived parameters. More...

typedef std::map< ParameterNameType, double >	ParamterScaleMapType
	Map type associating parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	ParamterUnitMapType
	Map type associating parameter names to their unit strings. More...

typedef std::map< ParameterNameType, double >	DerivedParamterScaleMapType
	Map type associating derived parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	DerivedParamterUnitMapType
	Map type associating derived parameter names to their unit strings. More...

typedef std::string	FunctionStringType
	Type for the function string representation of the model. More...

typedef std::string	ModellClassIDType
	Type for the unique class identifier of the model. More...

Public Member Functions
Pointer	Clone () const

virtual const char *	GetClassName () const

ParameterNamesType	GetParameterNames () const override
	Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

ParametersSizeType	GetNumberOfParameters () const override
	Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

ParamterUnitMapType	GetParameterUnits () const override
	Returns the unit strings for all model parameters. More...

ParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

ParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

ParamterUnitMapType	GetDerivedParameterUnits () const override
	Returns the unit strings for all derived parameters. More...

ParameterNamesType	GetStaticParameterNames () const override
	Returns the names of static parameters used when computing the signal. More...

ParametersSizeType	GetNumberOfStaticParameters () const override
	Returns the number of static parameters. More...

std::string	GetModelDisplayName () const override
	Returns the human-readable display name of the model. More...

std::string	GetModelType () const override
	Returns the type/category string of the model (e.g. "Linear", "Pharmacokinetic"). More...

FunctionStringType	GetFunctionString () const override
	Returns a parsable function string representing the model equation. More...

std::string	GetXName () const override
	Returns the name of the independent variable used by the model (e.g. "x"). More...

std::string	GetXAxisName () const override
	Returns the display name of the x-axis (e.g. "Time"). More...

std::string	GetXAxisUnit () const override
	Returns the unit of the x-axis (e.g. "s", "ms"). More...

std::string	GetYAxisName () const override
	Returns the display name of the y-axis (e.g. "Signal Intensity"). More...

std::string	GetYAxisUnit () const override
	Returns the unit of the y-axis. More...

mitk::ModelBase::DerivedParameterMapType	ComputeDerivedParameters (const mitk::ModelBase::ParametersType &parameters) const override
	Computes derived parameters from the given model parameters. More...

Public Member Functions inherited from mitk::ModelBase
ParamterScaleMapType	GetParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined parameter. More...

ParamterUnitMapType	GetParameterUnits () const override
	Default implementation returns no unit string ("") for every defined parameter. More...

DerivedParamterScaleMapType	GetDerivedParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined derived parameter. More...

DerivedParamterUnitMapType	GetDerivedParameterUnits () const override
	Default implementation returns no unit string ("") for every defined derived parameter. More...

std::string	GetModelDisplayName () const override
	Default implementation returns GetClassID as display name. More...

std::string	GetModelType () const override
	Default implementation returns "Unknown" as model type. More...

FunctionStringType	GetFunctionString () const override
	Default implementation returns an empty function string. More...

ModellClassIDType	GetClassID () const override
	Default implementation returns the class name of the concrete instance as ID. More...

std::string	GetXName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisUnit () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisUnit () const override
	Default implementation returns an empty string. More...

virtual ParamterUnitMapType	GetStaticParameterUnits () const
	Default implementation returns no unit string ("") for every defined static parameter. More...

DerivedParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

DerivedParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

void	SetStaticParameters (const StaticParameterMapType &parameters, bool allParameters=true)
	Sets the static parameters of the model before it is used. More...

StaticParameterMapType	GetStaticParameters () const
	Retrieves the static parameters of the model (e.g. for serialization). More...

DerivedParameterMapType	GetDerivedParameters (const ParametersType &parameters) const
	Computes all derived parameters for the given model parameters. More...

virtual void	SetTimeGrid (const TimeGridType &grid)
	Sets the time grid of the model. More...

virtual const TimeGridType &	GetTimeGrid ()
	Gets the time grid of the model. More...

ModelResultType	GetSignal (const ParametersType &parameters) const
	Computes and returns the model signal for the given parameters. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const std::string	NAME_PARAMETER_y0
	Name string for the y-intercept parameter. More...

static const std::string	NAME_PARAMETER_lambda
	Name string for the decay constant parameter (lambda). More...

static const unsigned int	NUMBER_OF_PARAMETERS
	Total number of model parameters (2). More...

static const std::string	UNIT_PARAMETER_y0
	Unit of the y-intercept parameter. More...

static const std::string	UNIT_PARAMETER_lambda
	Unit of the decay constant parameter. More...

static const unsigned int	POSITION_PARAMETER_y0
	Index position of y-intercept in the parameter vector. More...

static const unsigned int	POSITION_PARAMETER_lambda
	Index position of lambda in the parameter vector. More...

static const std::string	NAME_DERIVED_PARAMETER_k
	Name string for the derived rate constant parameter (k = 1/lambda). More...

static const unsigned int	NUMBER_OF_DERIVED_PARAMETERS
	Total number of derived parameters (1). More...

static const std::string	UNIT_DERIVED_PARAMETER_k
	Unit of the derived rate constant parameter. More...

static const unsigned int	NUMBER_OF_STATIC_PARAMETERS
	Total number of static parameters (0). More...

static const std::string	MODEL_DISPLAY_NAME
	Display name of this model. More...

static const std::string	MODEL_TYPE
	Type category of this model. More...

static const std::string	FUNCTION_STRING
	Function string representation of the model equation. More...

static const std::string	X_NAME
	Name of the independent variable. More...

static const std::string	X_AXIS_NAME
	Display name for the x-axis. More...

static const std::string	X_AXIS_UNIT
	Unit for the x-axis. More...

static const std::string	Y_AXIS_NAME
	Display name for the y-axis. More...

static const std::string	Y_AXIS_UNIT
	Unit for the y-axis. More...

Protected Member Functions
	ExponentialDecayModel ()

	~ExponentialDecayModel () override

	ExponentialDecayModel (const ExponentialDecayModel &source)

	mitkCloneMacro (ExponentialDecayModel)

ModelResultType	ComputeModelfunction (const ParametersType &parameters) const override
	Computes the model function for the given parameters. More...

void	SetStaticParameter (const ParameterNameType &name, const StaticParameterValuesType &values) override
	Sets a single static parameter by name. More...

StaticParameterValuesType	GetStaticParameterValue (const ParameterNameType &name) const override
	Retrieves a single static parameter value by name. More...

Protected Member Functions inherited from mitk::ModelBase
virtual bool	ValidateModel (std::string &error) const
	Validates whether the model is in a valid state to compute the signal. More...

	ModelBase ()

	~ModelBase () override

	ModelBase (const ModelBase &source)

void	PrintSelf (std::ostream &os, ::itk::Indent indent) const override

Protected Member Functions inherited from mitk::ModelTraitsInterface
	ModelTraitsInterface ()

virtual	~ModelTraitsInterface ()

Additional Inherited Members
Protected Attributes inherited from mitk::ModelBase
TimeGridType	m_TimeGrid

Detailed Description

Simple model of exponential decay: y(x) = y-intercept * exp(-x/lambda).

This model implements an exponential decay function where lambda is the decay constant. It has two parameters (y-intercept and lambda) and one derived parameter (rate constant k = 1/lambda).

See also: ExponentialDecayModelFactory, ExponentialDecayModelParameterizer, ModelBase

Definition at line 33 of file mitkExponentialDecayModel.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::ExponentialDecayModel::ConstPointer

Definition at line 40 of file mitkExponentialDecayModel.h.

◆ ParameterNameType

typedef Superclass::ParameterNameType mitk::ExponentialDecayModel::ParameterNameType

Definition at line 42 of file mitkExponentialDecayModel.h.

◆ ParametersSizeType

typedef Superclass::ParametersSizeType mitk::ExponentialDecayModel::ParametersSizeType

Definition at line 43 of file mitkExponentialDecayModel.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::ExponentialDecayModel::Pointer

Definition at line 39 of file mitkExponentialDecayModel.h.

◆ Self

typedef ExponentialDecayModel mitk::ExponentialDecayModel::Self

Definition at line 37 of file mitkExponentialDecayModel.h.

◆ Superclass

typedef mitk::ModelBase mitk::ExponentialDecayModel::Superclass

Definition at line 38 of file mitkExponentialDecayModel.h.

Constructor & Destructor Documentation

◆ ExponentialDecayModel() [1/2]

mitk::ExponentialDecayModel::ExponentialDecayModel ( )

inlineprotected

Definition at line 128 of file mitkExponentialDecayModel.h.

◆ ~ExponentialDecayModel()

mitk::ExponentialDecayModel::~ExponentialDecayModel ( )

inlineoverrideprotected

Definition at line 129 of file mitkExponentialDecayModel.h.

◆ ExponentialDecayModel() [2/2]

mitk::ExponentialDecayModel::ExponentialDecayModel ( const ExponentialDecayModel & source )

protected

Member Function Documentation

◆ Clone()

Pointer mitk::ExponentialDecayModel::Clone ( ) const

◆ ComputeDerivedParameters()

mitk::ModelBase::DerivedParameterMapType mitk::ExponentialDecayModel::ComputeDerivedParameters ( const mitk::ModelBase::ParametersType & parameters ) const

overridevirtual

Computes derived parameters from the given model parameters.

Helper function called by GetDerivedParameters(). Implement in derived classes to realize the concrete computation of derived parameters.

Remarks: Default implementation has no derived parameters.

Reimplemented from mitk::ModelBase.

◆ ComputeModelfunction()

ModelResultType mitk::ExponentialDecayModel::ComputeModelfunction ( const ParametersType & parameters ) const

overrideprotectedvirtual

Computes the model function for the given parameters.

Must be implemented by derived classes.

Parameters

parameters The model parameters.

Returns: The computed model result.

Implements mitk::ModelBase.

◆ GetClassName()

virtual const char* mitk::ExponentialDecayModel::GetClassName ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from mitk::ModelBase.

◆ GetDerivedParameterNames()

ParameterNamesType mitk::ExponentialDecayModel::GetDerivedParameterNames ( ) const

overridevirtual

Returns the names of derived parameters that can be computed by the model.

Returns: A vector of derived parameter name strings.

Implements mitk::ModelTraitsInterface.

◆ GetDerivedParameterUnits()

ParamterUnitMapType mitk::ExponentialDecayModel::GetDerivedParameterUnits ( ) const

overridevirtual

Returns the unit strings for all derived parameters.

Returns: A map from derived parameter name to its unit string.

Implements mitk::ModelTraitsInterface.

◆ GetFunctionString()

FunctionStringType mitk::ExponentialDecayModel::GetFunctionString ( ) const

overridevirtual

Returns a parsable function string representing the model equation.

Returns: The function string (e.g. "a*x+b").

Implements mitk::ModelTraitsInterface.

◆ GetModelDisplayName()

std::string mitk::ExponentialDecayModel::GetModelDisplayName ( ) const

overridevirtual

Returns the human-readable display name of the model.

Returns: The model display name.

Implements mitk::ModelTraitsInterface.

◆ GetModelType()

std::string mitk::ExponentialDecayModel::GetModelType ( ) const

overridevirtual

Returns the type/category string of the model (e.g. "Linear", "Pharmacokinetic").

Returns: The model type string.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfDerivedParameters()

ParametersSizeType mitk::ExponentialDecayModel::GetNumberOfDerivedParameters ( ) const

overridevirtual

Returns the number of derived parameters that can be computed by the model.

Returns: The number of derived parameters.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfParameters()

ParametersSizeType mitk::ExponentialDecayModel::GetNumberOfParameters ( ) const

overridevirtual

Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()).

Returns: The number of model parameters.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfStaticParameters()

ParametersSizeType mitk::ExponentialDecayModel::GetNumberOfStaticParameters ( ) const

overridevirtual

Returns the number of static parameters.

Returns: The count of static parameters.

Implements mitk::ModelBase.

◆ GetParameterNames()

ParameterNamesType mitk::ExponentialDecayModel::GetParameterNames ( ) const

overridevirtual

Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()).

Returns: A vector of parameter name strings.

Implements mitk::ModelTraitsInterface.

◆ GetParameterUnits()

ParamterUnitMapType mitk::ExponentialDecayModel::GetParameterUnits ( ) const

overridevirtual

Returns the unit strings for all model parameters.

Returns: A map from parameter name to its unit string.

Implements mitk::ModelTraitsInterface.

◆ GetStaticParameterNames()

ParameterNamesType mitk::ExponentialDecayModel::GetStaticParameterNames ( ) const

overridevirtual

Returns the names of static parameters used when computing the signal.

Static parameters are not part of the fitting scope but configure the model.

Returns: A vector of static parameter names.

Implements mitk::ModelBase.

◆ GetStaticParameterValue()

StaticParameterValuesType mitk::ExponentialDecayModel::GetStaticParameterValue ( const ParameterNameType & name ) const

overrideprotectedvirtual

Retrieves a single static parameter value by name.

Helper function called by GetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

◆ GetXAxisName()

std::string mitk::ExponentialDecayModel::GetXAxisName ( ) const

overridevirtual

Returns the display name of the x-axis (e.g. "Time").

Returns: The x-axis name string.

Implements mitk::ModelTraitsInterface.

◆ GetXAxisUnit()

std::string mitk::ExponentialDecayModel::GetXAxisUnit ( ) const

overridevirtual

Returns the unit of the x-axis (e.g. "s", "ms").

Returns: The x-axis unit string.

Implements mitk::ModelTraitsInterface.

◆ GetXName()

std::string mitk::ExponentialDecayModel::GetXName ( ) const

overridevirtual

Returns the name of the independent variable used by the model (e.g. "x").

Returns: The variable name string.

Implements mitk::ModelTraitsInterface.

◆ GetYAxisName()

std::string mitk::ExponentialDecayModel::GetYAxisName ( ) const

overridevirtual

Returns the display name of the y-axis (e.g. "Signal Intensity").

Returns: The y-axis name string.

Implements mitk::ModelTraitsInterface.

◆ GetYAxisUnit()

std::string mitk::ExponentialDecayModel::GetYAxisUnit ( ) const

overridevirtual

Returns the unit of the y-axis.

Returns: The y-axis unit string.

Implements mitk::ModelTraitsInterface.

◆ mitkCloneMacro()

mitk::ExponentialDecayModel::mitkCloneMacro ( ExponentialDecayModel )

protected

◆ New()

static Pointer mitk::ExponentialDecayModel::New ( )

static

Method for creation through the object factory.

◆ SetStaticParameter()

void mitk::ExponentialDecayModel::SetStaticParameter	(	const ParameterNameType &	name,
		const StaticParameterValuesType &	values
	)

overrideprotectedvirtual

Sets a single static parameter by name.

Helper function called by SetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

Member Data Documentation

◆ FUNCTION_STRING

const std::string mitk::ExponentialDecayModel::FUNCTION_STRING

static

Function string representation of the model equation.

Definition at line 90 of file mitkExponentialDecayModel.h.

◆ MODEL_DISPLAY_NAME

const std::string mitk::ExponentialDecayModel::MODEL_DISPLAY_NAME

static

Display name of this model.

Definition at line 84 of file mitkExponentialDecayModel.h.

◆ MODEL_TYPE

const std::string mitk::ExponentialDecayModel::MODEL_TYPE

static

Type category of this model.

Definition at line 87 of file mitkExponentialDecayModel.h.

◆ NAME_DERIVED_PARAMETER_k

const std::string mitk::ExponentialDecayModel::NAME_DERIVED_PARAMETER_k

static

Name string for the derived rate constant parameter (k = 1/lambda).

Definition at line 72 of file mitkExponentialDecayModel.h.

◆ NAME_PARAMETER_lambda

const std::string mitk::ExponentialDecayModel::NAME_PARAMETER_lambda

static

Name string for the decay constant parameter (lambda).

Definition at line 56 of file mitkExponentialDecayModel.h.

◆ NAME_PARAMETER_y0

const std::string mitk::ExponentialDecayModel::NAME_PARAMETER_y0

static

Name string for the y-intercept parameter.

Definition at line 54 of file mitkExponentialDecayModel.h.

◆ NUMBER_OF_DERIVED_PARAMETERS

const unsigned int mitk::ExponentialDecayModel::NUMBER_OF_DERIVED_PARAMETERS

static

Total number of derived parameters (1).

Definition at line 75 of file mitkExponentialDecayModel.h.

◆ NUMBER_OF_PARAMETERS

const unsigned int mitk::ExponentialDecayModel::NUMBER_OF_PARAMETERS

static

Total number of model parameters (2).

Definition at line 59 of file mitkExponentialDecayModel.h.

◆ NUMBER_OF_STATIC_PARAMETERS

const unsigned int mitk::ExponentialDecayModel::NUMBER_OF_STATIC_PARAMETERS

static

Total number of static parameters (0).

Definition at line 81 of file mitkExponentialDecayModel.h.

◆ POSITION_PARAMETER_lambda

const unsigned int mitk::ExponentialDecayModel::POSITION_PARAMETER_lambda

static

Index position of lambda in the parameter vector.

Definition at line 69 of file mitkExponentialDecayModel.h.

◆ POSITION_PARAMETER_y0

const unsigned int mitk::ExponentialDecayModel::POSITION_PARAMETER_y0

static

Index position of y-intercept in the parameter vector.

Definition at line 67 of file mitkExponentialDecayModel.h.

◆ UNIT_DERIVED_PARAMETER_k

const std::string mitk::ExponentialDecayModel::UNIT_DERIVED_PARAMETER_k

static

Unit of the derived rate constant parameter.

Definition at line 78 of file mitkExponentialDecayModel.h.

◆ UNIT_PARAMETER_lambda

const std::string mitk::ExponentialDecayModel::UNIT_PARAMETER_lambda

static

Unit of the decay constant parameter.

Definition at line 64 of file mitkExponentialDecayModel.h.

◆ UNIT_PARAMETER_y0

const std::string mitk::ExponentialDecayModel::UNIT_PARAMETER_y0

static

Unit of the y-intercept parameter.

Definition at line 62 of file mitkExponentialDecayModel.h.

◆ X_AXIS_NAME

const std::string mitk::ExponentialDecayModel::X_AXIS_NAME

static

Display name for the x-axis.

Definition at line 96 of file mitkExponentialDecayModel.h.

◆ X_AXIS_UNIT

const std::string mitk::ExponentialDecayModel::X_AXIS_UNIT

static

Unit for the x-axis.

Definition at line 99 of file mitkExponentialDecayModel.h.

◆ X_NAME

const std::string mitk::ExponentialDecayModel::X_NAME

static

Name of the independent variable.

Definition at line 93 of file mitkExponentialDecayModel.h.

◆ Y_AXIS_NAME

const std::string mitk::ExponentialDecayModel::Y_AXIS_NAME

static

Display name for the y-axis.

Definition at line 102 of file mitkExponentialDecayModel.h.

◆ Y_AXIS_UNIT

const std::string mitk::ExponentialDecayModel::Y_AXIS_UNIT

static

Unit for the y-axis.

Definition at line 105 of file mitkExponentialDecayModel.h.

The documentation for this class was generated from the following file:

mitkExponentialDecayModel.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ ParameterNameType

◆ ParametersSizeType

◆ Pointer

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ ExponentialDecayModel() [1/2]

◆ ~ExponentialDecayModel()

◆ ExponentialDecayModel() [2/2]

Member Function Documentation

◆ Clone()

◆ ComputeDerivedParameters()

◆ ComputeModelfunction()

◆ GetClassName()

◆ GetDerivedParameterNames()

◆ GetDerivedParameterUnits()

◆ GetFunctionString()

◆ GetModelDisplayName()

◆ GetModelType()

◆ GetNumberOfDerivedParameters()

◆ GetNumberOfParameters()

◆ GetNumberOfStaticParameters()

◆ GetParameterNames()

◆ GetParameterUnits()

◆ GetStaticParameterNames()

◆ GetStaticParameterValue()

◆ GetXAxisName()

◆ GetXAxisUnit()

◆ GetXName()

◆ GetYAxisName()

◆ GetYAxisUnit()

◆ mitkCloneMacro()

◆ New()

◆ SetStaticParameter()

Member Data Documentation

◆ FUNCTION_STRING

◆ MODEL_DISPLAY_NAME

◆ MODEL_TYPE

◆ NAME_DERIVED_PARAMETER_k

◆ NAME_PARAMETER_lambda

◆ NAME_PARAMETER_y0

◆ NUMBER_OF_DERIVED_PARAMETERS

◆ NUMBER_OF_PARAMETERS

◆ NUMBER_OF_STATIC_PARAMETERS

◆ POSITION_PARAMETER_lambda

◆ POSITION_PARAMETER_y0

◆ UNIT_DERIVED_PARAMETER_k

◆ UNIT_PARAMETER_lambda

◆ UNIT_PARAMETER_y0

◆ X_AXIS_NAME

◆ X_AXIS_UNIT

◆ X_NAME

◆ Y_AXIS_NAME

◆ Y_AXIS_UNIT
