Model that uses a user-specified formula string as its model function. More...

#include <mitkGenericParamModel.h>

Inheritance diagram for mitk::GenericParamModel:

[legend]

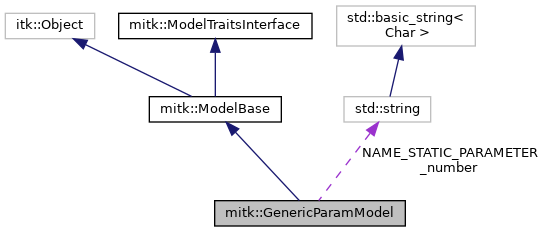

Collaboration diagram for mitk::GenericParamModel:

[legend]

Public Types
typedef GenericParamModel	Self

typedef mitk::ModelBase	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::ParameterNameType	ParameterNameType

typedef Superclass::ParametersSizeType	ParametersSizeType

Public Types inherited from mitk::ModelBase
typedef ModelBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef ModelTraitsInterface::ModelResultType	ModelResultType

typedef ModelTraitsInterface::ParameterValueType	ParameterValueType

typedef ModelTraitsInterface::ParametersType	ParametersType

typedef itk::Array< double >	TimeGridType
	Type defining the time grid used by models. More...

typedef ModelTraitsInterface::ParameterNameType	ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType	ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType	ParametersSizeType

typedef ModelTraitsInterface::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType	DerivedParametersSizeType

typedef double	StaticParameterValueType

typedef std::vector< StaticParameterValueType >	StaticParameterValuesType

typedef std::map< ParameterNameType, StaticParameterValuesType >	StaticParameterMapType

typedef double	DerivedParameterValueType

typedef std::map< ParameterNameType, DerivedParameterValueType >	DerivedParameterMapType

Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double >	ModelResultType
	Type representing the model output signal as an array of doubles. More...

using	ParameterValueType = double
	Type of a single parameter value. More...

typedef itk::Array< ParameterValueType >	ParametersType
	Type representing a vector of parameter values. More...

typedef std::string	ParameterNameType
	Type used for parameter names. More...

typedef std::vector< ParameterNameType >	ParameterNamesType
	Type for a list of parameter names. More...

typedef ParametersType::SizeValueType	ParametersSizeType
	Type for the count of parameters. More...

typedef ParameterNamesType	DerivedParameterNamesType
	Type for a list of derived parameter names. More...

typedef ParametersSizeType	DerivedParametersSizeType
	Type for the count of derived parameters. More...

typedef std::map< ParameterNameType, double >	ParamterScaleMapType
	Map type associating parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	ParamterUnitMapType
	Map type associating parameter names to their unit strings. More...

typedef std::map< ParameterNameType, double >	DerivedParamterScaleMapType
	Map type associating derived parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	DerivedParamterUnitMapType
	Map type associating derived parameter names to their unit strings. More...

typedef std::string	FunctionStringType
	Type for the function string representation of the model. More...

typedef std::string	ModellClassIDType
	Type for the unique class identifier of the model. More...

Public Member Functions
Pointer	Clone () const

virtual const char *	GetClassName () const

std::string	GetModelDisplayName () const override
	Returns the human-readable display name of the model. More...

std::string	GetModelType () const override
	Returns the type/category string of the model (e.g. "Linear", "Pharmacokinetic"). More...

FunctionStringType	GetFunctionString () const override
	Returns a parsable function string representing the model equation. More...

virtual void	SetFunctionString (const char *_arg)

virtual void	SetNumberOfParameters (ParametersSizeType _arg)

std::string	GetXName () const override
	Returns the name of the independent variable used by the model (e.g. "x"). More...

ParameterNamesType	GetParameterNames () const override
	Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

ParametersSizeType	GetNumberOfParameters () const override
	Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

ParamterUnitMapType	GetParameterUnits () const override
	Returns the unit strings for all model parameters. More...

ParameterNamesType	GetStaticParameterNames () const override
	Returns the names of static parameters used when computing the signal. More...

ParametersSizeType	GetNumberOfStaticParameters () const override
	Returns the number of static parameters. More...

Public Member Functions inherited from mitk::ModelBase
ParamterScaleMapType	GetParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined parameter. More...

ParamterUnitMapType	GetParameterUnits () const override
	Default implementation returns no unit string ("") for every defined parameter. More...

DerivedParamterScaleMapType	GetDerivedParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined derived parameter. More...

DerivedParamterUnitMapType	GetDerivedParameterUnits () const override
	Default implementation returns no unit string ("") for every defined derived parameter. More...

std::string	GetModelDisplayName () const override
	Default implementation returns GetClassID as display name. More...

std::string	GetModelType () const override
	Default implementation returns "Unknown" as model type. More...

FunctionStringType	GetFunctionString () const override
	Default implementation returns an empty function string. More...

ModellClassIDType	GetClassID () const override
	Default implementation returns the class name of the concrete instance as ID. More...

std::string	GetXName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisUnit () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisUnit () const override
	Default implementation returns an empty string. More...

virtual ParamterUnitMapType	GetStaticParameterUnits () const
	Default implementation returns no unit string ("") for every defined static parameter. More...

DerivedParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

DerivedParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

void	SetStaticParameters (const StaticParameterMapType &parameters, bool allParameters=true)
	Sets the static parameters of the model before it is used. More...

StaticParameterMapType	GetStaticParameters () const
	Retrieves the static parameters of the model (e.g. for serialization). More...

DerivedParameterMapType	GetDerivedParameters (const ParametersType &parameters) const
	Computes all derived parameters for the given model parameters. More...

virtual void	SetTimeGrid (const TimeGridType &grid)
	Sets the time grid of the model. More...

virtual const TimeGridType &	GetTimeGrid ()
	Gets the time grid of the model. More...

ModelResultType	GetSignal (const ParametersType &parameters) const
	Computes and returns the model signal for the given parameters. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const std::string	NAME_STATIC_PARAMETER_number

Protected Member Functions
	GenericParamModel ()

	~GenericParamModel () override

	GenericParamModel (const GenericParamModel &source)

	mitkCloneMacro (GenericParamModel)

ModelResultType	ComputeModelfunction (const ParametersType &parameters) const override
	Computes the model function for the given parameters. More...

void	SetStaticParameter (const ParameterNameType &name, const StaticParameterValuesType &values) override
	Sets a single static parameter by name. More...

StaticParameterValuesType	GetStaticParameterValue (const ParameterNameType &name) const override
	Retrieves a single static parameter value by name. More...

Protected Member Functions inherited from mitk::ModelBase
virtual bool	ValidateModel (std::string &error) const
	Validates whether the model is in a valid state to compute the signal. More...

virtual DerivedParameterMapType	ComputeDerivedParameters (const ParametersType &parameters) const
	Computes derived parameters from the given model parameters. More...

	ModelBase ()

	~ModelBase () override

	ModelBase (const ModelBase &source)

void	PrintSelf (std::ostream &os, ::itk::Indent indent) const override

Protected Member Functions inherited from mitk::ModelTraitsInterface
	ModelTraitsInterface ()

virtual	~ModelTraitsInterface ()

Additional Inherited Members
Protected Attributes inherited from mitk::ModelBase
TimeGridType	m_TimeGrid

Detailed Description

Model that uses a user-specified formula string as its model function.

The parser used to interpret the string can handle simple mathematical formulas (e.g. "3.5 + a * x * sin(x) - 1 / 2"). It recognizes:

sums, differences, products and divisions (a + b, 4 - 3, 2 * x, 9 / 3)
algebraic signs (+5, -5)
exponentiation (2 ^ 4)
parentheses (3 * (4 + 2))
unary functions: abs, exp, sin, cos, tan, sind, cosd, tand
variables (x, a, b, ... j)

Note: The variable "x" is reserved for the signal position / time point.; The current version supports up to 10 model parameters (a through j). Do not use "x" as a model parameter; it is the independent variable.

See also: GenericParamModelFactory, GenericParamModelParameterizer, FormulaParser

Definition at line 42 of file mitkGenericParamModel.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::GenericParamModel::ConstPointer

Definition at line 49 of file mitkGenericParamModel.h.

◆ ParameterNameType

typedef Superclass::ParameterNameType mitk::GenericParamModel::ParameterNameType

Definition at line 51 of file mitkGenericParamModel.h.

◆ ParametersSizeType

typedef Superclass::ParametersSizeType mitk::GenericParamModel::ParametersSizeType

Definition at line 52 of file mitkGenericParamModel.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::GenericParamModel::Pointer

Definition at line 48 of file mitkGenericParamModel.h.

◆ Self

typedef GenericParamModel mitk::GenericParamModel::Self

Definition at line 46 of file mitkGenericParamModel.h.

◆ Superclass

typedef mitk::ModelBase mitk::GenericParamModel::Superclass

Definition at line 47 of file mitkGenericParamModel.h.

Constructor & Destructor Documentation

◆ GenericParamModel() [1/2]

mitk::GenericParamModel::GenericParamModel ( )

protected

◆ ~GenericParamModel()

mitk::GenericParamModel::~GenericParamModel ( )

inlineoverrideprotected

Definition at line 87 of file mitkGenericParamModel.h.

◆ GenericParamModel() [2/2]

mitk::GenericParamModel::GenericParamModel ( const GenericParamModel & source )

protected

Member Function Documentation

◆ Clone()

Pointer mitk::GenericParamModel::Clone ( ) const

◆ ComputeModelfunction()

ModelResultType mitk::GenericParamModel::ComputeModelfunction ( const ParametersType & parameters ) const

overrideprotectedvirtual

Computes the model function for the given parameters.

Must be implemented by derived classes.

Parameters

parameters The model parameters.

Returns: The computed model result.

Implements mitk::ModelBase.

◆ GetClassName()

virtual const char* mitk::GenericParamModel::GetClassName ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from mitk::ModelBase.

◆ GetFunctionString()

FunctionStringType mitk::GenericParamModel::GetFunctionString ( ) const

overridevirtual

Returns a parsable function string representing the model equation.

Returns: The function string (e.g. "a*x+b").

Implements mitk::ModelTraitsInterface.

◆ GetModelDisplayName()

std::string mitk::GenericParamModel::GetModelDisplayName ( ) const

overridevirtual

Returns the human-readable display name of the model.

Returns: The model display name.

Implements mitk::ModelTraitsInterface.

◆ GetModelType()

std::string mitk::GenericParamModel::GetModelType ( ) const

overridevirtual

Returns the type/category string of the model (e.g. "Linear", "Pharmacokinetic").

Returns: The model type string.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfParameters()

ParametersSizeType mitk::GenericParamModel::GetNumberOfParameters ( ) const

overridevirtual

Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()).

Returns: The number of model parameters.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfStaticParameters()

ParametersSizeType mitk::GenericParamModel::GetNumberOfStaticParameters ( ) const

overridevirtual

Returns the number of static parameters.

Returns: The count of static parameters.

Implements mitk::ModelBase.

◆ GetParameterNames()

ParameterNamesType mitk::GenericParamModel::GetParameterNames ( ) const

overridevirtual

Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()).

Returns: A vector of parameter name strings.

Implements mitk::ModelTraitsInterface.

◆ GetParameterUnits()

ParamterUnitMapType mitk::GenericParamModel::GetParameterUnits ( ) const

overridevirtual

Returns the unit strings for all model parameters.

Returns: A map from parameter name to its unit string.

Implements mitk::ModelTraitsInterface.

◆ GetStaticParameterNames()

ParameterNamesType mitk::GenericParamModel::GetStaticParameterNames ( ) const

overridevirtual

Returns the names of static parameters used when computing the signal.

Static parameters are not part of the fitting scope but configure the model.

Returns: A vector of static parameter names.

Implements mitk::ModelBase.

◆ GetStaticParameterValue()

StaticParameterValuesType mitk::GenericParamModel::GetStaticParameterValue ( const ParameterNameType & name ) const

overrideprotectedvirtual

Retrieves a single static parameter value by name.

Helper function called by GetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

◆ GetXName()

std::string mitk::GenericParamModel::GetXName ( ) const

overridevirtual

Returns the name of the independent variable used by the model (e.g. "x").

Returns: The variable name string.

Implements mitk::ModelTraitsInterface.

◆ mitkCloneMacro()

mitk::GenericParamModel::mitkCloneMacro ( GenericParamModel )

protected

◆ New()

static Pointer mitk::GenericParamModel::New ( )

static

Method for creation through the object factory.

◆ SetFunctionString()

virtual void mitk::GenericParamModel::SetFunctionString ( const char * _arg )

virtual

◆ SetNumberOfParameters()

virtual void mitk::GenericParamModel::SetNumberOfParameters ( ParametersSizeType _arg )

virtual

Precondition: The number of parameters must be between 1 and 10.

◆ SetStaticParameter()

void mitk::GenericParamModel::SetStaticParameter	(	const ParameterNameType &	name,
		const StaticParameterValuesType &	values
	)

overrideprotectedvirtual

Sets a single static parameter by name.

Helper function called by SetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

Member Data Documentation

◆ NAME_STATIC_PARAMETER_number

const std::string mitk::GenericParamModel::NAME_STATIC_PARAMETER_number

static

Definition at line 61 of file mitkGenericParamModel.h.

The documentation for this class was generated from the following file:

mitkGenericParamModel.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ ParameterNameType

◆ ParametersSizeType

◆ Pointer

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ GenericParamModel() [1/2]

◆ ~GenericParamModel()

◆ GenericParamModel() [2/2]

Member Function Documentation

◆ Clone()

◆ ComputeModelfunction()

◆ GetClassName()

◆ GetFunctionString()

◆ GetModelDisplayName()

◆ GetModelType()

◆ GetNumberOfParameters()

◆ GetNumberOfStaticParameters()

◆ GetParameterNames()

◆ GetParameterUnits()

◆ GetStaticParameterNames()

◆ GetStaticParameterValue()

◆ GetXName()

◆ mitkCloneMacro()

◆ New()

◆ SetFunctionString()

◆ SetNumberOfParameters()

◆ SetStaticParameter()

Member Data Documentation

◆ NAME_STATIC_PARAMETER_number
