Descriptive pharmacokinetic model for MR perfusion according to Brix et al. More...

#include <mitkDescriptivePharmacokineticBrixModel.h>

Inheritance diagram for mitk::DescriptivePharmacokineticBrixModel:

[legend]

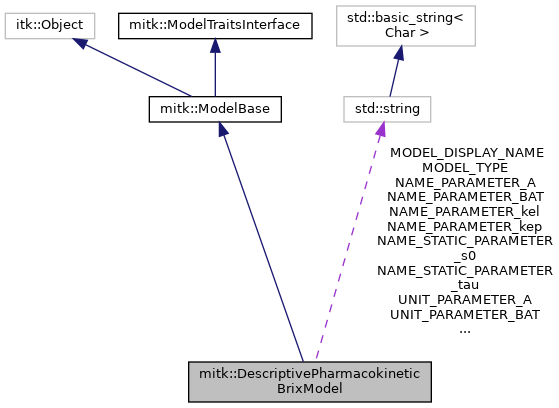

Collaboration diagram for mitk::DescriptivePharmacokineticBrixModel:

[legend]

Public Types
typedef DescriptivePharmacokineticBrixModel	Self

typedef ModelBase	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::ModelBase
typedef ModelBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef ModelTraitsInterface::ModelResultType	ModelResultType

typedef ModelTraitsInterface::ParameterValueType	ParameterValueType

typedef ModelTraitsInterface::ParametersType	ParametersType

typedef itk::Array< double >	TimeGridType
	Type defining the time grid used by models. More...

typedef ModelTraitsInterface::ParameterNameType	ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType	ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType	ParametersSizeType

typedef ModelTraitsInterface::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType	DerivedParametersSizeType

typedef double	StaticParameterValueType

typedef std::vector< StaticParameterValueType >	StaticParameterValuesType

typedef std::map< ParameterNameType, StaticParameterValuesType >	StaticParameterMapType

typedef double	DerivedParameterValueType

typedef std::map< ParameterNameType, DerivedParameterValueType >	DerivedParameterMapType

Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double >	ModelResultType
	Type representing the model output signal as an array of doubles. More...

using	ParameterValueType = double
	Type of a single parameter value. More...

typedef itk::Array< ParameterValueType >	ParametersType
	Type representing a vector of parameter values. More...

typedef std::string	ParameterNameType
	Type used for parameter names. More...

typedef std::vector< ParameterNameType >	ParameterNamesType
	Type for a list of parameter names. More...

typedef ParametersType::SizeValueType	ParametersSizeType
	Type for the count of parameters. More...

typedef ParameterNamesType	DerivedParameterNamesType
	Type for a list of derived parameter names. More...

typedef ParametersSizeType	DerivedParametersSizeType
	Type for the count of derived parameters. More...

typedef std::map< ParameterNameType, double >	ParamterScaleMapType
	Map type associating parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	ParamterUnitMapType
	Map type associating parameter names to their unit strings. More...

typedef std::map< ParameterNameType, double >	DerivedParamterScaleMapType
	Map type associating derived parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	DerivedParamterUnitMapType
	Map type associating derived parameter names to their unit strings. More...

typedef std::string	FunctionStringType
	Type for the function string representation of the model. More...

typedef std::string	ModellClassIDType
	Type for the unique class identifier of the model. More...

Public Member Functions
Pointer	Clone () const

virtual const char *	GetClassName () const

virtual void	SetTau (double _arg)
	Sets the injection time tau in minutes. More...

virtual const double &	GetTau ()
	Returns the injection time tau in minutes. More...

virtual void	SetS0 (double _arg)
	Sets the pre-contrast baseline signal S0. More...

virtual const double &	GetS0 ()
	Returns the pre-contrast baseline signal S0. More...

std::string	GetModelDisplayName () const override
	Returns the model display name. More...

std::string	GetModelType () const override
	Returns the model type. More...

std::string	GetXAxisName () const override
	Returns the X axis name. More...

std::string	GetXAxisUnit () const override
	Returns the X axis unit. More...

std::string	GetYAxisName () const override
	Returns the Y axis name. More...

std::string	GetYAxisUnit () const override
	Returns the Y axis unit. More...

ParameterNamesType	GetParameterNames () const override
	Returns the names of all fitted parameters (A, kep, kel, BAT). More...

ParametersSizeType	GetNumberOfParameters () const override
	Returns the number of fitted parameters (4). More...

ParamterUnitMapType	GetParameterUnits () const override
	Returns the unit map for all fitted parameters. More...

ParameterNamesType	GetStaticParameterNames () const override
	Returns the names of all static parameters (tau, S0). More...

ParametersSizeType	GetNumberOfStaticParameters () const override
	Returns the number of static parameters (2). More...

ParamterUnitMapType	GetStaticParameterUnits () const override
	Returns the unit map for all static parameters. More...

Public Member Functions inherited from mitk::ModelBase
ParamterScaleMapType	GetParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined parameter. More...

DerivedParamterScaleMapType	GetDerivedParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined derived parameter. More...

DerivedParamterUnitMapType	GetDerivedParameterUnits () const override
	Default implementation returns no unit string ("") for every defined derived parameter. More...

FunctionStringType	GetFunctionString () const override
	Default implementation returns an empty function string. More...

ModellClassIDType	GetClassID () const override
	Default implementation returns the class name of the concrete instance as ID. More...

std::string	GetXName () const override
	Default implementation returns an empty string. More...

DerivedParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

DerivedParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

void	SetStaticParameters (const StaticParameterMapType &parameters, bool allParameters=true)
	Sets the static parameters of the model before it is used. More...

StaticParameterMapType	GetStaticParameters () const
	Retrieves the static parameters of the model (e.g. for serialization). More...

DerivedParameterMapType	GetDerivedParameters (const ParametersType &parameters) const
	Computes all derived parameters for the given model parameters. More...

virtual void	SetTimeGrid (const TimeGridType &grid)
	Sets the time grid of the model. More...

virtual const TimeGridType &	GetTimeGrid ()
	Gets the time grid of the model. More...

ModelResultType	GetSignal (const ParametersType &parameters) const
	Computes and returns the model signal for the given parameters. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const std::string	MODEL_DISPLAY_NAME
	Display name: "Descriptive Pharmacokinetic Brix Model". More...

static const std::string	NAME_PARAMETER_A
	Name of parameter A (amplitude, unitless). More...

static const std::string	NAME_PARAMETER_kep
	Name of parameter kep (exchange rate constant, 1/min). More...

static const std::string	NAME_PARAMETER_kel
	Name of parameter kel (elimination rate constant, 1/min). More...

static const std::string	NAME_PARAMETER_BAT
	Name of parameter BAT (bolus arrival time, min). More...

static const std::string	NAME_STATIC_PARAMETER_tau
	Name of static parameter tau (injection time, min). More...

static const std::string	NAME_STATIC_PARAMETER_s0
	Name of static parameter S0 (pre-contrast signal, a.u.). More...

static const std::string	UNIT_PARAMETER_A
	Unit for parameter A ("a.u."). More...

static const std::string	UNIT_PARAMETER_kep
	Unit for parameter kep ("1/min"). More...

static const std::string	UNIT_PARAMETER_kel
	Unit for parameter kel ("1/min"). More...

static const std::string	UNIT_PARAMETER_BAT
	Unit for parameter BAT ("min"). More...

static const std::string	UNIT_STATIC_PARAMETER_tau
	Unit for static parameter tau ("min"). More...

static const std::string	UNIT_STATIC_PARAMETER_s0
	Unit for static parameter S0 ("a.u."). More...

static const unsigned int	POSITION_PARAMETER_A
	Index position of parameter A in the parameter array. More...

static const unsigned int	POSITION_PARAMETER_kep
	Index position of parameter kep in the parameter array. More...

static const unsigned int	POSITION_PARAMETER_kel
	Index position of parameter kel in the parameter array. More...

static const unsigned int	POSITION_PARAMETER_BAT
	Index position of parameter BAT in the parameter array. More...

static const unsigned int	NUMBER_OF_PARAMETERS
	Total number of fitted parameters (4). More...

static const unsigned int	NUMBER_OF_STATIC_PARAMETERS
	Total number of static parameters (2: tau, S0). More...

static const std::string	MODEL_TYPE
	Model type identifier ("Perfusion.MR"). More...

static const std::string	X_AXIS_NAME
	X axis display name ("Time"). More...

static const std::string	X_AXIS_UNIT
	X axis unit ("s"). More...

static const std::string	Y_AXIS_NAME
	Y axis display name ("Signal"). More...

static const std::string	Y_AXIS_UNIT
	Y axis unit ("a.u."). More...

Protected Member Functions
	DescriptivePharmacokineticBrixModel ()

	DescriptivePharmacokineticBrixModel (const DescriptivePharmacokineticBrixModel &other)

	~DescriptivePharmacokineticBrixModel () override

ModelResultType	ComputeModelfunction (const ParametersType &parameters) const override
	Computes the model function for the given parameters. More...

void	SetStaticParameter (const ParameterNameType &name, const StaticParameterValuesType &values) override
	Sets a single static parameter by name. More...

StaticParameterValuesType	GetStaticParameterValue (const ParameterNameType &name) const override
	Retrieves a single static parameter value by name. More...

void	PrintSelf (std::ostream &os, ::itk::Indent indent) const override

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::ModelBase
virtual bool	ValidateModel (std::string &error) const
	Validates whether the model is in a valid state to compute the signal. More...

virtual DerivedParameterMapType	ComputeDerivedParameters (const ParametersType &parameters) const
	Computes derived parameters from the given model parameters. More...

	ModelBase ()

	~ModelBase () override

	ModelBase (const ModelBase &source)

void	PrintSelf (std::ostream &os, ::itk::Indent indent) const override

Protected Member Functions inherited from mitk::ModelTraitsInterface
	ModelTraitsInterface ()

virtual	~ModelTraitsInterface ()

Additional Inherited Members
Protected Attributes inherited from mitk::ModelBase
TimeGridType	m_TimeGrid

Detailed Description

Descriptive pharmacokinetic model for MR perfusion according to Brix et al.

This model describes the MR signal enhancement after contrast agent injection using a phenomenological approach. The model function is defined as:

S(t) = S0 * {1 + (A/tau) * [ (kep*exp(-kel*(t-BAT)) / (kel*(kep-kel))) * (exp(kel*tx) - 1)

- (exp(-kep*(t-BAT)) / (kep-kel)) * (exp(kep*tx) - 1) ]}

where tx = min(t - BAT, tau) for t > BAT.

Model parameters (fitted): A (amplitude), kep (exchange rate constant), kel (elimination rate constant), BAT (bolus arrival time). Static parameters: tau (injection time), S0 (pre-contrast baseline signal).

Model type: "Perfusion.MR"

See also: DescriptivePharmacokineticBrixModelFactory, DescriptivePharmacokineticBrixModelParameterizer, DescriptivePharmacokineticBrixModelValueBasedParameterizer

Definition at line 44 of file mitkDescriptivePharmacokineticBrixModel.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::DescriptivePharmacokineticBrixModel::ConstPointer

Definition at line 51 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::DescriptivePharmacokineticBrixModel::Pointer

Definition at line 50 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ Self

typedef DescriptivePharmacokineticBrixModel mitk::DescriptivePharmacokineticBrixModel::Self

Definition at line 48 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ Superclass

typedef ModelBase mitk::DescriptivePharmacokineticBrixModel::Superclass

Definition at line 49 of file mitkDescriptivePharmacokineticBrixModel.h.

Constructor & Destructor Documentation

◆ DescriptivePharmacokineticBrixModel() [1/2]

mitk::DescriptivePharmacokineticBrixModel::DescriptivePharmacokineticBrixModel ( )

protected

◆ DescriptivePharmacokineticBrixModel() [2/2]

mitk::DescriptivePharmacokineticBrixModel::DescriptivePharmacokineticBrixModel ( const DescriptivePharmacokineticBrixModel & other )

protected

◆ ~DescriptivePharmacokineticBrixModel()

mitk::DescriptivePharmacokineticBrixModel::~DescriptivePharmacokineticBrixModel ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::DescriptivePharmacokineticBrixModel::Clone ( ) const

◆ ComputeModelfunction()

ModelResultType mitk::DescriptivePharmacokineticBrixModel::ComputeModelfunction ( const ParametersType & parameters ) const

overrideprotectedvirtual

Computes the model function for the given parameters.

Must be implemented by derived classes.

Parameters

parameters The model parameters.

Returns: The computed model result.

Implements mitk::ModelBase.

◆ GetClassName()

virtual const char* mitk::DescriptivePharmacokineticBrixModel::GetClassName ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from mitk::ModelBase.

◆ GetModelDisplayName()

std::string mitk::DescriptivePharmacokineticBrixModel::GetModelDisplayName ( ) const

overridevirtual

Returns the model display name.

Returns: "Descriptive Pharmacokinetic Brix Model".

Reimplemented from mitk::ModelBase.

◆ GetModelType()

std::string mitk::DescriptivePharmacokineticBrixModel::GetModelType ( ) const

overridevirtual

Returns the model type.

Returns: "Perfusion.MR".

Reimplemented from mitk::ModelBase.

◆ GetNumberOfParameters()

ParametersSizeType mitk::DescriptivePharmacokineticBrixModel::GetNumberOfParameters ( ) const

overridevirtual

Returns the number of fitted parameters (4).

Returns: Number of parameters.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfStaticParameters()

ParametersSizeType mitk::DescriptivePharmacokineticBrixModel::GetNumberOfStaticParameters ( ) const

overridevirtual

Returns the number of static parameters (2).

Returns: Number of static parameters.

Implements mitk::ModelBase.

◆ GetParameterNames()

ParameterNamesType mitk::DescriptivePharmacokineticBrixModel::GetParameterNames ( ) const

overridevirtual

Returns the names of all fitted parameters (A, kep, kel, BAT).

Returns: Vector of parameter name strings.

Implements mitk::ModelTraitsInterface.

◆ GetParameterUnits()

ParamterUnitMapType mitk::DescriptivePharmacokineticBrixModel::GetParameterUnits ( ) const

overridevirtual

Returns the unit map for all fitted parameters.

Returns: Map of parameter names to unit strings.

Reimplemented from mitk::ModelBase.

◆ GetS0()

virtual const double& mitk::DescriptivePharmacokineticBrixModel::GetS0 ( )

virtual

Returns the pre-contrast baseline signal S0.

◆ GetStaticParameterNames()

ParameterNamesType mitk::DescriptivePharmacokineticBrixModel::GetStaticParameterNames ( ) const

overridevirtual

Returns the names of all static parameters (tau, S0).

Returns: Vector of static parameter name strings.

Implements mitk::ModelBase.

◆ GetStaticParameterUnits()

ParamterUnitMapType mitk::DescriptivePharmacokineticBrixModel::GetStaticParameterUnits ( ) const

overridevirtual

Returns the unit map for all static parameters.

Returns: Map of static parameter names to unit strings.

Reimplemented from mitk::ModelBase.

◆ GetStaticParameterValue()

StaticParameterValuesType mitk::DescriptivePharmacokineticBrixModel::GetStaticParameterValue ( const ParameterNameType & name ) const

overrideprotectedvirtual

Retrieves a single static parameter value by name.

Helper function called by GetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

◆ GetTau()

virtual const double& mitk::DescriptivePharmacokineticBrixModel::GetTau ( )

virtual

Returns the injection time tau in minutes.

◆ GetXAxisName()

std::string mitk::DescriptivePharmacokineticBrixModel::GetXAxisName ( ) const

overridevirtual

Returns the X axis name.

Returns: "Time".

Reimplemented from mitk::ModelBase.

◆ GetXAxisUnit()

std::string mitk::DescriptivePharmacokineticBrixModel::GetXAxisUnit ( ) const

overridevirtual

Returns the X axis unit.

Returns: "s".

Reimplemented from mitk::ModelBase.

◆ GetYAxisName()

std::string mitk::DescriptivePharmacokineticBrixModel::GetYAxisName ( ) const

overridevirtual

Returns the Y axis name.

Returns: "Signal".

Reimplemented from mitk::ModelBase.

◆ GetYAxisUnit()

std::string mitk::DescriptivePharmacokineticBrixModel::GetYAxisUnit ( ) const

overridevirtual

Returns the Y axis unit.

Returns: "a.u.".

Reimplemented from mitk::ModelBase.

◆ mitkCloneMacro()

mitk::DescriptivePharmacokineticBrixModel::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::DescriptivePharmacokineticBrixModel::New ( )

static

Method for creation through the object factory.

◆ PrintSelf()

void mitk::DescriptivePharmacokineticBrixModel::PrintSelf	(	std::ostream &	os,
		::itk::Indent	indent
	)		const

overrideprotected

◆ SetS0()

virtual void mitk::DescriptivePharmacokineticBrixModel::SetS0 ( double _arg )

virtual

Sets the pre-contrast baseline signal S0.

Parameters

[in] _arg The baseline signal value. Default is 1.

◆ SetStaticParameter()

void mitk::DescriptivePharmacokineticBrixModel::SetStaticParameter	(	const ParameterNameType &	name,
		const StaticParameterValuesType &	values
	)

overrideprotectedvirtual

Sets a single static parameter by name.

Helper function called by SetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

◆ SetTau()

virtual void mitk::DescriptivePharmacokineticBrixModel::SetTau ( double _arg )

virtual

Sets the injection time tau in minutes.

Parameters

[in] _arg The injection time value.

Member Data Documentation

◆ MODEL_DISPLAY_NAME

const std::string mitk::DescriptivePharmacokineticBrixModel::MODEL_DISPLAY_NAME

static

Display name: "Descriptive Pharmacokinetic Brix Model".

Definition at line 61 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ MODEL_TYPE

const std::string mitk::DescriptivePharmacokineticBrixModel::MODEL_TYPE

static

Model type identifier ("Perfusion.MR").

Definition at line 107 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NAME_PARAMETER_A

const std::string mitk::DescriptivePharmacokineticBrixModel::NAME_PARAMETER_A

static

Name of parameter A (amplitude, unitless).

Definition at line 64 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NAME_PARAMETER_BAT

const std::string mitk::DescriptivePharmacokineticBrixModel::NAME_PARAMETER_BAT

static

Name of parameter BAT (bolus arrival time, min).

Definition at line 70 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NAME_PARAMETER_kel

const std::string mitk::DescriptivePharmacokineticBrixModel::NAME_PARAMETER_kel

static

Name of parameter kel (elimination rate constant, 1/min).

Definition at line 68 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NAME_PARAMETER_kep

const std::string mitk::DescriptivePharmacokineticBrixModel::NAME_PARAMETER_kep

static

Name of parameter kep (exchange rate constant, 1/min).

Definition at line 66 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NAME_STATIC_PARAMETER_s0

const std::string mitk::DescriptivePharmacokineticBrixModel::NAME_STATIC_PARAMETER_s0

static

Name of static parameter S0 (pre-contrast signal, a.u.).

Definition at line 75 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NAME_STATIC_PARAMETER_tau

const std::string mitk::DescriptivePharmacokineticBrixModel::NAME_STATIC_PARAMETER_tau

static

Name of static parameter tau (injection time, min).

Definition at line 73 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NUMBER_OF_PARAMETERS

const unsigned int mitk::DescriptivePharmacokineticBrixModel::NUMBER_OF_PARAMETERS

static

Total number of fitted parameters (4).

Definition at line 101 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ NUMBER_OF_STATIC_PARAMETERS

const unsigned int mitk::DescriptivePharmacokineticBrixModel::NUMBER_OF_STATIC_PARAMETERS

static

Total number of static parameters (2: tau, S0).

Definition at line 104 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ POSITION_PARAMETER_A

const unsigned int mitk::DescriptivePharmacokineticBrixModel::POSITION_PARAMETER_A

static

Index position of parameter A in the parameter array.

Definition at line 92 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ POSITION_PARAMETER_BAT

const unsigned int mitk::DescriptivePharmacokineticBrixModel::POSITION_PARAMETER_BAT

static

Index position of parameter BAT in the parameter array.

Definition at line 98 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ POSITION_PARAMETER_kel

const unsigned int mitk::DescriptivePharmacokineticBrixModel::POSITION_PARAMETER_kel

static

Index position of parameter kel in the parameter array.

Definition at line 96 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ POSITION_PARAMETER_kep

const unsigned int mitk::DescriptivePharmacokineticBrixModel::POSITION_PARAMETER_kep

static

Index position of parameter kep in the parameter array.

Definition at line 94 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ UNIT_PARAMETER_A

const std::string mitk::DescriptivePharmacokineticBrixModel::UNIT_PARAMETER_A

static

Unit for parameter A ("a.u.").

Definition at line 78 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ UNIT_PARAMETER_BAT

const std::string mitk::DescriptivePharmacokineticBrixModel::UNIT_PARAMETER_BAT

static

Unit for parameter BAT ("min").

Definition at line 84 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ UNIT_PARAMETER_kel

const std::string mitk::DescriptivePharmacokineticBrixModel::UNIT_PARAMETER_kel

static

Unit for parameter kel ("1/min").

Definition at line 82 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ UNIT_PARAMETER_kep

const std::string mitk::DescriptivePharmacokineticBrixModel::UNIT_PARAMETER_kep

static

Unit for parameter kep ("1/min").

Definition at line 80 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ UNIT_STATIC_PARAMETER_s0

const std::string mitk::DescriptivePharmacokineticBrixModel::UNIT_STATIC_PARAMETER_s0

static

Unit for static parameter S0 ("a.u.").

Definition at line 89 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ UNIT_STATIC_PARAMETER_tau

const std::string mitk::DescriptivePharmacokineticBrixModel::UNIT_STATIC_PARAMETER_tau

static

Unit for static parameter tau ("min").

Definition at line 87 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ X_AXIS_NAME

const std::string mitk::DescriptivePharmacokineticBrixModel::X_AXIS_NAME

static

X axis display name ("Time").

Definition at line 110 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ X_AXIS_UNIT

const std::string mitk::DescriptivePharmacokineticBrixModel::X_AXIS_UNIT

static

X axis unit ("s").

Definition at line 112 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ Y_AXIS_NAME

const std::string mitk::DescriptivePharmacokineticBrixModel::Y_AXIS_NAME

static

Y axis display name ("Signal").

Definition at line 114 of file mitkDescriptivePharmacokineticBrixModel.h.

◆ Y_AXIS_UNIT

const std::string mitk::DescriptivePharmacokineticBrixModel::Y_AXIS_UNIT

static

Y axis unit ("a.u.").

Definition at line 116 of file mitkDescriptivePharmacokineticBrixModel.h.

The documentation for this class was generated from the following file:

mitkDescriptivePharmacokineticBrixModel.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ Pointer

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ DescriptivePharmacokineticBrixModel() [1/2]

◆ DescriptivePharmacokineticBrixModel() [2/2]

◆ ~DescriptivePharmacokineticBrixModel()

Member Function Documentation

◆ Clone()

◆ ComputeModelfunction()

◆ GetClassName()

◆ GetModelDisplayName()

◆ GetModelType()

◆ GetNumberOfParameters()

◆ GetNumberOfStaticParameters()

◆ GetParameterNames()

◆ GetParameterUnits()

◆ GetS0()

◆ GetStaticParameterNames()

◆ GetStaticParameterUnits()

◆ GetStaticParameterValue()

◆ GetTau()

◆ GetXAxisName()

◆ GetXAxisUnit()

◆ GetYAxisName()

◆ GetYAxisUnit()

◆ mitkCloneMacro()

◆ New()

◆ PrintSelf()

◆ SetS0()

◆ SetStaticParameter()

◆ SetTau()

Member Data Documentation

◆ MODEL_DISPLAY_NAME

◆ MODEL_TYPE

◆ NAME_PARAMETER_A

◆ NAME_PARAMETER_BAT

◆ NAME_PARAMETER_kel

◆ NAME_PARAMETER_kep

◆ NAME_STATIC_PARAMETER_s0

◆ NAME_STATIC_PARAMETER_tau

◆ NUMBER_OF_PARAMETERS

◆ NUMBER_OF_STATIC_PARAMETERS

◆ POSITION_PARAMETER_A

◆ POSITION_PARAMETER_BAT

◆ POSITION_PARAMETER_kel

◆ POSITION_PARAMETER_kep

◆ UNIT_PARAMETER_A

◆ UNIT_PARAMETER_BAT

◆ UNIT_PARAMETER_kel

◆ UNIT_PARAMETER_kep

◆ UNIT_STATIC_PARAMETER_s0

◆ UNIT_STATIC_PARAMETER_tau

◆ X_AXIS_NAME

◆ X_AXIS_UNIT

◆ Y_AXIS_NAME

◆ Y_AXIS_UNIT
