Model representing a simple linear function: y(x) = b * x + y0. More...

#include <mitkLinearModel.h>

Inheritance diagram for mitk::LinearModel:

[legend]

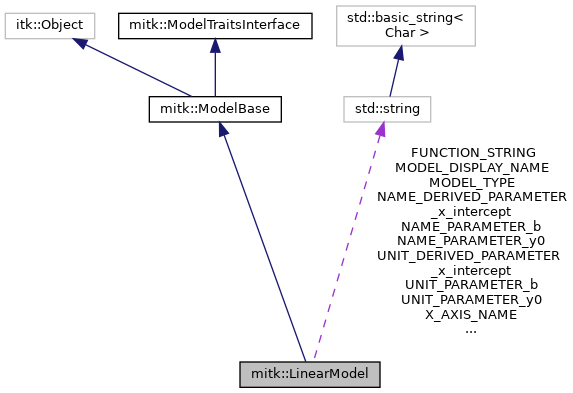

Collaboration diagram for mitk::LinearModel:

[legend]

Public Types
typedef LinearModel	Self

typedef mitk::ModelBase	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::ParameterNameType	ParameterNameType

typedef Superclass::ParametersSizeType	ParametersSizeType

Public Types inherited from mitk::ModelBase
typedef ModelBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef ModelTraitsInterface::ModelResultType	ModelResultType

typedef ModelTraitsInterface::ParameterValueType	ParameterValueType

typedef ModelTraitsInterface::ParametersType	ParametersType

typedef itk::Array< double >	TimeGridType
	Type defining the time grid used by models. More...

typedef ModelTraitsInterface::ParameterNameType	ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType	ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType	ParametersSizeType

typedef ModelTraitsInterface::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType	DerivedParametersSizeType

typedef double	StaticParameterValueType

typedef std::vector< StaticParameterValueType >	StaticParameterValuesType

typedef std::map< ParameterNameType, StaticParameterValuesType >	StaticParameterMapType

typedef double	DerivedParameterValueType

typedef std::map< ParameterNameType, DerivedParameterValueType >	DerivedParameterMapType

Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double >	ModelResultType
	Type representing the model output signal as an array of doubles. More...

using	ParameterValueType = double
	Type of a single parameter value. More...

typedef itk::Array< ParameterValueType >	ParametersType
	Type representing a vector of parameter values. More...

typedef std::string	ParameterNameType
	Type used for parameter names. More...

typedef std::vector< ParameterNameType >	ParameterNamesType
	Type for a list of parameter names. More...

typedef ParametersType::SizeValueType	ParametersSizeType
	Type for the count of parameters. More...

typedef ParameterNamesType	DerivedParameterNamesType
	Type for a list of derived parameter names. More...

typedef ParametersSizeType	DerivedParametersSizeType
	Type for the count of derived parameters. More...

typedef std::map< ParameterNameType, double >	ParamterScaleMapType
	Map type associating parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	ParamterUnitMapType
	Map type associating parameter names to their unit strings. More...

typedef std::map< ParameterNameType, double >	DerivedParamterScaleMapType
	Map type associating derived parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	DerivedParamterUnitMapType
	Map type associating derived parameter names to their unit strings. More...

typedef std::string	FunctionStringType
	Type for the function string representation of the model. More...

typedef std::string	ModellClassIDType
	Type for the unique class identifier of the model. More...

Public Member Functions
Pointer	Clone () const

virtual const char *	GetClassName () const

ParameterNamesType	GetParameterNames () const override
	Returns the names of all model parameters. More...

ParametersSizeType	GetNumberOfParameters () const override
	Returns the number of model parameters (2). More...

ParamterUnitMapType	GetParameterUnits () const override
	Returns the unit map for model parameters. More...

ParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters. More...

ParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters (1). More...

ParamterUnitMapType	GetDerivedParameterUnits () const override
	Returns the unit map for derived parameters. More...

ParameterNamesType	GetStaticParameterNames () const override
	Returns the names of static parameters (empty for this model). More...

ParametersSizeType	GetNumberOfStaticParameters () const override
	Returns the number of static parameters (0). More...

std::string	GetModelDisplayName () const override
	Returns the display name "Linear Model". More...

std::string	GetModelType () const override
	Returns the model type string. More...

FunctionStringType	GetFunctionString () const override
	Returns the function string representing the model equation. More...

std::string	GetXName () const override
	Returns the name of the independent variable. More...

std::string	GetXAxisName () const override
	Returns the x-axis display name. More...

std::string	GetXAxisUnit () const override
	Returns the x-axis unit. More...

std::string	GetYAxisName () const override
	Returns the y-axis display name. More...

std::string	GetYAxisUnit () const override
	Returns the y-axis unit. More...

Public Member Functions inherited from mitk::ModelBase
ParamterScaleMapType	GetParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined parameter. More...

ParamterUnitMapType	GetParameterUnits () const override
	Default implementation returns no unit string ("") for every defined parameter. More...

DerivedParamterScaleMapType	GetDerivedParameterScales () const override
	Default implementation returns a scale of 1.0 for every defined derived parameter. More...

DerivedParamterUnitMapType	GetDerivedParameterUnits () const override
	Default implementation returns no unit string ("") for every defined derived parameter. More...

std::string	GetModelDisplayName () const override
	Default implementation returns GetClassID as display name. More...

std::string	GetModelType () const override
	Default implementation returns "Unknown" as model type. More...

FunctionStringType	GetFunctionString () const override
	Default implementation returns an empty function string. More...

ModellClassIDType	GetClassID () const override
	Default implementation returns the class name of the concrete instance as ID. More...

std::string	GetXName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetXAxisUnit () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisName () const override
	Default implementation returns an empty string. More...

std::string	GetYAxisUnit () const override
	Default implementation returns an empty string. More...

virtual ParamterUnitMapType	GetStaticParameterUnits () const
	Default implementation returns no unit string ("") for every defined static parameter. More...

DerivedParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

DerivedParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

void	SetStaticParameters (const StaticParameterMapType &parameters, bool allParameters=true)
	Sets the static parameters of the model before it is used. More...

StaticParameterMapType	GetStaticParameters () const
	Retrieves the static parameters of the model (e.g. for serialization). More...

DerivedParameterMapType	GetDerivedParameters (const ParametersType &parameters) const
	Computes all derived parameters for the given model parameters. More...

virtual void	SetTimeGrid (const TimeGridType &grid)
	Sets the time grid of the model. More...

virtual const TimeGridType &	GetTimeGrid ()
	Gets the time grid of the model. More...

ModelResultType	GetSignal (const ParametersType &parameters) const
	Computes and returns the model signal for the given parameters. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const std::string	NAME_PARAMETER_y0
	Name string for the y-intercept parameter ("y-intercept"). More...

static const std::string	NAME_PARAMETER_b
	Name string for the slope parameter ("slope"). More...

static const unsigned int	NUMBER_OF_PARAMETERS
	Total number of model parameters (2). More...

static const std::string	UNIT_PARAMETER_y0
	Unit of the y-intercept parameter. More...

static const std::string	UNIT_PARAMETER_b
	Unit of the slope parameter. More...

static const unsigned int	POSITION_PARAMETER_y0
	Index position of y-intercept in the parameter vector. More...

static const unsigned int	POSITION_PARAMETER_b
	Index position of slope in the parameter vector. More...

static const std::string	NAME_DERIVED_PARAMETER_x_intercept
	Name string for the derived x-intercept parameter. More...

static const unsigned int	NUMBER_OF_DERIVED_PARAMETERS
	Total number of derived parameters (1). More...

static const std::string	UNIT_DERIVED_PARAMETER_x_intercept
	Unit of the derived x-intercept parameter. More...

static const unsigned int	NUMBER_OF_STATIC_PARAMETERS
	Total number of static parameters (0). More...

static const std::string	MODEL_DISPLAY_NAME
	Display name of this model ("Linear Model"). More...

static const std::string	MODEL_TYPE
	Type category of this model. More...

static const std::string	FUNCTION_STRING
	Function string representation of the model equation. More...

static const std::string	X_NAME
	Name of the independent variable. More...

static const std::string	X_AXIS_NAME
	Display name for the x-axis. More...

static const std::string	X_AXIS_UNIT
	Unit for the x-axis. More...

static const std::string	Y_AXIS_NAME
	Display name for the y-axis. More...

static const std::string	Y_AXIS_UNIT
	Unit for the y-axis. More...

Protected Member Functions
	LinearModel ()

	~LinearModel () override

	LinearModel (const LinearModel &source)

	mitkCloneMacro (LinearModel)

ModelResultType	ComputeModelfunction (const ParametersType &parameters) const override
	Computes the model function for the given parameters. More...

DerivedParameterMapType	ComputeDerivedParameters (const mitk::ModelBase::ParametersType &parameters) const override
	Computes derived parameters from the given model parameters. More...

void	SetStaticParameter (const ParameterNameType &name, const StaticParameterValuesType &values) override
	Sets a single static parameter by name. More...

StaticParameterValuesType	GetStaticParameterValue (const ParameterNameType &name) const override
	Retrieves a single static parameter value by name. More...

Protected Member Functions inherited from mitk::ModelBase
virtual bool	ValidateModel (std::string &error) const
	Validates whether the model is in a valid state to compute the signal. More...

	ModelBase ()

	~ModelBase () override

	ModelBase (const ModelBase &source)

void	PrintSelf (std::ostream &os, ::itk::Indent indent) const override

Protected Member Functions inherited from mitk::ModelTraitsInterface
	ModelTraitsInterface ()

virtual	~ModelTraitsInterface ()

Additional Inherited Members
Protected Attributes inherited from mitk::ModelBase
TimeGridType	m_TimeGrid

Detailed Description

Model representing a simple linear function: y(x) = b * x + y0.

This model implements a linear relationship between the independent variable x and the dependent variable y. It has two parameters (slope b and intercept y0) and one derived parameter (x-intercept = -y0/b).

See also: LinearModelFactory, LinearModelParameterizer, ModelBase

Definition at line 33 of file mitkLinearModel.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::LinearModel::ConstPointer

Definition at line 40 of file mitkLinearModel.h.

◆ ParameterNameType

typedef Superclass::ParameterNameType mitk::LinearModel::ParameterNameType

Definition at line 42 of file mitkLinearModel.h.

◆ ParametersSizeType

typedef Superclass::ParametersSizeType mitk::LinearModel::ParametersSizeType

Definition at line 43 of file mitkLinearModel.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::LinearModel::Pointer

Definition at line 39 of file mitkLinearModel.h.

◆ Self

typedef LinearModel mitk::LinearModel::Self

Definition at line 37 of file mitkLinearModel.h.

◆ Superclass

typedef mitk::ModelBase mitk::LinearModel::Superclass

Definition at line 38 of file mitkLinearModel.h.

Constructor & Destructor Documentation

◆ LinearModel() [1/2]

mitk::LinearModel::LinearModel ( )

inlineprotected

Definition at line 172 of file mitkLinearModel.h.

◆ ~LinearModel()

mitk::LinearModel::~LinearModel ( )

inlineoverrideprotected

Definition at line 173 of file mitkLinearModel.h.

◆ LinearModel() [2/2]

mitk::LinearModel::LinearModel ( const LinearModel & source )

protected

Member Function Documentation

◆ Clone()

Pointer mitk::LinearModel::Clone ( ) const

◆ ComputeDerivedParameters()

DerivedParameterMapType mitk::LinearModel::ComputeDerivedParameters ( const mitk::ModelBase::ParametersType & parameters ) const

overrideprotectedvirtual

Computes derived parameters from the given model parameters.

Helper function called by GetDerivedParameters(). Implement in derived classes to realize the concrete computation of derived parameters.

Remarks: Default implementation has no derived parameters.

Reimplemented from mitk::ModelBase.

◆ ComputeModelfunction()

ModelResultType mitk::LinearModel::ComputeModelfunction ( const ParametersType & parameters ) const

overrideprotectedvirtual

Computes the model function for the given parameters.

Must be implemented by derived classes.

Parameters

parameters The model parameters.

Returns: The computed model result.

Implements mitk::ModelBase.

◆ GetClassName()

virtual const char* mitk::LinearModel::GetClassName ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from mitk::ModelBase.

◆ GetDerivedParameterNames()

ParameterNamesType mitk::LinearModel::GetDerivedParameterNames ( ) const

overridevirtual

Returns the names of derived parameters.

Returns: Vector containing "x-intercept".

Implements mitk::ModelTraitsInterface.

◆ GetDerivedParameterUnits()

ParamterUnitMapType mitk::LinearModel::GetDerivedParameterUnits ( ) const

overridevirtual

Returns the unit map for derived parameters.

Returns: Map of derived parameter names to their unit strings.

Implements mitk::ModelTraitsInterface.

◆ GetFunctionString()

FunctionStringType mitk::LinearModel::GetFunctionString ( ) const

overridevirtual

Returns the function string representing the model equation.

Returns: The function string.

Implements mitk::ModelTraitsInterface.

◆ GetModelDisplayName()

std::string mitk::LinearModel::GetModelDisplayName ( ) const

overridevirtual

Returns the display name "Linear Model".

Returns: The model display name.

Implements mitk::ModelTraitsInterface.

◆ GetModelType()

std::string mitk::LinearModel::GetModelType ( ) const

overridevirtual

Returns the model type string.

Returns: The model type.

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfDerivedParameters()

ParametersSizeType mitk::LinearModel::GetNumberOfDerivedParameters ( ) const

overridevirtual

Returns the number of derived parameters (1).

Returns: 1

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfParameters()

ParametersSizeType mitk::LinearModel::GetNumberOfParameters ( ) const

overridevirtual

Returns the number of model parameters (2).

Returns: 2

Implements mitk::ModelTraitsInterface.

◆ GetNumberOfStaticParameters()

ParametersSizeType mitk::LinearModel::GetNumberOfStaticParameters ( ) const

overridevirtual

Returns the number of static parameters (0).

Returns: 0

Implements mitk::ModelBase.

◆ GetParameterNames()

ParameterNamesType mitk::LinearModel::GetParameterNames ( ) const

overridevirtual

Returns the names of all model parameters.

Returns: Vector containing "y-intercept" and "slope".

Implements mitk::ModelTraitsInterface.

◆ GetParameterUnits()

ParamterUnitMapType mitk::LinearModel::GetParameterUnits ( ) const

overridevirtual

Returns the unit map for model parameters.

Returns: Map of parameter names to their unit strings.

Implements mitk::ModelTraitsInterface.

◆ GetStaticParameterNames()

ParameterNamesType mitk::LinearModel::GetStaticParameterNames ( ) const

overridevirtual

Returns the names of static parameters (empty for this model).

Returns: Empty vector.

Implements mitk::ModelBase.

◆ GetStaticParameterValue()

StaticParameterValuesType mitk::LinearModel::GetStaticParameterValue ( const ParameterNameType & name ) const

overrideprotectedvirtual

Retrieves a single static parameter value by name.

Helper function called by GetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

◆ GetXAxisName()

std::string mitk::LinearModel::GetXAxisName ( ) const

overridevirtual

Returns the x-axis display name.

Returns: The x-axis name.

Implements mitk::ModelTraitsInterface.

◆ GetXAxisUnit()

std::string mitk::LinearModel::GetXAxisUnit ( ) const

overridevirtual

Returns the x-axis unit.

Returns: The x-axis unit string.

Implements mitk::ModelTraitsInterface.

◆ GetXName()

std::string mitk::LinearModel::GetXName ( ) const

overridevirtual

Returns the name of the independent variable.

Returns: The x variable name.

Implements mitk::ModelTraitsInterface.

◆ GetYAxisName()

std::string mitk::LinearModel::GetYAxisName ( ) const

overridevirtual

Returns the y-axis display name.

Returns: The y-axis name.

Implements mitk::ModelTraitsInterface.

◆ GetYAxisUnit()

std::string mitk::LinearModel::GetYAxisUnit ( ) const

overridevirtual

Returns the y-axis unit.

Returns: The y-axis unit string.

Implements mitk::ModelTraitsInterface.

◆ mitkCloneMacro()

mitk::LinearModel::mitkCloneMacro ( LinearModel )

protected

◆ New()

static Pointer mitk::LinearModel::New ( )

static

Method for creation through the object factory.

◆ SetStaticParameter()

void mitk::LinearModel::SetStaticParameter	(	const ParameterNameType &	name,
		const StaticParameterValuesType &	values
	)

overrideprotectedvirtual

Sets a single static parameter by name.

Helper function called by SetStaticParameters(). Must be implemented in derived classes.

Implements mitk::ModelBase.

Member Data Documentation

◆ FUNCTION_STRING

const std::string mitk::LinearModel::FUNCTION_STRING

static

Function string representation of the model equation.

Definition at line 89 of file mitkLinearModel.h.

◆ MODEL_DISPLAY_NAME

const std::string mitk::LinearModel::MODEL_DISPLAY_NAME

static

Display name of this model ("Linear Model").

Definition at line 83 of file mitkLinearModel.h.

◆ MODEL_TYPE

const std::string mitk::LinearModel::MODEL_TYPE

static

Type category of this model.

Definition at line 86 of file mitkLinearModel.h.

◆ NAME_DERIVED_PARAMETER_x_intercept

const std::string mitk::LinearModel::NAME_DERIVED_PARAMETER_x_intercept

static

Name string for the derived x-intercept parameter.

Definition at line 71 of file mitkLinearModel.h.

◆ NAME_PARAMETER_b

const std::string mitk::LinearModel::NAME_PARAMETER_b

static

Name string for the slope parameter ("slope").

Definition at line 55 of file mitkLinearModel.h.

◆ NAME_PARAMETER_y0

const std::string mitk::LinearModel::NAME_PARAMETER_y0

static

Name string for the y-intercept parameter ("y-intercept").

Definition at line 53 of file mitkLinearModel.h.

◆ NUMBER_OF_DERIVED_PARAMETERS

const unsigned int mitk::LinearModel::NUMBER_OF_DERIVED_PARAMETERS

static

Total number of derived parameters (1).

Definition at line 74 of file mitkLinearModel.h.

◆ NUMBER_OF_PARAMETERS

const unsigned int mitk::LinearModel::NUMBER_OF_PARAMETERS

static

Total number of model parameters (2).

Definition at line 58 of file mitkLinearModel.h.

◆ NUMBER_OF_STATIC_PARAMETERS

const unsigned int mitk::LinearModel::NUMBER_OF_STATIC_PARAMETERS

static

Total number of static parameters (0).

Definition at line 80 of file mitkLinearModel.h.

◆ POSITION_PARAMETER_b

const unsigned int mitk::LinearModel::POSITION_PARAMETER_b

static

Index position of slope in the parameter vector.

Definition at line 68 of file mitkLinearModel.h.

◆ POSITION_PARAMETER_y0

const unsigned int mitk::LinearModel::POSITION_PARAMETER_y0

static

Index position of y-intercept in the parameter vector.

Definition at line 66 of file mitkLinearModel.h.

◆ UNIT_DERIVED_PARAMETER_x_intercept

const std::string mitk::LinearModel::UNIT_DERIVED_PARAMETER_x_intercept

static

Unit of the derived x-intercept parameter.

Definition at line 77 of file mitkLinearModel.h.

◆ UNIT_PARAMETER_b

const std::string mitk::LinearModel::UNIT_PARAMETER_b

static

Unit of the slope parameter.

Definition at line 63 of file mitkLinearModel.h.

◆ UNIT_PARAMETER_y0

const std::string mitk::LinearModel::UNIT_PARAMETER_y0

static

Unit of the y-intercept parameter.

Definition at line 61 of file mitkLinearModel.h.

◆ X_AXIS_NAME

const std::string mitk::LinearModel::X_AXIS_NAME

static

Display name for the x-axis.

Definition at line 95 of file mitkLinearModel.h.

◆ X_AXIS_UNIT

const std::string mitk::LinearModel::X_AXIS_UNIT

static

Unit for the x-axis.

Definition at line 98 of file mitkLinearModel.h.

◆ X_NAME

const std::string mitk::LinearModel::X_NAME

static

Name of the independent variable.

Definition at line 92 of file mitkLinearModel.h.

◆ Y_AXIS_NAME

const std::string mitk::LinearModel::Y_AXIS_NAME

static

Display name for the y-axis.

Definition at line 101 of file mitkLinearModel.h.

◆ Y_AXIS_UNIT

const std::string mitk::LinearModel::Y_AXIS_UNIT

static

Unit for the y-axis.

Definition at line 104 of file mitkLinearModel.h.

The documentation for this class was generated from the following file:

mitkLinearModel.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ ParameterNameType

◆ ParametersSizeType

◆ Pointer

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ LinearModel() [1/2]

◆ ~LinearModel()

◆ LinearModel() [2/2]

Member Function Documentation

◆ Clone()

◆ ComputeDerivedParameters()

◆ ComputeModelfunction()

◆ GetClassName()

◆ GetDerivedParameterNames()

◆ GetDerivedParameterUnits()

◆ GetFunctionString()

◆ GetModelDisplayName()

◆ GetModelType()

◆ GetNumberOfDerivedParameters()

◆ GetNumberOfParameters()

◆ GetNumberOfStaticParameters()

◆ GetParameterNames()

◆ GetParameterUnits()

◆ GetStaticParameterNames()

◆ GetStaticParameterValue()

◆ GetXAxisName()

◆ GetXAxisUnit()

◆ GetXName()

◆ GetYAxisName()

◆ GetYAxisUnit()

◆ mitkCloneMacro()

◆ New()

◆ SetStaticParameter()

Member Data Documentation

◆ FUNCTION_STRING

◆ MODEL_DISPLAY_NAME

◆ MODEL_TYPE

◆ NAME_DERIVED_PARAMETER_x_intercept

◆ NAME_PARAMETER_b

◆ NAME_PARAMETER_y0

◆ NUMBER_OF_DERIVED_PARAMETERS

◆ NUMBER_OF_PARAMETERS

◆ NUMBER_OF_STATIC_PARAMETERS

◆ POSITION_PARAMETER_b

◆ POSITION_PARAMETER_y0

◆ UNIT_DERIVED_PARAMETER_x_intercept

◆ UNIT_PARAMETER_b

◆ UNIT_PARAMETER_y0

◆ X_AXIS_NAME

◆ X_AXIS_UNIT

◆ X_NAME

◆ Y_AXIS_NAME

◆ Y_AXIS_UNIT
