Maps continuous image intensity values to discrete histogram bin indices. More...

#include <mitkIntensityQuantifier.h>

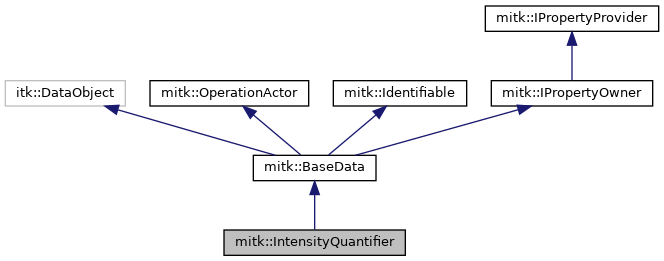

Inheritance diagram for mitk::IntensityQuantifier:

[legend]

Collaboration diagram for mitk::IntensityQuantifier:

[legend]

Public Member Functions
	mitkClassMacro (IntensityQuantifier, BaseData)

Pointer	Clone () const

	IntensityQuantifier ()

void	InitializeByMinimumMaximum (double minimum, double maximum, unsigned int bins)
	Initialize with explicit minimum, maximum, and number of bins. More...

void	InitializeByBinsizeAndBins (double minimum, unsigned int bins, double binsize)
	Initialize with explicit minimum, number of bins, and bin size. More...

void	InitializeByBinsizeAndMaximum (double minimum, double maximum, double binsize)
	Initialize with explicit minimum, maximum, and bin size. More...

void	InitializeByImage (const Image *image, unsigned int bins)
	Initialize from the full intensity range of an image. More...

void	InitializeByImageAndMaximum (const Image *image, double maximum, unsigned int bins)
	Initialize from an image with a specified maximum; minimum is computed from the image. More...

void	InitializeByImageAndMinimum (const Image *image, double minimum, unsigned int bins)
	Initialize from an image with a specified minimum; maximum is computed from the image. More...

void	InitializeByImageRegion (const Image image, const Image mask, unsigned int bins)
	Initialize from the intensity range of masked voxels in an image. More...

void	InitializeByImageRegionAndMinimum (const Image image, const Image mask, double minimum, unsigned int bins)
	Initialize from masked image region with a specified minimum; maximum is computed. More...

void	InitializeByImageRegionAndMaximum (const Image image, const Image mask, double maximum, unsigned int bins)
	Initialize from masked image region with a specified maximum; minimum is computed. More...

void	InitializeByImageAndBinsize (const Image *image, double binsize)
	Initialize from the full image intensity range using a specified bin size. More...

void	InitializeByImageAndBinsizeAndMinimum (const Image *image, double minimum, double binsize)
	Initialize from an image with specified minimum and bin size; maximum is computed. More...

void	InitializeByImageAndBinsizeAndMaximum (const Image *image, double maximum, double binsize)
	Initialize from an image with specified maximum and bin size; minimum is computed. More...

void	InitializeByImageRegionAndBinsize (const Image image, const Image mask, double binsize)
	Initialize from masked image region using a specified bin size. More...

void	InitializeByImageRegionAndBinsizeAndMinimum (const Image image, const Image mask, double minimum, double binsize)
	Initialize from masked image region with specified minimum and bin size; maximum is computed. More...

void	InitializeByImageRegionAndBinsizeAndMaximum (const Image image, const Image mask, double maximum, double binsize)
	Initialize from masked image region with specified maximum and bin size; minimum is computed. More...

unsigned int	IntensityToIndex (double intensity)
	Map a continuous intensity value to a histogram bin index. More...

double	IndexToMinimumIntensity (unsigned int index)
	Get the lower bound intensity of a histogram bin. More...

double	IndexToMeanIntensity (unsigned int index)
	Get the center intensity of a histogram bin. More...

double	IndexToMaximumIntensity (unsigned int index)
	Get the upper bound intensity of a histogram bin. More...

virtual bool	GetInitialized () const
	Get whether the quantifier has been initialized. More...

virtual unsigned int	GetBins () const
	Get the number of histogram bins. More...

virtual double	GetBinsize () const
	Get the bin size (width of each bin). More...

virtual double	GetMinimum () const
	Get the minimum intensity of the histogram range. More...

virtual double	GetMaximum () const
	Get the maximum intensity of the histogram range. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the RequestedRegion to the LargestPossibleRegion. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Determine whether the RequestedRegion is outside of the BufferedRegion. More...

bool	VerifyRequestedRegion () override
	Verify that the RequestedRegion is within the LargestPossibleRegion. More...

void	SetRequestedRegion (const itk::DataObject *) override
	Set the requested region from this data object to match the requested region of the data object passed in as a parameter. More...

bool	IsEmpty () const override
	Check whether the object contains data at any time step. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

virtual void	Expand (unsigned int timeSteps)
	Expand the TimeGeometry to a number of time steps. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether the object contains data at the specified time step. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Additional Inherited Members
Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Maps continuous image intensity values to discrete histogram bin indices.

IntensityQuantifier provides various initialization strategies for setting up an intensity-to-bin-index mapping. Initialization can be done by explicitly providing minimum, maximum, bin count, and/or bin size, or by computing these from an image (optionally restricted to a masked region).

After initialization, IntensityToIndex() maps a continuous intensity value to a zero-based bin index, and the IndexTo*Intensity() methods perform the reverse mapping.

See also: AbstractGlobalImageFeature

Definition at line 38 of file mitkIntensityQuantifier.h.

Constructor & Destructor Documentation

◆ IntensityQuantifier()

mitk::IntensityQuantifier::IntensityQuantifier ( )

Member Function Documentation

◆ Clone()

Pointer mitk::IntensityQuantifier::Clone ( ) const

◆ GetBins()

virtual unsigned int mitk::IntensityQuantifier::GetBins ( ) const

virtual

Get the number of histogram bins.

◆ GetBinsize()

virtual double mitk::IntensityQuantifier::GetBinsize ( ) const

virtual

Get the bin size (width of each bin).

◆ GetInitialized()

virtual bool mitk::IntensityQuantifier::GetInitialized ( ) const

virtual

Get whether the quantifier has been initialized.

◆ GetMaximum()

virtual double mitk::IntensityQuantifier::GetMaximum ( ) const

virtual

Get the maximum intensity of the histogram range.

◆ GetMinimum()

virtual double mitk::IntensityQuantifier::GetMinimum ( ) const

virtual

Get the minimum intensity of the histogram range.

◆ IndexToMaximumIntensity()

double mitk::IntensityQuantifier::IndexToMaximumIntensity ( unsigned int index )

Get the upper bound intensity of a histogram bin.

Parameters

[in] index Zero-based bin index.

Returns: The maximum intensity value for the given bin.

◆ IndexToMeanIntensity()

double mitk::IntensityQuantifier::IndexToMeanIntensity ( unsigned int index )

Get the center intensity of a histogram bin.

Parameters

[in] index Zero-based bin index.

Returns: The mean intensity value for the given bin.

◆ IndexToMinimumIntensity()

double mitk::IntensityQuantifier::IndexToMinimumIntensity ( unsigned int index )

Get the lower bound intensity of a histogram bin.

Parameters

[in] index Zero-based bin index.

Returns: The minimum intensity value for the given bin.

◆ InitializeByBinsizeAndBins()

void mitk::IntensityQuantifier::InitializeByBinsizeAndBins	(	double	minimum,
		unsigned int	bins,
		double	binsize
	)

Initialize with explicit minimum, number of bins, and bin size.

Maximum is computed as minimum + bins * binsize.

Parameters

[in]	minimum	The lower bound of the intensity range.
[in]	bins	Number of histogram bins.
[in]	binsize	Width of each bin.

◆ InitializeByBinsizeAndMaximum()

void mitk::IntensityQuantifier::InitializeByBinsizeAndMaximum	(	double	minimum,
		double	maximum,
		double	binsize
	)

Initialize with explicit minimum, maximum, and bin size.

The number of bins is computed as ceil((maximum - minimum) / binsize). The actual maximum may be adjusted to be an exact multiple of binsize.

Parameters

[in]	minimum	The lower bound of the intensity range.
[in]	maximum	The upper bound of the intensity range.
[in]	binsize	Width of each bin.

◆ InitializeByImage()

void mitk::IntensityQuantifier::InitializeByImage	(	const Image *	image,
		unsigned int	bins
	)

Initialize from the full intensity range of an image.

Parameters

[in]	image	The image from which to determine minimum and maximum intensities.
[in]	bins	Number of histogram bins.

◆ InitializeByImageAndBinsize()

void mitk::IntensityQuantifier::InitializeByImageAndBinsize	(	const Image *	image,
		double	binsize
	)

Initialize from the full image intensity range using a specified bin size.

Parameters

[in]	image	The image from which to determine minimum and maximum intensities.
[in]	binsize	Width of each bin.

◆ InitializeByImageAndBinsizeAndMaximum()

void mitk::IntensityQuantifier::InitializeByImageAndBinsizeAndMaximum	(	const Image *	image,
		double	maximum,
		double	binsize
	)

Initialize from an image with specified maximum and bin size; minimum is computed.

Parameters

[in]	image	The image from which to determine the minimum intensity.
[in]	maximum	The upper bound of the intensity range.
[in]	binsize	Width of each bin.

◆ InitializeByImageAndBinsizeAndMinimum()

void mitk::IntensityQuantifier::InitializeByImageAndBinsizeAndMinimum	(	const Image *	image,
		double	minimum,
		double	binsize
	)

Initialize from an image with specified minimum and bin size; maximum is computed.

Parameters

[in]	image	The image from which to determine the maximum intensity.
[in]	minimum	The lower bound of the intensity range.
[in]	binsize	Width of each bin.

◆ InitializeByImageAndMaximum()

void mitk::IntensityQuantifier::InitializeByImageAndMaximum	(	const Image *	image,
		double	maximum,
		unsigned int	bins
	)

Initialize from an image with a specified maximum; minimum is computed from the image.

Parameters

[in]	image	The image from which to determine the minimum intensity.
[in]	maximum	The upper bound of the intensity range.
[in]	bins	Number of histogram bins.

◆ InitializeByImageAndMinimum()

void mitk::IntensityQuantifier::InitializeByImageAndMinimum	(	const Image *	image,
		double	minimum,
		unsigned int	bins
	)

Initialize from an image with a specified minimum; maximum is computed from the image.

Parameters

[in]	image	The image from which to determine the maximum intensity.
[in]	minimum	The lower bound of the intensity range.
[in]	bins	Number of histogram bins.

◆ InitializeByImageRegion()

void mitk::IntensityQuantifier::InitializeByImageRegion	(	const Image *	image,
		const Image *	mask,
		unsigned int	bins
	)

Initialize from the intensity range of masked voxels in an image.

Parameters

[in]	image	The image from which to determine intensities.
[in]	mask	Binary mask; only voxels with mask value > 0 are considered.
[in]	bins	Number of histogram bins.

◆ InitializeByImageRegionAndBinsize()

void mitk::IntensityQuantifier::InitializeByImageRegionAndBinsize	(	const Image *	image,
		const Image *	mask,
		double	binsize
	)

Initialize from masked image region using a specified bin size.

Parameters

[in]	image	The image from which to determine intensities.
[in]	mask	Binary mask; only voxels with mask value > 0 are considered.
[in]	binsize	Width of each bin.

◆ InitializeByImageRegionAndBinsizeAndMaximum()

void mitk::IntensityQuantifier::InitializeByImageRegionAndBinsizeAndMaximum	(	const Image *	image,
		const Image *	mask,
		double	maximum,
		double	binsize
	)

Initialize from masked image region with specified maximum and bin size; minimum is computed.

Parameters

[in]	image	The image from which to determine intensities.
[in]	mask	Binary mask; only voxels with mask value > 0 are considered.
[in]	maximum	The upper bound of the intensity range.
[in]	binsize	Width of each bin.

◆ InitializeByImageRegionAndBinsizeAndMinimum()

void mitk::IntensityQuantifier::InitializeByImageRegionAndBinsizeAndMinimum	(	const Image *	image,
		const Image *	mask,
		double	minimum,
		double	binsize
	)

Initialize from masked image region with specified minimum and bin size; maximum is computed.

Parameters

[in]	image	The image from which to determine intensities.
[in]	mask	Binary mask; only voxels with mask value > 0 are considered.
[in]	minimum	The lower bound of the intensity range.
[in]	binsize	Width of each bin.

◆ InitializeByImageRegionAndMaximum()

void mitk::IntensityQuantifier::InitializeByImageRegionAndMaximum	(	const Image *	image,
		const Image *	mask,
		double	maximum,
		unsigned int	bins
	)

Initialize from masked image region with a specified maximum; minimum is computed.

Parameters

[in]	image	The image from which to determine intensities.
[in]	mask	Binary mask; only voxels with mask value > 0 are considered.
[in]	maximum	The upper bound of the intensity range.
[in]	bins	Number of histogram bins.

◆ InitializeByImageRegionAndMinimum()

void mitk::IntensityQuantifier::InitializeByImageRegionAndMinimum	(	const Image *	image,
		const Image *	mask,
		double	minimum,
		unsigned int	bins
	)

Initialize from masked image region with a specified minimum; maximum is computed.

Parameters

[in]	image	The image from which to determine intensities.
[in]	mask	Binary mask; only voxels with mask value > 0 are considered.
[in]	minimum	The lower bound of the intensity range.
[in]	bins	Number of histogram bins.

◆ InitializeByMinimumMaximum()

void mitk::IntensityQuantifier::InitializeByMinimumMaximum	(	double	minimum,
		double	maximum,
		unsigned int	bins
	)

Initialize with explicit minimum, maximum, and number of bins.

The bin size is computed as (maximum - minimum) / bins.

Parameters

[in]	minimum	The lower bound of the intensity range.
[in]	maximum	The upper bound of the intensity range.
[in]	bins	Number of histogram bins.

◆ IntensityToIndex()

unsigned int mitk::IntensityQuantifier::IntensityToIndex ( double intensity )

Map a continuous intensity value to a histogram bin index.

The index is clamped to [0, Bins-1].

Parameters

[in] intensity The intensity value to quantize.

Returns: Zero-based bin index.

Precondition: The quantifier must be initialized.

◆ IsEmpty()

bool mitk::IntensityQuantifier::IsEmpty ( ) const

inlineoverridevirtual

Check whether the object contains data at any time step.

Iterates over all time steps and returns true only if every time step is empty (or the object is not initialized).

Warning: Returns IsInitialized()==false by default for compatibility reasons. Override in sub-classes that support distinction between empty/non-empty state.

Returns: True if the data object is empty at all time steps.

See also: IsEmptyTimeStep

Reimplemented from mitk::BaseData.

Definition at line 247 of file mitkIntensityQuantifier.h.

◆ mitkClassMacro()

mitk::IntensityQuantifier::mitkClassMacro	(	IntensityQuantifier	,
		BaseData
	)

◆ New()

static Pointer mitk::IntensityQuantifier::New ( )

static

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::IntensityQuantifier::RequestedRegionIsOutsideOfTheBufferedRegion ( )

inlineoverridevirtual

Determine whether the RequestedRegion is outside of the BufferedRegion.

This method returns true if the RequestedRegion is outside the BufferedRegion (true if at least one pixel is outside). This is used by the pipeline mechanism to determine whether a filter needs to re-execute in order to satisfy the current request. If the current RequestedRegion is already inside the BufferedRegion from the previous execution (and the current filter is up to date), then a given filter does not need to re-execute.

Returns: True if the requested region is outside the buffered region.

Implements mitk::BaseData.

Definition at line 242 of file mitkIntensityQuantifier.h.

◆ SetRequestedRegion()

void mitk::IntensityQuantifier::SetRequestedRegion ( const itk::DataObject * data )

inlineoverridevirtual

Set the requested region from this data object to match the requested region of the data object passed in as a parameter.

This method is implemented in the concrete subclasses of BaseData.

Parameters

[in] data The data object whose requested region will be matched.

Implements mitk::BaseData.

Definition at line 244 of file mitkIntensityQuantifier.h.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::IntensityQuantifier::SetRequestedRegionToLargestPossibleRegion ( )

inlineoverridevirtual

Set the RequestedRegion to the LargestPossibleRegion.

This forces a filter to produce all of the output in one execution (i.e., not streaming) on the next call to Update().

Implements mitk::BaseData.

Definition at line 241 of file mitkIntensityQuantifier.h.

◆ VerifyRequestedRegion()

bool mitk::IntensityQuantifier::VerifyRequestedRegion ( )

inlineoverridevirtual

Verify that the RequestedRegion is within the LargestPossibleRegion.

If the RequestedRegion is not within the LargestPossibleRegion, then the filter cannot possibly satisfy the request. This method returns true if the request can be satisfied (even if it will be necessary to process the entire LargestPossibleRegion) and returns false otherwise. Used by PropagateRequestedRegion(), which throws an InvalidRequestedRegionError exception if the requested region is not within the LargestPossibleRegion.

Returns: True if the requested region is within the largest possible region.

Implements mitk::BaseData.

Definition at line 243 of file mitkIntensityQuantifier.h.

The documentation for this class was generated from the following file:

mitkIntensityQuantifier.h

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IntensityQuantifier()

Member Function Documentation

◆ Clone()

◆ GetBins()

◆ GetBinsize()

◆ GetInitialized()

◆ GetMaximum()

◆ GetMinimum()

◆ IndexToMaximumIntensity()

◆ IndexToMeanIntensity()

◆ IndexToMinimumIntensity()

◆ InitializeByBinsizeAndBins()

◆ InitializeByBinsizeAndMaximum()

◆ InitializeByImage()

◆ InitializeByImageAndBinsize()

◆ InitializeByImageAndBinsizeAndMaximum()

◆ InitializeByImageAndBinsizeAndMinimum()

◆ InitializeByImageAndMaximum()

◆ InitializeByImageAndMinimum()

◆ InitializeByImageRegion()

◆ InitializeByImageRegionAndBinsize()

◆ InitializeByImageRegionAndBinsizeAndMaximum()

◆ InitializeByImageRegionAndBinsizeAndMinimum()

◆ InitializeByImageRegionAndMaximum()

◆ InitializeByImageRegionAndMinimum()

◆ InitializeByMinimumMaximum()

◆ IntensityToIndex()

◆ IsEmpty()

◆ mitkClassMacro()

◆ New()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ VerifyRequestedRegion()
