Converts pixel data to surface data by using a threshold. More...

#include <mitkImageToSurfaceFilter.h>

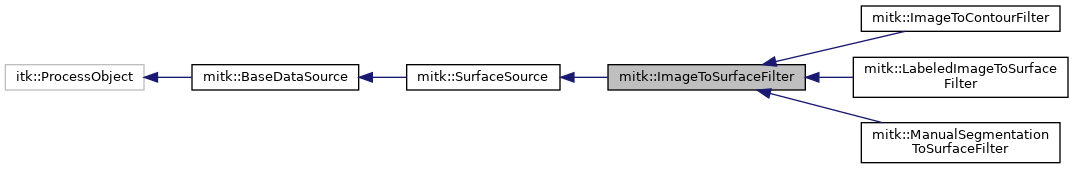

Inheritance diagram for mitk::ImageToSurfaceFilter:

[legend]

Collaboration diagram for mitk::ImageToSurfaceFilter:

[legend]

Public Types
enum	DecimationType { NoDecimation , DecimatePro , QuadricDecimation }
	Enumeration of available polygon decimation strategies. More...

Public Types inherited from mitk::SurfaceSource
typedef Surface	OutputType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (ImageToSurfaceFilter, SurfaceSource)

Pointer	Clone () const

void	GenerateData () override

void	GenerateOutputInformation () override

const mitk::Image *	GetInput (void)

virtual void	SetInput (const mitk::Image *image)

void	SetSmoothIteration (int smoothIteration)
	Set the number of iterations used to smooth the surface. More...

void	SetSmoothRelaxation (float smoothRelaxation)
	Set the relaxation factor for Laplacian smoothing. More...

virtual void	SetThreshold (ScalarType _arg)
	Set the threshold used for surface extraction via vtkMarchingCubes. More...

virtual ScalarType	GetThreshold () const
	Get the threshold used for vtkMarchingCubes surface extraction. More...

virtual void	SetSmooth (bool _arg)
	Enable vtkSmoothPolyDataFilter for Laplacian smoothing. More...

virtual void	SmoothOn ()
	Toggle surface smoothing on/off. More...

virtual void	SmoothOff ()

virtual bool	GetSmooth () const
	Get whether surface smoothing is enabled. More...

virtual DecimationType	GetDecimate () const
	Get the current decimation mode. More...

virtual void	SetDecimate (DecimationType _arg)
	Set the decimation mode to reduce the number of triangles in the mesh. More...

virtual void	SetTargetReduction (float _arg)
	Set the desired target reduction of triangles in the range [0.0, 1.0]. More...

virtual float	GetTargetReduction () const
	Get the target reduction factor for the decimation filter. More...

template<class T1 , class T2 , class T3 >
void	mitkVtkLinearTransformPoint (T1 matrix[4][4], T2 in[3], T3 out[3])
	Transform a 3D point by a 4x4 matrix (affine transformation). More...

Public Member Functions inherited from mitk::SurfaceSource
	mitkClassMacro (SurfaceSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Allocate a new output object and return it. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
	Allocate a new output object by name. More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::SurfaceSource
static Pointer	New ()

Protected Member Functions
	ImageToSurfaceFilter ()

	~ImageToSurfaceFilter () override
	Destructor. More...

void	CreateSurface (int time, vtkImageData vtkimage, mitk::Surface surface, const ScalarType threshold)
	Create the surface for a single time step using vtkMarchingCubes. More...

Protected Member Functions inherited from mitk::SurfaceSource
	SurfaceSource ()

	~SurfaceSource () override

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
bool	m_Smooth
	Flag whether the created surface shall be smoothed (default is false). More...

DecimationType	m_Decimate
	Decimation mode. Default is NoDecimation. More...

ScalarType	m_Threshold
	Threshold for surface extraction. Default value is 1. More...

float	m_TargetReduction
	The reduction factor for the decimation filter. Range [0.0, 1.0]. More...

int	m_SmoothIteration
	The number of iterations for the smoothing filter. Default is 50. More...

float	m_SmoothRelaxation
	The relaxation factor for the smoothing filter. Default is 0.1. More...

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Converts pixel data to surface data by using a threshold.

The mitkImageToSurfaceFilter is used to create a new surface out of an MITK image. The filter uses a threshold to define the surface. It is based on the vtkMarchingCubes algorithm. By default a vtkPolyData surface based on an input threshold for the input image will be created. Optionally it is possible to reduce the number of triangles/polygons [SetDecimate(mitk::ImageToSurfaceFilter::DecimatePro) and SetTargetReduction(float)] or smooth the surface data [SetSmooth(true), SetSmoothIteration(int) and SetSmoothRelaxation(float)].

The resulting VTK surface has the same size as the input image. The surface can be generally smoothed by vtkDecimatePro to reduce complexity of triangles and vtkSmoothPolyDataFilter to relax the mesh. It is also possible to create time-sliced surfaces.

See also: SurfaceSource; Surface

Definition at line 50 of file mitkImageToSurfaceFilter.h.

Member Enumeration Documentation

◆ DecimationType

enum mitk::ImageToSurfaceFilter::DecimationType

Enumeration of available polygon decimation strategies.

Determines whether and how polygon reduction is applied to the created surface.

Enumerator
NoDecimation
DecimatePro
QuadricDecimation

Definition at line 58 of file mitkImageToSurfaceFilter.h.

Constructor & Destructor Documentation

◆ ImageToSurfaceFilter()

mitk::ImageToSurfaceFilter::ImageToSurfaceFilter ( )

protected

◆ ~ImageToSurfaceFilter()

mitk::ImageToSurfaceFilter::~ImageToSurfaceFilter ( )

overrideprotected

Destructor.

Member Function Documentation

◆ Clone()

Pointer mitk::ImageToSurfaceFilter::Clone ( ) const

◆ CreateSurface()

void mitk::ImageToSurfaceFilter::CreateSurface	(	int	time,
		vtkImageData *	vtkimage,
		mitk::Surface *	surface,
		const ScalarType	threshold
	)

protected

Create the surface for a single time step using vtkMarchingCubes.

Optionally applies smoothing and decimation based on the current filter settings.

Parameters

time	The time step to process (0 for single time step images).
vtkimage	The VTK image data input.
surface	The output surface to populate.
threshold	The iso-surface threshold (can differ from the member threshold).

◆ GenerateData()

void mitk::ImageToSurfaceFilter::GenerateData ( )

override

For each image time slice a surface will be created. This method is called by Update().

◆ GenerateOutputInformation()

void mitk::ImageToSurfaceFilter::GenerateOutputInformation ( )

override

Initializes the output information ( i.e. the geometry information ) of the output of the filter

◆ GetDecimate()

virtual DecimationType mitk::ImageToSurfaceFilter::GetDecimate ( ) const

virtual

Get the current decimation mode.

Possible values are NoDecimation, DecimatePro, or QuadricDecimation.

◆ GetInput()

const mitk::Image* mitk::ImageToSurfaceFilter::GetInput ( void )

Returns a const reference to the input image (e.g. the original input image that is used to create the surface)

◆ GetSmooth()

virtual bool mitk::ImageToSurfaceFilter::GetSmooth ( ) const

virtual

Get whether surface smoothing is enabled.

◆ GetTargetReduction()

virtual float mitk::ImageToSurfaceFilter::GetTargetReduction ( ) const

virtual

Get the target reduction factor for the decimation filter.

◆ GetThreshold()

virtual ScalarType mitk::ImageToSurfaceFilter::GetThreshold ( ) const

virtual

Get the threshold used for vtkMarchingCubes surface extraction.

◆ mitkClassMacro()

mitk::ImageToSurfaceFilter::mitkClassMacro	(	ImageToSurfaceFilter	,
		SurfaceSource
	)

◆ mitkVtkLinearTransformPoint()

template<class T1 , class T2 , class T3 >

void mitk::ImageToSurfaceFilter::mitkVtkLinearTransformPoint	(	T1	matrix[4][4],
		T2	in[3],
		T3	out[3]
	)

inline

Transform a 3D point by a 4x4 matrix (affine transformation).

Template Parameters

T1	The matrix element type.
T2	The input point element type.
T3	The output point element type.

Definition at line 178 of file mitkImageToSurfaceFilter.h.

◆ New()

static Pointer mitk::ImageToSurfaceFilter::New ( )

static

◆ SetDecimate()

virtual void mitk::ImageToSurfaceFilter::SetDecimate ( DecimationType _arg )

virtual

Set the decimation mode to reduce the number of triangles in the mesh.

For more detailed information see vtkDecimatePro and vtkQuadricDecimation.

◆ SetInput()

virtual void mitk::ImageToSurfaceFilter::SetInput ( const mitk::Image * image )

virtual

◆ SetSmooth()

virtual void mitk::ImageToSurfaceFilter::SetSmooth ( bool _arg )

virtual

Enable vtkSmoothPolyDataFilter for Laplacian smoothing.

This filter will relax the surface. You can control the filter by manipulating the number of iterations and the relaxation factor.

◆ SetSmoothIteration()

void mitk::ImageToSurfaceFilter::SetSmoothIteration ( int smoothIteration )

Set the number of iterations used to smooth the surface.

Uses the vtkSmoothPolyDataFilter with a Laplacian filter. The higher the number of iterations, the stronger the smoothing result.

Parameters

smoothIteration The number of smoothing iterations. Default is 50. The VTK documentation recommends small relaxation factors and large numbers of iterations.

◆ SetSmoothRelaxation()

void mitk::ImageToSurfaceFilter::SetSmoothRelaxation ( float smoothRelaxation )

Set the relaxation factor for Laplacian smoothing.

The VTK documentation recommends small relaxation factors and large numbers of iterations.

Parameters

smoothRelaxation The relaxation factor. Default is 0.1.

◆ SetTargetReduction()

virtual void mitk::ImageToSurfaceFilter::SetTargetReduction ( float _arg )

virtual

Set the desired target reduction of triangles in the range [0.0, 1.0].

The destroyed triangles are relative to the total number of triangles. For example, 0.9 will reduce the data set to 10% of its original size.

◆ SetThreshold()

virtual void mitk::ImageToSurfaceFilter::SetThreshold ( ScalarType _arg )

virtual

Set the threshold used for surface extraction via vtkMarchingCubes.

All pixels in the input image with values higher than this threshold will be considered in the surface. Default value is 1.

◆ SmoothOff()

virtual void mitk::ImageToSurfaceFilter::SmoothOff ( )

virtual

◆ SmoothOn()

virtual void mitk::ImageToSurfaceFilter::SmoothOn ( )

virtual

Toggle surface smoothing on/off.

Member Data Documentation

◆ m_Decimate

DecimationType mitk::ImageToSurfaceFilter::m_Decimate

protected

Decimation mode. Default is NoDecimation.

Definition at line 210 of file mitkImageToSurfaceFilter.h.

◆ m_Smooth

bool mitk::ImageToSurfaceFilter::m_Smooth

protected

Flag whether the created surface shall be smoothed (default is false).

Definition at line 207 of file mitkImageToSurfaceFilter.h.

◆ m_SmoothIteration

int mitk::ImageToSurfaceFilter::m_SmoothIteration

protected

The number of iterations for the smoothing filter. Default is 50.

Definition at line 219 of file mitkImageToSurfaceFilter.h.

◆ m_SmoothRelaxation

float mitk::ImageToSurfaceFilter::m_SmoothRelaxation

protected

The relaxation factor for the smoothing filter. Default is 0.1.

Definition at line 222 of file mitkImageToSurfaceFilter.h.

◆ m_TargetReduction

float mitk::ImageToSurfaceFilter::m_TargetReduction

protected

The reduction factor for the decimation filter. Range [0.0, 1.0].

Definition at line 216 of file mitkImageToSurfaceFilter.h.

◆ m_Threshold

ScalarType mitk::ImageToSurfaceFilter::m_Threshold

protected

Threshold for surface extraction. Default value is 1.

Definition at line 213 of file mitkImageToSurfaceFilter.h.

The documentation for this class was generated from the following file:

mitkImageToSurfaceFilter.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ DecimationType

Constructor & Destructor Documentation

◆ ImageToSurfaceFilter()

◆ ~ImageToSurfaceFilter()

Member Function Documentation

◆ Clone()

◆ CreateSurface()

◆ GenerateData()

◆ GenerateOutputInformation()

◆ GetDecimate()

◆ GetInput()

◆ GetSmooth()

◆ GetTargetReduction()

◆ GetThreshold()

◆ mitkClassMacro()

◆ mitkVtkLinearTransformPoint()

◆ New()

◆ SetDecimate()

◆ SetInput()

◆ SetSmooth()

◆ SetSmoothIteration()

◆ SetSmoothRelaxation()

◆ SetTargetReduction()

◆ SetThreshold()

◆ SmoothOff()

◆ SmoothOn()

Member Data Documentation

◆ m_Decimate

◆ m_Smooth

◆ m_SmoothIteration

◆ m_SmoothRelaxation

◆ m_TargetReduction

◆ m_Threshold
