mitk::SurfaceSource Class Reference

Superclass of all classes generating surfaces (instances of class Surface) as output. More...

#include <mitkSurfaceSource.h>

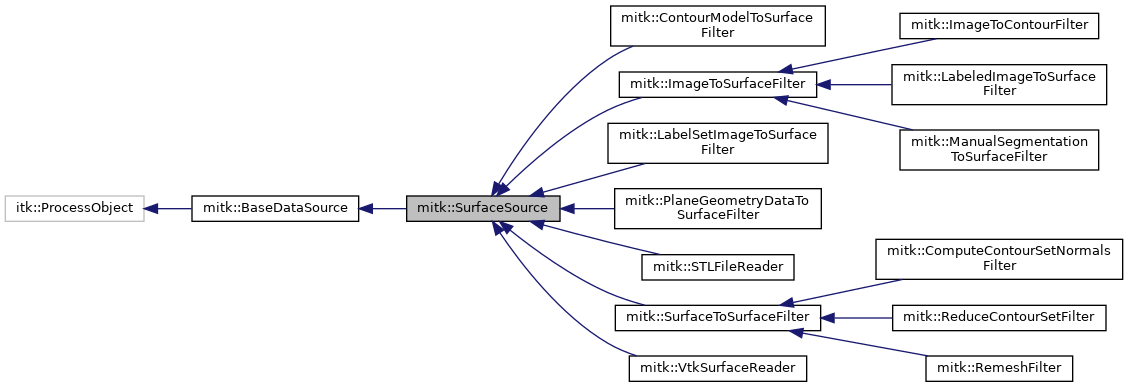

Inheritance diagram for mitk::SurfaceSource:

Collaboration diagram for mitk::SurfaceSource:

Public Types
typedef Surface	OutputType
Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Public Member Functions
	mitkClassMacro (SurfaceSource, BaseDataSource)
Pointer	Clone () const
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	SurfaceSource ()
	~SurfaceSource () override
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	~BaseDataSource () override

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Superclass of all classes generating surfaces (instances of class Surface) as output.

In itk and vtk the generated result of a ProcessObject is only guaranteed to be up-to-date, when Update() of the ProcessObject or the generated DataObject is called immediately before access of the data stored in the DataObject. This is also true for subclasses of mitk::BaseProcess and thus for mitk::SurfaceSource.

Definition at line 33 of file mitkSurfaceSource.h.

Member Typedef Documentation

OutputType

typedef Surface mitk::SurfaceSource::OutputType

Definition at line 40 of file mitkSurfaceSource.h.

Constructor & Destructor Documentation

SurfaceSource()

mitk::SurfaceSource::SurfaceSource ( )

protected

~SurfaceSource()

mitk::SurfaceSource::~SurfaceSource ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::SurfaceSource::Clone

(

)

const

GetOutput() [1/4]

OutputType* mitk::SurfaceSource::GetOutput

(

)

GetOutput() [2/4]

const OutputType* mitk::SurfaceSource::GetOutput

(

)

const

GetOutput() [3/4]

OutputType* mitk::SurfaceSource::GetOutput

(

DataObjectPointerArraySizeType

idx

)

GetOutput() [4/4]

const OutputType* mitk::SurfaceSource::GetOutput

(

DataObjectPointerArraySizeType

idx

)

const

MakeOutput() [1/2]

itk::DataObject::Pointer mitk::SurfaceSource::MakeOutput ( const DataObjectIdentifierType &  name )

overridevirtual

This is a default implementation to make sure we have something. Once all the subclasses of ProcessObject provide an appropriate MakeOutput(), then ProcessObject::MakeOutput() can be made pure virtual.

Implements mitk::BaseDataSource.

MakeOutput() [2/2]

itk::DataObject::Pointer mitk::SurfaceSource::MakeOutput ( DataObjectPointerArraySizeType  idx )

overridevirtual

Allocates a new output object and returns it. Currently the index idx is not evaluated.

Parameters

idx	the index of the output for which an object should be created

Returns

the new object

Implements mitk::BaseDataSource.

mitkClassMacro()

mitk::SurfaceSource::mitkClassMacro	(	SurfaceSource	,
		BaseDataSource
	)

New()

static Pointer mitk::SurfaceSource::New ( )

static

---

The documentation for this class was generated from the following file:

• mitkSurfaceSource.h
