#include <mitkImageToItk.h>

Inheritance diagram for mitk::ImageToItk< TOutputImage >:

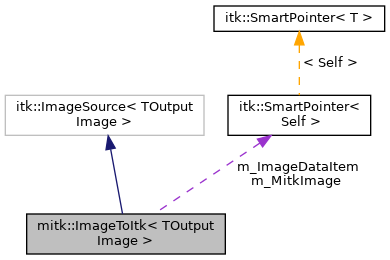

Collaboration diagram for mitk::ImageToItk< TOutputImage >:

Public Types
typedef ImageToItk	Self

typedef itk::ImageSource< TOutputImage >	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

typedef TOutputImage::SizeType	SizeType

typedef TOutputImage::IndexType	IndexType

typedef TOutputImage::RegionType	RegionType

typedef TOutputImage::PixelType	PixelType

typedef TOutputImage::InternalPixelType	InternalPixelType

typedef TOutputImage::PixelContainer	PixelContainer

Public Member Functions
Pointer	Clone () const

virtual void	SetInput (mitk::Image *input)
	Set the MITK image as input (non-const version). More...

virtual void	SetInput (const mitk::Image *input)
	Set the MITK image as input (const version). More...

void	UpdateOutputInformation () override
	Update the output information from the MITK image. More...

virtual int	GetChannel ()
	Get the channel number to extract. More...

virtual void	SetChannel (int _arg)
	Set the channel number to extract. More...

virtual void	SetCopyMemFlag (bool _arg)
	Set whether to copy memory instead of referencing it. More...

virtual bool	GetCopyMemFlag ()
	Get whether memory is copied instead of referenced. More...

virtual void	CopyMemFlagOn ()
	Toggle memory copy on/off. More...

virtual void	CopyMemFlagOff ()

virtual void	SetOptions (int _arg)
	Set the image accessor options (see ImageAccessorBase). More...

virtual int	GetOptions ()
	Get the image accessor options. More...

Static Public Member Functions
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Member Functions
mitk::Image *	GetInput (void)
	Get the MITK image input (non-const). More...

const mitk::Image *	GetInput () const
	Get the MITK image input (const). More...

	ImageToItk ()

	~ImageToItk () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateData () override
	Generate the ITK image data from the MITK image input. More...

void	GenerateOutputInformation () override
	Set up the output information (size, spacing, origin, direction) from the MITK image. More...

Protected Attributes
mitk::Image::Pointer	m_MitkImage

mitk::ImageDataItem::Pointer	m_ImageDataItem

Detailed Description

template<class TOutputImage>
class mitk::ImageToItk< TOutputImage >

Create itk::ImageSource for mitk::Image

Warning: 2D MITK images will get a 2D identity matrix in ITK

Definition at line 33 of file mitkImageToItk.h.

Member Typedef Documentation

◆ ConstPointer

template<class TOutputImage >

typedef itk::SmartPointer<const Self> mitk::ImageToItk< TOutputImage >::ConstPointer

Definition at line 43 of file mitkImageToItk.h.

◆ IndexType

template<class TOutputImage >

typedef TOutputImage::IndexType mitk::ImageToItk< TOutputImage >::IndexType

Definition at line 58 of file mitkImageToItk.h.

◆ InputImageConstPointer

template<class TOutputImage >

typedef InputImageType::ConstPointer mitk::ImageToItk< TOutputImage >::InputImageConstPointer

Definition at line 55 of file mitkImageToItk.h.

◆ InputImagePointer

template<class TOutputImage >

typedef InputImageType::Pointer mitk::ImageToItk< TOutputImage >::InputImagePointer

Definition at line 54 of file mitkImageToItk.h.

◆ InputImageRegionType

template<class TOutputImage >

typedef SlicedData::RegionType mitk::ImageToItk< TOutputImage >::InputImageRegionType

Definition at line 56 of file mitkImageToItk.h.

◆ InputImageType

template<class TOutputImage >

typedef mitk::Image mitk::ImageToItk< TOutputImage >::InputImageType

Some convenient typedefs.

Definition at line 53 of file mitkImageToItk.h.

◆ InternalPixelType

template<class TOutputImage >

typedef TOutputImage::InternalPixelType mitk::ImageToItk< TOutputImage >::InternalPixelType

Definition at line 61 of file mitkImageToItk.h.

◆ OutputImageRegionType

template<class TOutputImage >

typedef Superclass::OutputImageRegionType mitk::ImageToItk< TOutputImage >::OutputImageRegionType

Superclass typedefs.

Definition at line 50 of file mitkImageToItk.h.

◆ PixelContainer

template<class TOutputImage >

typedef TOutputImage::PixelContainer mitk::ImageToItk< TOutputImage >::PixelContainer

Definition at line 62 of file mitkImageToItk.h.

◆ PixelType

template<class TOutputImage >

typedef TOutputImage::PixelType mitk::ImageToItk< TOutputImage >::PixelType

Definition at line 60 of file mitkImageToItk.h.

◆ Pointer

template<class TOutputImage >

typedef itk::SmartPointer<Self> mitk::ImageToItk< TOutputImage >::Pointer

Definition at line 42 of file mitkImageToItk.h.

◆ RegionType

template<class TOutputImage >

typedef TOutputImage::RegionType mitk::ImageToItk< TOutputImage >::RegionType

Definition at line 59 of file mitkImageToItk.h.

◆ Self

template<class TOutputImage >

typedef ImageToItk mitk::ImageToItk< TOutputImage >::Self

Definition at line 40 of file mitkImageToItk.h.

◆ SizeType

template<class TOutputImage >

typedef TOutputImage::SizeType mitk::ImageToItk< TOutputImage >::SizeType

Definition at line 57 of file mitkImageToItk.h.

◆ Superclass

template<class TOutputImage >

typedef itk::ImageSource<TOutputImage> mitk::ImageToItk< TOutputImage >::Superclass

Definition at line 41 of file mitkImageToItk.h.

Constructor & Destructor Documentation

◆ ImageToItk()

template<class TOutputImage >

mitk::ImageToItk< TOutputImage >::ImageToItk ( )

inlineprotected

Definition at line 111 of file mitkImageToItk.h.

◆ ~ImageToItk()

template<class TOutputImage >

mitk::ImageToItk< TOutputImage >::~ImageToItk ( )

inlineoverrideprotected

Definition at line 112 of file mitkImageToItk.h.

Member Function Documentation

◆ Clone()

template<class TOutputImage >

Pointer mitk::ImageToItk< TOutputImage >::Clone ( ) const

◆ CopyMemFlagOff()

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::CopyMemFlagOff ( )

virtual

◆ CopyMemFlagOn()

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::CopyMemFlagOn ( )

virtual

Toggle memory copy on/off.

◆ GenerateData()

template<class TOutputImage >

void mitk::ImageToItk< TOutputImage >::GenerateData ( )

overrideprotected

Generate the ITK image data from the MITK image input.

◆ GenerateOutputInformation()

template<class TOutputImage >

void mitk::ImageToItk< TOutputImage >::GenerateOutputInformation ( )

overrideprotected

Set up the output information (size, spacing, origin, direction) from the MITK image.

◆ GetChannel()

template<class TOutputImage >

virtual int mitk::ImageToItk< TOutputImage >::GetChannel ( )

virtual

Get the channel number to extract.

◆ GetCopyMemFlag()

template<class TOutputImage >

virtual bool mitk::ImageToItk< TOutputImage >::GetCopyMemFlag ( )

virtual

Get whether memory is copied instead of referenced.

◆ GetInput() [1/2]

template<class TOutputImage >

const mitk::Image* mitk::ImageToItk< TOutputImage >::GetInput ( ) const

protected

Get the MITK image input (const).

◆ GetInput() [2/2]

template<class TOutputImage >

mitk::Image* mitk::ImageToItk< TOutputImage >::GetInput ( void )

protected

Get the MITK image input (non-const).

◆ GetOptions()

template<class TOutputImage >

virtual int mitk::ImageToItk< TOutputImage >::GetOptions ( )

virtual

Get the image accessor options.

◆ New()

template<class TOutputImage >

static Pointer mitk::ImageToItk< TOutputImage >::New ( )

static

Method for creation through the object factory.

◆ PrintSelf()

template<class TOutputImage >

void mitk::ImageToItk< TOutputImage >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Print self information to the given stream.

◆ SetChannel()

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::SetChannel ( int _arg )

virtual

Set the channel number to extract.

◆ SetCopyMemFlag()

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::SetCopyMemFlag ( bool _arg )

virtual

Set whether to copy memory instead of referencing it.

◆ SetInput() [1/2]

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::SetInput ( const mitk::Image * input )

virtual

Set the MITK image as input (const version).

Locks the image for read-only access.

Parameters

input The MITK image to convert.

◆ SetInput() [2/2]

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::SetInput ( mitk::Image * input )

virtual

Set the MITK image as input (non-const version).

Locks the image for read/write access.

Parameters

input The MITK image to convert.

◆ SetOptions()

template<class TOutputImage >

virtual void mitk::ImageToItk< TOutputImage >::SetOptions ( int _arg )

virtual

Set the image accessor options (see ImageAccessorBase).

◆ UpdateOutputInformation()

template<class TOutputImage >

void mitk::ImageToItk< TOutputImage >::UpdateOutputInformation ( )

override

Update the output information from the MITK image.

Member Data Documentation

◆ m_ImageDataItem

template<class TOutputImage >

mitk::ImageDataItem::Pointer mitk::ImageToItk< TOutputImage >::m_ImageDataItem

protected

Definition at line 37 of file mitkImageToItk.h.

◆ m_MitkImage

template<class TOutputImage >

mitk::Image::Pointer mitk::ImageToItk< TOutputImage >::m_MitkImage

protected

Definition at line 36 of file mitkImageToItk.h.

The documentation for this class was generated from the following file:

mitkImageToItk.h
