Provides templated image access for all inheriting classes. More...

#include <mitkImagePixelAccessor.h>

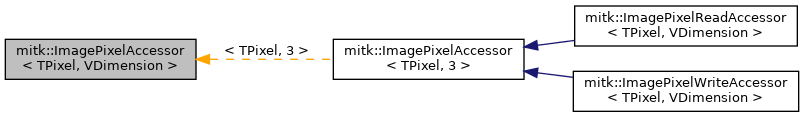

Inheritance diagram for mitk::ImagePixelAccessor< TPixel, VDimension >:

[legend]

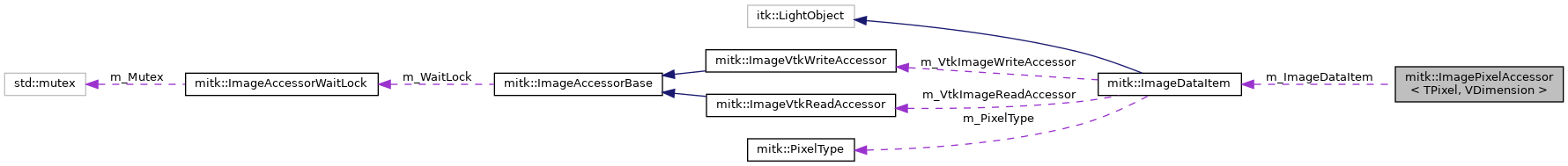

Collaboration diagram for mitk::ImagePixelAccessor< TPixel, VDimension >:

[legend]

Public Types
typedef itk::Index< VDimension >	IndexType

typedef ImagePixelAccessor< TPixel, VDimension >	ImagePixelAccessorType

typedef Image::ConstPointer	ImageConstPointer

Public Member Functions
int	GetDimension (int i) const
	Get the size of the specified dimension from the underlying ImageDataItem. More...

Protected Member Functions
	ImagePixelAccessor (ImageConstPointer iP, const mitk::ImageDataItem *iDI)
	Construct the accessor from an image and an optional ImageDataItem. More...

virtual	~ImagePixelAccessor ()
	Destructor. More...

void	CheckData (const Image *image)
	Validate that the accessor dimensions and pixel type match the image. More...

unsigned int	GetOffset (const IndexType &idx) const
	Compute the linear memory offset for a given multi-dimensional image index. More...

Protected Attributes
const ImageDataItem *	m_ImageDataItem
	Holds the specified ImageDataItem for pixel data access. More...

BaseGeometry::Pointer	m_Geometry
	Pointer to the used Geometry. Since Geometry can be different to the Image (if memory was forced to be coherent) it is necessary to store Geometry separately. More...

itk::ImageRegion< VDimension > *	m_SubRegion
	A Subregion defines an arbitrary area within the image. If no SubRegion is defined, the whole ImageDataItem or Image is regarded. A subregion (e.g. subvolume) can lead to non-coherent memory access where every dimension has a start- and end-offset. More...

int	m_Options
	Stores all extended properties of an ImageAccessor. The different flags in mitk::ImageAccessorBase::Options can be unified by bitwise operations. More...

Detailed Description

template<class TPixel, unsigned int VDimension = 3>
class mitk::ImagePixelAccessor< TPixel, VDimension >

Provides templated image access for all inheriting classes.

Template Parameters

TPixel	Defines the pixel type used for accessing image data.
VDimension	Defines the dimension for accessing data. Defaults to 3.

See also: ImageReadAccessor; ImageWriteAccessor

Definition at line 34 of file mitkImagePixelAccessor.h.

Member Typedef Documentation

◆ ImageConstPointer

template<class TPixel , unsigned int VDimension = 3>

typedef Image::ConstPointer mitk::ImagePixelAccessor< TPixel, VDimension >::ImageConstPointer

Definition at line 39 of file mitkImagePixelAccessor.h.

◆ ImagePixelAccessorType

template<class TPixel , unsigned int VDimension = 3>

typedef ImagePixelAccessor<TPixel, VDimension> mitk::ImagePixelAccessor< TPixel, VDimension >::ImagePixelAccessorType

Definition at line 38 of file mitkImagePixelAccessor.h.

◆ IndexType

template<class TPixel , unsigned int VDimension = 3>

typedef itk::Index<VDimension> mitk::ImagePixelAccessor< TPixel, VDimension >::IndexType

Definition at line 37 of file mitkImagePixelAccessor.h.

Constructor & Destructor Documentation

◆ ImagePixelAccessor()

template<class TPixel , unsigned int VDimension = 3>

mitk::ImagePixelAccessor< TPixel, VDimension >::ImagePixelAccessor	(	ImageConstPointer	iP,
		const mitk::ImageDataItem *	iDI
	)

inlineprotected

Construct the accessor from an image and an optional ImageDataItem.

If iDI is nullptr, the full channel data of the image is used instead.

Parameters

iP	Pointer to the image to access.
iDI	The allocated image data item (e.g. a slice, volume, or channel). If nullptr, the full channel data is retrieved from the image.

Definition at line 62 of file mitkImagePixelAccessor.h.

References mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), and mitk::ImagePixelAccessor< TPixel, VDimension >::m_ImageDataItem.

◆ ~ImagePixelAccessor()

template<class TPixel , unsigned int VDimension = 3>

virtual mitk::ImagePixelAccessor< TPixel, VDimension >::~ImagePixelAccessor ( )

inlineprotectedvirtual

Destructor.

Definition at line 72 of file mitkImagePixelAccessor.h.

Member Function Documentation

◆ CheckData()

template<class TPixel , unsigned int VDimension = 3>

void mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData ( const Image * image )

inlineprotected

Validate that the accessor dimensions and pixel type match the image.

Parameters

image The image to validate against.

Exceptions

mitk::Exception if dimensions or pixel types do not match.

Definition at line 80 of file mitkImagePixelAccessor.h.

References mitk::Image::GetDimension(), mitk::ImageDataItem::GetDimension(), mitk::PixelType::GetNumberOfComponents(), mitk::Image::GetPixelType(), mitk::ImagePixelAccessor< TPixel, VDimension >::m_ImageDataItem, mitk::MakePixelType(), and mitkThrow.

Referenced by mitk::ImagePixelAccessor< TPixel, VDimension >::ImagePixelAccessor().

◆ GetDimension()

template<class TPixel , unsigned int VDimension = 3>

int mitk::ImagePixelAccessor< TPixel, VDimension >::GetDimension ( int i ) const

inline

Get the size of the specified dimension from the underlying ImageDataItem.

Parameters

i	The dimension index to query.

Returns: The size of the requested dimension.

Definition at line 47 of file mitkImagePixelAccessor.h.

References mitk::ImageDataItem::GetDimension(), and mitk::ImagePixelAccessor< TPixel, VDimension >::m_ImageDataItem.

◆ GetOffset()

template<class TPixel , unsigned int VDimension = 3>

unsigned int mitk::ImagePixelAccessor< TPixel, VDimension >::GetOffset ( const IndexType & idx ) const

inlineprotected

Compute the linear memory offset for a given multi-dimensional image index.

Parameters

idx	The multi-dimensional index into the image.

Returns: The linear memory offset corresponding to the index.

Definition at line 142 of file mitkImagePixelAccessor.h.

References mitk::ImagePixelAccessor< TPixel, VDimension >::m_ImageDataItem.

Referenced by mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetConsecutivePixelsAsVector(), mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetPixelByIndex(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::GetPixelByIndex(), mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetPixelByIndexSafe(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::GetPixelByIndexSafe(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::SetPixelByIndex(), and mitk::ImagePixelWriteAccessor< TPixel, VDimension >::SetPixelByIndexSafe().

Member Data Documentation

◆ m_Geometry

template<class TPixel , unsigned int VDimension = 3>

BaseGeometry::Pointer mitk::ImagePixelAccessor< TPixel, VDimension >::m_Geometry

protected

Pointer to the used Geometry. Since Geometry can be different to the Image (if memory was forced to be coherent) it is necessary to store Geometry separately.

Definition at line 122 of file mitkImagePixelAccessor.h.

◆ m_ImageDataItem

template<class TPixel , unsigned int VDimension = 3>

const ImageDataItem* mitk::ImagePixelAccessor< TPixel, VDimension >::m_ImageDataItem

protected

Holds the specified ImageDataItem for pixel data access.

Definition at line 116 of file mitkImagePixelAccessor.h.

Referenced by mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), mitk::ImagePixelAccessor< TPixel, VDimension >::GetDimension(), mitk::ImagePixelAccessor< TPixel, VDimension >::GetOffset(), and mitk::ImagePixelAccessor< TPixel, VDimension >::ImagePixelAccessor().

◆ m_Options

template<class TPixel , unsigned int VDimension = 3>

int mitk::ImagePixelAccessor< TPixel, VDimension >::m_Options

protected

Stores all extended properties of an ImageAccessor. The different flags in mitk::ImageAccessorBase::Options can be unified by bitwise operations.

Definition at line 134 of file mitkImagePixelAccessor.h.

◆ m_SubRegion

template<class TPixel , unsigned int VDimension = 3>

itk::ImageRegion<VDimension>* mitk::ImagePixelAccessor< TPixel, VDimension >::m_SubRegion

protected

A Subregion defines an arbitrary area within the image. If no SubRegion is defined, the whole ImageDataItem or Image is regarded. A subregion (e.g. subvolume) can lead to non-coherent memory access where every dimension has a start- and end-offset.

Definition at line 129 of file mitkImagePixelAccessor.h.

The documentation for this class was generated from the following file:

mitkImagePixelAccessor.h
