mitk::Convert2Dto3DImageFilter Class Reference
Converts a 2D MITK image to a 3D MITK image with a single slice. More...
#include <mitkConvert2Dto3DImageFilter.h>
Inheritance diagram for mitk::Convert2Dto3DImageFilter:

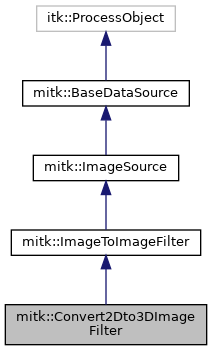

Collaboration diagram for mitk::Convert2Dto3DImageFilter:
Public Member Functions | |
| mitkClassMacro (Convert2Dto3DImageFilter, ImageToImageFilter) | |
| Pointer | Clone () const |
 Public Member Functions inherited from mitk::ImageToImageFilter | |
| mitkClassMacro (ImageToImageFilter, ImageSource) | |
| Pointer | Clone () const |
| virtual void | SetInput (const InputImageType *image) |
| Set the image input of this process object. More... | |
| virtual void | SetInput (unsigned int idx, const InputImageType *image) |
| Set the image input at the specified index. More... | |
| InputImageType * | GetInput (void) |
| Get the input image (non-const). More... | |
| InputImageType * | GetInput (unsigned int idx) |
| Get the input image at the specified index (non-const). More... | |
| const InputImageType * | GetInput (void) const |
| Get the input image (const). More... | |
| const InputImageType * | GetInput (unsigned int idx) const |
| Get the input image at the specified index (const). More... | |
| Public Member Functions inherited from mitk::ImageSource | |
| mitkClassMacro (ImageSource, BaseDataSource) | |
| Pointer | Clone () const |
| mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer | MakeOutput (DataObjectPointerArraySizeType idx) override |
| Get the output data of this image source object. More... | |
| itk::DataObject::Pointer | MakeOutput (const DataObjectIdentifierType &name) override |
| virtual vtkImageData * | GetVtkImageData () |
| Get the output as VTK image data (non-const version). More... | |
| virtual const vtkImageData * | GetVtkImageData () const |
| Get the output as VTK image data (const version). More... | |
| Public Member Functions inherited from mitk::BaseDataSource | |
| mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject) | |
| OutputType * | GetOutput () |
| const OutputType * | GetOutput () const |
| OutputType * | GetOutput (DataObjectPointerArraySizeType idx) |
| const OutputType * | GetOutput (DataObjectPointerArraySizeType idx) const |
| virtual void | GraftOutput (OutputType *output) |
| Graft the specified BaseData onto this BaseDataSource's output. More... | |
| virtual void | GraftOutput (const DataObjectIdentifierType &key, OutputType *output) |
| Graft the specified base data object onto a named output. More... | |
| virtual void | GraftNthOutput (unsigned int idx, OutputType *output) |
| Graft the specified base data object onto this BaseDataSource's idx'th output. More... | |
| bool | Updating () const |
| Check whether the pipeline is currently executing. More... | |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::ImageToImageFilter | |
| static Pointer | New () |
| Method for creation through the object factory. More... | |
| Static Public Member Functions inherited from mitk::ImageSource | |
| static Pointer | New () |
| Method for creation through the object factory. More... | |
Protected Member Functions | |
| Convert2Dto3DImageFilter () | |
| Default constructor. More... | |
| ~Convert2Dto3DImageFilter () override | |
| Destructor. More... | |
| void | GenerateData () override |
| Generate the 3D output image from the 2D input. More... | |
| template<typename TPixel , unsigned int VImageDimension> | |
| void | ItkConvert2DTo3D (const itk::Image< TPixel, VImageDimension > *itkImage, mitk::Image::Pointer &mitkImage) |
| ITK-level conversion from a 2D ITK image to a 3D MITK image. More... | |
| Protected Member Functions inherited from mitk::ImageToImageFilter | |
| ImageToImageFilter () | |
| ~ImageToImageFilter () override | |
| void | PrintSelf (std::ostream &os, itk::Indent indent) const override |
| Print self information to the given stream. More... | |
| void | GenerateInputRequestedRegion () override |
| Determine the input requested region to produce the output requested region. More... | |
| Protected Member Functions inherited from mitk::ImageSource | |
| ImageSource () | |
| ~ImageSource () override | |
| void | GenerateData () override |
| A version of GenerateData() specific for image processing filters. More... | |
| virtual void | ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) |
| If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More... | |
| void | PrepareOutputs () override |
| This method is intentionally left blank. More... | |
| virtual void | AllocateOutputs () |
| The GenerateData method normally allocates the buffers for all of the outputs of a filter. More... | |
| virtual void | BeforeThreadedGenerateData () |
| If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More... | |
| virtual void | AfterThreadedGenerateData () |
| If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More... | |
| virtual unsigned int | SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion) |
| Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More... | |
| Protected Member Functions inherited from mitk::BaseDataSource | |
| BaseDataSource () | |
| Constructor. More... | |
| ~BaseDataSource () override | |
| Destructor. More... | |
Additional Inherited Members | |
| Public Types inherited from mitk::ImageToImageFilter | |
| typedef Superclass::OutputImageRegionType | OutputImageRegionType |
| Superclass typedefs. More... | |
| typedef mitk::Image | InputImageType |
| Some convenient typedefs. More... | |
| typedef InputImageType::Pointer | InputImagePointer |
| typedef InputImageType::ConstPointer | InputImageConstPointer |
| typedef SlicedData::RegionType | InputImageRegionType |
| Public Types inherited from mitk::ImageSource | |
| typedef mitk::Image | OutputImageType |
| Some convenient typedefs. More... | |
| typedef OutputImageType | OutputType |
| typedef OutputImageType::Pointer | OutputImagePointer |
| typedef SlicedData::RegionType | OutputImageRegionType |
| Public Types inherited from mitk::BaseDataSource | |
| typedef BaseData | OutputType |
| Output data type. More... | |
| typedef itk::DataObject::DataObjectIdentifierType | DataObjectIdentifierType |
| Identifier type for named data objects. More... | |
| Static Protected Member Functions inherited from mitk::ImageSource | |
| static itk::ITK_THREAD_RETURN_TYPE | ThreaderCallback (void *arg) |
| Static function used as a "callback" by the MultiThreader. More... | |
| Static Protected Member Functions inherited from mitk::BaseDataSource | |
| static Pointer | New () |
Detailed Description
Converts a 2D MITK image to a 3D MITK image with a single slice.
A new 3D MITK image is created and all pixel and geometry information from the given 2D input image is copied. The resulting 3D image has exactly one slice.
This filter is useful before saving a 2D image that carries 3D geometry information. By converting it to 3D with one slice, common formats (e.g. NRRD) can store a full 3x3 transformation matrix.
- See also
- ImageToImageFilter
Definition at line 35 of file mitkConvert2Dto3DImageFilter.h.
Constructor & Destructor Documentation
◆ Convert2Dto3DImageFilter()
|
protected |
Default constructor.
◆ ~Convert2Dto3DImageFilter()
|
overrideprotected |
Destructor.
Member Function Documentation
◆ Clone()
| Pointer mitk::Convert2Dto3DImageFilter::Clone | ( | ) | const |
◆ GenerateData()
|
overrideprotected |
Generate the 3D output image from the 2D input.
Called during the pipeline update process. Copies all pixel data and geometry from the 2D input image into a new 3D image with one slice.
◆ ItkConvert2DTo3D()
template<typename TPixel , unsigned int VImageDimension>
|
protected |
ITK-level conversion from a 2D ITK image to a 3D MITK image.
- Template Parameters
-
TPixel The pixel type. VImageDimension The image dimension (expected to be 2).
◆ mitkClassMacro()
| mitk::Convert2Dto3DImageFilter::mitkClassMacro | ( | Convert2Dto3DImageFilter | , |
| ImageToImageFilter | |||
| ) |
◆ New()
|
static |
The documentation for this class was generated from the following file:
