mitk::ComputeContourSetNormalsFilter Class Reference

Filter that computes surface normals for contour edge points. More...

#include <mitkComputeContourSetNormalsFilter.h>

Inheritance diagram for mitk::ComputeContourSetNormalsFilter:

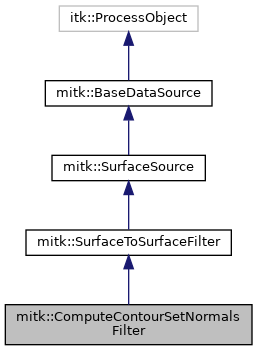

Collaboration diagram for mitk::ComputeContourSetNormalsFilter:

Public Member Functions
	mitkClassMacro (ComputeContourSetNormalsFilter, SurfaceToSurfaceFilter)
Pointer	Clone () const
mitk::Surface::Pointer	GetNormalsAsSurface ()
	Return the computed normals as a mitk::Surface. More...
void	Reset ()
	Reset the filter by removing all inputs and outputs. More...
void	SetMaxSpacing (double maxSpacing)
	Set the maximum voxel spacing of the original image. More...
void	SetUseProgressBar (bool status)
	Enable or disable the MITK progress bar during computation. More...
void	SetProgressStepSize (unsigned int stepSize)
	Set the step size by which the progress bar advances per contour. More...
void	SetSegmentationBinaryImage (mitk::Image *segmentationImage)
	Set the segmentation binary image for normal direction validation. More...
Public Member Functions inherited from mitk::SurfaceToSurfaceFilter
	mitkClassMacro (SurfaceToSurfaceFilter, mitk::SurfaceSource)
Pointer	Clone () const
virtual void	SetInput (const mitk::Surface *surface)
	Set the input surface at index 0. More...
virtual void	SetInput (unsigned int idx, const mitk::Surface *surface)
	Set the input surface at the given index. More...
virtual const mitk::Surface *	GetInput ()
	Get the input surface at index 0. More...
virtual const mitk::Surface *	GetInput (unsigned int idx)
	Get the input surface at the given index. More...
virtual void	CreateOutputForInput (unsigned int idx)
	Create a new output for the input at the given index. More...
virtual void	CreateOutputsForAllInputs ()
	Create outputs for all existing inputs. More...
virtual void	RemoveInputs (mitk::Surface *surface)
	Remove all inputs matching the given surface. More...
Public Member Functions inherited from mitk::SurfaceSource
	mitkClassMacro (SurfaceSource, BaseDataSource)
Pointer	Clone () const
mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Allocate a new output object and return it. More...
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
	Allocate a new output object by name. More...
Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::SurfaceToSurfaceFilter
static Pointer	New ()
Static Public Member Functions inherited from mitk::SurfaceSource
static Pointer	New ()

Protected Member Functions
	ComputeContourSetNormalsFilter ()
	~ComputeContourSetNormalsFilter () override
void	GenerateData () override
void	GenerateOutputInformation () override
Protected Member Functions inherited from mitk::SurfaceToSurfaceFilter
	SurfaceToSurfaceFilter ()
	~SurfaceToSurfaceFilter () override
Protected Member Functions inherited from mitk::SurfaceSource
	SurfaceSource ()
	~SurfaceSource () override
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...
	~BaseDataSource () override
	Destructor. More...

Additional Inherited Members
Public Types inherited from mitk::SurfaceToSurfaceFilter
typedef itk::DataObject::Pointer	DataObjectPointer
Public Types inherited from mitk::SurfaceSource
typedef Surface	OutputType
Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Filter that computes surface normals for contour edge points.

Takes a set of contour surfaces (represented as vtkPolygon-based mitk::Surface objects) and computes normal vectors for each contour edge point. The computed normals can be accessed on the output surfaces via:

filter->GetOutput(i)->GetVtkPolyData()->GetCellData()->GetNormals();

If a segmentation binary image is provided via SetSegmentationBinaryImage(), the filter ensures that the computed normals point away from (not into) the segmented region.

See also

ReduceContourSetFilter, CreateDistanceImageFromSurfaceFilter, SurfaceInterpolationController

Definition at line 48 of file mitkComputeContourSetNormalsFilter.h.

Constructor & Destructor Documentation

ComputeContourSetNormalsFilter()

mitk::ComputeContourSetNormalsFilter::ComputeContourSetNormalsFilter ( )

protected

~ComputeContourSetNormalsFilter()

mitk::ComputeContourSetNormalsFilter::~ComputeContourSetNormalsFilter ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::ComputeContourSetNormalsFilter::Clone

(

)

const

GenerateData()

void mitk::ComputeContourSetNormalsFilter::GenerateData ( )

overrideprotected

GenerateOutputInformation()

void mitk::ComputeContourSetNormalsFilter::GenerateOutputInformation ( )

overrideprotected

GetNormalsAsSurface()

mitk::Surface::Pointer mitk::ComputeContourSetNormalsFilter::GetNormalsAsSurface

(

)

Return the computed normals as a mitk::Surface.

The returned surface contains the normal vectors as cell data.

Returns

Surface containing the computed normal vectors.

mitkClassMacro()

mitk::ComputeContourSetNormalsFilter::mitkClassMacro	(	ComputeContourSetNormalsFilter	,
		SurfaceToSurfaceFilter
	)

New()

static Pointer mitk::ComputeContourSetNormalsFilter::New ( )

static

Reset()

void mitk::ComputeContourSetNormalsFilter::Reset

(

)

Reset the filter by removing all inputs and outputs.

SetMaxSpacing()

void mitk::ComputeContourSetNormalsFilter::SetMaxSpacing

(

double

maxSpacing

)

Set the maximum voxel spacing of the original image.

Used to determine the sampling distance for normal computation.

Parameters

[in]

maxSpacing

The maximum spacing value.

SetProgressStepSize()

void mitk::ComputeContourSetNormalsFilter::SetProgressStepSize

(

unsigned int

stepSize

)

Set the step size by which the progress bar advances per contour.

Parameters

[in]

stepSize

The progress increment per processed contour.

SetSegmentationBinaryImage()

void mitk::ComputeContourSetNormalsFilter::SetSegmentationBinaryImage ( mitk::Image *  segmentationImage )

inline

Set the segmentation binary image for normal direction validation.

When set, the filter checks that computed normals point outward (away from the segmented region) and flips them if necessary.

Parameters

[in]

segmentationImage

Pointer to the binary segmentation image.

Definition at line 91 of file mitkComputeContourSetNormalsFilter.h.

SetUseProgressBar()

void mitk::ComputeContourSetNormalsFilter::SetUseProgressBar

(

bool

status

)

Enable or disable the MITK progress bar during computation.

Parameters

[in]

status

True to use the progress bar, false to disable it.

---

The documentation for this class was generated from the following file:

• mitkComputeContourSetNormalsFilter.h
