QmitkSliceWidget Class Reference

Widget for displaying a single 2D slice of image data with a slice navigation slider. More...

#include <QmitkSliceWidget.h>

Inheritance diagram for QmitkSliceWidget:

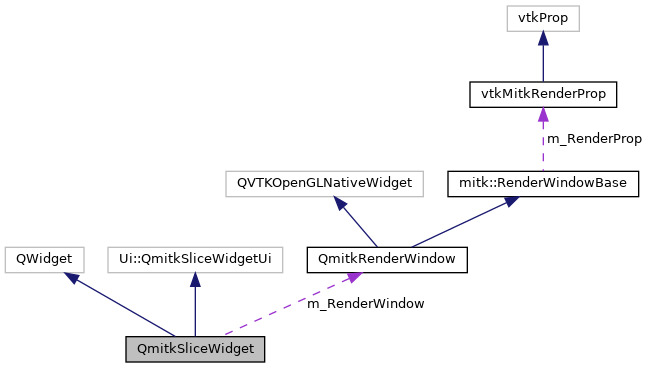

Collaboration diagram for QmitkSliceWidget:

Public Slots
void	SetData (mitk::DataStorage::SetOfObjects::ConstIterator it)
	Set the data node to display using the current view direction. More...
void	SetData (mitk::DataStorage::SetOfObjects::ConstIterator it, mitk::AnatomicalPlane view)
	Set the data node to display with a specified view direction. More...
void	SetData (mitk::DataNode::Pointer node)
	Set the data node to display using the current view direction. More...
void	SetData (mitk::DataNode::Pointer node, mitk::AnatomicalPlane view)
	Set the data node to display with a specified view direction. More...
void	InitWidget (mitk::AnatomicalPlane viewDirection)
	Initialize the widget with the given view direction. More...
void	wheelEvent (QWheelEvent *e) override
	Handle mouse wheel to navigate slices. More...
void	ChangeView (QAction *val)
	Change the view direction from the popup menu. More...
void	SetLevelWindowEnabled (bool enable)
	Enable or disable the level window widget. More...

Public Member Functions
	QmitkSliceWidget (QWidget *parent=nullptr, const char *name=nullptr, Qt::WindowFlags f={})
	Construct the slice widget. More...
	~QmitkSliceWidget () override
	Destructor. More...
mitk::VtkPropRenderer *	GetRenderer ()
	Get the VTK prop renderer used for rendering. More...
QFrame *	GetSelectionFrame ()
	Get the selection frame widget. More...
void	UpdateGL ()
	Force a camera fit and render update. More...
void	mousePressEvent (QMouseEvent *e) override
	Handle right-click to show the view direction popup menu. More...
void	setPopUpEnabled (bool b)
	Enable or disable the right-click view direction popup menu. More...
void	SetDataStorage (mitk::StandaloneDataStorage::Pointer storage)
	Set the data storage for this widget. More...
mitk::StandaloneDataStorage *	GetDataStorage ()
	Get the current data storage. More...
QmitkSliceNavigationWidget *	GetSliceNavigationWidget ()
	Get the slice navigation widget (slider). More...
bool	IsLevelWindowEnabled ()
	Check whether the level window widget is enabled. More...
QmitkRenderWindow *	GetRenderWindow ()
	Get the render window. More...
mitk::SliceNavigationController *	GetSliceNavigationController () const
	Get the slice navigation controller. More...
mitk::CameraRotationController *	GetCameraRotationController () const
	Get the camera rotation controller. More...
mitk::BaseController *	GetController () const
	Get the base controller. More...

Protected Attributes
QmitkRenderWindow *	m_RenderWindow
mitk::AnatomicalPlane	m_View

Detailed Description

Widget for displaying a single 2D slice of image data with a slice navigation slider.

Combines a QmitkRenderWindow with a QmitkSliceNavigationWidget and an optional level window widget. Supports axial, coronal, and sagittal views with a right-click popup menu for switching. The widget uses a standalone data storage.

See also

QmitkRenderWindow, QmitkSliceNavigationWidget, mitk::SliceNavigationController

Definition at line 41 of file QmitkSliceWidget.h.

Constructor & Destructor Documentation

QmitkSliceWidget()

QmitkSliceWidget::QmitkSliceWidget	(	QWidget *	parent = nullptr,
		const char *	name = nullptr,
		Qt::WindowFlags	f = {}
	)

Construct the slice widget.

Parameters

[in]	parent	The parent widget.
[in]	name	The object name.
[in]	f	Window flags.

~QmitkSliceWidget()

QmitkSliceWidget::~QmitkSliceWidget ( )

override

Destructor.

Member Function Documentation

ChangeView

void QmitkSliceWidget::ChangeView ( QAction *  val )

slot

Change the view direction from the popup menu.

Parameters

[in]

val

The menu action ("Axial", "Coronal", or "Sagittal").

GetCameraRotationController()

mitk::CameraRotationController* QmitkSliceWidget::GetCameraRotationController

(

)

const

Get the camera rotation controller.

Returns

Pointer to the mitk::CameraRotationController.

GetController()

mitk::BaseController* QmitkSliceWidget::GetController

(

)

const

Get the base controller.

Returns

Pointer to the mitk::BaseController.

GetDataStorage()

mitk::StandaloneDataStorage* QmitkSliceWidget::GetDataStorage

(

)

Get the current data storage.

Returns

Pointer to the StandaloneDataStorage.

GetRenderer()

mitk::VtkPropRenderer* QmitkSliceWidget::GetRenderer

(

)

Get the VTK prop renderer used for rendering.

Returns

Pointer to the VtkPropRenderer.

GetRenderWindow()

QmitkRenderWindow* QmitkSliceWidget::GetRenderWindow

(

)

Get the render window.

Returns

Pointer to the QmitkRenderWindow.

GetSelectionFrame()

QFrame* QmitkSliceWidget::GetSelectionFrame

(

)

Get the selection frame widget.

Returns

Pointer to the QFrame.

GetSliceNavigationController()

mitk::SliceNavigationController* QmitkSliceWidget::GetSliceNavigationController

(

)

const

Get the slice navigation controller.

Returns

Pointer to the mitk::SliceNavigationController.

GetSliceNavigationWidget()

QmitkSliceNavigationWidget* QmitkSliceWidget::GetSliceNavigationWidget

(

)

Get the slice navigation widget (slider).

Returns

Pointer to the QmitkSliceNavigationWidget.

InitWidget

void QmitkSliceWidget::InitWidget ( mitk::AnatomicalPlane  viewDirection )

slot

Initialize the widget with the given view direction.

Parameters

[in]

viewDirection

The anatomical plane to display.

IsLevelWindowEnabled()

bool QmitkSliceWidget::IsLevelWindowEnabled

(

)

Check whether the level window widget is enabled.

Returns

True if the level window is enabled.

mousePressEvent()

void QmitkSliceWidget::mousePressEvent ( QMouseEvent *  e )

override

Handle right-click to show the view direction popup menu.

Parameters

[in]

e

The mouse event.

SetData [1/4]

void QmitkSliceWidget::SetData ( mitk::DataNode::Pointer  node )

slot

Set the data node to display using the current view direction.

Parameters

[in]

node

The data node containing image data.

SetData [2/4]

void QmitkSliceWidget::SetData ( mitk::DataNode::Pointer  node, mitk::AnatomicalPlane  view  )

slot

Set the data node to display with a specified view direction.

Parameters

[in]	node	The data node containing image data.
[in]	view	The anatomical plane.

SetData [3/4]

void QmitkSliceWidget::SetData ( mitk::DataStorage::SetOfObjects::ConstIterator  it )

slot

Set the data node to display using the current view direction.

Parameters

[in]

it

Iterator pointing to a data node in the data storage.

SetData [4/4]

void QmitkSliceWidget::SetData ( mitk::DataStorage::SetOfObjects::ConstIterator  it, mitk::AnatomicalPlane  view  )

slot

Set the data node to display with a specified view direction.

Parameters

[in]	it	Iterator pointing to a data node in the data storage.
[in]	view	The anatomical plane (Axial, Coronal, Sagittal).

SetDataStorage()

void QmitkSliceWidget::SetDataStorage

(

mitk::StandaloneDataStorage::Pointer

storage

)

Set the data storage for this widget.

Parameters

[in]

storage

The standalone data storage.

SetLevelWindowEnabled

void QmitkSliceWidget::SetLevelWindowEnabled ( bool  enable )

slot

Enable or disable the level window widget.

Parameters

[in]

enable

True to enable.

setPopUpEnabled()

void QmitkSliceWidget::setPopUpEnabled

(

bool

b

)

Enable or disable the right-click view direction popup menu.

Parameters

[in]

b

True to enable the popup.

UpdateGL()

void QmitkSliceWidget::UpdateGL

(

)

Force a camera fit and render update.

wheelEvent

void QmitkSliceWidget::wheelEvent ( QWheelEvent *  e )

overrideslot

Handle mouse wheel to navigate slices.

Parameters

[in]

e

The wheel event.

Member Data Documentation

m_RenderWindow

QmitkRenderWindow* QmitkSliceWidget::m_RenderWindow

protected

Definition at line 185 of file QmitkSliceWidget.h.

m_View

mitk::AnatomicalPlane QmitkSliceWidget::m_View

protected

Definition at line 186 of file QmitkSliceWidget.h.

---

The documentation for this class was generated from the following file:

• QmitkSliceWidget.h
