Generates and manages ImageStatisticsContainer results for image/ROI pairs. More...

#include <QmitkImageStatisticsDataGenerator.h>

Inheritance diagram for QmitkImageStatisticsDataGenerator:

[legend]

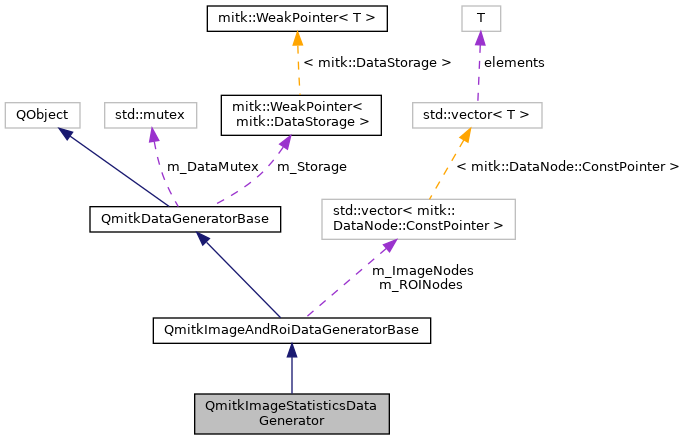

Collaboration diagram for QmitkImageStatisticsDataGenerator:

[legend]

Public Member Functions
	QmitkImageStatisticsDataGenerator (mitk::DataStorage::Pointer storage, QObject *parent=nullptr)
	Constructs the generator with a data storage. More...

	QmitkImageStatisticsDataGenerator (QObject *parent=nullptr)
	Constructs the generator without an initial data storage. More...

bool	IsValidResultAvailable (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const
	Checks whether a valid, up-to-date statistics result exists for the given image/ROI pair. More...

mitk::DataNode::Pointer	GetLatestResult (const mitk::DataNode imageNode, const mitk::DataNode roiNode, bool onlyIfUpToDate=false, bool noWIP=true) const
	Returns the latest statistics result node for a given image/ROI pair and current settings. More...

std::string	GenerateStatisticsNodeName (const mitk::Image image, const mitk::BaseData roi) const
	Generates a unique node name for a statistics result based on image, ROI, and current settings. More...

void	SetIgnoreZeroValueVoxel (bool _arg)
	Sets whether zero-valued voxels should be ignored in statistics computation. More...

bool	GetIgnoreZeroValueVoxel () const
	Returns whether zero-valued voxels are currently being ignored. More...

void	SetHistogramNBins (unsigned int nbins)
	Sets the number of bins for histogram computation. More...

unsigned int	GetHistogramNBins () const
	Returns the current number of histogram bins. More...

Public Member Functions inherited from QmitkImageAndRoiDataGeneratorBase
ConstNodeVectorType	GetImageNodes () const
	Returns the currently set image nodes. More...

ConstNodeVectorType	GetROINodes () const
	Returns the currently set ROI nodes. More...

Public Member Functions inherited from QmitkDataGeneratorBase
	QmitkDataGeneratorBase (const QmitkDataGeneratorBase &other)=delete

QmitkDataGeneratorBase &	operator= (const QmitkDataGeneratorBase &other)=delete

virtual	~QmitkDataGeneratorBase ()

mitk::DataStorage::Pointer	GetDataStorage () const
	Returns the data storage used by this generator. More...

bool	GetAutoUpdate () const
	Returns whether automatic updates are enabled. More...

bool	IsGenerating () const
	Returns whether data generation jobs are currently running or pending. More...

bool	Generate () const
	Checks data validity and triggers generation of missing or outdated data. More...

Protected Member Functions
bool	ChangedNodeIsRelevant (const mitk::DataNode *changedNode) const
	Determines whether a changed data node is relevant and should trigger a regeneration. More...

void	IndicateFutureResults (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const
	Adds placeholder nodes and WIP dummy data to the data storage for missing or outdated results. More...

std::pair< QmitkDataGenerationJobBase *, mitk::DataNode::Pointer >	GetNextMissingGenerationJob (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const
	Returns the next generation job and its associated placeholder node. More...

void	RemoveObsoleteDataNodes (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const
	Removes obsolete result nodes for the given image/ROI pair from the data storage. More...

mitk::DataNode::Pointer	PrepareResultForStorage (const std::string &label, mitk::BaseData result, const QmitkDataGenerationJobBase job) const
	Wraps a generation result in a data node suitable for storage. More...

	QmitkImageStatisticsDataGenerator (const QmitkImageStatisticsDataGenerator &)=delete

QmitkImageStatisticsDataGenerator &	operator= (const QmitkImageStatisticsDataGenerator &)=delete

Protected Member Functions inherited from QmitkImageAndRoiDataGeneratorBase
	QmitkImageAndRoiDataGeneratorBase (mitk::DataStorage::Pointer storage, QObject *parent=nullptr)

	QmitkImageAndRoiDataGeneratorBase (QObject *parent=nullptr)

InputPairVectorType	GetAllImageROICombinations () const override
	Returns all image/ROI pairs for which data generation is needed. More...

	QmitkImageAndRoiDataGeneratorBase (const QmitkImageAndRoiDataGeneratorBase &)=delete

QmitkImageAndRoiDataGeneratorBase &	operator= (const QmitkImageAndRoiDataGeneratorBase &)=delete

Protected Member Functions inherited from QmitkDataGeneratorBase
	QmitkDataGeneratorBase (mitk::DataStorage::Pointer storage, QObject *parent=nullptr)
	Constructs a generator with the given data storage. More...

	QmitkDataGeneratorBase (QObject *parent=nullptr)
	Constructs a generator without an initial data storage. More...

InputPairVectorType	FilterImageROICombinations (InputPairVectorType &&imageROICombinations) const
	Filters image/ROI pairs to only include those whose nodes exist in the data storage. More...

std::string	GetPairDescription (const InputPairVectorType::value_type &imageAndSeg) const
	Returns a human-readable description of an image/ROI pair for debug logging. More...

bool	DoGenerate () const
	Core generation loop that checks validity and launches jobs for all image/ROI pairs. More...

void	EnsureRecheckingAndGeneration () const
	Ensures generation is (re)started, either immediately or by flagging a restart if already running. More...

Protected Attributes
bool	m_IgnoreZeroValueVoxel

unsigned int	m_HistogramNBins

Protected Attributes inherited from QmitkImageAndRoiDataGeneratorBase
ConstNodeVectorType	m_ImageNodes

ConstNodeVectorType	m_ROINodes

Protected Attributes inherited from QmitkDataGeneratorBase
mitk::WeakPointer< mitk::DataStorage >	m_Storage

bool	m_AutoUpdate

std::mutex	m_DataMutex

itk::TimeStamp	m_GenerationTime

Additional Inherited Members
Public Types inherited from QmitkImageAndRoiDataGeneratorBase
using	Superclass = QmitkDataGeneratorBase
	Superclass typedef. More...

using	ConstNodeVectorType = std::vector< mitk::DataNode::ConstPointer >
	Vector of const data node pointers. More...

using	NodeVectorType = std::vector< mitk::DataNode::Pointer >
	Vector of mutable data node pointers. More...

Public Types inherited from QmitkDataGeneratorBase
using	JobResultMapType = QmitkDataGenerationJobBase::ResultMapType
	Alias for the result map type produced by generation jobs. More...

Public Slots inherited from QmitkImageAndRoiDataGeneratorBase
void	SetImageNodes (const ConstNodeVectorType &imageNodes)
	Sets the image nodes for data generation. More...

void	SetImageNodes (const NodeVectorType &imageNodes)
	Convenience overload accepting mutable node pointers. More...

void	SetROINodes (const ConstNodeVectorType &roiNodes)
	Sets the ROI nodes for data generation. More...

void	SetROINodes (const NodeVectorType &roiNodes)
	Convenience overload accepting mutable node pointers. More...

Public Slots inherited from QmitkDataGeneratorBase
void	SetDataStorage (mitk::DataStorage *storage)
	Sets the data storage for monitoring, storing WIP placeholders, and final results. More...

void	SetAutoUpdate (bool autoUpdate)
	Enables or disables automatic update on data changes. More...

Signals inherited from QmitkDataGeneratorBase
void	DataGenerationStarted (const mitk::DataNode imageNode, const mitk::DataNode roiNode, const QmitkDataGenerationJobBase *job) const
	Emitted when a data generation job is started for outdated or missing data. More...

void	NewDataAvailable (mitk::DataStorage::SetOfObjects::ConstPointer data) const
	Emitted when new final result data has been produced and added to the data storage. More...

void	GenerationFinished () const
	Emitted when all generation jobs have finished and all results are up to date. More...

void	JobError (QString error, const QmitkDataGenerationJobBase *failedJob) const
	Emitted when a generation job encounters an error. More...

Protected Types inherited from QmitkImageAndRoiDataGeneratorBase
using	InputPairVectorType = Superclass::InputPairVectorType

Protected Types inherited from QmitkDataGeneratorBase
using	InputPairVectorType = std::vector< std::pair< mitk::DataNode::ConstPointer, mitk::DataNode::ConstPointer > >
	Vector of image/ROI node pairs used as input for generation. More...

Protected Slots inherited from QmitkDataGeneratorBase
void	OnJobError (QString error, const QmitkDataGenerationJobBase *failedJob) const
	Handles error signals from generation jobs and re-emits JobError. More...

void	OnFinalResultsAvailable (JobResultMapType results, const QmitkDataGenerationJobBase *job) const
	Handles completed job results, adds them to the data storage, and emits NewDataAvailable. More...

Static Protected Member Functions inherited from QmitkDataGeneratorBase
static mitk::DataNode::Pointer	CreateWIPDataNode (mitk::BaseData *dataDummy, const std::string &nodeName)
	Creates a WIP placeholder data node for future results. More...

Detailed Description

Generates and manages ImageStatisticsContainer results for image/ROI pairs.

Uses QmitkImageStatisticsCalculationRunnable jobs to compute statistics for each image/ROI combination and ensures their validity. The generator encodes HistogramNBins and IgnoreZeroValueVoxel as properties on the result containers, since these settings are critical criteria for distinguishing statistics results.

For details on the generation orchestration, see QmitkDataGeneratorBase.

See also: QmitkImageAndRoiDataGeneratorBase; QmitkDataGeneratorBase; QmitkImageStatisticsCalculationRunnable; mitk::ImageStatisticsContainer

Definition at line 35 of file QmitkImageStatisticsDataGenerator.h.

Constructor & Destructor Documentation

◆ QmitkImageStatisticsDataGenerator() [1/3]

QmitkImageStatisticsDataGenerator::QmitkImageStatisticsDataGenerator	(	mitk::DataStorage::Pointer	storage,
		QObject *	parent = `nullptr`
	)

inline

Constructs the generator with a data storage.

Parameters

[in]	storage	The data storage for storing results and observing changes.
[in]	parent	Optional parent QObject for Qt ownership.

Definition at line 43 of file QmitkImageStatisticsDataGenerator.h.

◆ QmitkImageStatisticsDataGenerator() [2/3]

QmitkImageStatisticsDataGenerator::QmitkImageStatisticsDataGenerator ( QObject * parent = nullptr )

inline

Constructs the generator without an initial data storage.

Parameters

[in] parent Optional parent QObject for Qt ownership.

Definition at line 49 of file QmitkImageStatisticsDataGenerator.h.

◆ QmitkImageStatisticsDataGenerator() [3/3]

QmitkImageStatisticsDataGenerator::QmitkImageStatisticsDataGenerator ( const QmitkImageStatisticsDataGenerator & )

protecteddelete

Member Function Documentation

◆ ChangedNodeIsRelevant()

bool QmitkImageStatisticsDataGenerator::ChangedNodeIsRelevant ( const mitk::DataNode * changedNode ) const

protectedvirtual

Determines whether a changed data node is relevant and should trigger a regeneration.

Parameters

[in] changedNode The node that was changed in the data storage.

Returns: True if the change is relevant and an update should be triggered.

Reimplemented from QmitkImageAndRoiDataGeneratorBase.

◆ GenerateStatisticsNodeName()

std::string QmitkImageStatisticsDataGenerator::GenerateStatisticsNodeName	(	const mitk::Image *	image,
		const mitk::BaseData *	roi
	)		const

Generates a unique node name for a statistics result based on image, ROI, and current settings.

Parameters

[in]	image	The source image. Must not be nullptr.
[in]	roi	The source ROI data (may be nullptr).

Returns: A string containing the generated node name incorporating bin count, zero-ignore flag, and UIDs.

Exceptions

mitk::Exception if image is nullptr.

◆ GetHistogramNBins()

unsigned int QmitkImageStatisticsDataGenerator::GetHistogramNBins ( ) const

Returns the current number of histogram bins.

Returns: The number of histogram bins.

◆ GetIgnoreZeroValueVoxel()

bool QmitkImageStatisticsDataGenerator::GetIgnoreZeroValueVoxel ( ) const

Returns whether zero-valued voxels are currently being ignored.

Returns: True if zero-valued voxels are ignored; false otherwise.

◆ GetLatestResult()

mitk::DataNode::Pointer QmitkImageStatisticsDataGenerator::GetLatestResult	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode,
		bool	onlyIfUpToDate = `false`,
		bool	noWIP = `true`
	)		const

Returns the latest statistics result node for a given image/ROI pair and current settings.

Parameters

[in]	imageNode	The image data node. Must not be nullptr and must contain valid data.
[in]	roiNode	The ROI data node (may be nullptr).
[in]	onlyIfUpToDate	If true, only returns results that are newer than the source image and ROI.
[in]	noWIP	If true, only returns finalized results (not WIP placeholders). If false, may also return a WIP placeholder indicating computation is in progress.

Returns: The result data node, or nullptr if no matching result is found.

Exceptions

mitk::Exception if imageNode is nullptr or contains no data.

◆ GetNextMissingGenerationJob()

std::pair<QmitkDataGenerationJobBase*, mitk::DataNode::Pointer> QmitkImageStatisticsDataGenerator::GetNextMissingGenerationJob	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

protectedvirtual

Returns the next generation job and its associated placeholder node.

Note: The caller takes ownership of the returned job instance.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Returns

A pair of (job, placeholder node) with three possible outcomes:

Both null: nothing to do.
Both set: a pending placeholder needs computation; trigger the job.
Job null, node set: a job for this node is already in progress; wait for completion.

Implements QmitkDataGeneratorBase.

◆ IndicateFutureResults()

void QmitkImageStatisticsDataGenerator::IndicateFutureResults	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

protectedvirtual

Adds placeholder nodes and WIP dummy data to the data storage for missing or outdated results.

The placeholder nodes will be replaced by real results once generation completes. Derived classes define the detection strategy and dummy data format.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Implements QmitkDataGeneratorBase.

◆ IsValidResultAvailable()

bool QmitkImageStatisticsDataGenerator::IsValidResultAvailable	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

virtual

Checks whether a valid, up-to-date statistics result exists for the given image/ROI pair.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Returns: True if a valid final result is available; false otherwise.

Implements QmitkDataGeneratorBase.

◆ operator=()

QmitkImageStatisticsDataGenerator& QmitkImageStatisticsDataGenerator::operator= ( const QmitkImageStatisticsDataGenerator & )

protecteddelete

◆ PrepareResultForStorage()

mitk::DataNode::Pointer QmitkImageStatisticsDataGenerator::PrepareResultForStorage	(	const std::string &	label,
		mitk::BaseData *	result,
		const QmitkDataGenerationJobBase *	job
	)		const

protectedvirtual

Wraps a generation result in a data node suitable for storage.

Parameters

[in]	label	The result label from the job's result map.
[in]	result	The generated data to store.
[in]	job	The job that produced the result.

Returns: A data node ready to be added to the data storage.

Implements QmitkDataGeneratorBase.

◆ RemoveObsoleteDataNodes()

void QmitkImageStatisticsDataGenerator::RemoveObsoleteDataNodes	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

protectedvirtual

Removes obsolete result nodes for the given image/ROI pair from the data storage.

Obsolete nodes are interim result nodes that have been superseded by newer results.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Implements QmitkDataGeneratorBase.

◆ SetHistogramNBins()

void QmitkImageStatisticsDataGenerator::SetHistogramNBins ( unsigned int nbins )

Sets the number of bins for histogram computation.

If auto-update is enabled and the value changes, regeneration is triggered.

Parameters

[in] nbins The number of histogram bins.

◆ SetIgnoreZeroValueVoxel()

void QmitkImageStatisticsDataGenerator::SetIgnoreZeroValueVoxel ( bool _arg )

Sets whether zero-valued voxels should be ignored in statistics computation.

If auto-update is enabled and the value changes, regeneration is triggered.

Parameters

[in] _arg True to ignore zero-valued voxels; false to include them.

Member Data Documentation

◆ m_HistogramNBins

unsigned int QmitkImageStatisticsDataGenerator::m_HistogramNBins

protected

Definition at line 122 of file QmitkImageStatisticsDataGenerator.h.

◆ m_IgnoreZeroValueVoxel

bool QmitkImageStatisticsDataGenerator::m_IgnoreZeroValueVoxel

protected

Definition at line 121 of file QmitkImageStatisticsDataGenerator.h.

The documentation for this class was generated from the following file:

QmitkImageStatisticsDataGenerator.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ QmitkImageStatisticsDataGenerator() [1/3]

◆ QmitkImageStatisticsDataGenerator() [2/3]

◆ QmitkImageStatisticsDataGenerator() [3/3]

Member Function Documentation

◆ ChangedNodeIsRelevant()

◆ GenerateStatisticsNodeName()

◆ GetHistogramNBins()

◆ GetIgnoreZeroValueVoxel()

◆ GetLatestResult()

◆ GetNextMissingGenerationJob()

◆ IndicateFutureResults()

◆ IsValidResultAvailable()

◆ operator=()

◆ PrepareResultForStorage()

◆ RemoveObsoleteDataNodes()

◆ SetHistogramNBins()

◆ SetIgnoreZeroValueVoxel()

Member Data Documentation

◆ m_HistogramNBins

◆ m_IgnoreZeroValueVoxel
