Base class that orchestrates asynchronous data generation for image/ROI pairs. More...

#include <QmitkDataGeneratorBase.h>

Inheritance diagram for QmitkDataGeneratorBase:

[legend]

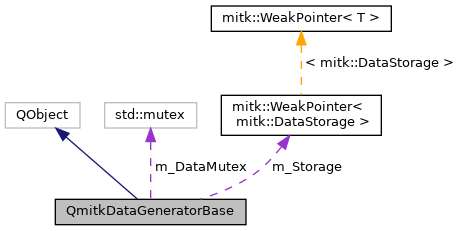

Collaboration diagram for QmitkDataGeneratorBase:

[legend]

Public Types
using	JobResultMapType = QmitkDataGenerationJobBase::ResultMapType
	Alias for the result map type produced by generation jobs. More...

Public Slots
void	SetDataStorage (mitk::DataStorage *storage)
	Sets the data storage for monitoring, storing WIP placeholders, and final results. More...

void	SetAutoUpdate (bool autoUpdate)
	Enables or disables automatic update on data changes. More...

Signals
void	DataGenerationStarted (const mitk::DataNode imageNode, const mitk::DataNode roiNode, const QmitkDataGenerationJobBase *job) const
	Emitted when a data generation job is started for outdated or missing data. More...

void	NewDataAvailable (mitk::DataStorage::SetOfObjects::ConstPointer data) const
	Emitted when new final result data has been produced and added to the data storage. More...

void	GenerationFinished () const
	Emitted when all generation jobs have finished and all results are up to date. More...

void	JobError (QString error, const QmitkDataGenerationJobBase *failedJob) const
	Emitted when a generation job encounters an error. More...

Public Member Functions
	QmitkDataGeneratorBase (const QmitkDataGeneratorBase &other)=delete

QmitkDataGeneratorBase &	operator= (const QmitkDataGeneratorBase &other)=delete

virtual	~QmitkDataGeneratorBase ()

mitk::DataStorage::Pointer	GetDataStorage () const
	Returns the data storage used by this generator. More...

bool	GetAutoUpdate () const
	Returns whether automatic updates are enabled. More...

bool	IsGenerating () const
	Returns whether data generation jobs are currently running or pending. More...

bool	Generate () const
	Checks data validity and triggers generation of missing or outdated data. More...

virtual bool	IsValidResultAvailable (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Checks whether a valid final result exists for the given image and ROI. More...

Protected Types
using	InputPairVectorType = std::vector< std::pair< mitk::DataNode::ConstPointer, mitk::DataNode::ConstPointer > >
	Vector of image/ROI node pairs used as input for generation. More...

Protected Slots
void	OnJobError (QString error, const QmitkDataGenerationJobBase *failedJob) const
	Handles error signals from generation jobs and re-emits JobError. More...

void	OnFinalResultsAvailable (JobResultMapType results, const QmitkDataGenerationJobBase *job) const
	Handles completed job results, adds them to the data storage, and emits NewDataAvailable. More...

Protected Member Functions
	QmitkDataGeneratorBase (mitk::DataStorage::Pointer storage, QObject *parent=nullptr)
	Constructs a generator with the given data storage. More...

	QmitkDataGeneratorBase (QObject *parent=nullptr)
	Constructs a generator without an initial data storage. More...

virtual bool	ChangedNodeIsRelevant (const mitk::DataNode *changedNode) const =0
	Determines whether a changed data node is relevant and should trigger a regeneration. More...

virtual InputPairVectorType	GetAllImageROICombinations () const =0
	Returns all image/ROI pairs for which data generation is needed. More...

virtual void	IndicateFutureResults (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Adds placeholder nodes and WIP dummy data to the data storage for missing or outdated results. More...

virtual std::pair< QmitkDataGenerationJobBase *, mitk::DataNode::Pointer >	GetNextMissingGenerationJob (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Returns the next generation job and its associated placeholder node. More...

virtual void	RemoveObsoleteDataNodes (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Removes obsolete result nodes for the given image/ROI pair from the data storage. More...

virtual mitk::DataNode::Pointer	PrepareResultForStorage (const std::string &label, mitk::BaseData result, const QmitkDataGenerationJobBase job) const =0
	Wraps a generation result in a data node suitable for storage. More...

InputPairVectorType	FilterImageROICombinations (InputPairVectorType &&imageROICombinations) const
	Filters image/ROI pairs to only include those whose nodes exist in the data storage. More...

std::string	GetPairDescription (const InputPairVectorType::value_type &imageAndSeg) const
	Returns a human-readable description of an image/ROI pair for debug logging. More...

bool	DoGenerate () const
	Core generation loop that checks validity and launches jobs for all image/ROI pairs. More...

void	EnsureRecheckingAndGeneration () const
	Ensures generation is (re)started, either immediately or by flagging a restart if already running. More...

Static Protected Member Functions
static mitk::DataNode::Pointer	CreateWIPDataNode (mitk::BaseData *dataDummy, const std::string &nodeName)
	Creates a WIP placeholder data node for future results. More...

Protected Attributes
mitk::WeakPointer< mitk::DataStorage >	m_Storage

bool	m_AutoUpdate

std::mutex	m_DataMutex

itk::TimeStamp	m_GenerationTime

Detailed Description

Base class that orchestrates asynchronous data generation for image/ROI pairs.

This class manages the lifecycle of background data generation jobs for pairs of images and ROIs. It ensures that for each image/ROI combination (defined by derived classes), a result instance (e.g., mitk::ImageStatisticsContainer) is calculated when needed (missing or outdated) and stored in the associated data storage. Derived classes define how to produce image/ROI pairs, how to detect existing results, what constitutes the next generation step, and how to clean up obsolete data. The base class observes the data storage for changes and orchestrates the checking and generation workflow.

The data storage serves two roles: (1) it stores and retrieves final results, and (2) it tracks the generation state via work-in-progress (WIP) placeholder nodes for pending or in-progress jobs.

See also: QmitkDataGenerationJobBase; QmitkImageAndRoiDataGeneratorBase; QmitkImageStatisticsDataGenerator

Definition at line 45 of file QmitkDataGeneratorBase.h.

Member Typedef Documentation

◆ InputPairVectorType

using QmitkDataGeneratorBase::InputPairVectorType = std::vector<std::pair<mitk::DataNode::ConstPointer, mitk::DataNode::ConstPointer> >

protected

Vector of image/ROI node pairs used as input for generation.

Definition at line 171 of file QmitkDataGeneratorBase.h.

◆ JobResultMapType

using QmitkDataGeneratorBase::JobResultMapType = QmitkDataGenerationJobBase::ResultMapType

Alias for the result map type produced by generation jobs.

Definition at line 55 of file QmitkDataGeneratorBase.h.

Constructor & Destructor Documentation

◆ QmitkDataGeneratorBase() [1/3]

QmitkDataGeneratorBase::QmitkDataGeneratorBase ( const QmitkDataGeneratorBase & other )

delete

◆ ~QmitkDataGeneratorBase()

virtual QmitkDataGeneratorBase::~QmitkDataGeneratorBase ( )

virtual

◆ QmitkDataGeneratorBase() [2/3]

QmitkDataGeneratorBase::QmitkDataGeneratorBase	(	mitk::DataStorage::Pointer	storage,
		QObject *	parent = `nullptr`
	)

protected

Constructs a generator with the given data storage.

Parameters

[in]	storage	The data storage where all produced data should be stored.
[in]	parent	Optional parent QObject for Qt ownership.

◆ QmitkDataGeneratorBase() [3/3]

QmitkDataGeneratorBase::QmitkDataGeneratorBase ( QObject * parent = nullptr )

protected

Constructs a generator without an initial data storage.

Parameters

[in] parent Optional parent QObject for Qt ownership.

Member Function Documentation

◆ ChangedNodeIsRelevant()

virtual bool QmitkDataGeneratorBase::ChangedNodeIsRelevant ( const mitk::DataNode * changedNode ) const

protectedpure virtual

Determines whether a changed data node is relevant and should trigger a regeneration.

Parameters

[in] changedNode The node that was changed in the data storage.

Returns: True if the change is relevant and an update should be triggered.

Implemented in QmitkImageAndRoiDataGeneratorBase, and QmitkImageStatisticsDataGenerator.

◆ CreateWIPDataNode()

static mitk::DataNode::Pointer QmitkDataGeneratorBase::CreateWIPDataNode	(	mitk::BaseData *	dataDummy,
		const std::string &	nodeName
	)

staticprotected

Creates a WIP placeholder data node for future results.

The created node is marked as a hidden helper object with a "pending" generation status. Can be used by IndicateFutureResults() implementations.

Parameters

[in]	dataDummy	The dummy data object to attach to the node. Must not be nullptr.
[in]	nodeName	The name to assign to the node.

Returns: A newly created placeholder data node.

Exceptions

mitk::Exception if dataDummy is nullptr.

◆ DataGenerationStarted

void QmitkDataGeneratorBase::DataGenerationStarted	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode,
		const QmitkDataGenerationJobBase *	job
	)		const

signal

Emitted when a data generation job is started for outdated or missing data.

Parameters

[in]	imageNode	The image data node being processed.
[in]	roiNode	The ROI data node being processed (may be nullptr).
[in]	job	Pointer to the started generation job.

◆ DoGenerate()

bool QmitkDataGeneratorBase::DoGenerate ( ) const

protected

Core generation loop that checks validity and launches jobs for all image/ROI pairs.

Returns: True if all results are valid; false if new jobs were triggered.

◆ EnsureRecheckingAndGeneration()

void QmitkDataGeneratorBase::EnsureRecheckingAndGeneration ( ) const

protected

Ensures generation is (re)started, either immediately or by flagging a restart if already running.

◆ FilterImageROICombinations()

InputPairVectorType QmitkDataGeneratorBase::FilterImageROICombinations ( InputPairVectorType && imageROICombinations ) const

protected

Filters image/ROI pairs to only include those whose nodes exist in the data storage.

Parameters

[in] imageROICombinations The pairs to filter (moved into the method).

Returns: A filtered vector containing only pairs with nodes present in the data storage.

◆ Generate()

bool QmitkDataGeneratorBase::Generate ( ) const

Checks data validity and triggers generation of missing or outdated data.

The generation is performed asynchronously using a thread pool. To detect when all jobs have completed, connect to the GenerationFinished signal.

Returns: True if all results are already valid; false if new generation was triggered.

◆ GenerationFinished

void QmitkDataGeneratorBase::GenerationFinished ( ) const

signal

Emitted when all generation jobs have finished and all results are up to date.

◆ GetAllImageROICombinations()

virtual InputPairVectorType QmitkDataGeneratorBase::GetAllImageROICombinations ( ) const

protectedpure virtual

Returns all image/ROI pairs for which data generation is needed.

The ROI element of a pair may be nullptr if no ROI is required.

Returns: A vector of image/ROI node pairs.

Implemented in QmitkImageAndRoiDataGeneratorBase.

◆ GetAutoUpdate()

bool QmitkDataGeneratorBase::GetAutoUpdate ( ) const

Returns whether automatic updates are enabled.

When enabled, the generator automatically triggers regeneration when:

Input data nodes have been changed or modified
Generation-relevant settings in derived classes have changed

Returns: True if auto-update is enabled; false otherwise.

◆ GetDataStorage()

mitk::DataStorage::Pointer QmitkDataGeneratorBase::GetDataStorage ( ) const

Returns the data storage used by this generator.

Returns: The data storage, or nullptr if none is set.

◆ GetNextMissingGenerationJob()

virtual std::pair<QmitkDataGenerationJobBase*,mitk::DataNode::Pointer> QmitkDataGeneratorBase::GetNextMissingGenerationJob	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

protectedpure virtual

Returns the next generation job and its associated placeholder node.

Note: The caller takes ownership of the returned job instance.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Returns

A pair of (job, placeholder node) with three possible outcomes:

Both null: nothing to do.
Both set: a pending placeholder needs computation; trigger the job.
Job null, node set: a job for this node is already in progress; wait for completion.

Implemented in QmitkImageStatisticsDataGenerator.

◆ GetPairDescription()

std::string QmitkDataGeneratorBase::GetPairDescription ( const InputPairVectorType::value_type & imageAndSeg ) const

protected

Returns a human-readable description of an image/ROI pair for debug logging.

Parameters

[in] imageAndSeg The image/ROI pair to describe.

Returns: A descriptive string.

◆ IndicateFutureResults()

virtual void QmitkDataGeneratorBase::IndicateFutureResults	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

protectedpure virtual

Adds placeholder nodes and WIP dummy data to the data storage for missing or outdated results.

The placeholder nodes will be replaced by real results once generation completes. Derived classes define the detection strategy and dummy data format.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Implemented in QmitkImageStatisticsDataGenerator.

◆ IsGenerating()

bool QmitkDataGeneratorBase::IsGenerating ( ) const

Returns whether data generation jobs are currently running or pending.

Set to true when DataGenerationStarted is emitted and becomes false when GenerationFinished is emitted.

Returns: True if generation is in progress; false otherwise.

◆ IsValidResultAvailable()

virtual bool QmitkDataGeneratorBase::IsValidResultAvailable	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

pure virtual

Checks whether a valid final result exists for the given image and ROI.

Parameters

[in]	imageNode	The image data node to check.
[in]	roiNode	The ROI data node to check (may be nullptr if no ROI is used).

Returns: True if a valid, up-to-date result is available; false otherwise.

Implemented in QmitkImageStatisticsDataGenerator.

◆ JobError

void QmitkDataGeneratorBase::JobError	(	QString	error,
		const QmitkDataGenerationJobBase *	failedJob
	)		const

signal

Emitted when a generation job encounters an error.

Parameters

[in]	error	The error description.
[in]	failedJob	Pointer to the job that failed.

◆ NewDataAvailable

void QmitkDataGeneratorBase::NewDataAvailable ( mitk::DataStorage::SetOfObjects::ConstPointer data ) const

signal

Emitted when new final result data has been produced and added to the data storage.

Parameters

[in] data The set of newly added result data nodes.

◆ OnFinalResultsAvailable

void QmitkDataGeneratorBase::OnFinalResultsAvailable	(	JobResultMapType	results,
		const QmitkDataGenerationJobBase *	job
	)		const

protectedslot

Handles completed job results, adds them to the data storage, and emits NewDataAvailable.

Parameters

[in]	results	The result map from the completed job.
[in]	job	Pointer to the job that produced the results.

◆ OnJobError

void QmitkDataGeneratorBase::OnJobError	(	QString	error,
		const QmitkDataGenerationJobBase *	failedJob
	)		const

protectedslot

Handles error signals from generation jobs and re-emits JobError.

Parameters

[in]	error	The error message.
[in]	failedJob	Pointer to the job that failed.

◆ operator=()

QmitkDataGeneratorBase& QmitkDataGeneratorBase::operator= ( const QmitkDataGeneratorBase & other )

delete

◆ PrepareResultForStorage()

virtual mitk::DataNode::Pointer QmitkDataGeneratorBase::PrepareResultForStorage	(	const std::string &	label,
		mitk::BaseData *	result,
		const QmitkDataGenerationJobBase *	job
	)		const

protectedpure virtual

Wraps a generation result in a data node suitable for storage.

Parameters

[in]	label	The result label from the job's result map.
[in]	result	The generated data to store.
[in]	job	The job that produced the result.

Returns: A data node ready to be added to the data storage.

Implemented in QmitkImageStatisticsDataGenerator.

◆ RemoveObsoleteDataNodes()

virtual void QmitkDataGeneratorBase::RemoveObsoleteDataNodes	(	const mitk::DataNode *	imageNode,
		const mitk::DataNode *	roiNode
	)		const

protectedpure virtual

Removes obsolete result nodes for the given image/ROI pair from the data storage.

Obsolete nodes are interim result nodes that have been superseded by newer results.

Parameters

[in]	imageNode	The image data node.
[in]	roiNode	The ROI data node (may be nullptr).

Implemented in QmitkImageStatisticsDataGenerator.

◆ SetAutoUpdate

void QmitkDataGeneratorBase::SetAutoUpdate ( bool autoUpdate )

slot

Enables or disables automatic update on data changes.

Parameters

[in] autoUpdate True to enable; false to disable.

◆ SetDataStorage

void QmitkDataGeneratorBase::SetDataStorage ( mitk::DataStorage * storage )

slot

Sets the data storage for monitoring, storing WIP placeholders, and final results.

Parameters

[in] storage Pointer to the data storage to use. May be nullptr to disconnect.

Member Data Documentation

◆ m_AutoUpdate

bool QmitkDataGeneratorBase::m_AutoUpdate

protected

Definition at line 268 of file QmitkDataGeneratorBase.h.

◆ m_DataMutex

std::mutex QmitkDataGeneratorBase::m_DataMutex

mutableprotected

Definition at line 270 of file QmitkDataGeneratorBase.h.

◆ m_GenerationTime

itk::TimeStamp QmitkDataGeneratorBase::m_GenerationTime

mutableprotected

Time stamp for the last successful run through with the current image roi pairs.

Definition at line 273 of file QmitkDataGeneratorBase.h.

◆ m_Storage

mitk::WeakPointer<mitk::DataStorage> QmitkDataGeneratorBase::m_Storage

protected

Definition at line 266 of file QmitkDataGeneratorBase.h.

The documentation for this class was generated from the following file:

QmitkDataGeneratorBase.h

Public Types

Public Slots

Signals

Public Member Functions

Protected Types

Protected Slots

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ InputPairVectorType

◆ JobResultMapType

Constructor & Destructor Documentation

◆ QmitkDataGeneratorBase() [1/3]

◆ ~QmitkDataGeneratorBase()

◆ QmitkDataGeneratorBase() [2/3]

◆ QmitkDataGeneratorBase() [3/3]

Member Function Documentation

◆ ChangedNodeIsRelevant()

◆ CreateWIPDataNode()

◆ DataGenerationStarted

◆ DoGenerate()

◆ EnsureRecheckingAndGeneration()

◆ FilterImageROICombinations()

◆ Generate()

◆ GenerationFinished

◆ GetAllImageROICombinations()

◆ GetAutoUpdate()

◆ GetDataStorage()

◆ GetNextMissingGenerationJob()

◆ GetPairDescription()

◆ IndicateFutureResults()

◆ IsGenerating()

◆ IsValidResultAvailable()

◆ JobError

◆ NewDataAvailable

◆ OnFinalResultsAvailable

◆ OnJobError

◆ operator=()

◆ PrepareResultForStorage()

◆ RemoveObsoleteDataNodes()

◆ SetAutoUpdate

◆ SetDataStorage

Member Data Documentation

◆ m_AutoUpdate

◆ m_DataMutex

◆ m_GenerationTime

◆ m_Storage
