Base class for data generators that accept image and ROI nodes as vectors. More...

#include <QmitkImageAndRoiDataGeneratorBase.h>

Inheritance diagram for QmitkImageAndRoiDataGeneratorBase:

[legend]

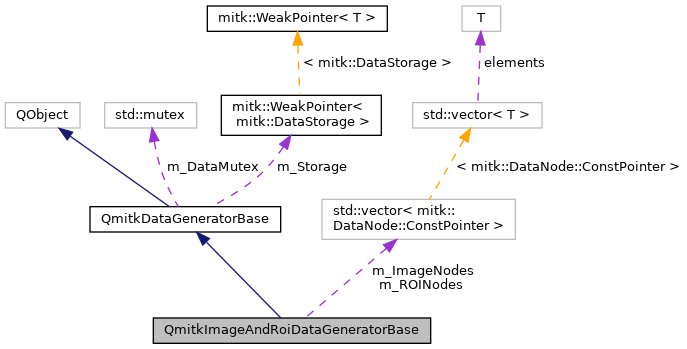

Collaboration diagram for QmitkImageAndRoiDataGeneratorBase:

[legend]

Public Types
using	Superclass = QmitkDataGeneratorBase
	Superclass typedef. More...

using	ConstNodeVectorType = std::vector< mitk::DataNode::ConstPointer >
	Vector of const data node pointers. More...

using	NodeVectorType = std::vector< mitk::DataNode::Pointer >
	Vector of mutable data node pointers. More...

Public Types inherited from QmitkDataGeneratorBase
using	JobResultMapType = QmitkDataGenerationJobBase::ResultMapType
	Alias for the result map type produced by generation jobs. More...

Public Slots
void	SetImageNodes (const ConstNodeVectorType &imageNodes)
	Sets the image nodes for data generation. More...

void	SetImageNodes (const NodeVectorType &imageNodes)
	Convenience overload accepting mutable node pointers. More...

void	SetROINodes (const ConstNodeVectorType &roiNodes)
	Sets the ROI nodes for data generation. More...

void	SetROINodes (const NodeVectorType &roiNodes)
	Convenience overload accepting mutable node pointers. More...

Public Slots inherited from QmitkDataGeneratorBase
void	SetDataStorage (mitk::DataStorage *storage)
	Sets the data storage for monitoring, storing WIP placeholders, and final results. More...

void	SetAutoUpdate (bool autoUpdate)
	Enables or disables automatic update on data changes. More...

Public Member Functions
ConstNodeVectorType	GetImageNodes () const
	Returns the currently set image nodes. More...

ConstNodeVectorType	GetROINodes () const
	Returns the currently set ROI nodes. More...

Public Member Functions inherited from QmitkDataGeneratorBase
	QmitkDataGeneratorBase (const QmitkDataGeneratorBase &other)=delete

QmitkDataGeneratorBase &	operator= (const QmitkDataGeneratorBase &other)=delete

virtual	~QmitkDataGeneratorBase ()

mitk::DataStorage::Pointer	GetDataStorage () const
	Returns the data storage used by this generator. More...

bool	GetAutoUpdate () const
	Returns whether automatic updates are enabled. More...

bool	IsGenerating () const
	Returns whether data generation jobs are currently running or pending. More...

bool	Generate () const
	Checks data validity and triggers generation of missing or outdated data. More...

virtual bool	IsValidResultAvailable (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Checks whether a valid final result exists for the given image and ROI. More...

Protected Types
using	InputPairVectorType = Superclass::InputPairVectorType

Protected Types inherited from QmitkDataGeneratorBase
using	InputPairVectorType = std::vector< std::pair< mitk::DataNode::ConstPointer, mitk::DataNode::ConstPointer > >
	Vector of image/ROI node pairs used as input for generation. More...

Protected Member Functions
	QmitkImageAndRoiDataGeneratorBase (mitk::DataStorage::Pointer storage, QObject *parent=nullptr)

	QmitkImageAndRoiDataGeneratorBase (QObject *parent=nullptr)

bool	ChangedNodeIsRelevant (const mitk::DataNode *changedNode) const override
	Determines whether a changed data node is relevant and should trigger a regeneration. More...

InputPairVectorType	GetAllImageROICombinations () const override
	Returns all image/ROI pairs for which data generation is needed. More...

	QmitkImageAndRoiDataGeneratorBase (const QmitkImageAndRoiDataGeneratorBase &)=delete

QmitkImageAndRoiDataGeneratorBase &	operator= (const QmitkImageAndRoiDataGeneratorBase &)=delete

Protected Member Functions inherited from QmitkDataGeneratorBase
	QmitkDataGeneratorBase (mitk::DataStorage::Pointer storage, QObject *parent=nullptr)
	Constructs a generator with the given data storage. More...

	QmitkDataGeneratorBase (QObject *parent=nullptr)
	Constructs a generator without an initial data storage. More...

virtual void	IndicateFutureResults (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Adds placeholder nodes and WIP dummy data to the data storage for missing or outdated results. More...

virtual std::pair< QmitkDataGenerationJobBase *, mitk::DataNode::Pointer >	GetNextMissingGenerationJob (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Returns the next generation job and its associated placeholder node. More...

virtual void	RemoveObsoleteDataNodes (const mitk::DataNode imageNode, const mitk::DataNode roiNode) const =0
	Removes obsolete result nodes for the given image/ROI pair from the data storage. More...

virtual mitk::DataNode::Pointer	PrepareResultForStorage (const std::string &label, mitk::BaseData result, const QmitkDataGenerationJobBase job) const =0
	Wraps a generation result in a data node suitable for storage. More...

InputPairVectorType	FilterImageROICombinations (InputPairVectorType &&imageROICombinations) const
	Filters image/ROI pairs to only include those whose nodes exist in the data storage. More...

std::string	GetPairDescription (const InputPairVectorType::value_type &imageAndSeg) const
	Returns a human-readable description of an image/ROI pair for debug logging. More...

bool	DoGenerate () const
	Core generation loop that checks validity and launches jobs for all image/ROI pairs. More...

void	EnsureRecheckingAndGeneration () const
	Ensures generation is (re)started, either immediately or by flagging a restart if already running. More...

Protected Attributes
ConstNodeVectorType	m_ImageNodes

ConstNodeVectorType	m_ROINodes

Protected Attributes inherited from QmitkDataGeneratorBase
mitk::WeakPointer< mitk::DataStorage >	m_Storage

bool	m_AutoUpdate

std::mutex	m_DataMutex

itk::TimeStamp	m_GenerationTime

Additional Inherited Members
Signals inherited from QmitkDataGeneratorBase
void	DataGenerationStarted (const mitk::DataNode imageNode, const mitk::DataNode roiNode, const QmitkDataGenerationJobBase *job) const
	Emitted when a data generation job is started for outdated or missing data. More...

void	NewDataAvailable (mitk::DataStorage::SetOfObjects::ConstPointer data) const
	Emitted when new final result data has been produced and added to the data storage. More...

void	GenerationFinished () const
	Emitted when all generation jobs have finished and all results are up to date. More...

void	JobError (QString error, const QmitkDataGenerationJobBase *failedJob) const
	Emitted when a generation job encounters an error. More...

Protected Slots inherited from QmitkDataGeneratorBase
void	OnJobError (QString error, const QmitkDataGenerationJobBase *failedJob) const
	Handles error signals from generation jobs and re-emits JobError. More...

void	OnFinalResultsAvailable (JobResultMapType results, const QmitkDataGenerationJobBase *job) const
	Handles completed job results, adds them to the data storage, and emits NewDataAvailable. More...

Static Protected Member Functions inherited from QmitkDataGeneratorBase
static mitk::DataNode::Pointer	CreateWIPDataNode (mitk::BaseData *dataDummy, const std::string &nodeName)
	Creates a WIP placeholder data node for future results. More...

Detailed Description

Base class for data generators that accept image and ROI nodes as vectors.

Extends QmitkDataGeneratorBase to accept separate vectors of image nodes and ROI nodes (as typically provided by node selection widgets). This class computes the Cartesian product of all image/ROI combinations, ensuring that data is generated for every pairing. If no ROI nodes are set, each image is processed without a mask.

See also: QmitkDataGeneratorBase; QmitkImageStatisticsDataGenerator

Definition at line 30 of file QmitkImageAndRoiDataGeneratorBase.h.

Member Typedef Documentation

◆ ConstNodeVectorType

using QmitkImageAndRoiDataGeneratorBase::ConstNodeVectorType = std::vector<mitk::DataNode::ConstPointer>

Vector of const data node pointers.

Definition at line 37 of file QmitkImageAndRoiDataGeneratorBase.h.

◆ InputPairVectorType

using QmitkImageAndRoiDataGeneratorBase::InputPairVectorType = Superclass::InputPairVectorType

protected

Definition at line 91 of file QmitkImageAndRoiDataGeneratorBase.h.

◆ NodeVectorType

using QmitkImageAndRoiDataGeneratorBase::NodeVectorType = std::vector<mitk::DataNode::Pointer>

Vector of mutable data node pointers.

Definition at line 39 of file QmitkImageAndRoiDataGeneratorBase.h.

◆ Superclass

using QmitkImageAndRoiDataGeneratorBase::Superclass = QmitkDataGeneratorBase

Superclass typedef.

Definition at line 34 of file QmitkImageAndRoiDataGeneratorBase.h.

Constructor & Destructor Documentation

◆ QmitkImageAndRoiDataGeneratorBase() [1/3]

QmitkImageAndRoiDataGeneratorBase::QmitkImageAndRoiDataGeneratorBase	(	mitk::DataStorage::Pointer	storage,
		QObject *	parent = `nullptr`
	)

inlineprotected

Definition at line 88 of file QmitkImageAndRoiDataGeneratorBase.h.

◆ QmitkImageAndRoiDataGeneratorBase() [2/3]

QmitkImageAndRoiDataGeneratorBase::QmitkImageAndRoiDataGeneratorBase ( QObject * parent = nullptr )

inlineprotected

Definition at line 89 of file QmitkImageAndRoiDataGeneratorBase.h.

◆ QmitkImageAndRoiDataGeneratorBase() [3/3]

QmitkImageAndRoiDataGeneratorBase::QmitkImageAndRoiDataGeneratorBase ( const QmitkImageAndRoiDataGeneratorBase & )

protecteddelete

Member Function Documentation

◆ ChangedNodeIsRelevant()

bool QmitkImageAndRoiDataGeneratorBase::ChangedNodeIsRelevant ( const mitk::DataNode * changedNode ) const

overrideprotectedvirtual

Determines whether a changed data node is relevant and should trigger a regeneration.

Parameters

[in] changedNode The node that was changed in the data storage.

Returns: True if the change is relevant and an update should be triggered.

Implements QmitkDataGeneratorBase.

Reimplemented in QmitkImageStatisticsDataGenerator.

◆ GetAllImageROICombinations()

InputPairVectorType QmitkImageAndRoiDataGeneratorBase::GetAllImageROICombinations ( ) const

overrideprotectedvirtual

Returns all image/ROI pairs for which data generation is needed.

The ROI element of a pair may be nullptr if no ROI is required.

Returns: A vector of image/ROI node pairs.

Implements QmitkDataGeneratorBase.

◆ GetImageNodes()

ConstNodeVectorType QmitkImageAndRoiDataGeneratorBase::GetImageNodes ( ) const

Returns the currently set image nodes.

Returns: A vector of const image data node pointers.

◆ GetROINodes()

ConstNodeVectorType QmitkImageAndRoiDataGeneratorBase::GetROINodes ( ) const

Returns the currently set ROI nodes.

Returns: A vector of const ROI data node pointers.

◆ operator=()

QmitkImageAndRoiDataGeneratorBase& QmitkImageAndRoiDataGeneratorBase::operator= ( const QmitkImageAndRoiDataGeneratorBase & )

protecteddelete

◆ SetImageNodes [1/2]

void QmitkImageAndRoiDataGeneratorBase::SetImageNodes ( const ConstNodeVectorType & imageNodes )

slot

Sets the image nodes for data generation.

If auto-update is enabled and the nodes differ from the current set, generation is automatically re-triggered.

Parameters

[in] imageNodes The vector of image data nodes.

◆ SetImageNodes [2/2]

void QmitkImageAndRoiDataGeneratorBase::SetImageNodes ( const NodeVectorType & imageNodes )

slot

Convenience overload accepting mutable node pointers.

Parameters

[in] imageNodes The vector of image data nodes.

◆ SetROINodes [1/2]

void QmitkImageAndRoiDataGeneratorBase::SetROINodes ( const ConstNodeVectorType & roiNodes )

slot

Sets the ROI nodes for data generation.

If auto-update is enabled and the nodes differ from the current set, generation is automatically re-triggered.

Parameters

[in] roiNodes The vector of ROI data nodes.

◆ SetROINodes [2/2]

void QmitkImageAndRoiDataGeneratorBase::SetROINodes ( const NodeVectorType & roiNodes )

slot

Convenience overload accepting mutable node pointers.

Parameters

[in] roiNodes The vector of ROI data nodes.

Member Data Documentation

◆ m_ImageNodes

ConstNodeVectorType QmitkImageAndRoiDataGeneratorBase::m_ImageNodes

protected

Definition at line 96 of file QmitkImageAndRoiDataGeneratorBase.h.

◆ m_ROINodes

ConstNodeVectorType QmitkImageAndRoiDataGeneratorBase::m_ROINodes

protected

Definition at line 97 of file QmitkImageAndRoiDataGeneratorBase.h.

The documentation for this class was generated from the following file:

QmitkImageAndRoiDataGeneratorBase.h
