QmitkBinaryThresholdULToolGUI Class Reference

GUI for mitk::BinaryThresholdTool with upper and lower threshold range. More...

#include <QmitkBinaryThresholdULToolGUI.h>

Inheritance diagram for QmitkBinaryThresholdULToolGUI:

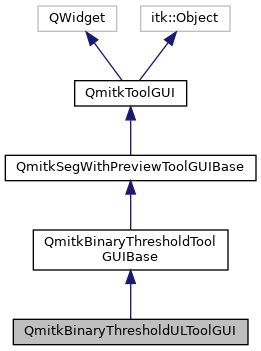

Collaboration diagram for QmitkBinaryThresholdULToolGUI:

Public Member Functions
	mitkClassMacro (QmitkBinaryThresholdULToolGUI, QmitkBinaryThresholdToolGUIBase)
Pointer	Clone () const
Public Member Functions inherited from QmitkBinaryThresholdToolGUIBase
	mitkClassMacro (QmitkBinaryThresholdToolGUIBase, QmitkSegWithPreviewToolGUIBase)
void	OnThresholdingIntervalBordersChanged (double lower, double upper, bool isFloat)
	Called when the tool's threshold interval borders change. More...
void	OnThresholdingValuesChanged (mitk::ScalarType lower, mitk::ScalarType upper)
	Called when the tool's current threshold values change. More...
Public Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	mitkClassMacro (QmitkSegWithPreviewToolGUIBase, QmitkToolGUI)
Pointer	Clone () const
virtual bool	GetMode2D () const
Public Member Functions inherited from QmitkToolGUI
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
	Associates the given tool with this GUI, emitting NewToolAssociated. More...
void	SetMultiLabelInspector (QmitkMultiLabelInspector *inspector)
	Provides the segmentation view's label inspector to this GUI. More...
QmitkMultiLabelInspector *	GetMultiLabelInspector () const
	Returns the inspector associated with this GUI, or null if none. More...
void	Register () const override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	SetReferenceCount (int) override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
	~QmitkToolGUI () override

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	QmitkBinaryThresholdULToolGUI ()
	~QmitkBinaryThresholdULToolGUI () override
Protected Member Functions inherited from QmitkBinaryThresholdToolGUIBase
	QmitkBinaryThresholdToolGUIBase (bool ulMode)
	~QmitkBinaryThresholdToolGUIBase () override
void	DisconnectOldTool (mitk::SegWithPreviewTool *oldTool) override
void	ConnectNewTool (mitk::SegWithPreviewTool *newTool) override
void	InitializeUI (QBoxLayout *mainLayout) override
void	BusyStateChanged (bool) override
	Called when the tool's busy state changes. Override to enable/disable UI elements. More...
Protected Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	QmitkSegWithPreviewToolGUIBase (bool mode2D, bool enableProcessingOfAllTimeSteps=true)
	~QmitkSegWithPreviewToolGUIBase () override
void	BusyStateChanged (bool isBusy) override
	Called when the tool's busy state changes. Override to enable/disable UI elements. More...
virtual void	EnableWidgets (bool enabled)
template<class TTool >
TTool *	GetConnectedToolAs ()
void	SetMergeStyle (mitk::MultiLabelSegmentation::MergeStyle mergeStyle)
void	SetOverwriteStyle (mitk::MultiLabelSegmentation::OverwriteStyle overwriteStyle)
QPushButton *	GetConfirmSegmentationButton () const
QCheckBox *	GetPreviewVisibilityCheckBox () const
QLabel *	GetPreviewLabel () const
Protected Member Functions inherited from QmitkToolGUI
	QmitkToolGUI ()=default

Additional Inherited Members
Signals inherited from QmitkToolGUI
void	NewToolAssociated (mitk::Tool *)
	Emitted when a new tool is associated with this GUI via SetTool(). More...
Protected Types inherited from QmitkSegWithPreviewToolGUIBase
using	EnableConfirmSegBtnFunctionType = std::function< bool(bool)>
Protected Slots inherited from QmitkBinaryThresholdToolGUIBase
void	OnThresholdRangeChanged (double min, double max)
void	OnThresholdSliderChanged (double value)
Protected Slots inherited from QmitkSegWithPreviewToolGUIBase
void	OnNewToolAssociated (mitk::Tool *)
void	OnAcceptPreview ()
void	OnPreviewOpacityChanged (int value)
void	OnPreviewVisibilityToggled (bool checked)
Protected Attributes inherited from QmitkBinaryThresholdToolGUIBase
ctkRangeWidget *	m_ThresholdRange
ctkSliderWidget *	m_ThresholdSlider
bool	m_ULMode
bool	m_InternalUpdate
Protected Attributes inherited from QmitkSegWithPreviewToolGUIBase
EnableConfirmSegBtnFunctionType	m_EnableConfirmSegBtnFnc
Protected Attributes inherited from QmitkToolGUI
mitk::Tool::Pointer	m_Tool
QmitkMultiLabelInspector *	m_MultiLabelInspector

Detailed Description

GUI for mitk::BinaryThresholdTool with upper and lower threshold range.

This GUI shows a range slider to change both upper and lower threshold values and an OK button to accept a preview for actual thresholding. It operates in upper/lower threshold mode (dual bounds).

See also

mitk::BinaryThresholdTool

QmitkBinaryThresholdToolGUIBase

QmitkBinaryThresholdToolGUI

Definition at line 31 of file QmitkBinaryThresholdULToolGUI.h.

Constructor & Destructor Documentation

QmitkBinaryThresholdULToolGUI()

QmitkBinaryThresholdULToolGUI::QmitkBinaryThresholdULToolGUI ( )

protected

~QmitkBinaryThresholdULToolGUI()

QmitkBinaryThresholdULToolGUI::~QmitkBinaryThresholdULToolGUI ( )

overrideprotected

Member Function Documentation

Clone()

Pointer QmitkBinaryThresholdULToolGUI::Clone

(

)

const

mitkClassMacro()

QmitkBinaryThresholdULToolGUI::mitkClassMacro	(	QmitkBinaryThresholdULToolGUI	,
		QmitkBinaryThresholdToolGUIBase
	)

New()

static Pointer QmitkBinaryThresholdULToolGUI::New ( )

static

---

The documentation for this class was generated from the following file:

• QmitkBinaryThresholdULToolGUI.h
