QmitkBinaryThresholdToolGUIBase Class Reference

Base GUI class for threshold-based segmentation tools. More...

#include <QmitkBinaryThresholdToolGUIBase.h>

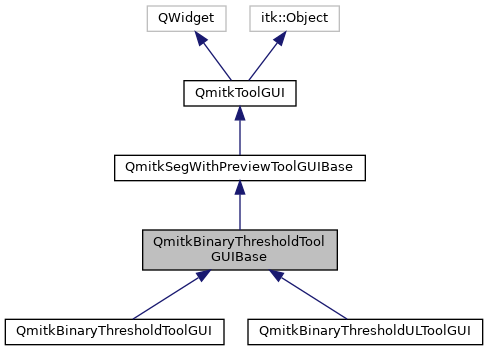

Inheritance diagram for QmitkBinaryThresholdToolGUIBase:

Collaboration diagram for QmitkBinaryThresholdToolGUIBase:

Public Member Functions
	mitkClassMacro (QmitkBinaryThresholdToolGUIBase, QmitkSegWithPreviewToolGUIBase)
void	OnThresholdingIntervalBordersChanged (double lower, double upper, bool isFloat)
	Called when the tool's threshold interval borders change. More...
void	OnThresholdingValuesChanged (mitk::ScalarType lower, mitk::ScalarType upper)
	Called when the tool's current threshold values change. More...
Public Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	mitkClassMacro (QmitkSegWithPreviewToolGUIBase, QmitkToolGUI)
Pointer	Clone () const
virtual bool	GetMode2D () const
Public Member Functions inherited from QmitkToolGUI
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
	Associates the given tool with this GUI, emitting NewToolAssociated. More...
void	SetMultiLabelInspector (QmitkMultiLabelInspector *inspector)
	Provides the segmentation view's label inspector to this GUI. More...
QmitkMultiLabelInspector *	GetMultiLabelInspector () const
	Returns the inspector associated with this GUI, or null if none. More...
void	Register () const override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	SetReferenceCount (int) override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
	~QmitkToolGUI () override

Protected Slots
void	OnThresholdRangeChanged (double min, double max)
void	OnThresholdSliderChanged (double value)
Protected Slots inherited from QmitkSegWithPreviewToolGUIBase
void	OnNewToolAssociated (mitk::Tool *)
void	OnAcceptPreview ()
void	OnPreviewOpacityChanged (int value)
void	OnPreviewVisibilityToggled (bool checked)

Protected Member Functions
	QmitkBinaryThresholdToolGUIBase (bool ulMode)
	~QmitkBinaryThresholdToolGUIBase () override
void	DisconnectOldTool (mitk::SegWithPreviewTool *oldTool) override
void	ConnectNewTool (mitk::SegWithPreviewTool *newTool) override
void	InitializeUI (QBoxLayout *mainLayout) override
void	BusyStateChanged (bool) override
	Called when the tool's busy state changes. Override to enable/disable UI elements. More...
Protected Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	QmitkSegWithPreviewToolGUIBase (bool mode2D, bool enableProcessingOfAllTimeSteps=true)
	~QmitkSegWithPreviewToolGUIBase () override
void	BusyStateChanged (bool isBusy) override
	Called when the tool's busy state changes. Override to enable/disable UI elements. More...
virtual void	EnableWidgets (bool enabled)
template<class TTool >
TTool *	GetConnectedToolAs ()
void	SetMergeStyle (mitk::MultiLabelSegmentation::MergeStyle mergeStyle)
void	SetOverwriteStyle (mitk::MultiLabelSegmentation::OverwriteStyle overwriteStyle)
QPushButton *	GetConfirmSegmentationButton () const
QCheckBox *	GetPreviewVisibilityCheckBox () const
QLabel *	GetPreviewLabel () const
Protected Member Functions inherited from QmitkToolGUI
	QmitkToolGUI ()=default

Protected Attributes
ctkRangeWidget *	m_ThresholdRange
ctkSliderWidget *	m_ThresholdSlider
bool	m_ULMode
bool	m_InternalUpdate
Protected Attributes inherited from QmitkSegWithPreviewToolGUIBase
EnableConfirmSegBtnFunctionType	m_EnableConfirmSegBtnFnc
Protected Attributes inherited from QmitkToolGUI
mitk::Tool::Pointer	m_Tool
QmitkMultiLabelInspector *	m_MultiLabelInspector

Additional Inherited Members
Signals inherited from QmitkToolGUI
void	NewToolAssociated (mitk::Tool *)
	Emitted when a new tool is associated with this GUI via SetTool(). More...
Protected Types inherited from QmitkSegWithPreviewToolGUIBase
using	EnableConfirmSegBtnFunctionType = std::function< bool(bool)>

Detailed Description

Base GUI class for threshold-based segmentation tools.

Provides the common UI elements for both single-threshold and upper/lower threshold segmentation tools. Contains a slider or range widget for adjusting threshold values and connects to the tool's threshold change events.

See also

mitk::BinaryThresholdTool

QmitkBinaryThresholdToolGUI

QmitkBinaryThresholdULToolGUI

QmitkSegWithPreviewToolGUIBase

Definition at line 34 of file QmitkBinaryThresholdToolGUIBase.h.

Constructor & Destructor Documentation

QmitkBinaryThresholdToolGUIBase()

QmitkBinaryThresholdToolGUIBase::QmitkBinaryThresholdToolGUIBase ( bool  ulMode )

protected

~QmitkBinaryThresholdToolGUIBase()

QmitkBinaryThresholdToolGUIBase::~QmitkBinaryThresholdToolGUIBase ( )

overrideprotected

Member Function Documentation

BusyStateChanged()

void QmitkBinaryThresholdToolGUIBase::BusyStateChanged ( bool  )

overrideprotectedvirtual

Called when the tool's busy state changes. Override to enable/disable UI elements.

Reimplemented from QmitkToolGUI.

ConnectNewTool()

void QmitkBinaryThresholdToolGUIBase::ConnectNewTool ( mitk::SegWithPreviewTool *  newTool )

overrideprotectedvirtual

Reimplemented from QmitkSegWithPreviewToolGUIBase.

DisconnectOldTool()

void QmitkBinaryThresholdToolGUIBase::DisconnectOldTool ( mitk::SegWithPreviewTool *  oldTool )

overrideprotectedvirtual

Reimplemented from QmitkSegWithPreviewToolGUIBase.

InitializeUI()

void QmitkBinaryThresholdToolGUIBase::InitializeUI ( QBoxLayout *  mainLayout )

overrideprotectedvirtual

This method is called by OnNewToolAssociated if the UI is initialized the first time to allow derived classes to introduce own UI code. Overwrite to change. The implementation should ensure that alle widgets needed for the tool UI are properly allocated. If one needs to eecute time (e.g. to connect events between the tool and the UI) each time the tool changes, override the functions ConnectNewTool() and DisconnectOldTool().

Reimplemented from QmitkSegWithPreviewToolGUIBase.

mitkClassMacro()

QmitkBinaryThresholdToolGUIBase::mitkClassMacro	(	QmitkBinaryThresholdToolGUIBase	,
		QmitkSegWithPreviewToolGUIBase
	)

OnThresholdingIntervalBordersChanged()

void QmitkBinaryThresholdToolGUIBase::OnThresholdingIntervalBordersChanged	(	double	lower,
		double	upper,
		bool	isFloat
	)

Called when the tool's threshold interval borders change.

Parameters

[in]	lower	The new lower border of the valid threshold range.
[in]	upper	The new upper border of the valid threshold range.
[in]	isFloat	True if the image pixel type is floating-point.

OnThresholdingValuesChanged()

void QmitkBinaryThresholdToolGUIBase::OnThresholdingValuesChanged	(	mitk::ScalarType	lower,
		mitk::ScalarType	upper
	)

Called when the tool's current threshold values change.

Parameters

[in]	lower	The new lower threshold value.
[in]	upper	The new upper threshold value.

OnThresholdRangeChanged

void QmitkBinaryThresholdToolGUIBase::OnThresholdRangeChanged ( double  min, double  max  )

protectedslot

OnThresholdSliderChanged

void QmitkBinaryThresholdToolGUIBase::OnThresholdSliderChanged ( double  value )

protectedslot

Member Data Documentation

m_InternalUpdate

bool QmitkBinaryThresholdToolGUIBase::m_InternalUpdate

protected

Definition at line 78 of file QmitkBinaryThresholdToolGUIBase.h.

m_ThresholdRange

ctkRangeWidget* QmitkBinaryThresholdToolGUIBase::m_ThresholdRange

protected

Definition at line 71 of file QmitkBinaryThresholdToolGUIBase.h.

m_ThresholdSlider

ctkSliderWidget* QmitkBinaryThresholdToolGUIBase::m_ThresholdSlider

protected

Definition at line 72 of file QmitkBinaryThresholdToolGUIBase.h.

m_ULMode

bool QmitkBinaryThresholdToolGUIBase::m_ULMode

protected

Indicates if the tool UI is used for a tool with upper an lower threshold (true) or only with one threshold (false)

Definition at line 76 of file QmitkBinaryThresholdToolGUIBase.h.

---

The documentation for this class was generated from the following file:

• QmitkBinaryThresholdToolGUIBase.h
