QmitkToolGUI Class Reference

Base class for GUIs belonging to mitk::Tool classes. More...

#include <QmitkToolGUI.h>

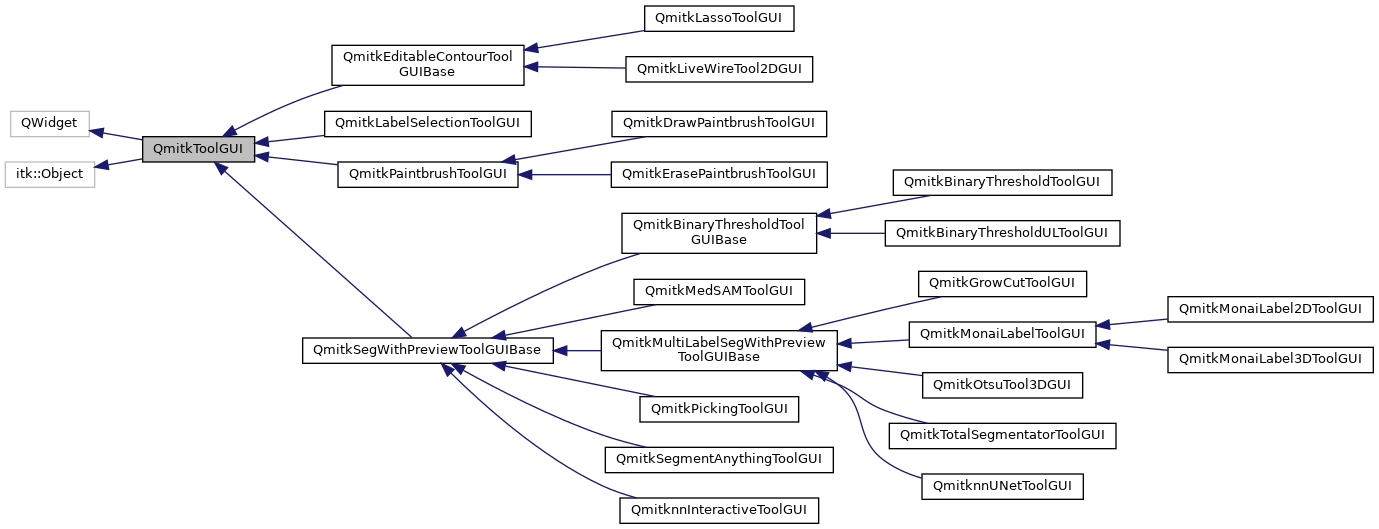

Inheritance diagram for QmitkToolGUI:

Collaboration diagram for QmitkToolGUI:

Signals
void	NewToolAssociated (mitk::Tool *)
	Emitted when a new tool is associated with this GUI via SetTool(). More...

Public Member Functions
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
	Associates the given tool with this GUI, emitting NewToolAssociated. More...
void	SetMultiLabelInspector (QmitkMultiLabelInspector *inspector)
	Provides the segmentation view's label inspector to this GUI. More...
QmitkMultiLabelInspector *	GetMultiLabelInspector () const
	Returns the inspector associated with this GUI, or null if none. More...
void	Register () const override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	SetReferenceCount (int) override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
	~QmitkToolGUI () override

Protected Member Functions
	QmitkToolGUI ()=default
virtual void	BusyStateChanged (bool)
	Called when the tool's busy state changes. Override to enable/disable UI elements. More...

Protected Attributes
mitk::Tool::Pointer	m_Tool
QmitkMultiLabelInspector *	m_MultiLabelInspector

Detailed Description

Base class for GUIs belonging to mitk::Tool classes.

Created through ITK object factory.

Definition at line 31 of file QmitkToolGUI.h.

Constructor & Destructor Documentation

~QmitkToolGUI()

QmitkToolGUI::~QmitkToolGUI ( )

override

QmitkToolGUI()

QmitkToolGUI::QmitkToolGUI ( )

protecteddefault

Member Function Documentation

BusyStateChanged()

virtual void QmitkToolGUI::BusyStateChanged ( bool  )

inlineprotectedvirtual

Called when the tool's busy state changes. Override to enable/disable UI elements.

Reimplemented in QmitkBinaryThresholdToolGUIBase, and QmitkSegWithPreviewToolGUIBase.

Definition at line 74 of file QmitkToolGUI.h.

GetMultiLabelInspector()

QmitkMultiLabelInspector* QmitkToolGUI::GetMultiLabelInspector

(

)

const

Returns the inspector associated with this GUI, or null if none.

mitkClassMacroItkParent()

QmitkToolGUI::mitkClassMacroItkParent	(	QmitkToolGUI	,
		itk::Object
	)

NewToolAssociated

void QmitkToolGUI::NewToolAssociated ( mitk::Tool *  )

signal

Emitted when a new tool is associated with this GUI via SetTool().

Register()

void QmitkToolGUI::Register ( ) const

override

Intentional no-op; prevents ITK reference counting from interfering with Qt ownership.

SetMultiLabelInspector()

void QmitkToolGUI::SetMultiLabelInspector

(

QmitkMultiLabelInspector *

inspector

)

Provides the segmentation view's label inspector to this GUI.

Set by QmitkToolSelectionBox right after SetTool(). Tool GUIs that need to interact with the host's label-management UI (e.g. to create labels honoring the user's naming preferences) can read it via GetMultiLabelInspector(). May be null if the GUI is hosted outside a segmentation view; callers must handle that case.

SetReferenceCount()

void QmitkToolGUI::SetReferenceCount ( int  )

override

Intentional no-op; prevents ITK reference counting from interfering with Qt ownership.

SetTool()

void QmitkToolGUI::SetTool

(

mitk::Tool *

tool

)

Associates the given tool with this GUI, emitting NewToolAssociated.

UnRegister()

void QmitkToolGUI::UnRegister

(

)

const

Intentional no-op; prevents ITK reference counting from interfering with Qt ownership.

Member Data Documentation

m_MultiLabelInspector

QmitkMultiLabelInspector* QmitkToolGUI::m_MultiLabelInspector

protected

Definition at line 71 of file QmitkToolGUI.h.

m_Tool

mitk::Tool::Pointer QmitkToolGUI::m_Tool

protected

Definition at line 70 of file QmitkToolGUI.h.

---

The documentation for this class was generated from the following file:

• QmitkToolGUI.h
