QmitkSegWithPreviewToolGUIBase Class Reference

GUI base class for tools derived from mitk::SegWithPreviewTool. More...

#include <QmitkSegWithPreviewToolGUIBase.h>

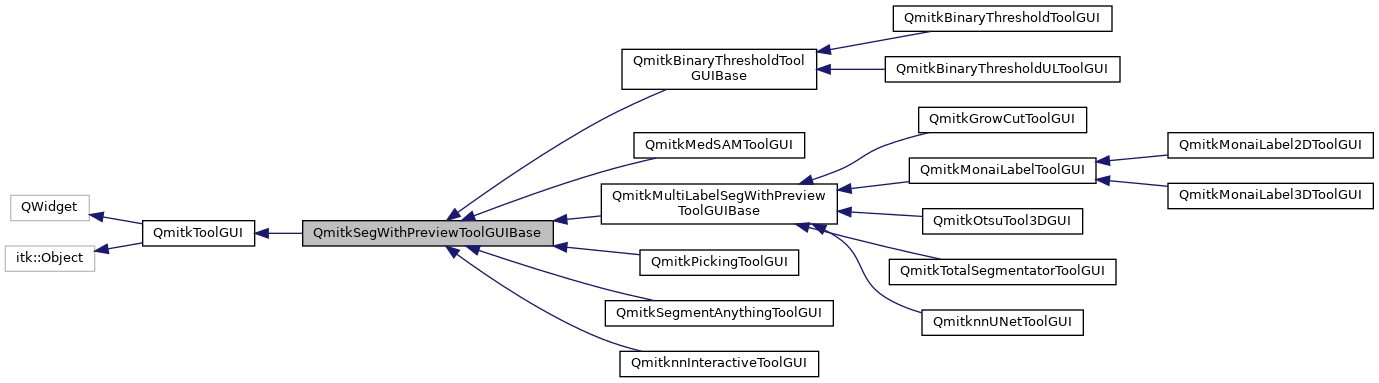

Inheritance diagram for QmitkSegWithPreviewToolGUIBase:

Collaboration diagram for QmitkSegWithPreviewToolGUIBase:

Public Member Functions
	mitkClassMacro (QmitkSegWithPreviewToolGUIBase, QmitkToolGUI)
Pointer	Clone () const
virtual bool	GetMode2D () const
Public Member Functions inherited from QmitkToolGUI
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
	Associates the given tool with this GUI, emitting NewToolAssociated. More...
void	SetMultiLabelInspector (QmitkMultiLabelInspector *inspector)
	Provides the segmentation view's label inspector to this GUI. More...
QmitkMultiLabelInspector *	GetMultiLabelInspector () const
	Returns the inspector associated with this GUI, or null if none. More...
void	Register () const override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
void	SetReferenceCount (int) override
	Intentional no-op; prevents ITK reference counting from interfering with Qt ownership. More...
	~QmitkToolGUI () override

Protected Types
using	EnableConfirmSegBtnFunctionType = std::function< bool(bool)>

Protected Slots
void	OnNewToolAssociated (mitk::Tool *)
void	OnAcceptPreview ()
void	OnPreviewOpacityChanged (int value)
void	OnPreviewVisibilityToggled (bool checked)

Protected Member Functions
	QmitkSegWithPreviewToolGUIBase (bool mode2D, bool enableProcessingOfAllTimeSteps=true)
	~QmitkSegWithPreviewToolGUIBase () override
virtual void	DisconnectOldTool (mitk::SegWithPreviewTool *oldTool)
virtual void	ConnectNewTool (mitk::SegWithPreviewTool *newTool)
virtual void	InitializeUI (QBoxLayout *mainLayout)
void	BusyStateChanged (bool isBusy) override
	Called when the tool's busy state changes. Override to enable/disable UI elements. More...
virtual void	EnableWidgets (bool enabled)
template<class TTool >
TTool *	GetConnectedToolAs ()
void	SetMergeStyle (mitk::MultiLabelSegmentation::MergeStyle mergeStyle)
void	SetOverwriteStyle (mitk::MultiLabelSegmentation::OverwriteStyle overwriteStyle)
QPushButton *	GetConfirmSegmentationButton () const
QCheckBox *	GetPreviewVisibilityCheckBox () const
QLabel *	GetPreviewLabel () const
Protected Member Functions inherited from QmitkToolGUI
	QmitkToolGUI ()=default

Protected Attributes
EnableConfirmSegBtnFunctionType	m_EnableConfirmSegBtnFnc
Protected Attributes inherited from QmitkToolGUI
mitk::Tool::Pointer	m_Tool
QmitkMultiLabelInspector *	m_MultiLabelInspector

Additional Inherited Members
Signals inherited from QmitkToolGUI
void	NewToolAssociated (mitk::Tool *)
	Emitted when a new tool is associated with this GUI via SetTool(). More...

Detailed Description

GUI base class for tools derived from mitk::SegWithPreviewTool.

Provides the common UI elements shared by all preview-based segmentation tools, including the "Confirm Segmentation" button, merge/overwrite checkboxes, and busy-state handling.

See also

mitk::SegWithPreviewTool

QmitkMultiLabelSegWithPreviewToolGUIBase

Definition at line 38 of file QmitkSegWithPreviewToolGUIBase.h.

Member Typedef Documentation

EnableConfirmSegBtnFunctionType

using QmitkSegWithPreviewToolGUIBase::EnableConfirmSegBtnFunctionType = std::function<bool(bool)>

protected

Definition at line 81 of file QmitkSegWithPreviewToolGUIBase.h.

Constructor & Destructor Documentation

QmitkSegWithPreviewToolGUIBase()

QmitkSegWithPreviewToolGUIBase::QmitkSegWithPreviewToolGUIBase ( bool  mode2D, bool  enableProcessingOfAllTimeSteps = true  )

protected

Parameters

mode2D	Indicates if the tool is in 2D or 3D mode.
enableProcessingOfAllTimeSteps	If enabled, a checkbox is shown to confirm a preview for all time steps of a dynamic segmentation at once (default).

~QmitkSegWithPreviewToolGUIBase()

QmitkSegWithPreviewToolGUIBase::~QmitkSegWithPreviewToolGUIBase ( )

overrideprotected

Member Function Documentation

BusyStateChanged()

void QmitkSegWithPreviewToolGUIBase::BusyStateChanged ( bool  )

overrideprotectedvirtual

Called when the tool's busy state changes. Override to enable/disable UI elements.

Reimplemented from QmitkToolGUI.

Clone()

Pointer QmitkSegWithPreviewToolGUIBase::Clone

(

)

const

ConnectNewTool()

virtual void QmitkSegWithPreviewToolGUIBase::ConnectNewTool ( mitk::SegWithPreviewTool *  newTool )

protectedvirtual

Reimplemented in QmitkOtsuTool3DGUI, QmitkMonaiLabelToolGUI, QmitkGrowCutToolGUI, and QmitkBinaryThresholdToolGUIBase.

DisconnectOldTool()

virtual void QmitkSegWithPreviewToolGUIBase::DisconnectOldTool ( mitk::SegWithPreviewTool *  oldTool )

protectedvirtual

Reimplemented in QmitkBinaryThresholdToolGUIBase.

EnableWidgets()

virtual void QmitkSegWithPreviewToolGUIBase::EnableWidgets ( bool  enabled )

protectedvirtual

This method is used to control/set the enabled state of the tool UI widgets. It is e.g. used if the busy state is changed (see BusyStateChanged). Override the default implementation, e.g. if a tool adds his own UI elements (normally by overriding InitializeUI()) and wants to control how the widgets are enabled/disabled.

Reimplemented in QmitkPickingToolGUI, QmitkOtsuTool3DGUI, QmitkMultiLabelSegWithPreviewToolGUIBase, QmitkMonaiLabelToolGUI, and QmitkGrowCutToolGUI.

GetConfirmSegmentationButton()

QPushButton* QmitkSegWithPreviewToolGUIBase::GetConfirmSegmentationButton ( ) const

protected

GetConnectedToolAs()

template<class TTool >

TTool* QmitkSegWithPreviewToolGUIBase::GetConnectedToolAs ( )

inlineprotected

Definition at line 92 of file QmitkSegWithPreviewToolGUIBase.h.

GetMode2D()

virtual bool QmitkSegWithPreviewToolGUIBase::GetMode2D ( ) const

virtual

GetPreviewLabel()

QLabel* QmitkSegWithPreviewToolGUIBase::GetPreviewLabel ( ) const

protected

GetPreviewVisibilityCheckBox()

QCheckBox* QmitkSegWithPreviewToolGUIBase::GetPreviewVisibilityCheckBox ( ) const

protected

InitializeUI()

virtual void QmitkSegWithPreviewToolGUIBase::InitializeUI ( QBoxLayout *  mainLayout )

protectedvirtual

This method is called by OnNewToolAssociated if the UI is initialized the first time to allow derived classes to introduce own UI code. Overwrite to change. The implementation should ensure that alle widgets needed for the tool UI are properly allocated. If one needs to eecute time (e.g. to connect events between the tool and the UI) each time the tool changes, override the functions ConnectNewTool() and DisconnectOldTool().

Reimplemented in QmitkPickingToolGUI, QmitkOtsuTool3DGUI, QmitkMultiLabelSegWithPreviewToolGUIBase, QmitkMonaiLabelToolGUI, QmitkGrowCutToolGUI, QmitkBinaryThresholdToolGUIBase, QmitkTotalSegmentatorToolGUI, and QmitknnInteractiveToolGUI.

mitkClassMacro()

QmitkSegWithPreviewToolGUIBase::mitkClassMacro	(	QmitkSegWithPreviewToolGUIBase	,
		QmitkToolGUI
	)

OnAcceptPreview

void QmitkSegWithPreviewToolGUIBase::OnAcceptPreview ( )

protectedslot

OnNewToolAssociated

void QmitkSegWithPreviewToolGUIBase::OnNewToolAssociated ( mitk::Tool *  )

protectedslot

OnPreviewOpacityChanged

void QmitkSegWithPreviewToolGUIBase::OnPreviewOpacityChanged ( int  value )

protectedslot

OnPreviewVisibilityToggled

void QmitkSegWithPreviewToolGUIBase::OnPreviewVisibilityToggled ( bool  checked )

protectedslot

SetMergeStyle()

void QmitkSegWithPreviewToolGUIBase::SetMergeStyle ( mitk::MultiLabelSegmentation::MergeStyle  mergeStyle )

protected

SetOverwriteStyle()

void QmitkSegWithPreviewToolGUIBase::SetOverwriteStyle ( mitk::MultiLabelSegmentation::OverwriteStyle  overwriteStyle )

protected

Member Data Documentation

m_EnableConfirmSegBtnFnc

EnableConfirmSegBtnFunctionType QmitkSegWithPreviewToolGUIBase::m_EnableConfirmSegBtnFnc

protected

Definition at line 82 of file QmitkSegWithPreviewToolGUIBase.h.

---

The documentation for this class was generated from the following file:

• QmitkSegWithPreviewToolGUIBase.h
