Vtk-based mapper for VolumeData. More...

#include <mitkGPUVolumeMapper3D.h>

Inheritance diagram for mitk::GPUVolumeMapper3D:

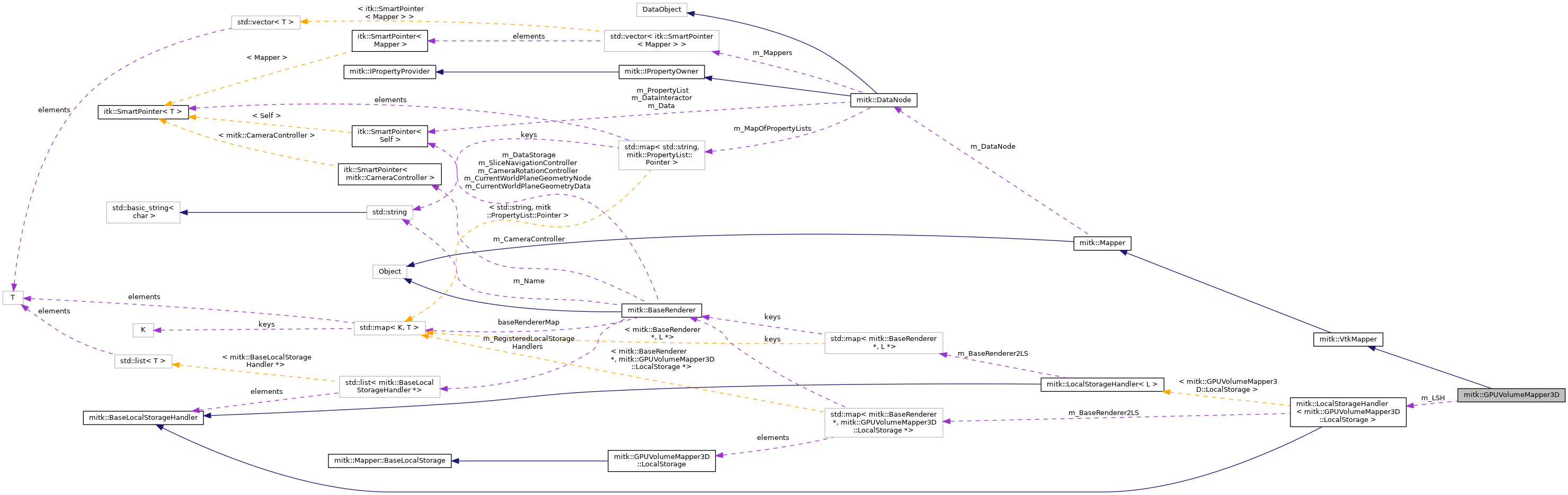

Collaboration diagram for mitk::GPUVolumeMapper3D:

[legend]

Classes
class	LocalStorage

Public Member Functions
	mitkClassMacro (GPUVolumeMapper3D, VtkMapper)

Pointer	Clone () const

virtual const mitk::Image *	GetInput ()

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override

void	ApplyProperties (vtkActor actor, mitk::BaseRenderer renderer) override
	Apply color and opacity properties read from the PropertyList. More...

bool	IsLODEnabled (BaseRenderer *renderer=nullptr) const override

bool	IsMIPEnabled (BaseRenderer *renderer=nullptr)

bool	IsGPUEnabled (BaseRenderer *renderer=nullptr)

bool	IsRAYEnabled (BaseRenderer *renderer=nullptr)

void	MitkRenderVolumetricGeometry (mitk::BaseRenderer *renderer) override
	Checks visibility and renders volumes. More...

Public Member Functions inherited from mitk::VtkMapper
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

virtual bool	IsVtkBased () const override
	Returns whether this is an vtk-based mapper. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determines which geometry should be rendered (opaque, translucent, volumetric, overlay) and calls the appropriate function. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Checks visibility and renders the overlay. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Checks visibility and renders untransparent geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Checks visiblity and renders transparent geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Returns true if this mapper owns the specified vtkProp for the given BaseRenderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyShaderProperties (mitk::BaseRenderer *)

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList. Called by mapper subclasses. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release vtk-based graphics resources that are being consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

virtual void	Update (BaseRenderer *renderer)
	Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer() More...

int	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)

Static Public Member Functions inherited from mitk::VtkMapper
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Protected Member Functions
	GPUVolumeMapper3D ()

	~GPUVolumeMapper3D () override

bool	IsRenderable (mitk::BaseRenderer *renderer)

void	InitCommon ()

void	DeinitCommon ()

void	InitCPU (mitk::BaseRenderer *renderer)

void	DeinitCPU (mitk::BaseRenderer *renderer)

void	GenerateDataCPU (mitk::BaseRenderer *renderer)

bool	InitGPU (mitk::BaseRenderer *renderer)

void	DeinitGPU (mitk::BaseRenderer *)

void	GenerateDataGPU (mitk::BaseRenderer *)

bool	InitRAY (mitk::BaseRenderer *renderer)

void	DeinitRAY (mitk::BaseRenderer *renderer)

void	GenerateDataRAY (mitk::BaseRenderer *renderer)

void	InitVtkMapper (mitk::BaseRenderer *renderer)

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

void	CreateDefaultTransferFunctions ()

void	UpdateTransferFunctions (mitk::BaseRenderer *renderer)

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
vtkSmartPointer< vtkVolume >	m_Volumenullptr

bool	m_commonInitialized

vtkSmartPointer< vtkImageChangeInformation >	m_UnitSpacingImageFilter

vtkSmartPointer< vtkPiecewiseFunction >	m_DefaultOpacityTransferFunction

vtkSmartPointer< vtkPiecewiseFunction >	m_DefaultGradientTransferFunction

vtkSmartPointer< vtkColorTransferFunction >	m_DefaultColorTransferFunction

vtkSmartPointer< vtkPiecewiseFunction >	m_BinaryOpacityTransferFunction

vtkSmartPointer< vtkPiecewiseFunction >	m_BinaryGradientTransferFunction

vtkSmartPointer< vtkColorTransferFunction >	m_BinaryColorTransferFunction

mitk::LocalStorageHandler< LocalStorage >	m_LSH

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Public Types inherited from mitk::VtkMapper
typedef VtkMapper	Self

typedef Mapper	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Detailed Description

Vtk-based mapper for VolumeData.

Definition at line 47 of file mitkGPUVolumeMapper3D.h.

Constructor & Destructor Documentation

◆ GPUVolumeMapper3D()

mitk::GPUVolumeMapper3D::GPUVolumeMapper3D ( )

protected

Definition at line 128 of file mitkGPUVolumeMapper3D.cpp.

References m_commonInitialized, and m_Volumenullptr.

◆ ~GPUVolumeMapper3D()

mitk::GPUVolumeMapper3D::~GPUVolumeMapper3D ( )

overrideprotected

Definition at line 134 of file mitkGPUVolumeMapper3D.cpp.

References DeinitCommon().

Member Function Documentation

◆ ApplyProperties()

void mitk::GPUVolumeMapper3D::ApplyProperties	(	vtkActor *	actor,
		mitk::BaseRenderer *	renderer
	)

overridevirtual

Apply color and opacity properties read from the PropertyList.

Deprecated:: (as of 2013_03) Use ApplyColorAndOpacityProperties(mitk::BaseRenderer* renderer, vtkActor * actor) instead

Reimplemented from mitk::VtkMapper.

Definition at line 412 of file mitkGPUVolumeMapper3D.cpp.

◆ Clone()

Pointer mitk::GPUVolumeMapper3D::Clone ( ) const

◆ CreateDefaultTransferFunctions()

void mitk::GPUVolumeMapper3D::CreateDefaultTransferFunctions ( )

protected

Definition at line 324 of file mitkGPUVolumeMapper3D.cpp.

References m_BinaryColorTransferFunction, m_BinaryGradientTransferFunction, m_BinaryOpacityTransferFunction, m_DefaultColorTransferFunction, m_DefaultGradientTransferFunction, and m_DefaultOpacityTransferFunction.

Referenced by InitCommon().

◆ DeinitCommon()

void mitk::GPUVolumeMapper3D::DeinitCommon ( )

protected

Definition at line 152 of file mitkGPUVolumeMapper3D.cpp.

References m_commonInitialized.

Referenced by ~GPUVolumeMapper3D().

◆ DeinitCPU()

void mitk::GPUVolumeMapper3D::DeinitCPU ( mitk::BaseRenderer * renderer )

protected

Definition at line 113 of file mitkGPUVolumeMapper3D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), GPU_INFO, ls, mitk::GPUVolumeMapper3D::LocalStorage::m_cpuInitialized, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_MapperCPU, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeCPU, and mitk::GPUVolumeMapper3D::LocalStorage::m_VolumePropertyCPU.

Referenced by InitVtkMapper().

◆ DeinitGPU()

void mitk::GPUVolumeMapper3D::DeinitGPU ( mitk::BaseRenderer * )

protected

◆ DeinitRAY()

void mitk::GPUVolumeMapper3D::DeinitRAY ( mitk::BaseRenderer * renderer )

protected

Definition at line 532 of file mitkGPUVolumeMapper3D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::BaseRenderer::GetVtkRenderer(), GPU_INFO, ls, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_MapperRAY, mitk::GPUVolumeMapper3D::LocalStorage::m_rayInitialized, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumePropertyRAY, and mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeRAY.

Referenced by InitVtkMapper().

◆ GenerateDataCPU()

void mitk::GPUVolumeMapper3D::GenerateDataCPU ( mitk::BaseRenderer * renderer )

protected

Definition at line 285 of file mitkGPUVolumeMapper3D.cpp.

References mitk::Mapper::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::RenderingManager::GetNextLOD(), IsLODEnabled(), IsMIPEnabled(), ls, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_MapperCPU, and mitk::GPUVolumeMapper3D::LocalStorage::m_VolumePropertyCPU.

Referenced by GenerateDataForRenderer().

◆ GenerateDataForRenderer()

void mitk::GPUVolumeMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 248 of file mitkGPUVolumeMapper3D.cpp.

References GenerateDataCPU(), GenerateDataGPU(), GenerateDataRAY(), GetInput(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::Mapper::GetTimestep(), mitk::Image::GetVtkImageData(), InitCommon(), InitVtkMapper(), IsRenderable(), ls, mitk::GPUVolumeMapper3D::LocalStorage::m_gpuInitialized, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_rayInitialized, m_UnitSpacingImageFilter, and UpdateTransferFunctions().

◆ GenerateDataGPU()

void mitk::GPUVolumeMapper3D::GenerateDataGPU ( mitk::BaseRenderer * )

protected

Definition at line 281 of file mitkGPUVolumeMapper3D.cpp.

Referenced by GenerateDataForRenderer().

◆ GenerateDataRAY()

void mitk::GPUVolumeMapper3D::GenerateDataRAY ( mitk::BaseRenderer * renderer )

protected

Definition at line 552 of file mitkGPUVolumeMapper3D.cpp.

References mitk::Mapper::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::LocalStorageHandler< L >::GetLocalStorage(), IsLODEnabled(), IsMIPEnabled(), ls, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_MapperRAY, and mitk::GPUVolumeMapper3D::LocalStorage::m_VolumePropertyRAY.

Referenced by GenerateDataForRenderer().

◆ GetInput()

const mitk::Image * mitk::GPUVolumeMapper3D::GetInput ( void )

virtual

Definition at line 57 of file mitkGPUVolumeMapper3D.cpp.

References mitk::DataNode::GetData(), and mitk::Mapper::GetDataNode().

Referenced by GenerateDataForRenderer(), and IsRenderable().

◆ GetVtkProp()

vtkProp * mitk::GPUVolumeMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Implements mitk::VtkMapper.

Definition at line 222 of file mitkGPUVolumeMapper3D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), InitCommon(), InitVtkMapper(), IsRenderable(), ls, mitk::GPUVolumeMapper3D::LocalStorage::m_gpuInitialized, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_rayInitialized, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeCPU, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeGPU, m_Volumenullptr, and mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeRAY.

◆ InitCommon()

void mitk::GPUVolumeMapper3D::InitCommon ( )

protected

Definition at line 139 of file mitkGPUVolumeMapper3D.cpp.

References CreateDefaultTransferFunctions(), m_commonInitialized, and m_UnitSpacingImageFilter.

Referenced by GenerateDataForRenderer(), and GetVtkProp().

◆ InitCPU()

void mitk::GPUVolumeMapper3D::InitCPU ( mitk::BaseRenderer * renderer )

protected

Definition at line 75 of file mitkGPUVolumeMapper3D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::BaseRenderer::GetVtkRenderer(), GPU_INFO, ls, mitk::GPUVolumeMapper3D::LocalStorage::m_cpuInitialized, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_MapperCPU, m_UnitSpacingImageFilter, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeCPU, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumePropertyCPU, and mitk::GPUVolumeMapper3D::LocalStorage::m_VtkRenderWindow.

Referenced by InitVtkMapper().

◆ InitGPU()

bool mitk::GPUVolumeMapper3D::InitGPU ( mitk::BaseRenderer * renderer )

protected

Definition at line 70 of file mitkGPUVolumeMapper3D.cpp.

Referenced by InitVtkMapper().

◆ InitRAY()

bool mitk::GPUVolumeMapper3D::InitRAY ( mitk::BaseRenderer * renderer )

protected

Definition at line 496 of file mitkGPUVolumeMapper3D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::BaseRenderer::GetRenderWindow(), mitk::BaseRenderer::GetVtkRenderer(), GPU_INFO, ls, m_LSH, mitk::GPUVolumeMapper3D::LocalStorage::m_MapperRAY, mitk::GPUVolumeMapper3D::LocalStorage::m_rayInitialized, mitk::GPUVolumeMapper3D::LocalStorage::m_raySupported, m_UnitSpacingImageFilter, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumePropertyRAY, mitk::GPUVolumeMapper3D::LocalStorage::m_VolumeRAY, and mitk::GPUVolumeMapper3D::LocalStorage::m_VtkRenderWindow.

Referenced by InitVtkMapper().

◆ InitVtkMapper()

void mitk::GPUVolumeMapper3D::InitVtkMapper ( mitk::BaseRenderer * renderer )

protected

Definition at line 193 of file mitkGPUVolumeMapper3D.cpp.

References DeinitCPU(), DeinitRAY(), GPU_WARN, InitCPU(), InitGPU(), InitRAY(), IsGPUEnabled(), and IsRAYEnabled().

Referenced by GenerateDataForRenderer(), and GetVtkProp().

◆ IsGPUEnabled()

bool mitk::GPUVolumeMapper3D::IsGPUEnabled ( mitk::BaseRenderer * renderer = nullptr )

Definition at line 489 of file mitkGPUVolumeMapper3D.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::Mapper::GetDataNode(), mitk::LocalStorageHandler< L >::GetLocalStorage(), ls, mitk::GPUVolumeMapper3D::LocalStorage::m_gpuSupported, and m_LSH.

Referenced by InitVtkMapper().

◆ IsLODEnabled()

bool mitk::GPUVolumeMapper3D::IsLODEnabled ( mitk::BaseRenderer * renderer = nullptr ) const

overridevirtual

Returns true if this Mapper currently allows for Level-of-Detail rendering. This reflects whether this Mapper currently invokes StartEvent, EndEvent, and ProgressEvent on BaseRenderer.

Reimplemented from mitk::Mapper.

Definition at line 477 of file mitkGPUVolumeMapper3D.cpp.

References mitk::DataNode::GetBoolProperty(), and mitk::Mapper::GetDataNode().

Referenced by GenerateDataCPU(), and GenerateDataRAY().
