mitk::VtkEventAdapter Class Reference

Generates MITK interaction events from VTK render window interactor events. More...

#include <mitkVtkEventAdapter.h>

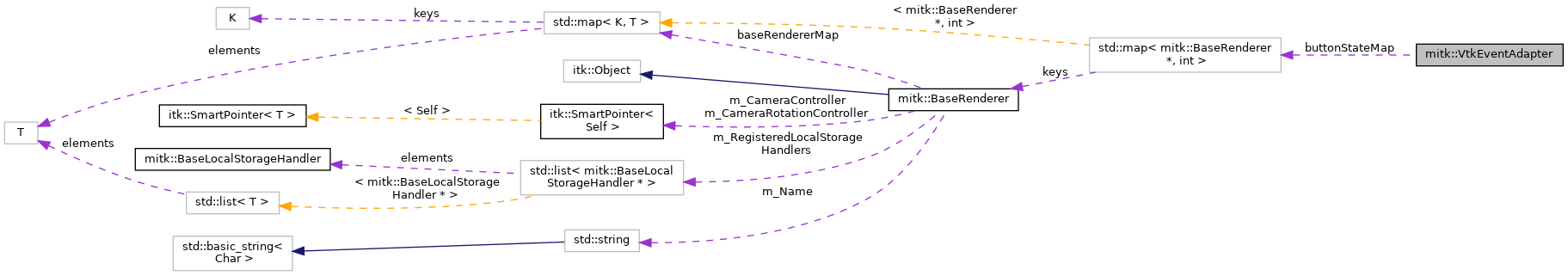

Collaboration diagram for mitk::VtkEventAdapter:

Static Public Member Functions
static mitk::MousePressEvent::Pointer	AdaptMousePressEvent (mitk::BaseRenderer *sender, unsigned long vtkCommandEventId, vtkRenderWindowInteractor *rwi)
	Adapt a VTK mouse press event to a MITK MousePressEvent. More...
static mitk::MouseMoveEvent::Pointer	AdaptMouseMoveEvent (mitk::BaseRenderer *sender, unsigned long vtkCommandEventId, vtkRenderWindowInteractor *rwi)
	Adapt a VTK mouse move event to a MITK MouseMoveEvent. More...
static mitk::MouseReleaseEvent::Pointer	AdaptMouseReleaseEvent (mitk::BaseRenderer *sender, unsigned long vtkCommandEventId, vtkRenderWindowInteractor *rwi)
	Adapt a VTK mouse release event to a MITK MouseReleaseEvent. More...
static mitk::MouseWheelEvent::Pointer	AdaptMouseWheelEvent (mitk::BaseRenderer *sender, unsigned long vtkCommandEventId, vtkRenderWindowInteractor *rwi)
	Adapt a VTK mouse wheel event to a MITK MouseWheelEvent. More...
static mitk::InteractionKeyEvent::Pointer	AdaptInteractionKeyEvent (mitk::BaseRenderer *sender, unsigned long vtkCommandEventId, vtkRenderWindowInteractor *rwi)
	Adapt a VTK key press event to a MITK InteractionKeyEvent. More...

Static Public Attributes
static std::map< BaseRenderer *, int >	buttonStateMap
	Map tracking mouse button state per renderer. More...

Detailed Description

Generates MITK interaction events from VTK render window interactor events.

This class is the non-Qt-dependent counterpart to QmitkEventAdapter. It provides static functions to convert VTK events (mouse press, move, release, wheel, key) into the corresponding MITK interaction event objects.

Definition at line 37 of file mitkVtkEventAdapter.h.

Member Function Documentation

AdaptInteractionKeyEvent()

static mitk::InteractionKeyEvent::Pointer mitk::VtkEventAdapter::AdaptInteractionKeyEvent ( mitk::BaseRenderer *  sender, unsigned long  vtkCommandEventId, vtkRenderWindowInteractor *  rwi  )

static

Adapt a VTK key press event to a MITK InteractionKeyEvent.

Parameters

[in]	sender	The BaseRenderer associated with the render window.
[in]	vtkCommandEventId	The VTK command event identifier.
[in]	rwi	The VTK render window interactor providing event data.

Returns

A new InteractionKeyEvent instance, or nullptr if the event type is wrong.

AdaptMouseMoveEvent()

static mitk::MouseMoveEvent::Pointer mitk::VtkEventAdapter::AdaptMouseMoveEvent ( mitk::BaseRenderer *  sender, unsigned long  vtkCommandEventId, vtkRenderWindowInteractor *  rwi  )

static

Adapt a VTK mouse move event to a MITK MouseMoveEvent.

Parameters

[in]	sender	The BaseRenderer associated with the render window.
[in]	vtkCommandEventId	The VTK command event identifier.
[in]	rwi	The VTK render window interactor providing event data.

Returns

A new MouseMoveEvent instance.

AdaptMousePressEvent()

static mitk::MousePressEvent::Pointer mitk::VtkEventAdapter::AdaptMousePressEvent ( mitk::BaseRenderer *  sender, unsigned long  vtkCommandEventId, vtkRenderWindowInteractor *  rwi  )

static

Adapt a VTK mouse press event to a MITK MousePressEvent.

Parameters

[in]	sender	The BaseRenderer associated with the render window.
[in]	vtkCommandEventId	The VTK command event identifier.
[in]	rwi	The VTK render window interactor providing event data.

Returns

A new MousePressEvent instance.

AdaptMouseReleaseEvent()

static mitk::MouseReleaseEvent::Pointer mitk::VtkEventAdapter::AdaptMouseReleaseEvent ( mitk::BaseRenderer *  sender, unsigned long  vtkCommandEventId, vtkRenderWindowInteractor *  rwi  )

static

Adapt a VTK mouse release event to a MITK MouseReleaseEvent.

Parameters

[in]	sender	The BaseRenderer associated with the render window.
[in]	vtkCommandEventId	The VTK command event identifier.
[in]	rwi	The VTK render window interactor providing event data.

Returns

A new MouseReleaseEvent instance.

AdaptMouseWheelEvent()

static mitk::MouseWheelEvent::Pointer mitk::VtkEventAdapter::AdaptMouseWheelEvent ( mitk::BaseRenderer *  sender, unsigned long  vtkCommandEventId, vtkRenderWindowInteractor *  rwi  )

static

Adapt a VTK mouse wheel event to a MITK MouseWheelEvent.

Parameters

[in]	sender	The BaseRenderer associated with the render window.
[in]	vtkCommandEventId	The VTK command event identifier.
[in]	rwi	The VTK render window interactor providing event data.

Returns

A new MouseWheelEvent instance.

Member Data Documentation

buttonStateMap

std::map<BaseRenderer *, int> mitk::VtkEventAdapter::buttonStateMap

static

Map tracking mouse button state per renderer.

VTK events do not provide button state for MouseMove events, so this map records button state from press/release events and provides it for subsequent move events.

Definition at line 107 of file mitkVtkEventAdapter.h.

---

The documentation for this class was generated from the following file:

• mitkVtkEventAdapter.h
