mitk::SurfaceToPointSetFilter Class Reference
Convert a Surface into a PointSet without duplicate points. More...
#include <mitkSurfaceToPointSetFilter.h>
Inheritance diagram for mitk::SurfaceToPointSetFilter:

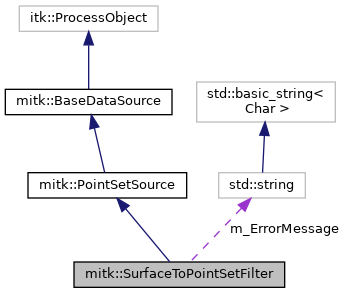

Collaboration diagram for mitk::SurfaceToPointSetFilter:
Public Member Functions | |
| mitkClassMacro (SurfaceToPointSetFilter, mitk::PointSetSource) | |
| void | SetInput (mitk::Surface::Pointer m_InputSurface) |
| std::string | GetErrorMessage () |
 Public Member Functions inherited from mitk::PointSetSource | |
| mitkClassMacro (PointSetSource, BaseDataSource) | |
| Pointer | Clone () const |
| mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer | MakeOutput (DataObjectPointerArraySizeType idx) override |
| Allocates a new output object and returns it. More... | |
| itk::DataObject::Pointer | MakeOutput (const DataObjectIdentifierType &name) override |
| Allocates a new output object by name. More... | |
| Public Member Functions inherited from mitk::BaseDataSource | |
| mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject) | |
| OutputType * | GetOutput () |
| const OutputType * | GetOutput () const |
| OutputType * | GetOutput (DataObjectPointerArraySizeType idx) |
| const OutputType * | GetOutput (DataObjectPointerArraySizeType idx) const |
| virtual void | GraftOutput (OutputType *output) |
| Graft the specified BaseData onto this BaseDataSource's output. More... | |
| virtual void | GraftOutput (const DataObjectIdentifierType &key, OutputType *output) |
| Graft the specified base data object onto a named output. More... | |
| virtual void | GraftNthOutput (unsigned int idx, OutputType *output) |
| Graft the specified base data object onto this BaseDataSource's idx'th output. More... | |
| bool | Updating () const |
| Check whether the pipeline is currently executing. More... | |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::PointSetSource | |
| static Pointer | New () |
Protected Member Functions | |
| SurfaceToPointSetFilter () | |
| ~SurfaceToPointSetFilter () override | |
| void | GenerateData () override |
| Generate the output of this filter. Called in the update process of the pipeline. More... | |
| Protected Member Functions inherited from mitk::PointSetSource | |
| PointSetSource () | |
| ~PointSetSource () override | |
| Protected Member Functions inherited from mitk::BaseDataSource | |
| BaseDataSource () | |
| Constructor. More... | |
| ~BaseDataSource () override | |
| Destructor. More... | |
Protected Attributes | |
| mitk::Surface::Pointer | m_InputSurface |
| std::string | m_ErrorMessage |
Additional Inherited Members | |
| Public Types inherited from mitk::PointSetSource | |
| typedef PointSet | OutputType |
| typedef OutputType::Pointer | OutputTypePointer |
| Public Types inherited from mitk::BaseDataSource | |
| typedef BaseData | OutputType |
| Output data type. More... | |
| typedef itk::DataObject::DataObjectIdentifierType | DataObjectIdentifierType |
| Identifier type for named data objects. More... | |
| Static Protected Member Functions inherited from mitk::BaseDataSource | |
| static Pointer | New () |
Detailed Description
Convert a Surface into a PointSet without duplicate points.
This filter extracts all unique vertices from the input surface and produces a PointSet where each point appears exactly once (unlike the STL format which may contain duplicate vertices).
Definition at line 34 of file mitkSurfaceToPointSetFilter.h.
Constructor & Destructor Documentation
◆ SurfaceToPointSetFilter()
|
protected |
◆ ~SurfaceToPointSetFilter()
|
overrideprotected |
Member Function Documentation
◆ GenerateData()
|
overrideprotected |
Generate the output of this filter. Called in the update process of the pipeline.
◆ GetErrorMessage()
| std::string mitk::SurfaceToPointSetFilter::GetErrorMessage | ( | ) |
◆ mitkClassMacro()
| mitk::SurfaceToPointSetFilter::mitkClassMacro | ( | SurfaceToPointSetFilter | , |
| mitk::PointSetSource | |||
| ) |
◆ New()
|
static |
◆ SetInput()
| void mitk::SurfaceToPointSetFilter::SetInput | ( | mitk::Surface::Pointer | m_InputSurface | ) |
Member Data Documentation
◆ m_ErrorMessage
|
protected |
Definition at line 53 of file mitkSurfaceToPointSetFilter.h.
◆ m_InputSurface
|
protected |
Definition at line 52 of file mitkSurfaceToPointSetFilter.h.
The documentation for this class was generated from the following file:
