Superclass of all classes generating point sets (instances of class mitk::PointSet) as output. More...

#include <mitkPointSetSource.h>

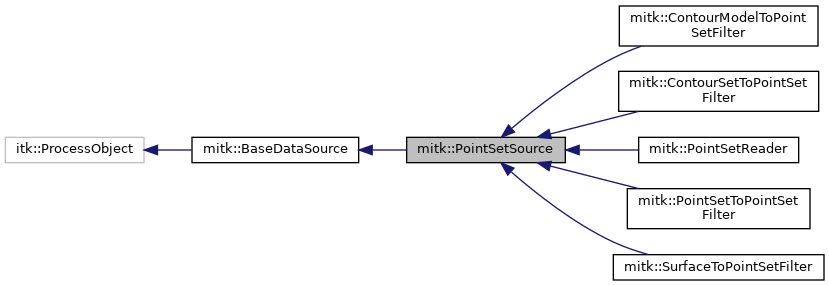

Inheritance diagram for mitk::PointSetSource:

[legend]

Collaboration diagram for mitk::PointSetSource:

Public Types
typedef PointSet	OutputType

typedef OutputType::Pointer	OutputTypePointer

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (PointSetSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Allocates a new output object and returns it. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
	Allocates a new output object by name. More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	PointSetSource ()

	~PointSetSource () override

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Superclass of all classes generating point sets (instances of class mitk::PointSet) as output.

In itk and vtk the generated result of a ProcessObject is only guaranteed to be up-to-date, when Update() of the ProcessObject or the generated DataObject is called immediately before access of the data stored in the DataObject.

See also: PointSet; BaseDataSource

Definition at line 34 of file mitkPointSetSource.h.

Member Typedef Documentation

◆ OutputType

typedef PointSet mitk::PointSetSource::OutputType

Definition at line 41 of file mitkPointSetSource.h.

◆ OutputTypePointer

typedef OutputType::Pointer mitk::PointSetSource::OutputTypePointer

Definition at line 43 of file mitkPointSetSource.h.

Constructor & Destructor Documentation

◆ PointSetSource()

mitk::PointSetSource::PointSetSource ( )

protected

◆ ~PointSetSource()

mitk::PointSetSource::~PointSetSource ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::PointSetSource::Clone ( ) const

◆ MakeOutput() [1/2]

itk::DataObject::Pointer mitk::PointSetSource::MakeOutput ( const DataObjectIdentifierType & name )

overridevirtual

Allocates a new output object by name.

This is a default implementation to make sure we have something. Once all the subclasses of ProcessObject provide an appropriate MakeOutput(), then ProcessObject::MakeOutput() can be made pure virtual.

Parameters

name	the identifier of the output for which an object should be created.

Returns: The newly created output object.

Implements mitk::BaseDataSource.

◆ MakeOutput() [2/2]

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer mitk::PointSetSource::MakeOutput ( DataObjectPointerArraySizeType idx )

overridevirtual

Allocates a new output object and returns it.

Currently the index idx is not evaluated.

Parameters

idx	the index of the output for which an object should be created.

Returns: The newly created output object.

Implements mitk::BaseDataSource.

◆ mitkClassMacro()

mitk::PointSetSource::mitkClassMacro	(	PointSetSource	,
		BaseDataSource
	)

◆ New()

static Pointer mitk::PointSetSource::New ( )

static

The documentation for this class was generated from the following file:

mitkPointSetSource.h
