A list of segmentation tasks. More...

#include <mitkSegmentationTaskList.h>

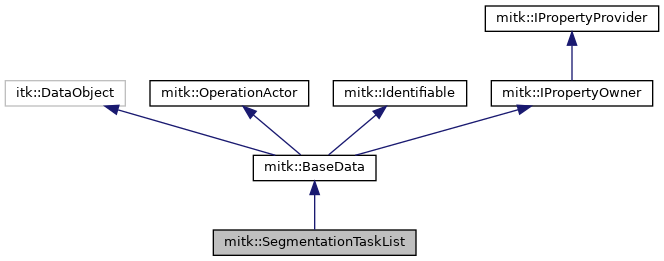

Inheritance diagram for mitk::SegmentationTaskList:

[legend]

Collaboration diagram for mitk::SegmentationTaskList:

[legend]

Classes
class	Task

Public Member Functions
	mitkClassMacro (SegmentationTaskList, BaseData) static Pointer New()

Pointer	Clone () const

bool	HasName (size_t index) const

std::string	GetName (size_t index) const

void	SetDefaultName (const std::string &value)

bool	HasDescription (size_t index) const

std::string	GetDescription (size_t index) const

void	SetDefaultDescription (const std::string &value)

bool	HasImage (size_t index) const

fs::path	GetImage (size_t index) const

void	SetDefaultImage (const fs::path &value)

bool	HasSegmentation (size_t index) const

fs::path	GetSegmentation (size_t index) const

void	SetDefaultSegmentation (const fs::path &value)

bool	HasLabelName (size_t index) const

std::string	GetLabelName (size_t index) const

void	SetDefaultLabelName (const std::string &value)

bool	HasLabelNameSuggestions (size_t index) const

fs::path	GetLabelNameSuggestions (size_t index) const

void	SetDefaultLabelNameSuggestions (const fs::path &value)

bool	HasPreset (size_t index) const

fs::path	GetPreset (size_t index) const

void	SetDefaultPreset (const fs::path &value)

bool	HasResult (size_t index) const

fs::path	GetResult (size_t index) const

void	SetDefaultResult (const fs::path &value)

bool	HasDynamic (size_t index) const

bool	GetDynamic (size_t index) const

void	SetDefaultDynamic (const bool &value)

bool	HasForm (size_t index) const

Task::Form	GetForm (size_t index) const

void	SetDefaultForm (const Task::Form &value)

bool	HasScene (size_t index) const

Task::Scene	GetScene (size_t index) const

void	SetDefaultScene (const Task::Scene &value)

size_t	GetNumberOfTasks () const
	Returns the number of tasks in the list. More...

size_t	AddTask (const Task &subtask)
	Adds a task to the list. More...

const Task *	GetTask (size_t index) const
	Returns a const pointer to the task at the given index. More...

Task *	GetTask (size_t index)
	Returns a mutable pointer to the task at the given index. More...

const Task &	GetDefaults () const
	Returns the default task settings. More...

void	SetDefaults (const Task &defaults)
	Sets the default task settings applied to tasks lacking explicit values. More...

bool	IsDone () const
	Returns whether all tasks in the list are done. More...

bool	IsDone (size_t index) const
	Returns whether the task at the given index is done. More...

fs::path	GetInputLocation () const
	Returns the file path from which this task list was loaded. More...

fs::path	GetBasePath () const
	Returns the base directory for resolving relative paths. More...

fs::path	GetAbsolutePath (const fs::path &path) const
	Resolves a possibly relative path against the base path. More...

fs::path	GetInterimPath (const fs::path &path) const
	Returns the interim (temporary) result path for the given path. More...

void	SaveTask (size_t index, const BaseData *segmentation, bool saveAsInterimResult=false)
	Saves the segmentation result for the task at the given index. More...

std::vector< Task >::const_iterator	begin () const
	Returns a const iterator to the first task. More...

std::vector< Task >::const_iterator	end () const
	Returns a const iterator past the last task. More...

std::vector< Task >::iterator	begin ()
	Returns an iterator to the first task. More...

std::vector< Task >::iterator	end ()
	Returns an iterator past the last task. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the RequestedRegion to the LargestPossibleRegion. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Determine whether the RequestedRegion is outside of the BufferedRegion. More...

bool	VerifyRequestedRegion () override
	Verify that the RequestedRegion is within the LargestPossibleRegion. More...

void	SetRequestedRegion (const itk::DataObject *) override
	Set the requested region from this data object to match the requested region of the data object passed in as a parameter. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

virtual void	Expand (unsigned int timeSteps)
	Expand the TimeGeometry to a number of time steps. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether the object contains data at the specified time step. More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Protected Member Functions
	mitkCloneMacro (Self) SegmentationTaskList()

	SegmentationTaskList (const Self &other)

	~SegmentationTaskList () override

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Additional Inherited Members
Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

A list of segmentation tasks.

See MITK Segmentation Task Lists for more information.

Definition at line 30 of file mitkSegmentationTaskList.h.

Constructor & Destructor Documentation

◆ SegmentationTaskList()

mitk::SegmentationTaskList::SegmentationTaskList ( const Self & other )

protected

◆ ~SegmentationTaskList()

mitk::SegmentationTaskList::~SegmentationTaskList ( )

overrideprotected

Member Function Documentation

◆ AddTask()

size_t mitk::SegmentationTaskList::AddTask ( const Task & subtask )

Adds a task to the list.

Parameters

[in] subtask The task to add.

Returns: The index of the newly added task.

◆ begin() [1/2]

std::vector<Task>::iterator mitk::SegmentationTaskList::begin ( )

Returns an iterator to the first task.

◆ begin() [2/2]

std::vector<Task>::const_iterator mitk::SegmentationTaskList::begin ( ) const

Returns a const iterator to the first task.

◆ Clone()

Pointer mitk::SegmentationTaskList::Clone ( ) const

◆ end() [1/2]

std::vector<Task>::iterator mitk::SegmentationTaskList::end ( )

Returns an iterator past the last task.

◆ end() [2/2]

std::vector<Task>::const_iterator mitk::SegmentationTaskList::end ( ) const

Returns a const iterator past the last task.

◆ GetAbsolutePath()

fs::path mitk::SegmentationTaskList::GetAbsolutePath ( const fs::path & path ) const

Resolves a possibly relative path against the base path.

Parameters

[in] path The path to resolve.

Returns: The absolute path.

◆ GetBasePath()

fs::path mitk::SegmentationTaskList::GetBasePath ( ) const

Returns the base directory for resolving relative paths.

◆ GetDefaults()

const Task& mitk::SegmentationTaskList::GetDefaults ( ) const

Returns the default task settings.

◆ GetDescription()

std::string mitk::SegmentationTaskList::GetDescription ( size_t index ) const

◆ GetDynamic()

bool mitk::SegmentationTaskList::GetDynamic ( size_t index ) const

◆ GetForm()

Task::Form mitk::SegmentationTaskList::GetForm ( size_t index ) const

◆ GetImage()

fs::path mitk::SegmentationTaskList::GetImage ( size_t index ) const

◆ GetInputLocation()

fs::path mitk::SegmentationTaskList::GetInputLocation ( ) const

Returns the file path from which this task list was loaded.

◆ GetInterimPath()

fs::path mitk::SegmentationTaskList::GetInterimPath ( const fs::path & path ) const

Returns the interim (temporary) result path for the given path.

Parameters

[in] path The original result path.

Returns: The interim path.

◆ GetLabelName()

std::string mitk::SegmentationTaskList::GetLabelName ( size_t index ) const

◆ GetLabelNameSuggestions()

fs::path mitk::SegmentationTaskList::GetLabelNameSuggestions ( size_t index ) const

◆ GetName()

std::string mitk::SegmentationTaskList::GetName ( size_t index ) const

◆ GetNumberOfTasks()

size_t mitk::SegmentationTaskList::GetNumberOfTasks ( ) const

Returns the number of tasks in the list.

◆ GetPreset()

fs::path mitk::SegmentationTaskList::GetPreset ( size_t index ) const

◆ GetResult()

fs::path mitk::SegmentationTaskList::GetResult ( size_t index ) const

◆ GetScene()

Task::Scene mitk::SegmentationTaskList::GetScene ( size_t index ) const

◆ GetSegmentation()

fs::path mitk::SegmentationTaskList::GetSegmentation ( size_t index ) const

◆ GetTask() [1/2]

Task* mitk::SegmentationTaskList::GetTask ( size_t index )

Returns a mutable pointer to the task at the given index.

Parameters

[in] index The task index.

Returns: Pointer to the task, or nullptr if index is out of range.

◆ GetTask() [2/2]

const Task* mitk::SegmentationTaskList::GetTask ( size_t index ) const

Returns a const pointer to the task at the given index.

Parameters

[in] index The task index.

Returns: Pointer to the task, or nullptr if index is out of range.

◆ HasDescription()

bool mitk::SegmentationTaskList::HasDescription ( size_t index ) const

◆ HasDynamic()

bool mitk::SegmentationTaskList::HasDynamic ( size_t index ) const

◆ HasForm()

bool mitk::SegmentationTaskList::HasForm ( size_t index ) const

◆ HasImage()

bool mitk::SegmentationTaskList::HasImage ( size_t index ) const

◆ HasLabelName()

bool mitk::SegmentationTaskList::HasLabelName ( size_t index ) const

◆ HasLabelNameSuggestions()

bool mitk::SegmentationTaskList::HasLabelNameSuggestions ( size_t index ) const

◆ HasName()

bool mitk::SegmentationTaskList::HasName ( size_t index ) const

◆ HasPreset()

bool mitk::SegmentationTaskList::HasPreset ( size_t index ) const

◆ HasResult()

bool mitk::SegmentationTaskList::HasResult ( size_t index ) const

◆ HasScene()

bool mitk::SegmentationTaskList::HasScene ( size_t index ) const

◆ HasSegmentation()

bool mitk::SegmentationTaskList::HasSegmentation ( size_t index ) const

◆ IsDone() [1/2]

bool mitk::SegmentationTaskList::IsDone ( ) const

Returns whether all tasks in the list are done.

◆ IsDone() [2/2]

bool mitk::SegmentationTaskList::IsDone ( size_t index ) const

Returns whether the task at the given index is done.

Parameters

[in] index The task index.

◆ mitkClassMacro()

mitk::SegmentationTaskList::mitkClassMacro	(	SegmentationTaskList	,
		BaseData
	)

◆ mitkCloneMacro()

mitk::SegmentationTaskList::mitkCloneMacro ( Self )

protected

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::SegmentationTaskList::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Determine whether the RequestedRegion is outside of the BufferedRegion.

This method returns true if the RequestedRegion is outside the BufferedRegion (true if at least one pixel is outside). This is used by the pipeline mechanism to determine whether a filter needs to re-execute in order to satisfy the current request. If the current RequestedRegion is already inside the BufferedRegion from the previous execution (and the current filter is up to date), then a given filter does not need to re-execute.

Returns: True if the requested region is outside the buffered region.

Implements mitk::BaseData.

◆ SaveTask()

void mitk::SegmentationTaskList::SaveTask	(	size_t	index,
		const BaseData *	segmentation,
		bool	saveAsInterimResult = `false`
	)

Saves the segmentation result for the task at the given index.

Parameters

[in]	index	The task index.
[in]	segmentation	The segmentation data to save.
[in]	saveAsInterimResult	If true, saves to an interim location instead of the final result path.

◆ SetDefaultDescription()

void mitk::SegmentationTaskList::SetDefaultDescription ( const std::string & value )

◆ SetDefaultDynamic()

void mitk::SegmentationTaskList::SetDefaultDynamic ( const bool & value )

◆ SetDefaultForm()

void mitk::SegmentationTaskList::SetDefaultForm ( const Task::Form & value )

◆ SetDefaultImage()

void mitk::SegmentationTaskList::SetDefaultImage ( const fs::path & value )

◆ SetDefaultLabelName()

void mitk::SegmentationTaskList::SetDefaultLabelName ( const std::string & value )

◆ SetDefaultLabelNameSuggestions()

void mitk::SegmentationTaskList::SetDefaultLabelNameSuggestions ( const fs::path & value )

◆ SetDefaultName()

void mitk::SegmentationTaskList::SetDefaultName ( const std::string & value )

◆ SetDefaultPreset()

void mitk::SegmentationTaskList::SetDefaultPreset ( const fs::path & value )

◆ SetDefaultResult()

void mitk::SegmentationTaskList::SetDefaultResult ( const fs::path & value )

◆ SetDefaults()

void mitk::SegmentationTaskList::SetDefaults ( const Task & defaults )

Sets the default task settings applied to tasks lacking explicit values.

Parameters

[in] defaults The default settings.

◆ SetDefaultScene()

void mitk::SegmentationTaskList::SetDefaultScene ( const Task::Scene & value )

◆ SetDefaultSegmentation()

void mitk::SegmentationTaskList::SetDefaultSegmentation ( const fs::path & value )

◆ SetRequestedRegion()

void mitk::SegmentationTaskList::SetRequestedRegion ( const itk::DataObject * data )

overridevirtual

Set the requested region from this data object to match the requested region of the data object passed in as a parameter.

This method is implemented in the concrete subclasses of BaseData.

Parameters

[in] data The data object whose requested region will be matched.

Implements mitk::BaseData.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::SegmentationTaskList::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Set the RequestedRegion to the LargestPossibleRegion.

This forces a filter to produce all of the output in one execution (i.e., not streaming) on the next call to Update().

Implements mitk::BaseData.

◆ VerifyRequestedRegion()

bool mitk::SegmentationTaskList::VerifyRequestedRegion ( )

overridevirtual

Verify that the RequestedRegion is within the LargestPossibleRegion.

If the RequestedRegion is not within the LargestPossibleRegion, then the filter cannot possibly satisfy the request. This method returns true if the request can be satisfied (even if it will be necessary to process the entire LargestPossibleRegion) and returns false otherwise. Used by PropagateRequestedRegion(), which throws an InvalidRequestedRegionError exception if the requested region is not within the LargestPossibleRegion.

Returns: True if the requested region is within the largest possible region.

Implements mitk::BaseData.

The documentation for this class was generated from the following file:

mitkSegmentationTaskList.h

Classes

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SegmentationTaskList()

◆ ~SegmentationTaskList()

Member Function Documentation

◆ AddTask()

◆ begin() [1/2]

◆ begin() [2/2]

◆ Clone()

◆ end() [1/2]

◆ end() [2/2]

◆ GetAbsolutePath()

◆ GetBasePath()

◆ GetDefaults()

◆ GetDescription()

◆ GetDynamic()

◆ GetForm()

◆ GetImage()

◆ GetInputLocation()

◆ GetInterimPath()

◆ GetLabelName()

◆ GetLabelNameSuggestions()

◆ GetName()

◆ GetNumberOfTasks()

◆ GetPreset()

◆ GetResult()

◆ GetScene()

◆ GetSegmentation()

◆ GetTask() [1/2]

◆ GetTask() [2/2]

◆ HasDescription()

◆ HasDynamic()

◆ HasForm()

◆ HasImage()

◆ HasLabelName()

◆ HasLabelNameSuggestions()

◆ HasName()

◆ HasPreset()

◆ HasResult()

◆ HasScene()

◆ HasSegmentation()

◆ IsDone() [1/2]

◆ IsDone() [2/2]

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SaveTask()

◆ SetDefaultDescription()

◆ SetDefaultDynamic()

◆ SetDefaultForm()

◆ SetDefaultImage()

◆ SetDefaultLabelName()

◆ SetDefaultLabelNameSuggestions()

◆ SetDefaultName()

◆ SetDefaultPreset()

◆ SetDefaultResult()

◆ SetDefaults()

◆ SetDefaultScene()

◆ SetDefaultSegmentation()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ VerifyRequestedRegion()
