mitk::SceneReaderV1 Class Reference

Version 1 implementation of the MITK scene reader. More...

#include <mitkSceneReaderV1.h>

Inheritance diagram for mitk::SceneReaderV1:

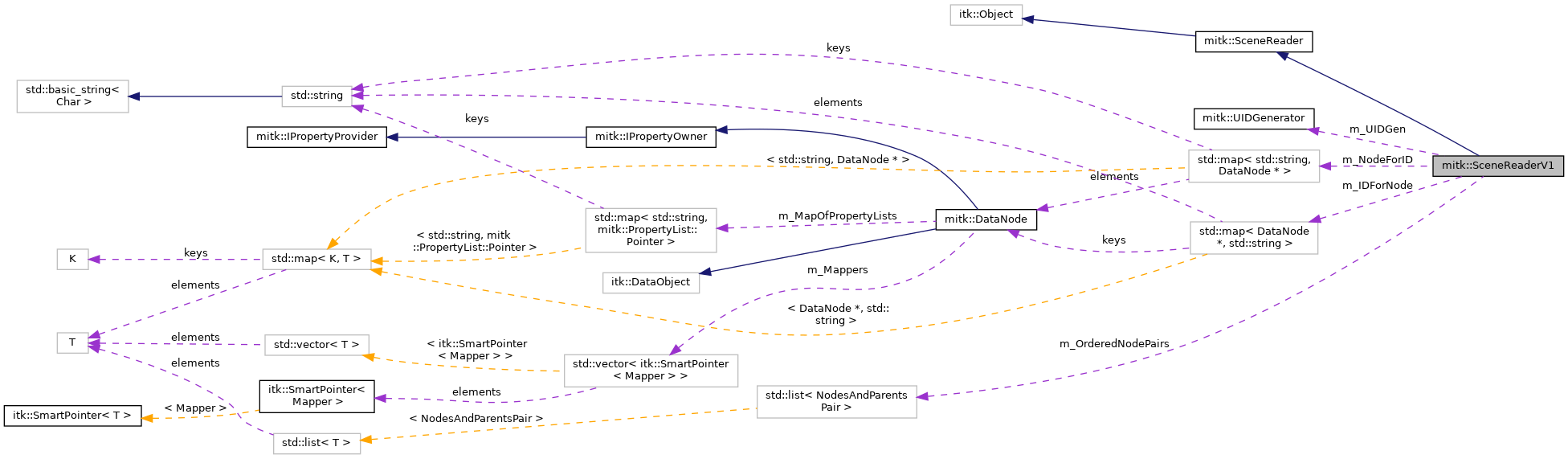

Collaboration diagram for mitk::SceneReaderV1:

Public Member Functions
	mitkClassMacro (SceneReaderV1, SceneReader)
Pointer	Clone () const
bool	LoadScene (tinyxml2::XMLDocument &document, const std::string &workingDirectory, DataStorage *storage) override
	Load a scene from an XML document into the given DataStorage. More...
Public Member Functions inherited from mitk::SceneReader
	mitkClassMacroItkParent (SceneReader, itk::Object)
Pointer	Clone () const

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::SceneReader
static Pointer	New ()

Protected Types
typedef std::pair< DataNode::Pointer, std::list< std::string > >	NodesAndParentsPair
typedef std::list< NodesAndParentsPair >	OrderedNodesList
typedef std::map< std::string, DataNode * >	IDToNodeMappingType
typedef std::map< DataNode *, std::string >	NodeToIDMappingType

Protected Member Functions
DataNode::Pointer	LoadBaseDataFromDataTag (const tinyxml2::XMLElement *dataElement, const PropertyList *properties, const std::string &workingDirectory, bool &error)
	tries to create one DataNode from a given XML <node> element More...
bool	DecorateNodeWithProperties (DataNode *node, const tinyxml2::XMLElement *nodeElement, const std::string &workingDirectory)
	reads all the properties from the XML document and recreates them in node More...
void	ClearNodePropertyListWithExceptions (DataNode &node, PropertyList &propertyList)
	Clear a default property list and handle some exceptions. More...

Protected Attributes
OrderedNodesList	m_OrderedNodePairs
IDToNodeMappingType	m_NodeForID
NodeToIDMappingType	m_IDForNode
UIDGenerator	m_UIDGen

Detailed Description

Version 1 implementation of the MITK scene reader.

Reads MITK scene files (version 1 format) from an XML document and populates a DataStorage with the deserialized nodes, data, and properties.

Definition at line 32 of file mitkSceneReaderV1.h.

Member Typedef Documentation

IDToNodeMappingType

typedef std::map<std::string, DataNode *> mitk::SceneReaderV1::IDToNodeMappingType

protected

Definition at line 80 of file mitkSceneReaderV1.h.

NodesAndParentsPair

typedef std::pair<DataNode::Pointer, std::list<std::string> > mitk::SceneReaderV1::NodesAndParentsPair

protected

Definition at line 78 of file mitkSceneReaderV1.h.

NodeToIDMappingType

typedef std::map<DataNode *, std::string> mitk::SceneReaderV1::NodeToIDMappingType

protected

Definition at line 81 of file mitkSceneReaderV1.h.

OrderedNodesList

typedef std::list<NodesAndParentsPair> mitk::SceneReaderV1::OrderedNodesList

protected

Definition at line 79 of file mitkSceneReaderV1.h.

Member Function Documentation

ClearNodePropertyListWithExceptions()

void mitk::SceneReaderV1::ClearNodePropertyListWithExceptions ( DataNode &  node, PropertyList &  propertyList  )

protected

Clear a default property list and handle some exceptions.

Called after assigning a BaseData object to a fresh DataNode via SetData(). This call to SetData() would create default properties that have not been there when saving the scene. Since they can produce problems, we clear the list and use only those properties that we read from the scene file.

This method also handles some exceptions for backwards compatibility. Those exceptions are documented directly in the code of the method.

Clone()

Pointer mitk::SceneReaderV1::Clone

(

)

const

DecorateNodeWithProperties()

bool mitk::SceneReaderV1::DecorateNodeWithProperties ( DataNode *  node, const tinyxml2::XMLElement *  nodeElement, const std::string &  workingDirectory  )

protected

reads all the properties from the XML document and recreates them in node

LoadBaseDataFromDataTag()

DataNode::Pointer mitk::SceneReaderV1::LoadBaseDataFromDataTag ( const tinyxml2::XMLElement *  dataElement, const PropertyList *  properties, const std::string &  workingDirectory, bool &  error  )

protected

tries to create one DataNode from a given XML <node> element

LoadScene()

bool mitk::SceneReaderV1::LoadScene ( tinyxml2::XMLDocument &  document, const std::string &  workingDirectory, DataStorage *  storage  )

overridevirtual

Load a scene from an XML document into the given DataStorage.

Parameters

document	The XML document containing the scene definition.
workingDirectory	The directory containing serialized data files.
storage	The DataStorage to populate with loaded nodes.

Returns

true if the scene was loaded successfully.

Reimplemented from mitk::SceneReader.

mitkClassMacro()

mitk::SceneReaderV1::mitkClassMacro	(	SceneReaderV1	,
		SceneReader
	)

New()

static Pointer mitk::SceneReaderV1::New ( )

static

Member Data Documentation

m_IDForNode

NodeToIDMappingType mitk::SceneReaderV1::m_IDForNode

protected

Definition at line 85 of file mitkSceneReaderV1.h.

m_NodeForID

IDToNodeMappingType mitk::SceneReaderV1::m_NodeForID

protected

Definition at line 84 of file mitkSceneReaderV1.h.

m_OrderedNodePairs

OrderedNodesList mitk::SceneReaderV1::m_OrderedNodePairs

protected

Definition at line 83 of file mitkSceneReaderV1.h.

m_UIDGen

UIDGenerator mitk::SceneReaderV1::m_UIDGen

protected

Definition at line 87 of file mitkSceneReaderV1.h.

---

The documentation for this class was generated from the following file:

• mitkSceneReaderV1.h
